OpenRocket Visualizer

A 3d viewer for OpenRocket files

THIS IS A WORK IN PROGRESS

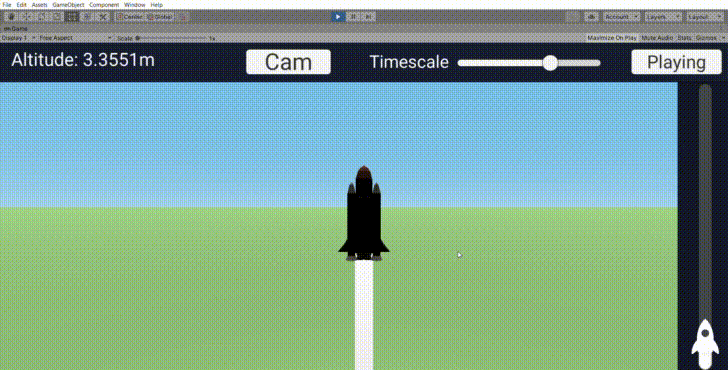

gif pic

View your OpenRocket Simulations in 3D.

Modulate things like:

  • the Rocket Model
  • The Timescale
  • Position in-flight
  • The Setting the time of day, location, etc

Installation

Get the latest release from the "Releases" Tab.

Currently only windows is available.

Unzip the file, and run the .exe

Usage

This program's point revolves around OpenRocket, so lets start there.

To use the program, you must export your Simulation Data in proper format.

click

First of all click on one of your Sims, it will bring up this window:

Widnow

Click on the "Simulate & Plot" Button. This will bring up another window:

Window

Click on the "Export data" Tab.

This will bring up the window we need. First of all, ensure "Field Seperator String", is a ",".

Then, we must select the data to Export, select the following, in order:

  1. Time
  2. Altitude
  3. Position East of Launch
  4. Position North of Launch
  5. Roll Rate
  6. Pitch Rate
  7. Yaw Rate

Then click the "Export" button in the lower right corner.

Choose anywhere to place the file, just remember its path.

Now you can open the Visulizer, and you will be presented with the menu.

eee

Here you can choose settings and get a preview of the model you choose.

You can begin by setting the coordinates of your "scene", this is how you set the destination of where-ever you want to simulate your rocket. You can also change some other things, changing the time of day, and the model of your rocket.

More importantly though, there is a input field for the path of your simulation. Enter the path of your simulation export.

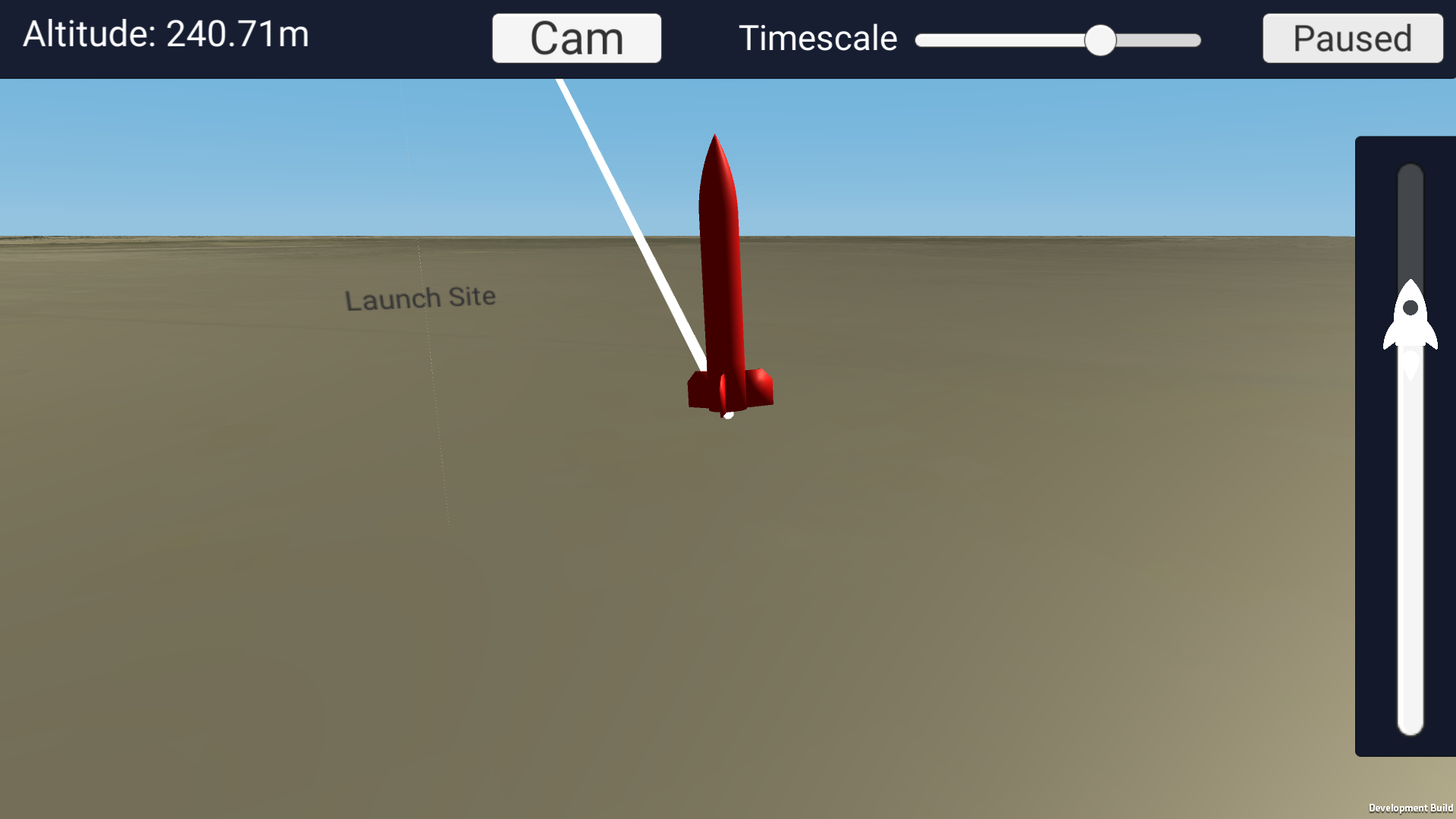

Now, click "Launch!" and see a visualization of your model.
