Introduction
In this part we'll start going over the game itself. First we'll go over an overview of how the game is structured in terms of gameplay, then we'll focus on a few basics that are common to all parts of the game, like its pixelated look, the camera, as well as the physics simulation. After that we'll go over basic player movement and lastly we'll take a look at garbage collection and how we should look out for possible object leaks.
Gameplay Structure
The game itself is divided in only 3 different Rooms: Stage, Console and SkillTree.
The Stage room is where all the actual gameplay will take place and it will have objects such as the player, enemies, projectiles, resources, powerups and so on. The gameplay is very similar to that of Bit Blaster XL and is actually quite simple. I chose something this simple because it would allow me to focus on the other aspect of the game (the huge skill tree) more thoroughly than if the gameplay was more complicated.
The Console room is where all the "menu" kind of stuff happens: changing sound and video settings, seeing achievements, choosing which ship you want to play with, accessing the skill tree, and so on. Instead of creating various different menus it makes more sense for a game that has this sort of computery look to it (also known as lazy programmer art xD) to go for this, since the console emulates a terminal and the idea is that you (the player) are just playing the game through some terminal somewhere.
The SkillTree room is where all the passive skills can be acquired. In the Stage room you can get SP (skill points) that spawn randomly or after you kill enemies, and then once you die you can use those skill points to buy passive skills. The idea is to try something massive like Path of Exile's Passive Skill Tree and I think I was mildly successful at that. The skill tree I built has between 600-800 nodes and I think that's good enough.
I'll go over the creation of each of those rooms in detail, including all skills in the skill tree. However, I highly encourage you to deviate from what I'm writing as much as possible. A lot of the decisions I'm making when it comes to gameplay are pretty much just my own preference, and you might prefer something different.
For instance, instead of a huge skill tree you could prefer a huge class system that allows tons of combinations like Tree of Savior's. So instead of building the passive skill tree like I am, you could follow along on the implementation of all passive skills, but then build your own class system that uses those passive skills instead of building a skill tree.
This is just one idea and there are many different areas in which you could deviate in a similar way. One of the reasons I'm writing these tutorials with exercises is to encourage people to engage with the material by themselves instead of just following along because I think that that way people learn better. So whenever you see an opportunity to do something differently I highly recommend trying to do it.
Game Size
Now let's start with the Stage. The first thing we want (and this will be true for all rooms, not just the Stage) is for it to have a sort low resolution pixelated look to it. For instance, look at this circle:

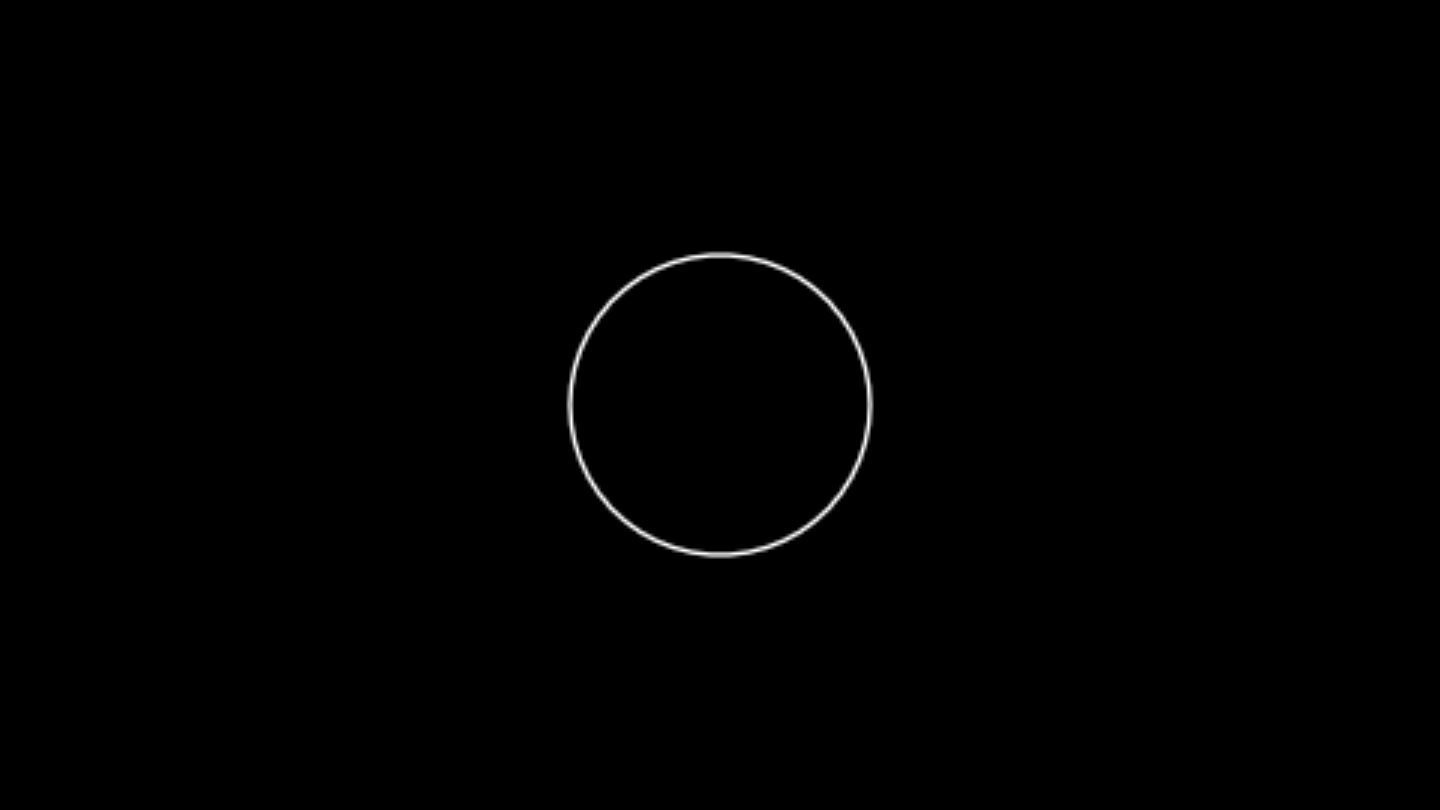

And then look at this:
I want the second one. The reason for this is purely aesthetic and my own personal preference. There are a number of games that don't go for the pixelated look but still use simple shapes and colors to get a really nice look, like this one. So it just depends on which style you prefer and how much you can polish it. But for this game I'll go with the pixelated look.
The way to achieve that is by defining a very small default resolution first, preferably something that scales up exactly to a target resolution of 1920x1080. For this game I'll go with 480x270, since that's the target 1920x1080 divided by 4. To set the game's size to be this by default we need to use the file conf.lua, which as I explained in a previous article is a configuration file that defines a bunch of default settings about a LÖVE project, including the resolution that the window will start with.
On top of that, in that file I also define two global variables gw and gh, corresponding to width and height of the base resolution, and sx and sy ones, corresponding to the scale that should be applied to the base resolution. The conf.lua file should be placed in the same folder as the main.lua file and this is what it should look like:
gw = 480
gh = 270
sx = 1
sy = 1
function love.conf(t)
t.identity = nil -- The name of the save directory (string)
t.version = "0.10.2" -- The LÖVE version this game was made for (string)
t.console = false -- Attach a console (boolean, Windows only)
t.window.title = "BYTEPATH" -- The window title (string)
t.window.icon = nil -- Filepath to an image to use as the window's icon (string)
t.window.width = gw -- The window width (number)
t.window.height = gh -- The window height (number)
t.window.borderless = false -- Remove all border visuals from the window (boolean)
t.window.resizable = true -- Let the window be user-resizable (boolean)
t.window.minwidth = 1 -- Minimum window width if the window is resizable (number)
t.window.minheight = 1 -- Minimum window height if the window is resizable (number)
t.window.fullscreen = false -- Enable fullscreen (boolean)
t.window.fullscreentype = "exclusive" -- Standard fullscreen or desktop fullscreen mode (string)
t.window.vsync = true -- Enable vertical sync (boolean)
t.window.fsaa = 0 -- The number of samples to use with multi-sampled antialiasing (number)
t.window.display = 1 -- Index of the monitor to show the window in (number)
t.window.highdpi = false -- Enable high-dpi mode for the window on a Retina display (boolean)
t.window.srgb = false -- Enable sRGB gamma correction when drawing to the screen (boolean)
t.window.x = nil -- The x-coordinate of the window's position in the specified display (number)
t.window.y = nil -- The y-coordinate of the window's position in the specified display (number)
t.modules.audio = true -- Enable the audio module (boolean)
t.modules.event = true -- Enable the event module (boolean)
t.modules.graphics = true -- Enable the graphics module (boolean)
t.modules.image = true -- Enable the image module (boolean)
t.modules.joystick = true -- Enable the joystick module (boolean)
t.modules.keyboard = true -- Enable the keyboard module (boolean)
t.modules.math = true -- Enable the math module (boolean)
t.modules.mouse = true -- Enable the mouse module (boolean)
t.modules.physics = true -- Enable the physics module (boolean)
t.modules.sound = true -- Enable the sound module (boolean)
t.modules.system = true -- Enable the system module (boolean)
t.modules.timer = true -- Enable the timer module (boolean), Disabling it will result 0 delta time in love.update
t.modules.window = true -- Enable the window module (boolean)
t.modules.thread = true -- Enable the thread module (boolean)
endIf you run the game now you should see a smaller window than you had before.
Now, to achieve the pixelated look when we scale the window up we need to do some extra work. If you were to draw a circle at the center of the screen (gw/2, gh/2) right now, like this:
And scale the screen up directly by calling love.window.setMode with width 3*gw and height 3*gh, for instance, you'd get something like this:
And as you can see, the circle didn't scale up with the screen and it just stayed a small circle. And it also didn't stay centered on the screen, because gw/2 and gh/2 isn't the center of the screen anymore when it's scaled up by 3. What we want is to be able to draw a small circle at the base resolution of 480x270, but then when the screen is scaled up to fit a normal monitor, the circle is also scaled up proportionally (and in a pixelated manner) and its position also remains proportionally the same. The easiest way to do that is by using a Canvas, which also goes by the name of framebuffer or render target in other engines. First, we'll create a canvas with the base resolution in the constructor of the Stage class:
function Stage:new()
self.area = Area(self)
self.main_canvas = love.graphics.newCanvas(gw, gh)
endThis creates a canvas with size 480x270 that we can draw to:
function Stage:draw()
love.graphics.setCanvas(self.main_canvas)
love.graphics.clear()
love.graphics.circle('line', gw/2, gh/2, 50)
self.area:draw()
love.graphics.setCanvas()
endThe way the canvas is being drawn to is simply following the example on the Canvas page. According to the page, when we want to draw something to a canvas we need to call love.graphics.setCanvas, which will redirect all drawing operations to the currently set canvas. Then, we call love.graphics.clear, which will clear the contents of this canvas on this frame, since it was also drawn to in the last frame and every frame we want to draw everything from scratch. Then after that we draw what we want to draw and use setCanvas again, but passing nothing this time, so that our target canvas is unset and drawing operations aren't redirected to it anymore.
If we stopped here then nothing would appear on the screen. This happens because everything we drew went to the canvas but we're not actually drawing the canvas itself. So now we need to draw that canvas itself to the screen, and that looks like this:
function Stage:draw()
love.graphics.setCanvas(self.main_canvas)
love.graphics.clear()
love.graphics.circle('line', gw/2, gh/2, 50)
self.area:draw()
love.graphics.setCanvas()
love.graphics.setColor(255, 255, 255, 255)
love.graphics.setBlendMode('alpha', 'premultiplied')
love.graphics.draw(self.main_canvas, 0, 0, 0, sx, sy)
love.graphics.setBlendMode('alpha')
endWe simply use love.graphics.draw to draw the canvas to the screen, and then we also wrap that with some love.graphics.setBlendMode calls that according to the Canvas page on the LÖVE wiki are used to prevent improper blending. If you run this now you should see the circle being drawn.
Note that we used sx and sy to scale the Canvas up. Those variables are set to 1 right now, but if you change those variables to 3, for instance, this is what would happen:
You can't see anything! But this is the because the circle that was now in the middle of the 480x270 canvas, is now in the middle of a 1440x810 canvas. Since the screen itself is only 480x270, you can't see the entire Canvas that is bigger than the screen. To fix this we can create a function named resize in main.lua that will change both sx and sy as well as the screen size itself whenever it's called:
function resize(s)
love.window.setMode(s*gw, s*gh)
sx, sy = s, s
endAnd so if we call resize(3) in love.load, this should happen:
And this is roughly what we wanted. There's only one problem though: the circle looks kinda blurry instead of being properly pixelated.
The reason for this is that whenever things are scaled up or down in LÖVE, they use a FilterMode and this filter mode is set to 'linear' by default. Since we want the game to have a pixelated look we should change this to 'nearest'. Calling love.graphics.setDefaultFilter with the 'nearest' argument at the start of love.load should fix the issue. Another thing to do is to set the LineStyle to 'rough'. Because it's set to 'smooth' by default, LÖVE primitives will be drawn with some aliasing to them, and this doesn't work for a pixelated look. If you do all that and run the code again, it should look like this:
And it looks crispy and pixelated like we wanted it to! Most importantly, now we can use one resolution to build the entire game around. If we want to spawn an object at the center of the screen then we can say that it's x, y position should be gw/2, gh/2, and no matter what the resolution that we need to serve, that object will always be at the center of the screen. This significantly simplifies the process and it means we only have to worry about how the game looks and how things are distributed around the screen once.
Game Size Exercises
65. Take a look at Steam's Hardware Survey in the primary resolution section. The most popular resolution, used by almost half the users on Steam is 1920x1080. This game's base resolution neatly multiplies to that. But the second most popular resolution is 1366x768. 480x270 does not multiply into that at all. What are some options available for dealing with odd resolutions once the game is fullscreened into the player's monitor?
66. Pick a game you own that uses the same or a similar technique to what we're doing here (scaling a small base resolution up). Usually games that use pixel art will do that. What is that game's base resolution? How does the game deal with odd resolutions that don't fit neatly into its base resolution? Change the resolution of your desktop and run the game various times with different resolutions to see what changes and how it handles the variance.
Camera
All three rooms will make use of a camera so it makes sense to go through it now. From the second article in this series we used a library named hump for timers. This library also has a useful camera module that we'll also use. However, I use a slightly modified version of it that also has screen shake functionality. You can download the files here. Place the camera.lua file directory of the hump library (and overwrite the already existing camera.lua) and then require the camera module in main.lua. And place the Shake.lua file in the objects folder.
(Additionally, you can also use this library I wrote which has all this functionality already. I wrote this library after I wrote the entire tutorial, so the tutorial will go on as if the library didn't exist. If you do choose to use this library then you can follow along on the tutorial but sort of translating things to use the functions in this library instead.)
One function you'll need after adding the camera is this:
function random(min, max)
local min, max = min or 0, max or 1
return (min > max and (love.math.random()*(min - max) + max)) or (love.math.random()*(max - min) + min)
endThis function will allow you to get a random number between any two numbers. It's necessary because the Shake.lua file uses it. After defining that function in utils.lua try something like this:
function love.load()
...
camera = Camera()
input:bind('f3', function() camera:shake(4, 60, 1) end)
...
end
function love.update(dt)
...
camera:update(dt)
...
endAnd then on the Stage class:
function Stage:draw()
love.graphics.setCanvas(self.main_canvas)
love.graphics.clear()
camera:attach(0, 0, gw, gh)
love.graphics.circle('line', gw/2, gh/2, 50)
self.area:draw()
camera:detach()
love.graphics.setCanvas()
love.graphics.setColor(255, 255, 255, 255)
love.graphics.setBlendMode('alpha', 'premultiplied')
love.graphics.draw(self.main_canvas, 0, 0, 0, sx, sy)
love.graphics.setBlendMode('alpha')

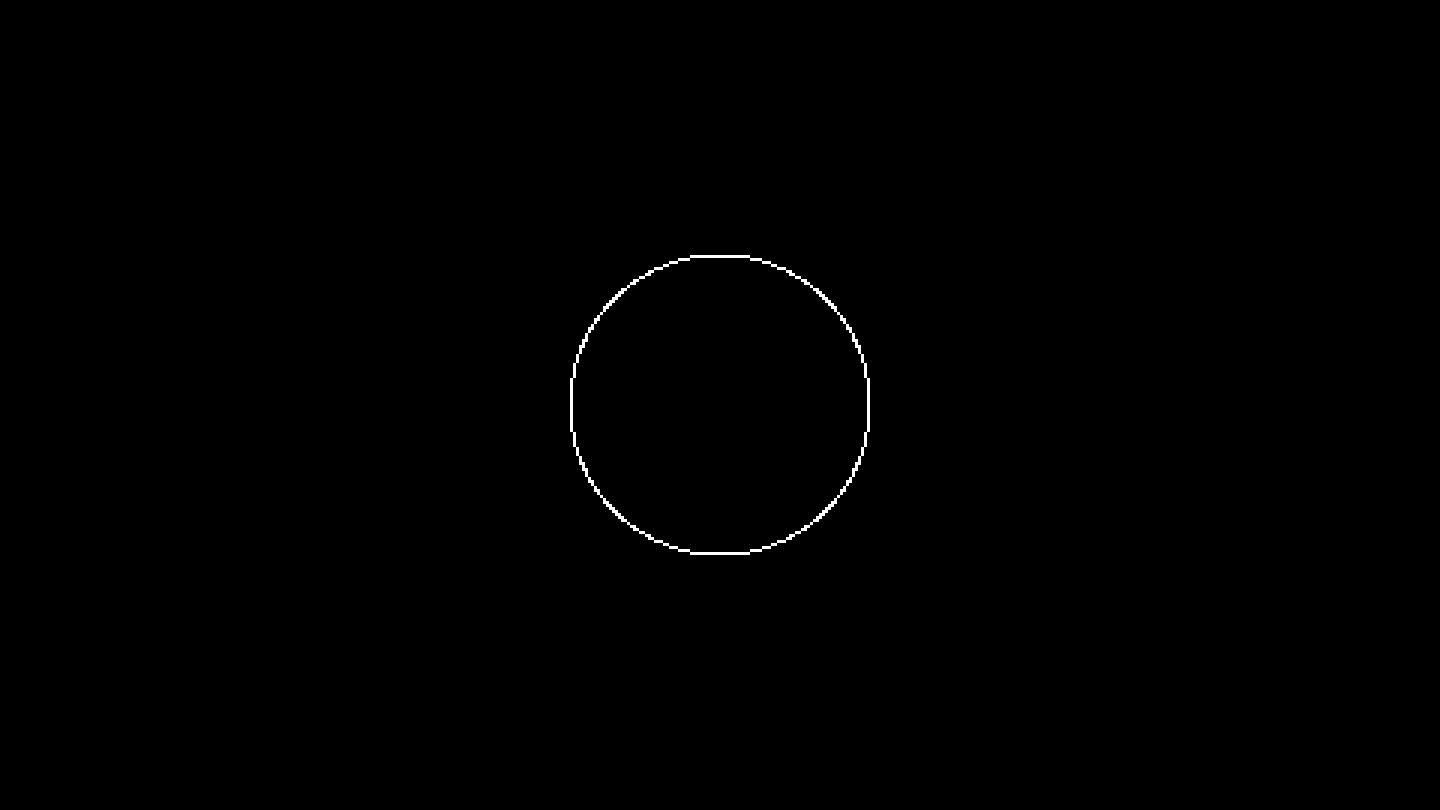

endAnd you'll see that the screen shakes like this when you press f3:
The shake function is based on the one described on this article and it takes in an amplitude (in pixels), a frequency and a duration. The screen will shake with a decay, starting from the amplitude, for duration seconds with a certain frequency. Higher frequencies means that the screen will oscillate more violently between extremes (amplitude, -amplitude), while lower frequencies will do the contrary.

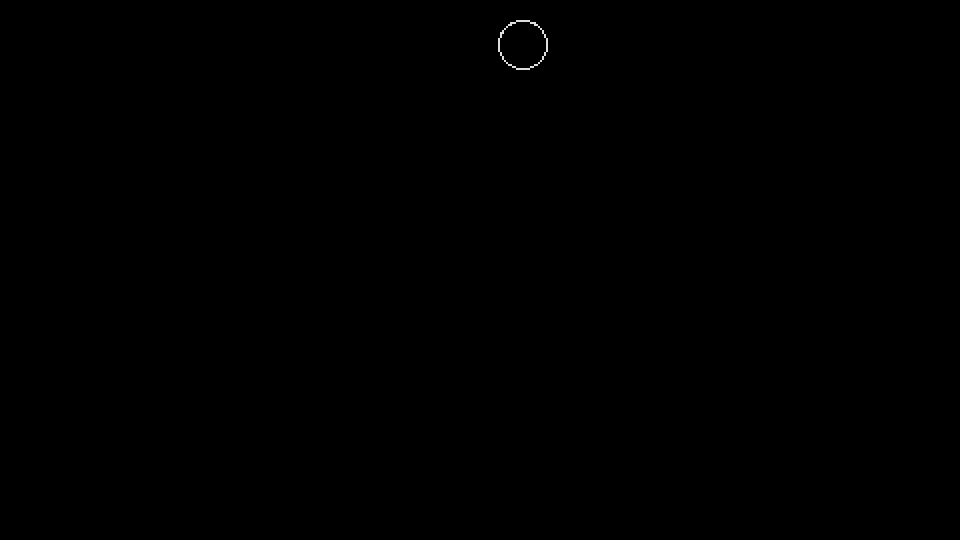

Another important thing to notice about the camera is that it's not anchored to a certain spot right now, and so when it shakes it will be thrown in all directions, making it be positioned elsewhere by the time the shaking ends, as you could see in the previous gif.
One way to fix this is to center it and this can be achieved with the camera:lockPosition function. In the modified version of the camera module I changed all camera movement functions to take in a dt argument first. And so that would look like this:
function Stage:update(dt)
camera.smoother = Camera.smooth.damped(5)
camera:lockPosition(dt, gw/2, gh/2)
self.area:update(dt)
endThe camera smoother is set to damped with a value of 5. This was reached through trial and error but basically it makes the camera focus on the target point in a smooth and nice way. And the reason I placed this code inside the Stage room is that right now we're working with the Stage room and that room happens to be the one where the camera will need to be centered in the middle and never really move (other than screen shakes). And so that results in this:
We will use a single global camera for the entire game since there's no real need to instantiate a separate camera for each room. The Stage room will not use the camera in any way other than screen shakes, so that's where I'll stop for now. Both the Console and SkillTree rooms will use the camera more extensively but we'll get to that when we get to it.
Player Physics
Now we have everything needed to start with the actual game and we'll start with the Player object. Create a new file in the objects folder named Player.lua that looks like this:
Player = GameObject:extend()
function Player:new(area, x, y, opts)
Player.super.new(self, area, x, y, opts)
end
function Player:update(dt)
Player.super.update(self, dt)
end
function Player:draw()
endThis is the default way a new game object class in the game should be created. All of them will inherit from GameObject and will have the same structure to its constructor, update and draw functions. Now we can instantiate this Player object in the Stage room like this:
function Stage:new()
...
self.area:addGameObject('Player', gw/2, gh/2)
endTo test that the instantiation worked and that the Player object is being updated and drawn by the Area, we can simply have it draw a circle in its position:
function Player:draw()
love.graphics.circle('line', self.x, self.y, 25)
endAnd that should give you a circle at the center of the screen. It's interesting to note that the addGameObject call returns the created object, so we could keep a reference to the player inside Stage's self.player, and then if we wanted we could trigger the Player object's death with a keybind:
function Stage:new()
...
self.player = self.area:addGameObject('Player', gw/2, gh/2)
input:bind('f3', function() self.player.dead = true end)
endAnd if you press the f3 key then the Player object should be killed, which means that the circle will stop being drawn. This happens as a result of how we set up our Area object code from the previous article. It's also important to note that if you decide to hold references returned by addGameObject like this, if you don't set the variable holding the reference to nil that object will never be collected. And so it's important to keep in mind to always nil references (in this case by saying self.player = nil) if you want an object to truly be removed from memory (on top of settings its dead attribute to true).
Now for the physics. The Player (as well as enemies, projectiles and various resources) will be a physics objects. I'll use LÖVE's box2d integration for this, but this is something that is genuinely not necessary for this game, since it benefits in no way from using a full physics engine like box2d. The reason I'm using it is because I'm used to it. But I highly recommend you to try either rolling you own collision routines (which for a game like this is very easy to do), or using a library that handles that for you.
What I'll use and what the tutorial will follow is a library called windfield that I created which makes using box2d with LÖVE a lot easier than it would otherwise be. Other libraries that also handle collisions in LÖVE are HardonCollider or bump.lua.
I highly recommend for you to either do collisions on your own or use one of these two other libraries instead of the one the tutorial will follow. This is because this will make you exercise a bunch of abilities that you'll constantly have to exercise, like picking between various distinct solutions and seeing which one fits your needs and the way you think best, as well as coming up with your own solutions to problems that will likely arise instead of just following a tutorial.
To repeat this again, one of the main reasons why the tutorial has exercises is so that people actively engage with the material so that they actually learn, and this is another opportunity to do that. If you just follow the tutorial along and don't learn to confront things you don't know by yourself then you'll never truly learn. So I seriously recommend deviating from the tutorial here and doing the physics/collision part of the game on your own.
In any case, you can download the windfield library and require it in the main.lua file. According to its documentation there are the two main concepts of a World and a Collider. The World is the physics world that the simulation happens in, and the Colliders are the physics objects that are being simulated inside that world. So our game will need to have a physics world like and the player will be a collider inside that world.
We'll create a world inside the Area class by adding an addPhysicsWorld call:
function Area:addPhysicsWorld()
self.world = Physics.newWorld(0, 0, true)
endThis will set the area's .world attribute to contain the physics world. We also need to update that world (and optionally draw it for debugging purposes) if it exists:
function Area:update(dt)
if self.world then self.world:update(dt) end
for i = #self.game_objects, 1, -1 do
...
end
end
function Area:draw()
if self.world then self.world:draw() end
for _, game_object in ipairs(self.game_objects) do game_object:draw() end
endWe update the physics world before updating all the game objects because we want to use up to date information for our game objects, and that will happen only after the physics simulation is done for this frame. If we were updating the game objects first then they would be using physics information from the last frame and this sort of breaks the frame boundary. It doesn't really change the way things work much as far as I can tell but it's conceptually more confusing.
The reason we add the world through the addPhysicsWorld call instead of just adding it directly to the Area constructor is because we don't want all Areas to have physics worlds. For instance, the Console room will also use an Area object to handle its entities, but it will not need a physics world attached to that Area. So making it optional through the call of one function makes sense. We can instantiate the physics world in Stage's Area like this:
function Stage:new()
self.area = Area(self)
self.area:addPhysicsWorld()
...
end
And so now that we have a world we can add the Player's collider to it:
function Player:new(area, x, y, opts)
Player.super.new(self, area, x, y, opts)
self.x, self.y = x, y
self.w, self.h = 12, 12
self.collider = self.area.world:newCircleCollider(self.x, self.y, self.w)
self.collider:setObject(self)
endNote how the player having a reference to the Area comes in handy here, because that way we can access the Area's World to add new colliders to it. This pattern (of accessing things inside the Area) repeats itself a lot, which is I made it so that all GameObject objects have this same constructor where they receive a reference to the Area object they belong to.
In any case, in the Player's constructor we defined its width and height to be 12 via the w and h attributes. Then we add a new CircleCollider with the radius set to the width. It doesn't make much sense now to make the collider a circle while having width and height defined but it will in the future, because as we add different types of ships that the player can be, visually the ships will have different widths and heights, but physically the collider will always be a circle for fairness between different ships as well as predictability to how they feel.
After the collider is added we call the setObject function which binds the Player object to the Collider we just created. This is useful because when two Colliders collide, we can get information in terms of Colliders but not in terms of objects. So, for instance, if the Player collides with a Projectile we will have in our hands two colliders that represent the Player and the Projectile but we might not have the objects themselves. Using setObject (and getObject) allows us to set and then extract the object that a Collider belongs to.
Finally now we can draw the Player according to its size:
function Player:draw()
love.graphics.circle('line', self.x, self.y, self.w)

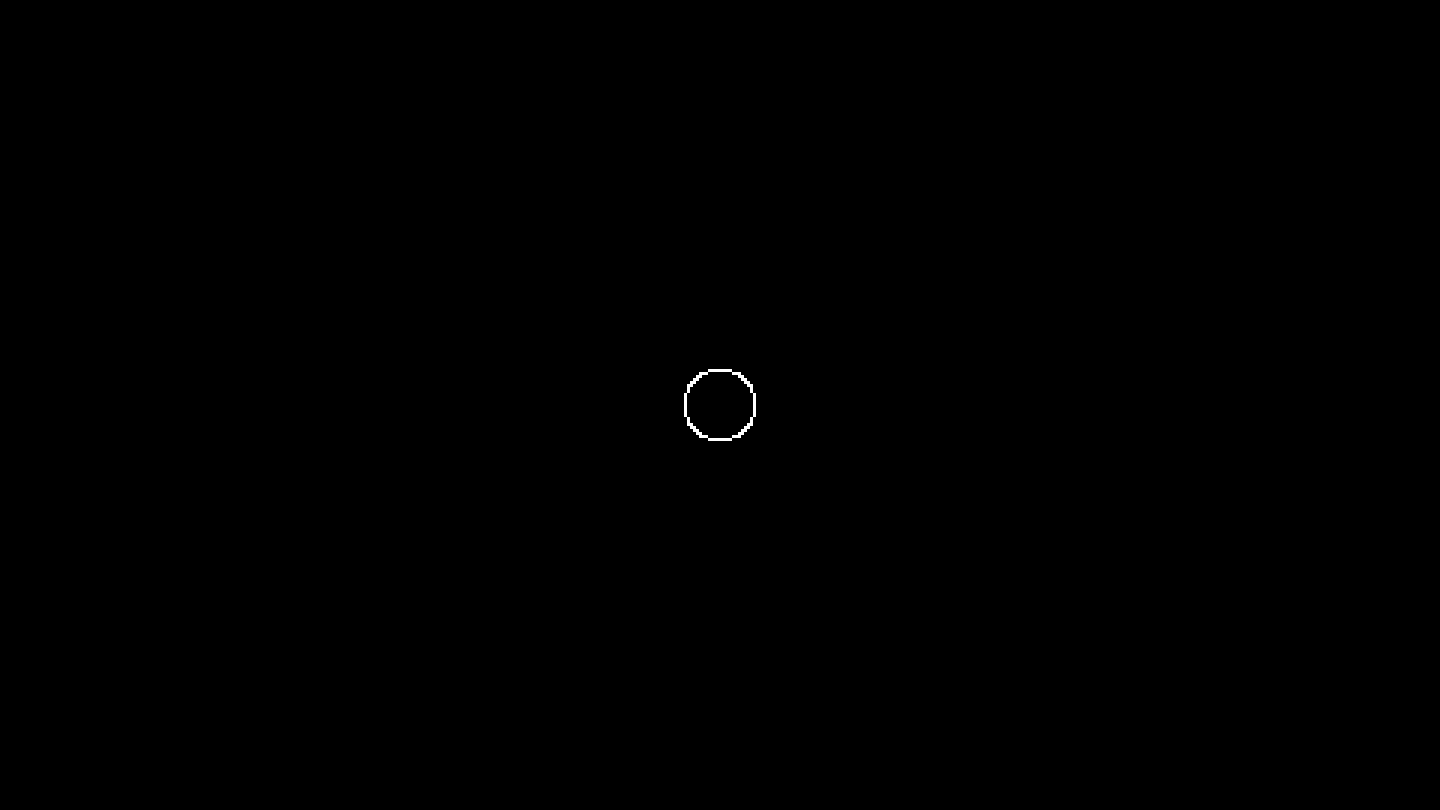

endIf you run the game now you should see a small circle that is the Player:
Player Physics Exercises
If you chose to do collisions yourself or decided to use one of the alternative libraries for collisions/physics then you don't need to do these exercises.
67. Change the physics world's y gravity to 512. What happens to the Player object?
68. What does the third argument of the .newWorld call do and what happens if it's set to false? Are there advantages/disadvantages to setting it to true/false? What are those?
Player Movement
The way movement for the Player works in this game is that there's a constant velocity that you move at and an angle that can be changed by holding left or right. To get that to work we need a few variables:
function Player:new(area, x, y, opts)
Player.super.new(self, area, x, y, opts)
...
self.r = -math.pi/2
self.rv = 1.66*math.pi
self.v = 0
self.max_v = 100
self.a = 100
endHere I define r as the angle the player is moving towards. It starts as -math.pi/2, which is pointing up. In LÖVE angles work in a clockwise way, meaning math.pi/2 is down and -math.pi/2 is up (and 0 is right). Next, the rv variable represents the velocity of angle change when the user presses left or right. Then we have v, which represents the player's velocity, and then max_v, which represents the maximum velocity possible. The last attribute is a, which represents the player's acceleration. These were all arrived at by trial and error.
To update the player's position using all these variables we can do something like this:
function Player:update(dt)
Player.super.update(self, dt)
if input:down('left') then self.r = self.r - self.rv*dt end
if input:down('right') then self.r = self.r + self.rv*dt end
self.v = math.min(self.v + self.a*dt, self.max_v)
self.collider:setLinearVelocity(self.v*math.cos(self.r), self.v*math.sin(self.r))
endThe first two lines define what happens when the user presses the left or right keys. It's important to note that according to the Input library we're using those bindings had to be defined beforehand, and I did so in main.lua (since we'll use a global Input object for everything):
function love.load()
...
input:bind('left', 'left')
input:bind('right', 'right')
...
endAnd so whenever the user pressed left or right, the r attribute, which corresponds to the player's angle, will be changed by 1.66*math.pi radians in the appropriate direction. One important thing to note here is that this value is being multiplied by dt, which essentially means that this value is operating on a per second basis. So the angle at which the angle change happens is 1.66*math.pi radians per second. This is a result of how the game loop that we went over in the first article works.
After this, we set the v attribute. This one is a bit more involved, but if you've done this in other languages it should be familiar. The original calculation is self.v = self.v + self.a*dt, which is just increasing the velocity by the acceleration. In this case, we increase it by 100 per second. But we also defined the max_v attribute, which should cap the maximum velocity allowed. If we don't cap the maximum velocity allowed then self.v = self.v + self.a*dt will keep increasing v forever with no end and the Player will become Sonic. We don't want that! And so one way to prevent that from happening would be like this:
function Player:update(dt)
...
self.v = self.v + self.a*dt
if self.v >= self.max_v then
self.v = self.max_v
end
...
endIn this way, whenever v went over max_v it would be capped at that value instead of going over it. Another shorthand way of writing this is by using the math.min function, which returns the minimum value of all arguments that are passed to it. In this case we're passing in the result of self.v + self.a*dt and self.max_v, which means that if the result of the addition goes over max_v, math.min will return max_v, since its smaller than the addition. This is a very common and useful pattern in Lua (and in other languages as well).
Finally, we set the Collider's x and y velocity to the v attribute multiplied by the appropriate amount given the angle of the object using setLinearVelocity. In general whenever you want to move something in a direction and you have an angle to work with, you want to use cos to move it along the x axis and sin to move it along the y axis. This is also a very common pattern in 2D gamedev in general. I'm going to assume that you learned why this makes sense in school (and if you haven't then look up basic trigonometry on Google).
The final change we can make is one to the GameObject class and it's a simple one. Because we're using a physics engine we essentially have two representations of some variables, like position and velocity. We have the player's position and velocity through x, y and v attributes, and we have the Collider's position and velocity through getPosition and getLinearVelocity. It's a good idea to keep both of those representations synced, and one way to achieve that sort of automatically is by changing the parent class of all game objects:
function GameObject:update(dt)
if self.timer then self.timer:update(dt) end
if self.collider then self.x, self.y = self.collider:getPosition() end
endAnd so here we simply that if the object has a collider attribute defined, then x and y will be set to the position of that collider. And so whenever the collider's position changes, the representation of that position in the object itself will also change accordingly.

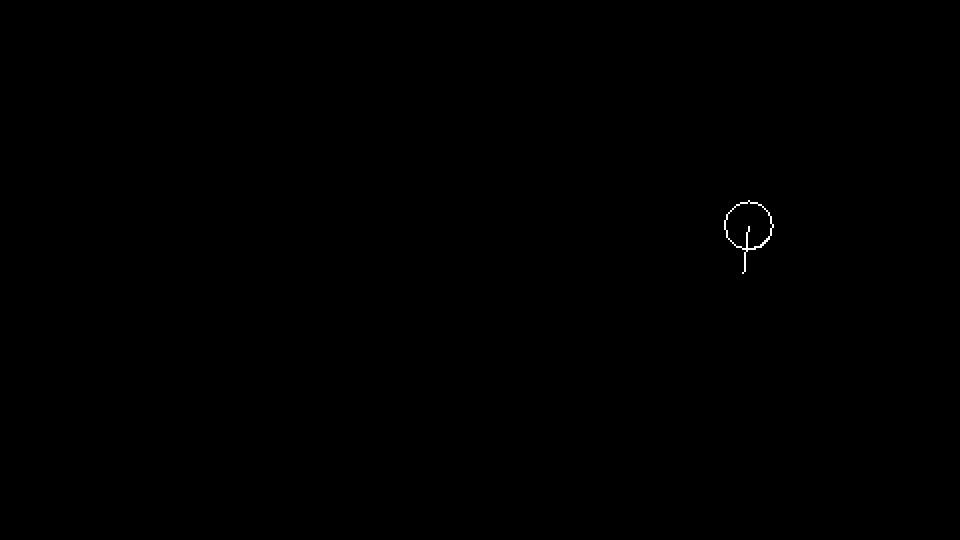

If you run the program now you should see this:
And so you can see that the Player object moves around normally and changes its direction when left or right arrow keys are pressed. One detail that's important here is that what is being drawn is the Collider via the world:draw() call in the Area object. We don't really want to draw colliders only, so it makes sense to comment that line out and draw the Player object directly:
function Player:draw()
love.graphics.circle('line', self.x, self.y, self.w)
endOne last useful thing we can do is visualize the direction that the player is heading towards. And this can be done by just drawing a line from the player's position that points in the direction he's heading:
function Player:draw()
love.graphics.circle('line', self.x, self.y, self.w)
love.graphics.line(self.x, self.y, self.x + 2*self.w*math.cos(self.r), self.y + 2*self.w*math.sin(self.r))
endAnd that looks like this:
This again is basic trigonometry and uses the same idea as I explained a while ago. Generally whenever you want to get a position B that is distance units away from position A such that position B is positioned at a specific angle in relation to position A, the pattern is something like: bx = ax + distance*math.cos(angle) and by = ay + distance*math.sin(angle). Doing this is a very very common occurence in 2D gamedev (in my experience at least) and so getting an instinctive handle on how this works is useful.
Player Movement Exercises
69. Convert the following angles to degrees (in your head) and also say which quadrant they belong to (top-left, top-right, bottom-left or bottom-right). Notice that in LÖVE the angles are counted in a clockwise manner instead of an anti-clockwise one like you learned in school.
math.pi/2
math.pi/4
3*math.pi/4
-5*math.pi/6
0
11*math.pi/12
-math.pi/6
-math.pi/2 + math.pi/4
3*math.pi/4 + math.pi/3
math.pi70. Does the acceleration attribute a need to exist? How could would the player's update function look like if it didn't exist? Are there any benefits to it being there at all?

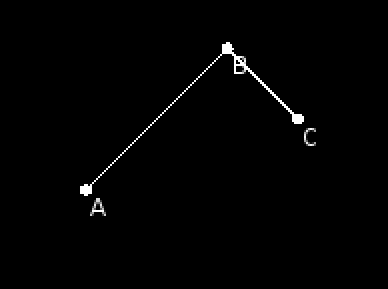

71. Get the (x, y) position of point B from position A if the angle to be used is -math.pi/4, and the distance is 100.
72. Get the (x, y) position of point C from position B if the angle to be used is math.pi/4, and the distance if 50. The position A and B and the distance and angle between them are the same as the previous exercise.
73. Based on the previous two exercises, what's the general pattern involved when you want to get from point A to some point C when you all have to use are multiple points in between that all can be reached at through angles and distances?
74. The syncing of both representations of Player attributes and Collider attributes mentioned positions and velocities, but what about rotation? A collider has a rotation that can be accessed through getAngle. Why not also sync that to the r attribute?
Garbage Collection
Now that we've added the physics engine code and some movement code we can focus on something important that I've been ignoring until now, which is dealing with memory leaks. One of the things that can happen in any programming environment is that you'll leak memory and this can have all sorts of bad effects. In a managed language like Lua this can be an even more annoying problem to deal with because things are more hidden behind black boxes than if you had full control of memory yourself.
The way the garbage collector works is that when there are no more references pointing to an object it will eventually be collected. So if you have a table that is only being referenced to by variable a, once you say a = nil, the garbage collector will understand that the table that was being referenced isn't being referenced by anything and so that table will be removed from memory in a future garbage collection cycle. The problem happens when a single object is being referenced to multiple times and you forget to dereference it in all those locations.
For instance, when we create a new object with addGameObject what happens is that the object gets added to a .game_objects list. This counts as one reference pointing to that object. What we also do in that function, though, is return the object itself. So previously we did something like self.player = self.area:addGameObject('Player', ...), which means that on top of holding a reference to the object in the list inside the Area object, we're also holding a reference to it in the self.player variable. Which means that when we say self.player.dead and the Player object gets removed from the game objects list in the Area object, it will still not be collected because self.player is still pointing to it. So in this instance, to truly remove the Player object from memory we have to both set dead to true and then say self.player = nil.
This is just one example of how it could happen but this is a problem that can happen everywhere, and you should be especially careful about it when using other people's libraries. For instance, the physics library I built has a setObject function in which you pass in the object so that the Collider holds a reference to it. If the object dies will it be removed from memory? No, because the Collider is still holding a reference to it. Same problem, just in a different setting. One way of solving this problem is being explicit about the destruction of objects by having a destroy function for them, which will take care of dereferencing things.
So, one thing we can add to all objects this:
function GameObject:destroy()
self.timer:destroy()
if self.collider then self.collider:destroy() end
self.collider = nil
endSo now all objects have this default destroy function. This function calls the destroy functions of the EnhancedTimer object as well as the Collider's one. What these functions do is essentially dereference things that the user will probably want removed from memory. For instance, inside Collider:destroy, one of the things that happens is that self:setObject(nil) is called, since if we want to destroy this object we don't want the Collider holding a reference to it anymore.
And then we can also change our Area update function like this:
function Area:update(dt)
if self.world then self.world:update(dt) end
for i = #self.game_objects, 1, -1 do
local game_object = self.game_objects[i]
game_object:update(dt)
if game_object.dead then
game_object:destroy()
table.remove(self.game_objects, i)
end
end
endIf an object's dead attribute is set to true, then on top of removing it from the game objects list, we also call its destroy function, which will get rid of most references to it. We can expand this concept further and realize that the physics world itself also has a World:destroy, and so we might want to use it when destroying an Area object:
function Area:destroy()
for i = #self.game_objects, 1, -1 do
local game_object = self.game_objects[i]
game_object:destroy()
table.remove(self.game_objects, i)
end
self.game_objects = {}
if self.world then
self.world:destroy()
self.world = nil
end
endWhen destroying an Area we first destroy all objects in it and then we destroy the physics world if it exists. We can now change the Stage room to accomodate for this:
function Stage:destroy()
self.area:destroy()
self.area = nil
endAnd then we can also change the gotoRoom function:
function gotoRoom(room_type, ...)
if current_room and current_room.destroy then current_room:destroy() end
current_room = _G[room_type](...)
endWe check to see if current_room is a variable that exists and if it contains a destroy attribute (basically we ask if its holding an actual room), and if it does then we call the destroy function. And then we proceed with changing to the target room.
It's important to also remember that now with the addition of the destroy function, all objects have to follow the following template:
NewGameObject = GameObject:extend()
function NewGameObject:new(area, x, y, opts)
NewGameObject.super.new(self, area, x, y, opts)
end
function NewGameObject:update(dt)
NewGameObject.super.update(self, dt)
end
function NewGameObject:draw()
end
function NewGameObject:destroy()
NewGameObject.super.destroy(self)
endNow, this is all well and good, but how do we test to see if we're actually removing things from memory or not? One blog post I like that answers that question is this one, and it offers a relatively simple solution to track leaks:
function count_all(f)
local seen = {}
local count_table
count_table = function(t)
if seen[t] then return end
f(t)
seen[t] = true
for k,v in pairs(t) do
if type(v) == "table" then
count_table(v)
elseif type(v) == "userdata" then
f(v)
end
end
end
count_table(_G)
end
function type_count()
local counts = {}
local enumerate = function (o)
local t = type_name(o)
counts[t] = (counts[t] or 0) + 1
end
count_all(enumerate)
return counts
end
global_type_table = nil
function type_name(o)
if global_type_table == nil then
global_type_table = {}
for k,v in pairs(_G) do
global_type_table[v] = k
end
global_type_table[0] = "table"
end
return global_type_table[getmetatable(o) or 0] or "Unknown"
endI'm not going to over what this code does because its explained in the article, but add it to main.lua and then add this inside love.load:
function love.load()
...
input:bind('f1', function()
print("Before collection: " .. collectgarbage("count")/1024)
collectgarbage()
print("After collection: " .. collectgarbage("count")/1024)
print("Object count: ")
local counts = type_count()
for k, v in pairs(counts) do print(k, v) end
print("-------------------------------------")
end)
...
endAnd so what this does is that whenever you press f1, it will show you the amount of memory before a garbage collection cycle and the amount of memory after it, as well as showing you what object types are in memory. This is useful because now we can, for instance, create a new Stage full of objects, delete it, and then see if the memory remains the same (or acceptably the same hehexD) as it was before the Stage was created. If it remains the same then we aren't leaking memory, if it doesn't then it means we are and we need to track down the cause of it.
Garbage Collection Exercises
75. Bind the f2 key to create and activate a new Stage with a gotoRoom call.
76. Bind the f3 key to destroy the current room.
77. Check the amount of memory used by pressing f1 a few times. After that spam the f2 and f3 keys a few times to create and destroy new rooms. Now check the amount of memory used again by pressing f1 a few times again. Is it the same as the amount of memory as it was first or is it more?
78. Set the Stage room to spawn 100 Player objects instead of only 1 by doing something like this:
function Stage:new()
...
for i = 1, 100 do
self.area:addGameObject('Player', gw/2 + random(-4, 4), gh/2 + random(-4, 4))
end
endAlso change the Player's update function so that Player objects don't move anymore (comment out the movement code). Now repeat the process of the previous exercise. Is the amount of memory used different? And do the overall results change?
Oh my god, it actually happened
Top notch quality as usual, glad to see you back!
And if you press the f3 key then the Player object should be killed, which means that the circle will stop being drawn.
I'm killing the player and the circle keep being drawn on the screen. I've checked the area objects on the Stage scene and there's nothing there after I kill the player. I really don't know why this is happening. Any ideas?
@julianorafael I really can't tell without seeing your code. Things you might wanna check are:
- Does the player object still exist in the
Areaobject'sgame_objectslist - Did you add the object removal functionality in the
Areaobject'supdatefunction that deletes objects that have the.deadattribute set to true - Are you drawing the player anywhere else and forgot to remove it (like in
main.luaor directly inStage.lua)
@SSYGEN thanks for the quick asnwer. The object does not exist in the game_objects. I did add the removal functionality on the Area. Whenever I kill the player, it stops moving but it keep being drawn on the last location, static. I found a bug in my code due to the . and : operators when calling the super object, but that's fixed now and the problem persists. I'm pretty sure it's a mistake in my code, so I'll keep looking for it. Again, thanks for the quick answer.
@julianorafael Alright. If you can't figure it out and you'd like help just upload your code to a repository and I will take a look at it. Good luck ^^
@SSYGEN sent you a tweet with the link. Send me a message if spot anything.
@julianorafael I ran your project and the player disappears here. https://i.imgur.com/apkk3wB.gifv So this must be some OSX specific bug that I didn't account for. Have you tried adding self.player = nil to the k input bind, after the player is destroyed? Like:
input:bind('k', function()
self.player.dead = true
self.player = nil
end)As I mentioned in the tutorial, whenever you're holding a reference to something it will not be collected unless all references to it are removed. While I don't see how this would make the player remain drawn, it's what I'd do to test if it fixes the problem first.
@SSYGEN That's interesting. I believe I tried this, but I'll do it again for sanity check. This problem only happens with the player though. Any other object that dies, disappears.
@SSYGEN setting the reference to nil worked. Weird bug. That said, good that it happened so now I'll pay more attention to references.
-- UPDATE --
Well, it keeps getting bizarre. If I kill the player while shooting, it dies and it stop being rendered. But if I kill the player while not shotting, the player dies, but the circle stays on the screen.
Considering the statements:
The way the garbage collector works is that when there are no more references pointing to an object it will eventually be collected.
Which means that when we say self.player.dead and the Player object gets removed from the game objects list in the Area object, it will still not be collected because self.player is still pointing to it.
That is not how lua works. References:
http://www.lua.org/pil/17.html
Unlike some other collectors, Lua's garbage collector has no problems with cycles. You do not need to take any special action when using cyclic data structures; they are collected like any other data.
http://lua-users.org/wiki/GarbageCollectionTutorial
Lua uses the mark and sweep garbage collection algorithm exclusively. This has the advantage that we don't have to reference count objects and so don't get cyclic referencing problems
So, as long as player is removed from Area and collider is removed from the corresponding list inside the library, they will be removed.
@Adilf I could 100% be mistaken here but why would the Player be collected if there's still a variable pointing to it? self.player would still be pointing to the player, which means that it's reachable, which means it won't be collected. None of this has anything to do with cycles or with islands not being collected because things inside it point to each other.
Nevermind, I've misunderstood which self is spoken about. Quite good series, thank you for writing it.
Thanks! ^^
For people who go with their own collision detection instead of using windfield (I went with HC), it's helpful to know that the tutorial's values of 100 for velocity and acceleration are based on the Box2d physics engine's "meter" unit, and not pixels! Box2d's default conversion is 30 pixels per meter, so the equivalent reasonable velocity / acceleration in pixels would be 3.333333. Hope this helps someone :)
I'm not sure how to fix this properly, but on macOS with retina display with the window.highdpi flag enabled in conf.lua, the code as written for the camera is displaying as the following:
I'm not exactly sure what the best way to deal with this is, as love.graphics.getPixelScale() is returning 1 whether or not window.highdpi is enabled. However, it seems as though something is being scaled. To get the same functionality as you have, I need to call camera:attach(0, 0, gw * 2, gh * 2), but this then causes the circle to be in the bottom right hand corner when window.highdpi is disabled.
Is there a good way to write this so that it works whether or not window.highdpi is enabled? I suppose checking for that flag all over the place is one option. I think one of the libraries being used isn't handling scaling correctly, but I'm not sure which.
@harrisi I have no idea and I don't have an OSX system to test this on. But from what I read what you can is just do one thing if window.highpi is enabled and another if it's disabled, like with a conditional. Put this check into a function called attach or something which will then check if it's enabled or disabled and call camera:attach in the appropriate manner, and then in the rest of the codebase you just use the attach function instead of camera:attach directly.
Fair enough. For now I won't worry too much about it. Disabling window.highdpi seems like it solves it for now and doesn't cause me to deal with other scaling things. Thanks.
@SSYGEN
camera:attach(0, 0, gw, gh)
This one should be camera:attach(0, 0, gw * sx, gh * sy) instead, otherwise I couldn't see the circle.
I heard of Lua and was trying to get into it since WoW, but your articles are what really get me going. Great content. Thanks for you effort.
@tunght13488 can I ask if you happen to be using some sort of software resolution scaling? Or using a high DPI monitor? I had a similar issue, it seems. Look at the previous few comments to compare.
It seems HardonCollider moved to a new site: http://hc.readthedocs.io/en/latest/
Loving the tutorials so far! Thanks for taking the time to do this.
@julianorafael I'm having the same issue with the player still being drawn even after it is set to dead. If I comment out the 3 canvas lines of code, it disappears. I'm on OSX also, but I'll check on my Windows machine later and see if the problem persists. Will keep you posted if I find the cause!
Edit: Just tested the same code on a Windows machine, works as expected there. Very odd!
Edit 2: Check out this forum post: https://love2d.org/forums/viewtopic.php?t=81496
Basically, there seems to be an issue with love.graphics.clear. My stage:draw looks like this now (relevant lines in the middle block):
love.graphics.setCanvas(self.mainCanvas)
love.graphics.clear()
camera:attach(0, 0, gw * sx, gh * sy)
self.area:draw()
camera:detach()
love.graphics.setCanvas()
love.graphics.setColor(0, 0, 0, 255)
love.graphics.rectangle("fill", 0, 0, gw * sx, gw * sy)
love.graphics.setColor(255, 255, 255, 255)
love.graphics.setBlendMode('alpha', 'premultiplied')
love.graphics.draw(self.mainCanvas, 0, 0, 0, sx, sy)
love.graphics.setBlendMode('alpha')
This block of code doesn't render the circle properly to the screen for me:
function Stage:draw()
love.graphics.setCanvas(self.main_canvas)
love.graphics.clear()
camera:attach(0, 0, gw, gh)
love.graphics.circle('line', gw/2, gh/2, 50)
self.area:draw()
camera:detach()
love.graphics.setCanvas()
love.graphics.setColor(255, 255, 255, 255)
love.graphics.setBlendMode('alpha', 'premultiplied')
love.graphics.draw(self.main_canvas, 0, 0, 0, sx, sy)
love.graphics.setBlendMode('alpha')
end
It just renders a black screen. I haven't looked into this too deeply enough but I don't see any reason why this shouldn't work.
The only way I can get it to work is by replacing the attach line with: camera:attach(0, 0, gw * sx, gh * sy), but this feels weird to me, considering the size of our Canvas is the unscaled resolution.
EDIT: Just saw another poster above me comment about the same thing. I wonder why this is the case though.
DOUBLE EDIT: I figured it out (kind of).
You MUST have the call resize(3) below the creation of the camera, otherwise the original code will not show anything. Otherwise upon the creation of the Camera it will initialize self.x and self.y to the re-sized gw and gh, which has some undesirable effects it seems.
Hello, loving the tutorials!
I think this is more accurate:
[Garbage Collection Section]
The way the garbage collector works is that when there are no more references pointing to an object
it will eventually be collected.
to
The way the garbage collector works is that when an object cannot be reached from the root objects
it will eventually be collected.
I'm translating this series of tutorials into Chinese.
https://github.com/yangruihan/BYTEPATH_tutorial_Zh
:-)
If anyone is following along with this in 2021 and using the old version of Love2D (0.10.2) like me. I ran into a problem with some deprecated functions while using the current version of windfield.
I was getting this error before changing all the calls to getBodies() getFixtures() and getJoints() back to getBodyList() etc...
Error: libraries/windfield/init.lua:207: attempt to call method 'getBodies' (a nil value)
Thanks for these tutorials :) it's been a real eye opener have someone actually talk though all the decisions and problems they faced during development.
