(Typescript) Express API with input Validation and Swagger UI

Thats a mouthful isn't it.

Typescript: The language used, a superset of Javascript with optional static types
Express: Minimalist framework to create APIs
Validation: The expected input is defined by a schema. If the input does not follow this schema it is rejected (instead of crashing the server)
Swagger UI: An automatically generated documentation and testing tool to interface with the api

Usage

This section will shortly describe your expected development process.

Create a schema that you want to receive in src/types/schemas.ts
Create a new controller in src/controllers
Add the following line to your controller to specify the schema you want to receive at an endpoint (for an, example see src/controllers/user.ts):
- // #swagger.parameters['body'] = {in: "body", schema: { $ref: "#/schemas/UserPostRequest" }} => This will validate the input to be the same schema as UserPostRequest in src/types/schemas.ts
Add your controller to src/routes.ts

Then to run your project execute the following commands:

$ npm install # Install dependencies
$ npm run schema # Turn your schemas into JSON to be used for input validation (result is put in build/_schema.ts)
$ npm run spec # Generate the Swagger UI definition (result is put in build/swagger.json)
- Alternatively run $ npm run swagger to execute both previous commands
$ npm run dev # Start the server

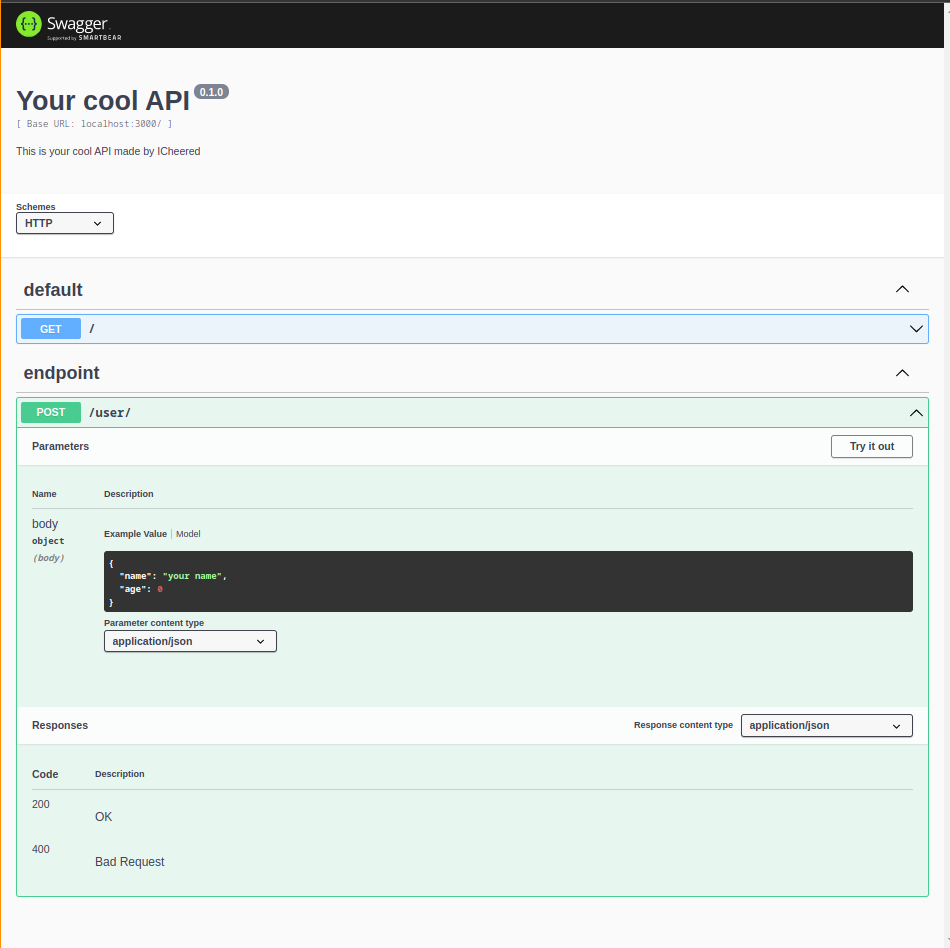

The Swagger UI is accessible on http://localhost:3000/docs.

This section will shortly explain the purpose of each file and folder.

build: Place to store generated files, I recommend you don't touch this
- build/_schema.ts: JSON representation of the schemas specified in src/types/schemas.ts
- build/swagger.json: JSON representation of the swagger UI generated from your project code
utils: Holds the scripts that generate schema and swagger UI files
- utils/schemaGenerator.js: Used to generate build/_schema.ts from src/types/schemas.ts
- utils/swagger.ts: Used to generate build/swagger.json from your entire src directory
src: Holds all your source files
- src/index.ts: Entrypoint of your entire application
- src/routes.ts: Specifies endpoints and attaches controllers to requests to that endpoint
- src/controllers/: Each endpoint has a controller that handles the requests. Each controller has a seperate file.
- src/middleware/: Here you can put additional middleware for things like authentication
- src/types/: Holdes your type definitions / schemas. These are used for input validation when a request is made. If a request does not present data that matches the schema then the request is rejected.
