Server is running but SVG won't appear

[EzequielCaste]

$ node -v
v11.14.0

OS is Windows 10, but managed to run some commands on GIT BASH.

Ok so server is running the translated cloned repo from es.javascript.info; when open with http://localhost:3000/coding-style (for example) there is a SVG file and this message appears:

/article/coding-style/code-style.svg: Could not execute GraphicsMagick/ImageMagick: identify "-ping" "-format" "{"width":%w,"height":%h}" "C:\Users\ezzep\js\server\public\en\article\coding-style\code-style.svg" this most likely means the gm/convert binaries can't be found

GraphicsMagick has been correctly installed and confirmed installation with the following command:

You have now installed GraphicsMagick. To test the installation select "Command Prompt" from the Windows Start menu. Within the window that appears type:
gm convert logo: logo.jpg
gm convert logo.jpg win:
and the GraphicsMagick logo should be displayed in a window.

GraphicsMagick logo appears OK

following instructions from https://github.com/javascript-tutorial/server

run command with BASH ./edit es
everything OK

Step 3. Run the translation task:

cd /js/server # in the server folder
# adjust NODE_LANG to your language
NODE_LANG=es glp engine:koa:tutorial:figuresTranslate

glp command not found, Replaced with npm run gulp --

NODE_LANG=es npm run gulp -- engine:koa:tutorial:figuresTranslate --image code-style.svg

> javascript-tutorial-server@2.0.0 gulp C:\Users\ezzep\js\server
> cross-env NODE_PRESERVE_SYMLINKS=1 NODE_PATH=./modules ./node_modules/.bin/gulp "engine:koa:tutorial:figuresTranslate" "--image" "code-style.svg"

[12:27:12] Using gulpfile ~\js\server\gulpfile.js
[12:27:12] Starting 'engine:koa:tutorial:figuresTranslate'...
Image 1-js/03-code-quality/02-coding-style/code-style.svg
[12:27:13] 'engine:koa:tutorial:figuresTranslate' errored after 638 ms
[12:27:13] Error: Command failed: convert -debug annotate xc: -font C:\Users\ezzep\js\server\modules\engine\koa\tutorial\resources\OpenSans-Bold.ttf -pointsize 14 -annotate 0 "No space" null: 2>&1
    at checkExecSyncError (child_process.js:630:11)
    at execSync (child_process.js:666:15)
    at pixelWidth (C:\Users\ezzep\js\server\modules\engine\koa\tutorial\lib\pixelWidth.js:11:16)
    at C:\Users\ezzep\js\server\modules\engine\koa\tutorial\tasks\figuresTranslate.js:156:31
    at String.replace (<anonymous>)
    at module.exports (C:\Users\ezzep\js\server\modules\engine\koa\tutorial\tasks\figuresTranslate.js:103:25)
npm ERR! code ELIFECYCLE
npm ERR! errno 1
npm ERR! javascript-tutorial-server@2.0.0 gulp: `cross-env NODE_PRESERVE_SYMLINKS=1 NODE_PATH=./modules ./node_modules/.bin/gulp "engine:koa:tutorial:figuresTranslate" "--image" "code-style.svg"`
npm ERR! Exit status 1
npm ERR!
npm ERR! Failed at the javascript-tutorial-server@2.0.0 gulp script.
npm ERR! This is probably not a problem with npm. There is likely additional logging output above.

npm ERR! A complete log of this run can be found in:
npm ERR!     C:\Users\ezzep\AppData\Roaming\npm-cache\_logs\2020-08-14T15_27_13_429Z-debug.log
[2020-08-14T15_27_13_429Z-debug.log](https://github.com/javascript-tutorial/server/files/5075443/2020-08-14T15_27_13_429Z-debug.log)

[iliakan]

ImageMagick, not GraphicsMagick =)

[EzequielCaste]

Ok then..

instructions were clear to install GraphicsMagick

(Maybe later, optional) If you're going to change images, please install GraphicsMagick.

[iliakan]

Please try imagemagick? I'm not sure, but guess should be ImageMagick.

[EzequielCaste]

ok after installing imagemagick

[13:15:14] Finished 'engine:koa:tutorial:figuresTranslate' after 6.42 s

but localhost still shows

/article/coding-style/code-style.svg: Could not execute GraphicsMagick/ImageMagick: identify "-ping" "-format" "{"width":%w,"height":%h}" "C:\Users\ezzep\js\server\public\en\article\coding-style\code-style.svg" this most likely means the gm/convert binaries can't be found

[iliakan]

Where is the "convert" utility and "identify"?

[EzequielCaste]

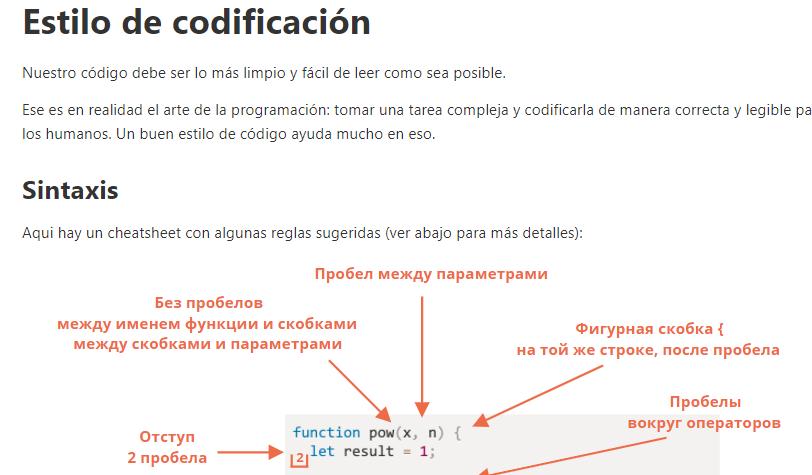

ok got it working! 🚀 🥳

First I had to uninstall GraphicsMagick and then install fresh the ImageMagick

now only thing left to to start translating the images.yml

[iliakan]

Closing this for now, as the problem is solved. If not, let me know.
