WiFi101 and Arduino MKR1000.

Question

WiFi101 and Arduino MKR1000.

Josua2012 opened this issue 4 years ago · 35 comments

Josua2012 commented 4 years ago

Please add support for WiFi101 and Arduino MKR1000. 👍
Thank you.
Regards,
Jose

Josua2012 commented 4 years ago

Sure

Answer 1 · 2021-05-22T21:15:30.000Z

Please be ready to test the new release to support WiFi101 and MKR1000 / MKRWIFI1010.

I'll be releasing it within 1/2 hr.

Answer 2 · 2021-05-22T21:19:26.000Z

You have to use the new release with latest Forked WiFi101 to suppress many compiler's warnings relating to "deleting object of polymorphic class type"

Please download and test the Forked WiFi101 first.

Answer 3 · 2021-05-22T21:33:42.000Z

You are amazing. Truly amazing.
Many thanks.
Now it is very late here in Spain, but tomorrow, first thing in the morning, I will do all the checks I can.
Again, thank you so much.
You are a crack. 💯 🥇

Answer 4 · 2021-05-22T21:47:36.000Z

I could not resist trying the new version of WiFi101 and it seems that everything works without any errors. 💯

Answer 5 · 2021-05-22T21:49:11.000Z

Great. Almost done. Just modifying READ now. Within 5 mins. Are you staying??

Answer 6 · 2021-05-22T21:56:02.000Z

Khoi,
Will you put some example of socket.io, websocket client, with WiFi101?
I have also observed that in the Websocket2_Generic examples it automatically detected the type of board, however in Websocket_Generic that does not happen. Is it for a certain reason?
Thanks, thanks ....

Answer 7 · 2021-05-22T22:01:08.000Z

Ready now. Also check Contributions and Thanks

The Socket.IO example s here

WebSocketClientSocketIO_WiFi101

Major Release v2.5.0

Add support to SAMD_MKR1000 and SAMD_MKRWIFI1010 using WiFi101. To be used with Forked WiFi101 library
Clean compiler's warnings
Add examples for WiFi101

Answer 8 · 2021-05-22T22:02:57.000Z

All the WiFi101 examples are here For WiFi101

For WiFi101

Answer 9 · 2021-05-22T22:07:26.000Z

Waiting for your preliminary test results now !!!

Answer 10 · 2021-05-22T22:08:43.000Z

You didn't need to name me, if you've done it all yourself.
You are a fabulous programming machine. 💯

Answer 11 · 2021-05-22T22:12:31.000Z

Don't say so. Without your request and test, I could do nothing to add new support. I always note to remember everybody's help, no matter what.

Answer 12 · 2021-05-22T22:20:03.000Z

I have also observed that in the Websocket2_Generic examples it automatically detected the type of board, however in Websocket_Generic that does not happen. Is it for a certain reason?

No good reason at all, just the WebSockets2_Generic is much younger than WebSockets_Generic. And I added more features to detect the board name for easier to debug (important for library maintainer/writer to know which board and core user selected and if it's correct or supported, etc.).

It's easier to add, just copy the defines.h from Websocket2_Generic examples to relating Websocket_Generic examples.
Might be next release, if I remember and have time. Not in rushing like this release. ;=))

Answer 13 · 2021-05-22T22:25:59.000Z

Do not worry. I was just curious if there was any important reason.
Good to know that defines.h is compatible with both libraries.

Answer 14 · 2021-05-22T22:27:54.000Z

I also want to test your WiFiManager library, I think it might be interesting to me.
Do you know if it is compatible with WiFi101 and Arduino MKR1000?

Answer 15 · 2021-05-22T22:37:55.000Z

I also want to test your WiFiManager library, I think it might be interesting to me.
Do you know if it is compatible with WiFi101 and Arduino MKR1000?

It's ready here : WiFiManager_Generic_Lite library.
Test to see if there is any issue.

You also have to install and use my FlashStorage_SAMD library, which you can also use to store persistent data, necessary for you SAMD applications

Answer 16 · 2021-05-22T22:40:03.000Z

The examples written specifically for WiFi101 and MKR1000 / MKR1010WiFi

Answer 17 · 2021-05-22T22:41:49.000Z

Still waiting for your test results. Are you testing it now? If not, I have to move on to another work.

Answer 18 · 2021-05-22T22:44:04.000Z

First test.
The following warnings are still displayed:

It seems to be successfully connecting to the server, however the client is disconnecting, I have to investigate further to see if it is my problem.

Answer 19 · 2021-05-22T22:47:14.000Z

By the way, thanks again for the fixes in the WiFiManager_Generic_Lite library.
As soon as I finish testing Websockets_Generic library I will start testing the WiFiManager library. :)

Answer 20 · 2021-05-22T23:53:49.000Z

The following warnings are still displayed:

Those are intentional and informational warnings, so that you know what you're doing and if the settings are correct. Just ignore them.

Answer 21 · 2021-05-23T00:08:44.000Z

To make the tests easier I have created a small socket.io server.

I have encountered quite a few problems:

Your library is supporting an old version of socket.io, version 3, currently it is version 4, and I had to enable its compatibility in the test server that I have done.

Now the server tells me that a client has connected, the problem is that even though there is only one client, the server is receiving multiple client connections.

Neither the sending of the messages to the server works. The messages do not reach him.

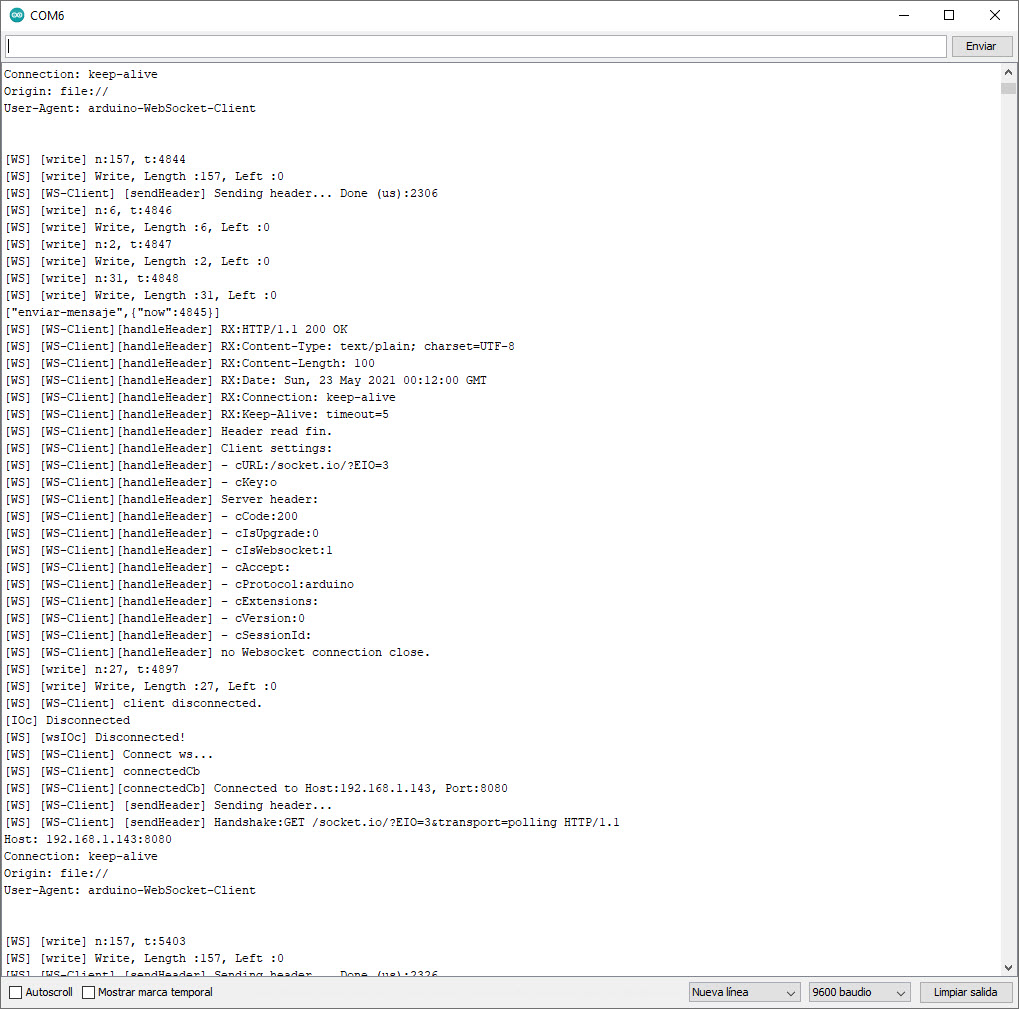

I include several screenshots of the serial monitor:

Can you do something with these kinds of errors?

Thanks.

Answer 22 · 2021-05-23T00:18:43.000Z

Now the server tells me that a client has connected, the problem is that even though there is only one client, the server is receiving multiple client connections.

Neither the sending of the messages to the server works. The messages do not reach him.

Do you have another kind of board to test if this is happens only to MKR1000 ot WiFi101???

Your library is supporting an old version of socket.io, version 3, currently it is version 4, and I had to enable its compatibility in the test server that I have done.

I'll have a look to update to Socket.IO v4

Answer 23 · 2021-05-23T00:20:22.000Z

Can you copy the whole terminal output text, not paste the image for easier check.

Answer 24 · 2021-05-23T00:20:44.000Z

No. Unfortunately I don't have any other board. :(

Answer 25 · 2021-05-23T00:22:47.000Z

Can you test with other online Socket.IO server ?

Answer 26 · 2021-05-23T00:25:03.000Z

I could send you the little server.
Do you know nodejs and how to install the server?
You can easily install it locally.
websocket-server.zip

Answer 27 · 2021-05-23T00:28:18.000Z

In windows:

Install nodejs
Go to the project folder that I have sent you in CMD
Run: npm i
Run: node app

Answer 28 · 2021-05-23T00:39:52.000Z

The server that I have sent you works perfectly, you can test it with the chrome browser by putting: localhost: 8080
And if you put any text in the input and send it with the "Enviar" button, you will see that the server receives it in the console.

Answer 29 · 2021-05-23T00:42:04.000Z

The terminal output when running Nano-33-IoT with WiFiNINA. Not OK. Is that the same as your results?

Start WebSocketClientSocketIO_NINA on SAMD_NANO_33_IOT
WebSockets_Generic v2.5.0
Used/default SPI pinout:
MOSI:11
MISO:12
SCK:13
SS:10
Attempting to connect to SSID: HueNet1
[WS] [WS-Client] Connect ws...
[WS] [WS-Client] connectedCb
[WS] [WS-Client][connectedCb] Connected to Host:192.168.2.30, Port:8080
[WS] [WS-Client] [sendHeader] Sending header...
[WS] [WS-Client] [sendHeader] Handshake:GET /socket.io/?EIO=3&transport=polling HTTP/1.1
Host: 192.168.2.30:8080
Connection: keep-alive
Origin: file://
User-Agent: arduino-WebSocket-Client


[WS] [WS-Client] [sendHeader] Sending header... Done (us):2451
[WS] [WS-Client][handleHeader] RX:HTTP/1.1 200 OK
[WS] [WS-Client][handleHeader] RX:Content-Type: text/plain; charset=UTF-8
[WS] [WS-Client][handleHeader] RX:Content-Length: 100
[WS] [WS-Client][handleHeader] RX:Date: Sun, 23 May 2021 00:38:56 GMT
[WS] [WS-Client][handleHeader] RX:Connection: keep-alive
[WS] [WS-Client][handleHeader] Header read fin.
[WS] [WS-Client][handleHeader] Client settings:
[WS] [WS-Client][handleHeader] - cURL:/socket.io/?EIO=3
[WS] [WS-Client][handleHeader] - cKey:W
[WS] [WS-Client][handleHeader] Server header:
[WS] [WS-Client][handleHeader] - cCode:200
[WS] [WS-Client][handleHeader] - cIsUpgrade:0
[WS] [WS-Client][handleHeader] - cIsWebsocket:0
[WS] [WS-Client][handleHeader] - cAccept:
[WS] [WS-Client][handleHeader] - cProtocol:arduino
[WS] [WS-Client][handleHeader] - cExtensions:
[WS] [WS-Client][handleHeader] - cVersion:0
[WS] [WS-Client][handleHeader] - cSessionId:
[WS] [WS-Client][handleHeader] no Websocket connection close.
[WS] [WS-Client] client disconnected.
[IOc] Disconnected
[WS] [WS-Client] Connect ws...
[WS] [WS-Client] Connect ws...
[WS] [WS-Client] connectedCb
[WS] [WS-Client][connectedCb] Connected to Host:192.168.2.30, Port:8080
[WS] [WS-Client] [sendHeader] Sending header...
[WS] [WS-Client] [sendHeader] Handshake:GET /socket.io/?EIO=3&transport=polling HTTP/1.1
Host: 192.168.2.30:8080
Connection: keep-alive
Origin: file://
User-Agent: arduino-WebSocket-Client


[WS] [WS-Client] [sendHeader] Sending header... Done (us):2371
[WS] [WS-Client][handleHeader] RX:HTTP/1.1 200 OK
[WS] [WS-Client][handleHeader] RX:Content-Type: text/plain; charset=UTF-8
[WS] [WS-Client][handleHeader] RX:Content-Length: 100
[WS] [WS-Client][handleHeader] RX:Date: Sun, 23 May 2021 00:39:04 GMT
[WS] [WS-Client][handleHeader] RX:Connection: keep-alive
[WS] [WS-Client][handleHeader] Header read fin.
[WS] [WS-Client][handleHeader] Client settings:
[WS] [WS-Client][handleHeader] - cURL:/socket.io/?EIO=3
[WS] [WS-Client][handleHeader] - cKey:R
[WS] [WS-Client][handleHeader] Server header:
[WS] [WS-Client][handleHeader] - cCode:200
[WS] [WS-Client][handleHeader] - cIsUpgrade:0
[WS] [WS-Client][handleHeader] - cIsWebsocket:0
[WS] [WS-Client][handleHeader] - cAccept:
[WS] [WS-Client][handleHeader] - cProtocol:arduino
[WS] [WS-Client][handleHeader] - cExtensions:
[WS] [WS-Client][handleHeader] - cVersion:0
[WS] [WS-Client][handleHeader] - cSessionId:
[WS] [WS-Client][handleHeader] no Websocket connection close.
[WS] [WS-Client] client disconnected.
[IOc] Disconnected
[WS] [WS-Client] Connect ws...
[WS] [WS-Client] connectedCb
[WS] [WS-Client][connectedCb] Connected to Host:192.168.2.30, Port:8080
[WS] [WS-Client] [sendHeader] Sending header...
[WS] [WS-Client] [sendHeader] Handshake:GET /socket.io/?EIO=3&transport=polling HTTP/1.1
Host: 192.168.2.30:8080
Connection: keep-alive
Origin: file://
User-Agent: arduino-WebSocket-Client

I'll move the test discussion into a private repo as they are TLTR; and not necessary for many users.
Will invite you in.

Answer 30 · 2021-05-23T00:51:39.000Z

Just sending invitation to the private repo for discussion. Accept and go there.
Seems lengthy.

Answer 31 · 2021-05-23T04:35:02.000Z

HI,

Please test new WebSockets_Generic Releases v2.5.1

I used it to test your server and connections are OK.

Boards:

1. Nano-33-IoT with WiFiNINA

Start WebSocketClientSocketIO_NINA on SAMD_NANO_33_IOT
WebSockets_Generic v2.5.1
Used/default SPI pinout:
MOSI:11
MISO:12
SCK:13
SS:10
Attempting to connect to SSID: HueNet1
SSID: HueNet1
WebSockets Client IP Address: 192.168.2.114
signal strength (RSSI):-19 dBm
Connecting to WebSockets Server @ IP address: 192.168.2.30, port: 8080
[WS] WebSockets_Generic v2.5.1
[WS] [wsIOc] found EIO=4 disable EIO ping on client
[WS] [WS-Client] Connect ws...
[WS] [WS-Client][connectedCb] Connected to Host:192.168.2.30, Port:8080
[WS] [WS-Client] [sendHeader] Sending header...
[WS] [WS-Client] [sendHeader] Handshake:GET /socket.io/?EIO=4&transport=polling HTTP/1.1
Host: 192.168.2.30:8080
Connection: keep-alive
Origin: file://
User-Agent: arduino-WebSocket-Client


[WS] [WS-Client] [sendHeader] Sending header... Done (us):2586
[WS] [WS-Client][handleHeader] RX:HTTP/1.1 200 OK
[WS] [WS-Client][handleHeader] RX:Content-Type: text/plain; charset=UTF-8
[WS] [WS-Client][handleHeader] RX:Content-Length: 97
[WS] [WS-Client][handleHeader] RX:Date: Sun, 23 May 2021 04:04:06 GMT
[WS] [WS-Client][handleHeader] RX:Connection: keep-alive
[WS] [WS-Client][handleHeader] Header read fin.
[WS] [WS-Client][handleHeader] Client settings:
[WS] [WS-Client][handleHeader] - cURL:/socket.io/?EIO=4
[WS] [WS-Client][handleHeader] - cKey:Y
[WS] [WS-Client][handleHeader] Server header:
[WS] [WS-Client][handleHeader] - cCode:200
[WS] [WS-Client][handleHeader] - cIsUpgrade:0
[WS] [WS-Client][handleHeader] - cIsWebsocket:1
[WS] [WS-Client][handleHeader] - cAccept:
[WS] [WS-Client][handleHeader] - cProtocol:arduino
[WS] [WS-Client][handleHeader] - cExtensions:
[WS] [WS-Client][handleHeader] - cVersion:0
[WS] [WS-Client][handleHeader] - cSessionId:
[IOc] Disconnected
[WS] [wsIOc] Disconnected!
[WS] [WS-Client] Connect ws...
[WS] [WS-Client][connectedCb] Connected to Host:192.168.2.30, Port:8080
[WS] [WS-Client] [sendHeader] Sending header...
[WS] [WS-Client] [sendHeader] Handshake:GET /socket.io/?EIO=4&transport=polling HTTP/1.1
Host: 192.168.2.30:8080
Connection: keep-alive
Origin: file://
User-Agent: arduino-WebSocket-Client

2. NRF52840_FEATHER with W5x00

Start Generic_WebSocketClientSocketIO_W5500 on NRF52840_FEATHER with W5x00 using EthernetLarge Library
WebSockets_Generic v2.5.1
[WS] Board :NRF52840_FEATHER, setCsPin:10
[WS] Default SPI pinout:
[WS] MOSI:25
[WS] MISO:24
[WS] SCK:26
[WS] SS:5
[WS] =========================
_pinCS = 0
W5100 init, using SS_PIN_DEFAULT = 10, new ss_pin = 10, W5100Class::ss_pin = 10
W5100::init: W5500, SSIZE =8192
WebSockets Client @ IP address: 192.168.2.123
Connecting to WebSockets Server @ IP address: 192.168.2.30, port: 8080
[WS] WebSockets_Generic v2.5.1
[WS] [wsIOc] found EIO=4 disable EIO ping on client
[WS] [WS-Client][connectedCb] Connected to Host:192.168.2.30, Port:8080
[WS] [WS-Client] [sendHeader] Sending header...
[WS] [WS-Client] [sendHeader] Handshake:GET /socket.io/?EIO=4&transport=polling HTTP/1.1
Host: 192.168.2.30:8080
Connection: keep-alive
Origin: file://
User-Agent: arduino-WebSocket-Client


[WS] [WS-Client] [sendHeader] Sending header... Done (us):976
[WS] [WS-Client][handleHeader] RX:HTTP/1.1 200 OK
[WS] [WS-Client][handleHeader] RX:Content-Type: text/plain; charset=UTF-8
[WS] [WS-Client][handleHeader] RX:Content-Length: 97
[WS] [WS-Client][handleHeader] RX:Date: Sun, 23 May 2021 02:55:58 GMT
[WS] [WS-Client][handleHeader] RX:Connection: keep-alive
[WS] [WS-Client][handleHeader] Header read fin.
[WS] [WS-Client][handleHeader] Client settings:
[WS] [WS-Client][handleHeader] - cURL:/socket.io/?EIO=4
[WS] [WS-Client][handleHeader] - cKey:s
[WS] [WS-Client][handleHeader] Server header:
[WS] [WS-Client][handleHeader] - cCode:200
[WS] [WS-Client][handleHeader] - cIsUpgrade:0
[WS] [WS-Client][handleHeader] - cIsWebsocket:1
[WS] [WS-Client][handleHeader] - cAccept:
[WS] [WS-Client][handleHeader] - cProtocol:arduino
[WS] [WS-Client][handleHeader] - cExtensions:
[WS] [WS-Client][handleHeader] - cVersion:0
[WS] [WS-Client][handleHeader] - cSessionId:
[WS] [wsIOc] Disconnected!
[WS] [WS-Client][connectedCb] Connected to Host:192.168.2.30, Port:8080
[WS] [WS-Client] [sendHeader] Sending header...
[WS] [WS-Client] [sendHeader] Handshake:GET /socket.io/?EIO=4&transport=polling HTTP/1.1
Host: 192.168.2.30:8080
Connection: keep-alive
Origin: file://
User-Agent: arduino-WebSocket-Client


[WS] [WS-Client] [sendHeader] Sending header... Done (us):976
[WS] [WS-Client][handleHeader] RX:HTTP/1.1 200 OK
[WS] [WS-Client][handleHeader] RX:Content-Type: text/plain; charset=UTF-8
[WS] [WS-Client][handleHeader] RX:Content-Length: 97
[WS] [WS-Client][handleHeader] RX:Date: Sun, 23 May 2021 02:55:58 GMT
[WS] [WS-Client][handleHeader] RX:Connection: keep-alive
[WS] [WS-Client][handleHeader] Header read fin.
[WS] [WS-Client][handleHeader] Client settings:
[WS] [WS-Client][handleHeader] - cURL:/socket.io/?EIO=4
[WS] [WS-Client][handleHeader] - cKey:x
[WS] [WS-Client][handleHeader] Server header:
[WS] [WS-Client][handleHeader] - cCode:200
[WS] [WS-Client][handleHeader] - cIsUpgrade:0
[WS] [WS-Client][handleHeader] - cIsWebsocket:0
[WS] [WS-Client][handleHeader] - cAccept:
[WS] [WS-Client][handleHeader] - cProtocol:arduino
[WS] [WS-Client][handleHeader] - cExtensions:
[WS] [WS-Client][handleHeader] - cVersion:0
[WS] [WS-Client][handleHeader] - cSessionId:
[WS] [wsIOc] Disconnected!
[WS] [WS-Client][connectedCb] Connected to Host:192.168.2.30, Port:8080
[WS] [WS-Client] [sendHeader] Sending header...
[WS] [WS-Client] [sendHeader] Handshake:GET /socket.io/?EIO=4&transport=polling HTTP/1.1
Host: 192.168.2.30:8080
Connection: keep-alive
Origin: file://
User-Agent: arduino-WebSocket-Client

Release v2.5.1

Default to EIO4 for Socket.IO.
Permit changing reconnectInterval in Socket.IO. Default is 0.5s. Set in Socket.IO examples to 10s.
Better debug settings

Answer 32 · 2021-05-23T06:08:57.000Z

OK. I detect the problem of not sending msg, and will work to solve it. Be patient.

Answer 33 · 2021-05-24T03:39:21.000Z

Please test the new WebSockets_Generic Releases v2.6.0 on MKR1000 + WiFi101

Major Release v2.6.0

Fix breaking problem with SocketIO
Add setExtraHeaders function to SocketIO
Clean possible compiler's warnings

Answer 34 · 2021-05-24T03:45:51.000Z

Test results

WebSocketClientSocketIO_NINA on SAMD_NANO_33_IOT

1. Client

Start WebSocketClientSocketIO_NINA on SAMD_NANO_33_IOT
WebSockets_Generic v2.6.0
Used/default SPI pinout:
MOSI:11
MISO:12
SCK:13
SS:10
Attempting to connect to SSID: HueNet1
SSID: HueNet1
WebSockets Client IP Address: 192.168.2.114
signal strength (RSSI):-18 dBm
Connecting to WebSockets Server @ IP address: 192.168.2.30, port: 8080
[WS] WebSockets_Generic v2.6.0
[WS] [wsIOc] found EIO=4 disable EIO ping on client
[WS] [WS-Client] Connect ws...
[WS] [WS-Client][connectedCb] Connected to Host:192.168.2.30, Port:8080
[WS] [WS-Client] [sendHeader] Sending header...
[WS] sendHeader: client->cKey = 7nb1qwQBvz58aozmAyBmag==
[WS] [WS-Client] [sendHeader] Handshake:GET /socket.io/?EIO=4&transport=polling HTTP/1.1
Host: 192.168.2.30:8080
Connection: keep-alive
Origin: file://
User-Agent: arduino-WebSocket-Client


[WS] [WS-Client] [sendHeader] Sending header... Done (us):2669
[WS] [WS-Client][handleHeader] RX:HTTP/1.1 200 OK
[WS] [WS-Client][handleHeader] RX:Content-Type: text/plain; charset=UTF-8
[WS] [WS-Client][handleHeader] RX:Content-Length: 97
[WS] [WS-Client][handleHeader] RX:Date: Mon, 24 May 2021 02:19:53 GMT
[WS] [WS-Client][handleHeader] RX:Connection: keep-alive
[WS] [WS-Client][handleHeader] Header read fin.
[WS] [WS-Client][handleHeader] Client settings:
[WS] [WS-Client][handleHeader] - cURL:/socket.io/?EIO=4
[WS] [WS-Client][handleHeader] - cKey:7nb1qwQBvz58aozmAyBmag==
[WS] [WS-Client][handleHeader] Server header:
[WS] [WS-Client][handleHeader] - cCode:200
[WS] [WS-Client][handleHeader] - cIsUpgrade:0
[WS] [WS-Client][handleHeader] - cIsWebsocket:1
[WS] [WS-Client][handleHeader] - cAccept:
[WS] [WS-Client][handleHeader] - cProtocol:arduino
[WS] [WS-Client][handleHeader] - cExtensions:
[WS] [WS-Client][handleHeader] - cVersion:0
[WS] [WS-Client][handleHeader] - cSessionId:
[WS] [WS-Client][handleHeader] Still missing cSessionId try Socket.IO
[WS] [WS-Client][handleHeader] socket.io json: 0{"sid":"WdrsvWrSeNmPDSlFAAAa","upgrades":["websocket"],"pingInterval":25000,"pingTimeout":20000}
[WS] [WS-Client][handleHeader] - cSessionId: WdrsvWrSeNmPDSlFAAAa
[WS] [WS-Client][handleHeader] Header read fin.
[WS] [WS-Client][handleHeader] Client settings:
[WS] [WS-Client][handleHeader] - cURL:/socket.io/?EIO=4
[WS] [WS-Client][handleHeader] - cKey:7nb1qwQBvz58aozmAyBmag==
[WS] [WS-Client][handleHeader] Server header:
[WS] [WS-Client][handleHeader] - cCode:200
[WS] [WS-Client][handleHeader] - cIsUpgrade:0
[WS] [WS-Client][handleHeader] - cIsWebsocket:1
[WS] [WS-Client][handleHeader] - cAccept:
[WS] [WS-Client][handleHeader] - cProtocol:arduino
[WS] [WS-Client][handleHeader] - cExtensions:
[WS] [WS-Client][handleHeader] - cVersion:0
[WS] [WS-Client][handleHeader] - cSessionId:WdrsvWrSeNmPDSlFAAAa
[WS] [WS-Client][handleHeader] found cSessionId
[WS] [WS-Client] [sendHeader] Sending header...
[WS] sendHeader: client->cKey = 6b1sIaeSY4sl6HQqSLZaKQ==
[WS] [WS-Client] [sendHeader] Handshake:GET /socket.io/?EIO=4&transport=websocket&sid=WdrsvWrSeNmPDSlFAAAa HTTP/1.1
Host: 192.168.2.30:8080
Connection: Upgrade
Upgrade: websocket
Sec-WebSocket-Version: 13
Sec-WebSocket-Key: 6b1sIaeSY4sl6HQqSLZaKQ==
Sec-WebSocket-Protocol: arduino
Origin: file://
User-Agent: arduino-WebSocket-Client


[WS] [WS-Client] [sendHeader] Sending header... Done (us):3458
[WS] [WS-Client][handleHeader] RX:HTTP/1.1 101 Switching Protocols
[WS] [WS-Client][handleHeader] RX:Upgrade: websocket
[WS] [WS-Client][handleHeader] RX:Connection: Upgrade
[WS] [WS-Client][handleHeader] RX:Sec-WebSocket-Accept: KJjOfxcGJBEkOTLzz/+pFRXs0Bc=
[WS] [WS-Client][handleHeader] RX:Sec-WebSocket-Protocol: arduino
[WS] [WS-Client][handleHeader] Header read fin.
[WS] [WS-Client][handleHeader] Client settings:
[WS] [WS-Client][handleHeader] - cURL:/socket.io/?EIO=4
[WS] [WS-Client][handleHeader] - cKey:6b1sIaeSY4sl6HQqSLZaKQ==
[WS] [WS-Client][handleHeader] Server header:
[WS] [WS-Client][handleHeader] - cCode:101
[WS] [WS-Client][handleHeader] - cIsUpgrade:1
[WS] [WS-Client][handleHeader] - cIsWebsocket:1
[WS] [WS-Client][handleHeader] - cAccept:KJjOfxcGJBEkOTLzz/+pFRXs0Bc=
[WS] [WS-Client][handleHeader] - cProtocol:arduino
[WS] [WS-Client][handleHeader] - cExtensions:
[WS] [WS-Client][handleHeader] - cVersion:0
[WS] [WS-Client][handleHeader] - cSessionId:WdrsvWrSeNmPDSlFAAAa
[WS] [WS-Client][handleHeader] Websocket connection init done.
[WS] [wsIOc] Connected to url:/socket.io/?EIO=4
[IOc] Connected to url: /socket.io/?EIO=4
[WS] [wsIOc] get pong
[WS] [wsIOc] connected: len = 30
[WS] [wsIOc] data: {"sid":"QPel_hhsFl5pJ9ZpAAAb"}
["event_name",{"now":30001}]
[WS] [wsIOc] get ping send pong:3
[WS] [WS-Client] Sending HB ping
["event_name",{"now":60001}]

2. Server

kh@kh-Inspiron-3593:~/Downloads/Nodejs/New_SIO$ nodejs app
Server launched on port 8080
Connected
QPel_hhsFl5pJ9ZpAAAb
JWT token test:  { host: '192.168.2.30:8080',
  connection: 'keep-alive',
  origin: 'file://',
  'user-agent': 'arduino-WebSocket-Client' }
Message from Client :  { now: 30001 }
Message from Client :  { now: 60001 }

Generic_WebSocketClientSocketIO_W5500 on NRF52840_FEATHER with W5x00 using EthernetLarge Library

1. Client

Start Generic_WebSocketClientSocketIO_W5500 on NRF52840_FEATHER with W5x00 using EthernetLarge Library
WebSockets_Generic v2.6.0
[WS] Board :NRF52840_FEATHER, setCsPin:10
[WS] Default SPI pinout:
[WS] MOSI:25
[WS] MISO:24
[WS] SCK:26
[WS] SS:5
[WS] =========================
_pinCS = 0
W5100 init, using SS_PIN_DEFAULT = 10, new ss_pin = 10, W5100Class::ss_pin = 10
W5100::init: W5500, SSIZE =8192
WebSockets Client @ IP address: 192.168.2.94
Connecting to WebSockets Server @ IP address: 192.168.2.30, port: 8080
[WS] WebSockets_Generic v2.6.0
[WS] [wsIOc] found EIO=4 disable EIO ping on client
[WS] [WS-Client][connectedCb] Connected to Host:192.168.2.30, Port:8080
[WS] [WS-Client] [sendHeader] Sending header...
[WS] sendHeader: client->cKey = A5uXYZ6TvNkcNshB9bd4mw==
[WS] [WS-Client] [sendHeader] Handshake:GET /socket.io/?EIO=4&transport=polling HTTP/1.1
Host: 192.168.2.30:8080
Connection: keep-alive
Authorization: 1234567890
User-Agent: arduino-WebSocket-Client


[WS] [WS-Client] [sendHeader] Sending header... Done (us):1953
[WS] [WS-Client][handleHeader] RX:HTTP/1.1 200 OK
[WS] [WS-Client][handleHeader] RX:Content-Type: text/plain; charset=UTF-8
[WS] [WS-Client][handleHeader] RX:Content-Length: 97
[WS] [WS-Client][handleHeader] RX:Date: Mon, 24 May 2021 02:44:22 GMT
[WS] [WS-Client][handleHeader] RX:Connection: keep-alive
[WS] [WS-Client][handleHeader] Header read fin.
[WS] [WS-Client][handleHeader] Client settings:
[WS] [WS-Client][handleHeader] - cURL:/socket.io/?EIO=4
[WS] [WS-Client][handleHeader] - cKey:A5uXYZ6TvNkcNshB9bd4mw==
[WS] [WS-Client][handleHeader] Server header:
[WS] [WS-Client][handleHeader] - cCode:200
[WS] [WS-Client][handleHeader] - cIsUpgrade:0
[WS] [WS-Client][handleHeader] - cIsWebsocket:1
[WS] [WS-Client][handleHeader] - cAccept:
[WS] [WS-Client][handleHeader] - cProtocol:arduino
[WS] [WS-Client][handleHeader] - cExtensions:
[WS] [WS-Client][handleHeader] - cVersion:0
[WS] [WS-Client][handleHeader] - cSessionId:
[WS] [WS-Client][handleHeader] Still missing cSessionId try Socket.IO
[WS] [WS-Client][handleHeader] socket.io json: 0{"sid":"NsqUuXlPnVoCSumYAAAc","upgrades":["websocket"],"pingInterval":25000,"pingTimeout":20000}
[WS] [WS-Client][handleHeader] - cSessionId: NsqUuXlPnVoCSumYAAAc
[WS] [WS-Client][handleHeader] Header read fin.
[WS] [WS-Client][handleHeader] Client settings:
[WS] [WS-Client][handleHeader] - cURL:/socket.io/?EIO=4
[WS] [WS-Client][handleHeader] - cKey:A5uXYZ6TvNkcNshB9bd4mw==
[WS] [WS-Client][handleHeader] Server header:
[WS] [WS-Client][handleHeader] - cCode:200
[WS] [WS-Client][handleHeader] - cIsUpgrade:0
[WS] [WS-Client][handleHeader] - cIsWebsocket:1
[WS] [WS-Client][handleHeader] - cAccept:
[WS] [WS-Client][handleHeader] - cProtocol:arduino
[WS] [WS-Client][handleHeader] - cExtensions:
[WS] [WS-Client][handleHeader] - cVersion:0
[WS] [WS-Client][handleHeader] - cSessionId:NsqUuXlPnVoCSumYAAAc
[WS] [WS-Client][handleHeader] found cSessionId
[WS] [WS-Client] [sendHeader] Sending header...
[WS] sendHeader: client->cKey = sQfvRYgeBW4Lg9NMIB977g==
[WS] [WS-Client] [sendHeader] Handshake:GET /socket.io/?EIO=4&transport=websocket&sid=NsqUuXlPnVoCSumYAAAc HTTP/1.1
Host: 192.168.2.30:8080
Connection: Upgrade
Upgrade: websocket
Sec-WebSocket-Version: 13
Sec-WebSocket-Key: sQfvRYgeBW4Lg9NMIB977g==
Sec-WebSocket-Protocol: arduino
Authorization: 1234567890
User-Agent: arduino-WebSocket-Client


[WS] [WS-Client] [sendHeader] Sending header... Done (us):3907
[WS] [WS-Client][handleHeader] RX:HTTP/1.1 101 Switching Protocols
[WS] [WS-Client][handleHeader] RX:Upgrade: websocket
[WS] [WS-Client][handleHeader] RX:Connection: Upgrade
[WS] [WS-Client][handleHeader] RX:Sec-WebSocket-Accept: KSsqUKjgfa1vum+jM9GAEuTogmY=
[WS] [WS-Client][handleHeader] RX:Sec-WebSocket-Protocol: arduino
[WS] [WS-Client][handleHeader] Header read fin.
[WS] [WS-Client][handleHeader] Client settings:
[WS] [WS-Client][handleHeader] - cURL:/socket.io/?EIO=4
[WS] [WS-Client][handleHeader] - cKey:sQfvRYgeBW4Lg9NMIB977g==
[WS] [WS-Client][handleHeader] Server header:
[WS] [WS-Client][handleHeader] - cCode:101
[WS] [WS-Client][handleHeader] - cIsUpgrade:1
[WS] [WS-Client][handleHeader] - cIsWebsocket:1
[WS] [WS-Client][handleHeader] - cAccept:KSsqUKjgfa1vum+jM9GAEuTogmY=
[WS] [WS-Client][handleHeader] - cProtocol:arduino
[WS] [WS-Client][handleHeader] - cExtensions:
[WS] [WS-Client][handleHeader] - cVersion:0
[WS] [WS-Client][handleHeader] - cSessionId:NsqUuXlPnVoCSumYAAAc
[WS] [WS-Client][handleHeader] Websocket connection init done.
[WS] [wsIOc] Connected to url:/socket.io/?EIO=4
[IOc] Connected to url: /socket.io/?EIO=4
[WS] [wsIOc] get pong
[WS] [wsIOc] connected: len = 30
[WS] [wsIOc] data: {"sid":"cSx3YyFrDOfxUW8hAAAd"}
["event_name",{"now":30001}]
[WS] [wsIOc] get ping send pong:3
[WS] [WS-Client] Sending HB ping
["event_name",{"now":60002}]

2. Server

kh@kh-Inspiron-3593:~/Downloads/Nodejs/New_SIO$ nodejs app
Server launched on port 8080
Connected
cSx3YyFrDOfxUW8hAAAd
JWT token test:  { host: '192.168.2.30:8080',
  connection: 'keep-alive',
  authorization: '1234567890',
  'user-agent': 'arduino-WebSocket-Client' }
Message from Client :  { now: 30001 }
Message from Client :  { now: 60002 }
