SDL_GL_Setup failed: Could not create GL context
625dennis opened this issue · 12 comments
625dennis commented
After building revery-quick-start and using esy run I get this
[DEBUG] +89ms Revery.Core.Window : Starting window creation...
[INFO] +0ms Revery.Core.Window : Creating window Welcome to Revery! width: 800 height: 600
[INFO] +60ms Revery.Core.Window : Window created successfully.
[DEBUG] +0ms Revery.Core.Window : Window id: 2
[DEBUG] +0ms Revery.Core.Window : Setting window context
[ERROR] +13ms Revery.SDL2 : SDL_GL_Setup failed: Could not create GL context
[DEBUG] +2ms Revery.Core.Window : GL setup. Checking GL version...
Looks similar to this #568
I am using xming for wsl.
glennsl commented
Could you try with revery directly? This seems very unlikely to be an issue with revery-quick-start specifically. If it happens with the Revery example as well I'll transfer the issue over there.
625dennis commented
625dennis commented

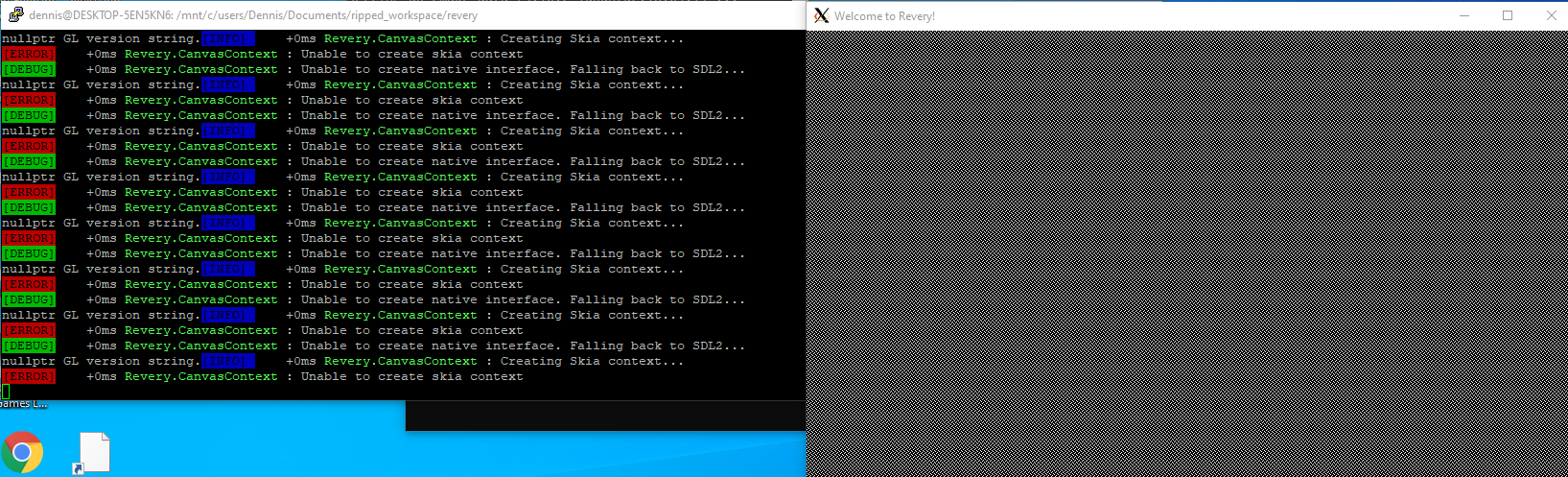

I get this repeating message when I run esy run on revery. Not sure which one comes first.
[ERROR] +0ms Revery.CanvasContext : Unable to create skia context
[DEBUG] +0ms Revery.CanvasContext : Unable to create native interface. Falling back to SDL2...
nullptr GL version string.[INFO] +0ms Revery.CanvasContext : Creating Skia context...
[ERROR] +0ms Revery.CanvasContext : Unable to create skia context
[DEBUG] +0ms Revery.CanvasContext : Unable to create native interface. Falling back to SDL2...
nullptr GL version string.[INFO] +0ms Revery.CanvasContext : Creating Skia context...
[ERROR] +0ms Revery.CanvasContext : Unable to create skia context
[DEBUG] +0ms Revery.CanvasContext : Unable to create native interface. Falling back to SDL2...
nullptr GL version string.[INFO] +0ms Revery.CanvasContext : Creating Skia context...
[ERROR] +0ms Revery.CanvasContext : Unable to create skia context
625dennis commented
This is similar to both nullptr GL version string.
glennsl commented
Thanks! Seems very similar to onivim/oni2#1522 as well. I'll transfer this to the revery repository as there doesn't seem to be a corresponding issue for it there yet.
625dennis commented
Any info I can post to help? Maybe glxinfo?
glennsl commented
Certainly couldn't hurt!
I'm hoping it will be possible to reproduce with xming on any Windows machine. Unfortunately I don't have one myself though. I also think the nullptr message is a good indication of what's going wrong.
I suspect this is less of a bug, and more about the system not meeting our current requirements. And hard to say how feasible it is to ease those requirements to support this. But either way it seems like a pretty suitable test case.
bryphe commented
Hmm, glxinfo would be great!
We currently bake in this version constraint on Windows:
https://github.com/revery-ui/reason-sdl2/blob/2f6c18ef35f6cfb103dcadde34c4da57f2889cc9/src/sdl2_wrapper.cpp#L1144
We could see if easing it back to 2.0 works - in fact, we had to do that for Linux to get support with older machines and driver...
625dennis commented
Not sure if OpenGL version string: 1.2 (4.6.0 NVIDIA 445.75) is saying I have a version 1.2 on my WSL instance. On windows, I'm getting just the version 4.6.
name of display: localhost:0
display: localhost:0 screen: 0
direct rendering: Yes
server glx vendor string: SGI
server glx version string: 1.2
server glx extensions:
GLX_ARB_multisample, GLX_EXT_import_context, GLX_EXT_visual_info,
GLX_EXT_visual_rating, GLX_OML_swap_method, GLX_SGIS_multisample,
GLX_SGIX_fbconfig, GLX_SGIX_hyperpipe, GLX_SGIX_swap_barrier,
GLX_SGI_make_current_read
client glx vendor string: Mesa Project and SGI
client glx version string: 1.4
client glx extensions:
GLX_ARB_context_flush_control, GLX_ARB_create_context,
GLX_ARB_create_context_no_error, GLX_ARB_create_context_profile,
GLX_ARB_create_context_robustness, GLX_ARB_fbconfig_float,
GLX_ARB_framebuffer_sRGB, GLX_ARB_get_proc_address, GLX_ARB_multisample,
GLX_EXT_buffer_age, GLX_EXT_create_context_es2_profile,
GLX_EXT_create_context_es_profile, GLX_EXT_fbconfig_packed_float,
GLX_EXT_framebuffer_sRGB, GLX_EXT_import_context,
GLX_EXT_texture_from_pixmap, GLX_EXT_visual_info, GLX_EXT_visual_rating,
GLX_INTEL_swap_event, GLX_MESA_copy_sub_buffer,
GLX_MESA_multithread_makecurrent, GLX_MESA_query_renderer,
GLX_MESA_swap_control, GLX_OML_swap_method, GLX_OML_sync_control,
GLX_SGIS_multisample, GLX_SGIX_fbconfig, GLX_SGIX_pbuffer,
GLX_SGIX_visual_select_group, GLX_SGI_make_current_read,
GLX_SGI_swap_control, GLX_SGI_video_sync
GLX version: 1.2
GLX extensions:
GLX_ARB_get_proc_address, GLX_ARB_multisample, GLX_EXT_import_context,
GLX_EXT_visual_info, GLX_EXT_visual_rating, GLX_MESA_query_renderer,
GLX_OML_swap_method, GLX_SGIS_multisample, GLX_SGIX_fbconfig,
GLX_SGI_make_current_read
Extended renderer info (GLX_MESA_query_renderer):
Vendor: VMware, Inc. (0xffffffff)
Device: llvmpipe (LLVM 9.0, 128 bits) (0xffffffff)
Version: 19.2.8
Accelerated: no
Video memory: 32716MB
Unified memory: no
Preferred profile: core (0x1)
Max core profile version: 3.3
Max compat profile version: 3.1
Max GLES1 profile version: 1.1
Max GLES[23] profile version: 3.0
OpenGL vendor string: VMware, Inc.
OpenGL renderer string: llvmpipe (LLVM 9.0, 128 bits)
OpenGL version string: 3.1 Mesa 19.2.8
OpenGL shading language version string: 1.40
OpenGL context flags: (none)
OpenGL extensions:
GL_AMD_conservative_depth, GL_AMD_draw_buffers_blend,
GL_AMD_multi_draw_indirect, GL_AMD_seamless_cubemap_per_texture,
GL_AMD_shader_stencil_export, GL_AMD_shader_trinary_minmax,
GL_AMD_texture_texture4, GL_ANGLE_texture_compression_dxt3,
GL_ANGLE_texture_compression_dxt5, GL_APPLE_packed_pixels,
GL_ARB_ES2_compatibility, GL_ARB_ES3_compatibility,
GL_ARB_arrays_of_arrays, GL_ARB_base_instance, GL_ARB_blend_func_extended,
GL_ARB_buffer_storage, GL_ARB_clear_buffer_object, GL_ARB_clear_texture,
GL_ARB_clip_control, GL_ARB_color_buffer_float, GL_ARB_compatibility,
GL_ARB_compressed_texture_pixel_storage,
GL_ARB_conditional_render_inverted, GL_ARB_conservative_depth,
GL_ARB_copy_buffer, GL_ARB_copy_image, GL_ARB_cull_distance,
GL_ARB_debug_output, GL_ARB_depth_buffer_float, GL_ARB_depth_clamp,
GL_ARB_depth_texture, GL_ARB_direct_state_access, GL_ARB_draw_buffers,
GL_ARB_draw_buffers_blend, GL_ARB_draw_elements_base_vertex,
GL_ARB_draw_indirect, GL_ARB_draw_instanced, GL_ARB_enhanced_layouts,
GL_ARB_explicit_attrib_location, GL_ARB_explicit_uniform_location,
GL_ARB_fragment_coord_conventions, GL_ARB_fragment_layer_viewport,
GL_ARB_fragment_program, GL_ARB_fragment_program_shadow,
GL_ARB_fragment_shader, GL_ARB_framebuffer_object,
GL_ARB_framebuffer_sRGB, GL_ARB_get_program_binary,
GL_ARB_get_texture_sub_image, GL_ARB_half_float_pixel,
GL_ARB_half_float_vertex, GL_ARB_instanced_arrays,
GL_ARB_internalformat_query, GL_ARB_internalformat_query2,
GL_ARB_invalidate_subdata, GL_ARB_map_buffer_alignment,
GL_ARB_map_buffer_range, GL_ARB_multi_bind, GL_ARB_multi_draw_indirect,
GL_ARB_multisample, GL_ARB_multitexture, GL_ARB_occlusion_query,
GL_ARB_occlusion_query2, GL_ARB_parallel_shader_compile,
GL_ARB_pipeline_statistics_query, GL_ARB_pixel_buffer_object,
GL_ARB_point_parameters, GL_ARB_point_sprite, GL_ARB_polygon_offset_clamp,
GL_ARB_program_interface_query, GL_ARB_provoking_vertex,
GL_ARB_robustness, GL_ARB_sampler_objects, GL_ARB_seamless_cube_map,
GL_ARB_seamless_cubemap_per_texture, GL_ARB_separate_shader_objects,
GL_ARB_shader_atomic_counter_ops, GL_ARB_shader_atomic_counters,
GL_ARB_shader_bit_encoding, GL_ARB_shader_objects,
GL_ARB_shader_stencil_export, GL_ARB_shader_storage_buffer_object,
GL_ARB_shader_subroutine, GL_ARB_shader_texture_lod,
GL_ARB_shading_language_100, GL_ARB_shading_language_420pack,
GL_ARB_shading_language_packing, GL_ARB_shadow, GL_ARB_stencil_texturing,
GL_ARB_sync, GL_ARB_texture_border_clamp, GL_ARB_texture_buffer_object,
GL_ARB_texture_buffer_object_rgb32, GL_ARB_texture_buffer_range,
GL_ARB_texture_compression, GL_ARB_texture_compression_bptc,
GL_ARB_texture_compression_rgtc, GL_ARB_texture_cube_map,
GL_ARB_texture_cube_map_array, GL_ARB_texture_env_add,
GL_ARB_texture_env_combine, GL_ARB_texture_env_crossbar,
GL_ARB_texture_env_dot3, GL_ARB_texture_float, GL_ARB_texture_gather,
GL_ARB_texture_mirror_clamp_to_edge, GL_ARB_texture_mirrored_repeat,
GL_ARB_texture_multisample, GL_ARB_texture_non_power_of_two,
GL_ARB_texture_query_levels, GL_ARB_texture_query_lod,
GL_ARB_texture_rectangle, GL_ARB_texture_rg, GL_ARB_texture_rgb10_a2ui,
GL_ARB_texture_stencil8, GL_ARB_texture_storage,
GL_ARB_texture_storage_multisample, GL_ARB_texture_swizzle,
GL_ARB_texture_view, GL_ARB_timer_query, GL_ARB_transform_feedback2,
GL_ARB_transform_feedback3, GL_ARB_transform_feedback_instanced,
GL_ARB_transform_feedback_overflow_query, GL_ARB_transpose_matrix,
GL_ARB_uniform_buffer_object, GL_ARB_vertex_array_bgra,
GL_ARB_vertex_array_object, GL_ARB_vertex_attrib_binding,
GL_ARB_vertex_buffer_object, GL_ARB_vertex_program, GL_ARB_vertex_shader,
GL_ARB_vertex_type_10f_11f_11f_rev, GL_ARB_vertex_type_2_10_10_10_rev,
GL_ARB_viewport_array, GL_ARB_window_pos, GL_ATI_blend_equation_separate,
GL_ATI_draw_buffers, GL_ATI_fragment_shader, GL_ATI_separate_stencil,
GL_ATI_texture_compression_3dc, GL_ATI_texture_env_combine3,
GL_ATI_texture_float, GL_ATI_texture_mirror_once, GL_EXT_abgr,
GL_EXT_bgra, GL_EXT_blend_color, GL_EXT_blend_equation_separate,
GL_EXT_blend_func_separate, GL_EXT_blend_minmax, GL_EXT_blend_subtract,
GL_EXT_compiled_vertex_array, GL_EXT_copy_texture, GL_EXT_draw_buffers2,
GL_EXT_draw_instanced, GL_EXT_draw_range_elements, GL_EXT_fog_coord,
GL_EXT_framebuffer_blit, GL_EXT_framebuffer_multisample,
GL_EXT_framebuffer_multisample_blit_scaled, GL_EXT_framebuffer_object,
GL_EXT_framebuffer_sRGB, GL_EXT_gpu_program_parameters,
GL_EXT_gpu_shader4, GL_EXT_multi_draw_arrays, GL_EXT_packed_depth_stencil,
GL_EXT_packed_float, GL_EXT_packed_pixels, GL_EXT_pixel_buffer_object,
GL_EXT_point_parameters, GL_EXT_polygon_offset_clamp,
GL_EXT_provoking_vertex, GL_EXT_rescale_normal, GL_EXT_secondary_color,
GL_EXT_separate_specular_color, GL_EXT_shader_integer_mix,
GL_EXT_shadow_funcs, GL_EXT_stencil_two_side, GL_EXT_stencil_wrap,
GL_EXT_subtexture, GL_EXT_texture, GL_EXT_texture3D,
GL_EXT_texture_array, GL_EXT_texture_buffer_object,
GL_EXT_texture_compression_dxt1, GL_EXT_texture_compression_latc,
GL_EXT_texture_compression_rgtc, GL_EXT_texture_compression_s3tc,
GL_EXT_texture_cube_map, GL_EXT_texture_edge_clamp,
GL_EXT_texture_env_add, GL_EXT_texture_env_combine,
GL_EXT_texture_env_dot3, GL_EXT_texture_integer, GL_EXT_texture_lod_bias,
GL_EXT_texture_mirror_clamp, GL_EXT_texture_object,
GL_EXT_texture_rectangle, GL_EXT_texture_sRGB, GL_EXT_texture_sRGB_R8,
GL_EXT_texture_sRGB_decode, GL_EXT_texture_shared_exponent,
GL_EXT_texture_snorm, GL_EXT_texture_swizzle, GL_EXT_timer_query,
GL_EXT_transform_feedback, GL_EXT_vertex_array, GL_EXT_vertex_array_bgra,
GL_IBM_multimode_draw_arrays, GL_IBM_rasterpos_clip,
GL_IBM_texture_mirrored_repeat, GL_INGR_blend_func_separate,
GL_KHR_context_flush_control, GL_KHR_debug, GL_KHR_no_error,
GL_KHR_parallel_shader_compile, GL_KHR_texture_compression_astc_ldr,
GL_KHR_texture_compression_astc_sliced_3d, GL_MESA_pack_invert,
GL_MESA_shader_integer_functions, GL_MESA_texture_signed_rgba,
GL_MESA_window_pos, GL_MESA_ycbcr_texture, GL_NV_blend_square,
GL_NV_conditional_render, GL_NV_depth_clamp, GL_NV_fog_distance,
GL_NV_light_max_exponent, GL_NV_packed_depth_stencil,
GL_NV_primitive_restart, GL_NV_texgen_reflection,
GL_NV_texture_env_combine4, GL_NV_texture_rectangle, GL_OES_EGL_image,
GL_OES_read_format, GL_S3_s3tc, GL_SGIS_generate_mipmap,
GL_SGIS_texture_border_clamp, GL_SGIS_texture_edge_clamp,
GL_SGIS_texture_lod, GL_SUN_multi_draw_arrays
6 GLX Visuals
visual x bf lv rg d st colorbuffer sr ax dp st accumbuffer ms cav
id dep cl sp sz l ci b ro r g b a F gb bf th cl r g b a ns b eat
----------------------------------------------------------------------------
0x022 24 tc 1 24 0 r . . 8 8 8 0 . . 0 0 0 0 0 0 0 0 0 None
0x026 24 tc 1 24 0 r y . 8 8 8 0 . . 0 0 0 0 0 0 0 0 0 None
0x032 24 tc 1 24 0 r . . 8 8 8 0 . . 0 24 0 0 0 0 0 0 0 None
0x034 24 tc 1 24 0 r . . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None
0x036 24 tc 1 24 0 r y . 8 8 8 0 . . 0 24 0 0 0 0 0 0 0 None
0x038 24 tc 1 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None
6 GLXFBConfigs:
visual x bf lv rg d st colorbuffer sr ax dp st accumbuffer ms cav
id dep cl sp sz l ci b ro r g b a F gb bf th cl r g b a ns b eat
----------------------------------------------------------------------------
0x022 24 tc 1 24 0 r . . 8 8 8 0 . . 0 0 0 0 0 0 0 0 0 None
0x026 24 tc 1 24 0 r y . 8 8 8 0 . . 0 0 0 0 0 0 0 0 0 None
0x032 24 tc 1 24 0 r . . 8 8 8 0 . . 0 24 0 0 0 0 0 0 0 None
0x034 24 tc 1 24 0 r . . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None
0x036 24 tc 1 24 0 r y . 8 8 8 0 . . 0 24 0 0 0 0 0 0 0 None
0x038 24 tc 1 24 0 r y . 8 8 8 0 . . 0 24 8 0 0 0 0 0 0 None

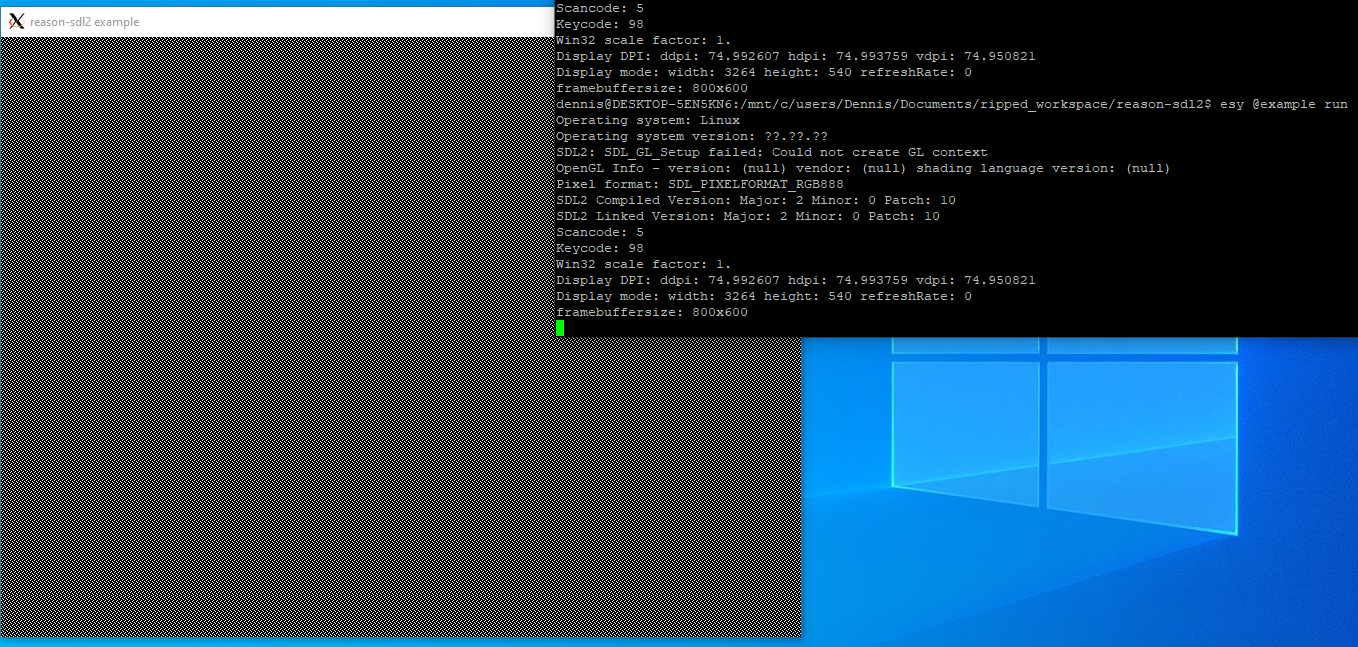

625dennis commented
Operating system: Linux
Operating system version: ??.??.??
SDL2: SDL_GL_Setup failed: Could not create GL context
OpenGL Info - version: (null) vendor: (null) shading language version: (null)
Pixel format: SDL_PIXELFORMAT_RGB888
SDL2 Compiled Version: Major: 2 Minor: 0 Patch: 10
SDL2 Linked Version: Major: 2 Minor: 0 Patch: 10
Scancode: 5
Keycode: 98
Win32 scale factor: 1.
Display DPI: ddpi: 74.992607 hdpi: 74.993759 vdpi: 74.950821
Display mode: width: 3264 height: 540 refreshRate: 0
framebuffersize: 800x600
I get the same problem with reason-sdl2. I haven't changed SDL_GL_CONTEXT_MAJOR_VERSION here.
625dennis commented
Also, I am using Ubuntu for WSL.
