/MenuBar

A lightweight macOS status bar python script that displays colored indicator dots based on MQTT messages from sensors. Perfect for home automation systems, IoT monitoring, or any MQTT-based status indication needs.

Primary LanguagePython

Note
This project has been replaced by a native macOS app MQTTMenuBar ↗
For the best experience on macOS, use the new version.

MenuBar MQTT

A lightweight macOS status bar Python script that displays status from MQTT messages — either as colored indicator dots or dynamic text. Perfect for home automation systems, IoT monitoring, or any MQTT-based status indication needs.

🚀 Features

  • Color-coded indicators: Red, Yellow, and Green dots using macOS-native colors
  • Dynamic text display: Show short MQTT-published values like "17°C", "ON", or "75%" in the menu bar
  • MQTT integration: Connects to any MQTT broker with support for authentication
  • Runs in background: No Dock icon; menu bar only
  • Automatic reconnection: Handles network interruptions
  • Threaded MQTT handling: Keeps the UI responsive
  • Built for macOS: Uses PyObjC for seamless system integration

📦 Modes

🟢 MenuBar Dots

Displays a single colored dot in the menu bar based on incoming MQTT messages.

MQTT Commands:

  • "red" → shows a red dot
  • "yellow" → shows a yellow dot
  • "green" → shows a green dot
  • "off" → hides the indicator

macOS Color Mappings:

  • Red: NSColor.colorWithRed_green_blue_alpha_(1.0, 0.231, 0.188, 1.0)
  • Yellow: NSColor.colorWithRed_green_blue_alpha_(1.0, 0.8, 0.0, 1.0)
  • Green: NSColor.colorWithRed_green_blue_alpha_(0.196, 0.843, 0.294, 1.0)

Change the Indicator Symbol:

You can replace the "●" character with any Unicode symbol you prefer:

  • "◆" for diamonds
  • "▲" for triangles
  • "★" for stars
  • "■" for squares

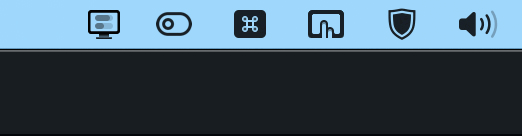

Example Screenshot

🔤 MenuBar Text

Displays a short dynamic text string from MQTT messages directly in the menu bar.

Example MQTT Payloads:

  • "23°C" → temperature reading
  • "ON" / "OFF" → binary state
  • "75%" → battery or humidity level

This variant is ideal for showing real-time sensor values or device states.

Example Screenshot

⚙️ Requirements

🛠 Installation

  1. Install Dependencies

    pip install paho-mqtt pyobjc-framework-Cocoa

  2. Clone Repository

    git clone git clone https://github.com/saihgupr/MenuBar
cd MenuBar

  3. Configure MQTT Settings

    Edit the following variables in the script:

    self.mqtt_broker = "192.168.1.199"      # Your MQTT broker IP
self.mqtt_port = 1883                    # MQTT port (default: 1883)
self.mqtt_username = "XXX"          # MQTT username
self.mqtt_password = "XXX"          # MQTT password
self.mqtt_topic = "menubar/text"  # MQTT topic to subscribe to

  4. Run the Application

    python3 menubar_dots.py

Auto-Start on Login

To run the app automatically when you log in:

  1. Open System Preferences → Users & Groups
  2. Select your user account
  3. Click Login Items tab
  4. Add the Python script or create a wrapper script

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

  1. Fork the repository
  2. Create your feature branch (git checkout -b feature/AmazingFeature)
  3. Commit your changes (git commit -m 'Add some AmazingFeature')
  4. Push to the branch (git push origin feature/AmazingFeature)
  5. Open a Pull Request

License

This project is licensed under the MIT License - see the LICENSE file for details.

Acknowledgments

  • Built with PyObjC for native macOS integration
  • Uses paho-mqtt for reliable MQTT communication
  • Inspired by the need for simple IoT status monitoring
