Incorrect result of ts_node_first_child_for_byte in source node

[dannyfreeman]

I've discovered a bug that is very similar to tree-sitter/tree-sitter-bash#139

It can be reproduced with this C file

#include <string.h>
#include <stdio.h>
#include <tree_sitter/api.h>

TSLanguage *tree_sitter_clojure();

void print_src(char *source) {
  printf("\n---------\n");
  char form1[11] = { 0 };
  strncpy(form1, source, 10);
  printf("%s", form1); // includes 1 newline

  char form2[12] = { 0 };
  strncpy(form2, source+10, 11);
  printf("%s", form2);

  char form3[13] = { 0 };
  strncpy(form3, source+21, 12);
  printf("%s", form3);
  printf("---------\n\n");
  return;
}

int main() {
  TSParser *parser = ts_parser_new();
  ts_parser_set_language(parser, tree_sitter_clojure());

  char *source =
    "(def x a)\n"  // 0-9
    "\n"           // 10
    "{def y 2}\n"  // 11-21
    "\n"           // 22
    "[def z 3]\n"; // 23-33

  print_src(source);

  TSTree *tree = ts_parser_parse_string(parser, NULL, source, strlen(source));

  TSNode root = ts_tree_root_node(tree);
  TSNode child_x = ts_node_first_child_for_byte(root, 0);
  TSNode child_y = ts_node_first_child_for_byte(root, 10);
  TSNode child_z = ts_node_first_child_for_byte(root, 22);


  if (!ts_node_is_null(child_x))
    printf("Child at 0 (beg of \"(def x a)\") is %s\n", ts_node_type(child_x));
  else
    printf("Child at 0 is null: unexpected\n");

  if (!ts_node_is_null(child_y))
    printf("Child at 10 (beg of \"{def y 2}\") is %s\n", ts_node_type(child_y));
  else
    printf("Child at 10 is null: unexpected\n");

  if (!ts_node_is_null(child_z))
    printf("Child at 22 (beg of \"[def z 3]\") is %s\n", ts_node_type(child_z));
  else
    printf("Child at 22 is null: unexpected");

  printf("\nParse tree:\n%s\n", ts_node_string(root));
  return 0;
}

To build, I save this C file as bug.c in the root directory of tree-sitter-clojure.
I have the tree-sitter repo cloned as a sibling directory of tree-sitter-clojure.

In the tree-sitter repo, I run

make

Then in the tree-sitter-clojure repo I run

cc bug.c -o bug -I ../tree-sitter/lib/include src/parser.c ../tree-sitter/libtree-sitter.a && ./bug

The output is:

Child at 0 (beg of "(def x a)") is list_lit
Child at 10 is null: unexpected
Child at 22 (beg of "[def z 3]") is vec_lit

Where I would expect it to be

Child at 0 (beg of "(def x a)") is list_lit
Child at 10 (beg of "{def y 2}") is map_lit
Child at 22 (beg of "[def z 3]") is vec_lit

This bug manifests itself in emacs 29 in the treesit-end-of-defun command, which will skip to the end of the file from positions 10 or 11.
M-x goto-char RET 10 RET C-M-e
M-x goto-char RET 11 RET C-M-e

A detailed bug report for Emacs can be found in the mailing list here: https://lists.gnu.org/archive/html/bug-gnu-emacs/2022-12/msg01653.html

[sogaiu]

Thanks for the detailed report and investigation.

I was able to reproduce via Emacs as well as via your .c code.

To add slightly more detail regarding the trail in Emacs, using edebug I saw that calling treesit-end-of-defun eventually results in a call to treesit-node-first-child-for-pos here. IIUC, that function is implemented in C here. I guess that results in a call to ts_node_first_child_for_byte here, though I did not observe that part firsthand.

Since it seems to also occur in tree-sitter/tree-sitter-bash#139, perhaps it is a tree-sitter issue.

[sogaiu]

I tried modifying the .c program a bit to probe the source string more fully:

#include <string.h>
#include <stdio.h>
#include <tree_sitter/api.h>

TSLanguage *tree_sitter_clojure();

int main() {
  TSParser *parser = ts_parser_new();
  ts_parser_set_language(parser, tree_sitter_clojure());

  char *source =
    "(def x a)\n"  // 0-9
    "\n"           // 10
    "{def y 2}\n"  // 11-20
    "\n"           // 21
    "[def z 3]\n"; // 22-31

  printf("---------\n");
  printf("%s", source);
  printf("---------\n\n");

  TSTree *tree = ts_parser_parse_string(parser, NULL, source, strlen(source));

  TSNode root = ts_tree_root_node(tree);
  TSNode child;

  for (int i = 0; i < (int)strlen(source); ++i) {
    child = ts_node_first_child_for_byte(root, i);
    if (!ts_node_is_null(child)) {
      printf("Child at %i is %s %s\n", i, ts_node_type(child), ts_node_string(child));
    } else {
      printf("Child at %i is null\n", i);
    }
  }

  printf("\nParse tree:\n%s\n", ts_node_string(root));
  return 0;
}

I got the following output here:

---------
(def x a)

{def y 2}

[def z 3]
---------

Child at 0 is list_lit (list_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)))
Child at 1 is list_lit (list_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)))
Child at 2 is list_lit (list_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)))
Child at 3 is list_lit (list_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)))
Child at 4 is list_lit (list_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)))
Child at 5 is list_lit (list_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)))
Child at 6 is list_lit (list_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)))
Child at 7 is list_lit (list_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)))
Child at 8 is list_lit (list_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)))
Child at 9 is null
Child at 10 is null
Child at 11 is map_lit (map_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 12 is map_lit (map_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 13 is map_lit (map_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 14 is map_lit (map_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 15 is map_lit (map_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 16 is map_lit (map_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 17 is map_lit (map_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 18 is map_lit (map_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 19 is map_lit (map_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 20 is vec_lit (vec_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 21 is vec_lit (vec_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 22 is vec_lit (vec_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 23 is vec_lit (vec_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 24 is vec_lit (vec_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 25 is vec_lit (vec_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 26 is vec_lit (vec_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 27 is vec_lit (vec_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 28 is vec_lit (vec_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 29 is vec_lit (vec_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 30 is vec_lit (vec_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit))
Child at 31 is null

Parse tree:
(source (list_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name))) (map_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit)) (vec_lit value: (sym_lit name: (sym_name)) value: (sym_lit name: (sym_name)) value: (num_lit)))

It seems there are at least 2 positions that yield null unexpectedly (9 and 10). Not sure how to interpret the result at index 31 -- may be that is expected.

(Note: I made a few iterations on the content above.)

[dannyfreeman]

That's much more helpful than my output, thanks for fixing it up. I'm not sure what to think about the result at position 31. I don't think it would cause the same kind of issue in Emacs, but for other tools I don't know.

[dannyfreeman]

Here is a branch with the source and a makefile: master...issue-32. Reproducing should be a matter of running make now

[sogaiu]

I tried it out and it worked fine.

Thanks!

[sogaiu]

The content below can probably be skipped, but I'm leaving it here for future reference.

I've tried a slightly simpler source file:

1

2

3

This leads to some unexpected null results via ts_node_first_child_for_byte as well.

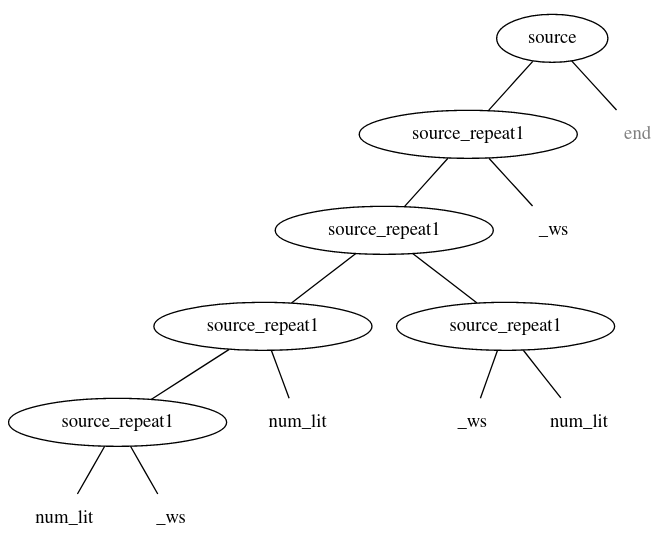

I examined the tree produced (visible via log.html that is produced via tree-sitter parse --debug-graph).

The structure of the tree seemed odd to me.

So I repeated using:

1

2

3

4

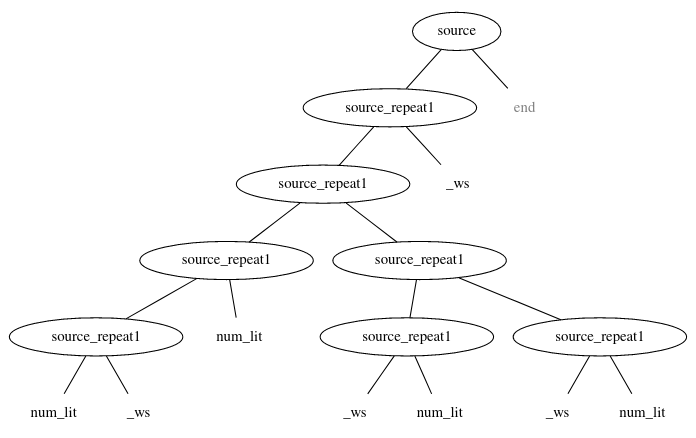

A similar oddness seemed to be present.

I tried to manually go over the shift-reduce log to recreate the tree by hand and it seemed to not match what I was seeing as the final tree output.

Then I tried commenting out the following line in tree-sitter itself:

ts_subtree_balance(self->finished_tree, &self->tree_pool, self->language);

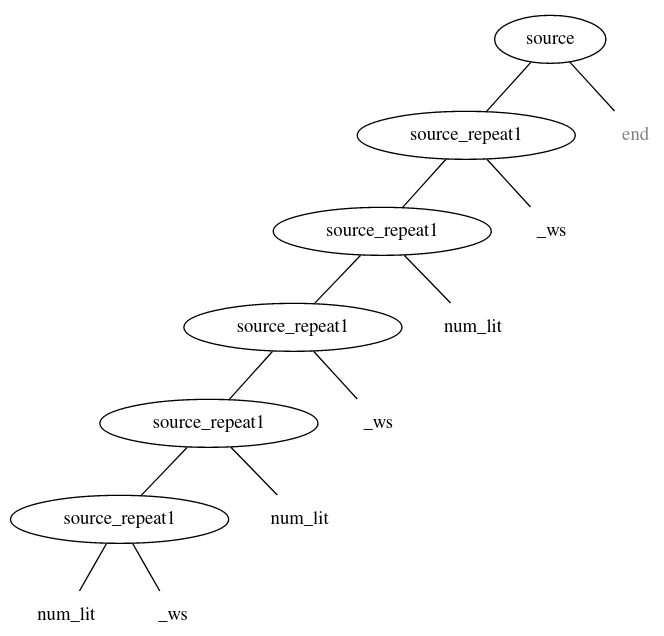

Using a subsequently built tree-sitter cli yielded a tree that was much less odd (though quite unbalanced perhaps unsurprisingly).

May be it's possible that there's an issue with ts_subtree_balance?

Update: Giving it some more thought, ATM, I'm thinking it's not an issue with ts_subtree_balance.

[sogaiu]

I tried an alternate implementation of ts_node__first_child_for_byte and it seemed to handle the case in this issue more appropriately -- but it is likely not satisfactorily efficient.

I posted a write-up of the some of the details in the context of tree-sitter/tree-sitter-bash#139.

Specifically for use in Emacs, it seems possible to apply Emacs' treesit.c's treesit_search_dfs (or something built on it) to do an appropriate search with a predicate in order to work-around the current situation for ts_node__first_child_for_byte.

Perhaps there are better methods than this though.

[dannyfreeman]

Thanks for all this really in depth research! I'll look in to work around this limitation in Emacs soon and report back with the results.

[sogaiu]

Since filing tree-sitter/tree-sitter#2012 it appears it was acknowledged (at least labeled) as a bug in tree-sitter's C-library. It also seems that Emacs folks has worked around the issue.

I wonder whether we need to track the status of the bug in this repository.

Any thoughts?

[dannyfreeman]

Since it's being tracked in tree-sitter upstream I'd agree it is not necessary to track here. I'll close the issue. If it ends up requiring some change on our end I can open it back up.
