BlendArMocap

BlendArMocap is a Blender add-on to preform Hand, Face and Pose Detection using Googles Mediapipe requiring just a Webcam. The detected data can be easily transferred to rifigy rigs.

Setup Instructions

Blender has to be started with elevated permissions in order to install the required packages opencv and mediapipe via the add-ons preferences. Internet connection is required to install the required packages. It's recommended to disable VPN's during the installation processes. Also Blender may has to be restarted during the installation process. To access the webcam feed blender usually has to be started with elevated permissions.

Starting Blender with elevated permissions

Windows
Right-click the blender application and choose: "Run as administrator"

Mac
Start Blender as admin by using the terminal:
Navigate to Blender: cd /Applications/Blender/Contents/MacOS
Run Blender as admin: sudo ./Blender

Linux
Start Blender as admin using the terminal:
Navigate to Blender: cd /usr/bin
Run Blender as admin: sudo ./blender

When running Blender as admin using sudo in the terminal, it's required to enter the admin password. Once the add-on packages are installed and your terminal has the permission to access your camera, you can start Blender with just ./Blender.

Capabilities

BlendArMocap uses opencv to access the users webcam and mediapipe by google to preform hand, face and pose detection in blender. The detected data can be used to drive a rigify rig.

Transferable data to rigify rigs

Hands

  • Hand rotation
  • Finger x-angles
  • Finger y-angles

Face

  • Head rotation
  • Open and close Mouth
  • Relative Mouth Corners
  • Open and close eyes
  • Eyebrow Movement

Pose

  • Hand position
  • Hand orientation
  • Elbow position
  • Shoulder position
  • Shoulder rotation
  • Hip rotation
  • Knee position
  • Ankle position

Detection

Webcam Device Slot
If you have multiple webcam devices you may have to change the integer value until you find the device you want to use.
Defaults the Webcam Device Slot should be 0.

Key Step
The Key Step determines the frequency of Keyframes made in Blender. Adjust the Keyframe Step so the detection results in Blender match the recording speed.

Target
Select the detection target:

  • Hands
  • Face
  • Pose

Start Detection

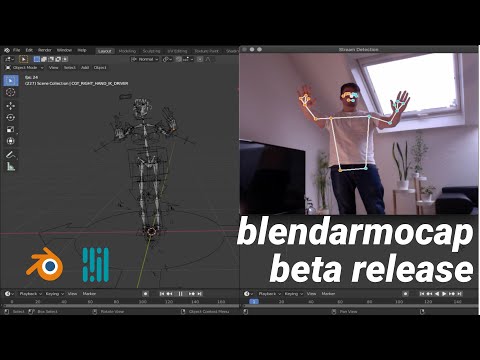

When pressing the Start Detection button a window will open which contains the webcam feed and detection results. The detection results are recorded in Blender at runtime. You can modify the recording starting point by changing the keyframe start in Blender.
May deactivate the rig while detecting if you have transferred animation results previously. To finish the recording press 'Q', 'ESC' or the 'RIGHT MOUSE BUTTON'.

Animation Transfer

The detection results can be transferred to a generated rigify rig.
The new rigify face is not supported yet.

Drivers
Select the driver collection you want to transfer.
You can select the parent, or just the collection containing the drivers of your choice.
May not change the collection names nor the empty objects names.

Rig
Select the generated rigify rig you want to transfer to.
May not change the bone names of the rigify rig.

Start Transfer
Transfers detection results from the selected collection to the rigify rig.
Once the transfer has taken place, new recordings will be applied instantly to the rig.
So there is no need to transfer twice.

Data Assignment

Driver Source Constraint type Rigify Pose Bone
hip_center copy rotation torso
shoulder_center copy rotation chest
left_hand_ik copy location hand_ik.R
right_hand_ik copy location hand_ik.L
left_forearm_ik copy location forearm_tweak.L
right_forearm_ik copy location forearm_tweak.R
left_index_ik copy location hand_ik.R
right_shin_ik copy location shin_tweak.L
left_shin_ik copy location shin_tweak.R
left_foot_ik copy location foot_ik.R
right_foot_ik copy location foot_ik.L
Hand Driver Source Constraint type Rigify Hand Bone
wrist copy rotation hand_ik
thumb_cmc copy rotation thumb.01
thumb_mcp copy rotation thumb.02
thumb_ip copy rotation thumb.03
thumb_tip copy rotation thumb.01
index_finger_mcp copy rotation f_index.01
index_finger_pip copy rotation f_index.02
index_finger_dip copy rotation f_index.03
index_finger_tip copy rotation f_index.01
middle_finger_mcp copy rotation f_middle.01
middle_finger_pip copy rotation f_middle.02
middle_finger_dip copy rotation f_middle.03
middle_finger_tip copy rotation f_middle.01
ring_finger_mcp copy rotation f_ring.01
ring_finger_pip copy rotation f_ring.02
ring_finger_dip copy rotation f_ring.03
ring_finger_tip copy rotation f_ring.01
pinky_mcp copy rotation f_pinky.01
pinky_pip copy rotation f_pinky.02
pinky_dip copy rotation f_pinky.03
pinky_tip copy rotation f_pinky.01
Face Driver Source Constraint type Rigify Face Bone
head copy rotation head
chin copy rotation jaw_master
right_eye_t copy location lid.T.R.002
right_eye_b copy location lid.B.R.002
left_eye_t copy location lid.T.L.002
left_eye_b copy location lid.B.L.002
mouth_t copy location lip.T
mouth_b copy location lip.B
mouth_l copy location lips.R
mouth_r copy location lips.L
eyebrow_in_l copy location brow.T.L.001
eyebrow_out_l copy location brow.T.L.003
eyebrow_in_r copy location brow.T.R.001
eyebrow_out_r copy location brow.T.R.003
