Utilities to read text or binary files to produce frequency counts of all characters in a file.
Character count programs compute the frequency counts of all bytes in a file, with values from hex 00 to hex FF.
The programs are useful for determining if a file contains unusual or special ASCII characters, including
- control characters, hex 00 - hex 1F, including tabs (hex 09), and line endings (hex 0D and or hex 0A),
- unusual or unexpected characters, especially hex 7F through hex FF,
- line end characters,
- field separators and whether the count matches expected number of fields.
Programs include
-
Delphi-Windows program: Drag and drop file on CharCount.exe to process.
-
C Command-Line programs, charcnt and charcnt2: For use in scripts.
-
Archive Several historical versions of this program back to 1980 (for my amusement).
-
Delphi-Windows. Delphi source code used with Embarcadero RAD Studio.
-
Command-line. Old C source code that still works in Windows or Linux.
The base directory contains Windows executable programs from the source code in the directories above.

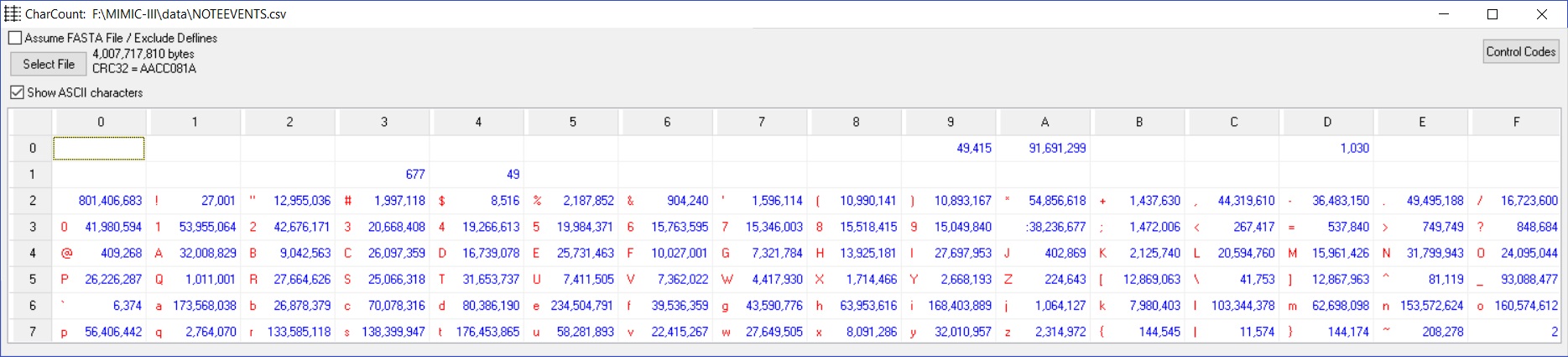

Example 1: MIMIC-III Clinical Data File
Press Select File or drag and drop file on window for processing.
Possible problems to explore for this file:
- Line ends predominantly LFs (nearly 92 million hex 0As), but why 1030 hex 0Ds?
- Nearly 50,000 tabs are in the file. Can they cause problems?
- What's the purpose for the 677 hex 13 and 49 hex 14 characters?
- Why are two hex 7F characters in the file?

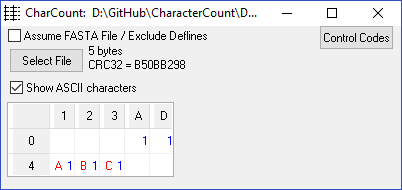

Example 2: Small text file
Use abc.txt file from Data directory.
Each line in an ASCII text file has a carriage return (hex 0D) and/or a line-feed (hex 0A) at the end of each line.
Windows text files end with two characters (hex 0D and hex 0A).
If created in Linux, the file has only a line-feed (hex 0A) at the end of each line.
Press the Control Codes button to see a description of most control character values under hex 20..
To process a file, press the Select File button and select the file, or using Windows Explorer, simply drag and drop the file onto the middle of the window.

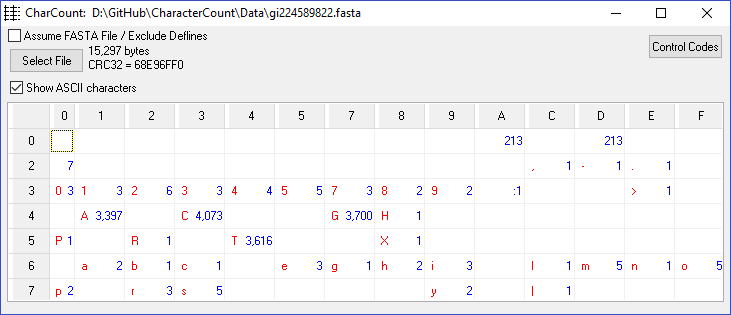

Example 3: DNA "fasta" file
Use gi224589822.fasta from Data directory.
An ASCII text file with a DNA sequence in FASTA format might look like this, with a variety of characters appearing in the file, mostly due to the first header line.
The file has 213 lines and was likely created in a Windows environment since the number of hex 0A and hex 0D characters are the same.
By default, all characters in the file are processed, so the header line spoils the nucleotide counts.

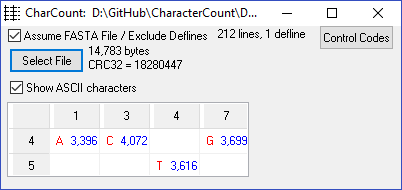

Example 4: Count nucleotides only in "fasta" file
The FASTA file in Example 3 consists of a "defline" as the first line, followed by 212 rows of DNA sequences that consist of only As, Cs, Gs and Ts. To ignore the defline and only count the nucleotides, check the Assume FASTA File box before processing the file.
Because of a minor bug, you must press "Select File" after checking the checkbox to process the file. Drag and drop does not work with this option.
When the "Defline" is excluded, the file contains only A, C, G and T nucleotide characters.
Windows or Linux if compiled correctly.
Example 5: charcnt.c source code
charcnt charcnt.c
charcnt.c 2135 bytes checksum: 134503
0 1 2 3 4 5 6 7 8 9 A B C D E F
- - - - - - - - - - - - - - - -
0 0 0 0 0 0 0 0 0 0 0 108 0 0 108 0 0
2 544 0 30 5 0 8 0 2 32 32 12 21 20 5 16 8
3 27 20 8 2 7 3 21 1 3 2 4 44 11 22 8 2
4 0 6 15 11 22 42 17 13 9 25 0 0 4 11 39 18
5 1 0 27 7 17 1 0 8 2 3 0 36 9 36 0 2
6 0 40 8 31 19 45 28 13 20 60 34 5 30 16 39 31
7 16 7 44 13 52 14 7 15 24 3 0 2 0 2 0 0
Example 6: charcnt.c source code (again)
charcnt2 returns the frequency matrix as one long vector with a final total bytes column (shown wrapped below):
charcnt2 charcnt.c
charcnt.c,0,0,0,0,0,0,0,0,0,0,108,0,0,108,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,544,0,30,5,0,8,0,2,32,32,12,21,20,5,16,8,27,20,8,2,7,3,21,1,3,2,4,44,11,22,8,2,0,6
,15,11,22,42,17,13,9,25,0,0,4,11,39,18,1,0,27,7,17,1,0,8,2,3,0,36,9,36,0,2,0,40,8,31,19,45,28,13,20,60,34,5,30,16,39,31,16,7,44,13,52,14,7,15,24,3,0,2,0,2,0,0,0
,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0
,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,0,2135
This may help in creating file features for machine learning applications.
The charcnt2 file can be collected and edited in Excel for comparison of a set at at time.
Example 7: charcnt Windows executable
D:\GitHub\CharacterCount\Command-Line>charcnt charcnt.exe
charcnt.exe 48984 bytes checksum: 2460263
0 1 2 3 4 5 6 7 8 9 A B C D E F
- - - - - - - - - - - - - - - -
0 20414 830 556 812 704 262 384 75 237 126 70 80 144 47 219 149
1 155 22 27 29 162 58 9 11 124 15 16 29 156 41 6 12
2 475 7 19 4 628 52 30 18 111 47 11 8 80 177 779 56
3 139 65 37 71 195 79 270 66 170 60 45 11 41 36 8 28
4 501 240 85 237 234 309 64 140 73 161 19 12 151 133 182 134
5 121 18 156 189 269 180 97 96 138 18 23 37 68 19 19 1525
6 60 1047 203 410 595 778 203 209 93 885 45 44 354 256 417 339
7 313 73 566 523 1211 192 95 110 199 84 38 2 44 12 4 6
8 55 33 8 201 104 112 22 13 47 196 3 156 19 101 6 3
9 269 4 5 6 32 4 6 7 8 6 5 5 22 5 4 0
A 14 59 9 21 14 3 4 3 10 2 3 4 13 0 3 5
B 13 4 6 1 33 3 77 17 29 9 5 14 31 6 4 7
C 155 21 15 107 95 18 35 167 32 19 11 10 65 8 4 3
D 42 8 23 18 24 2 2 5 37 12 10 20 14 24 9 4
E 31 3 10 5 22 10 7 4 127 25 3 44 82 3 5 5
F 46 6 3 7 34 0 25 33 61 4 11 14 22 14 51 493
This is a typical pattern for a binary EXE file.
In the early 1980s I had a Heathkit H89 computer with a H14 printer. When I tried to print text files downloaded from various places, random noise characters sometimes appeared because of noisy phone lines. Printing files with the "wrong" noise characters would burn out the print head! This was frustrating and expensive. "charcount" was a way to find if a file was safe to print. In the end, I gave the printer away because it was too unreliable.
Later in the 80s, I struggled to make sense of a file that was half ASCII and half EBCDIC. That was a pain to sort out. "Seeing" unprintable characters was only possible by displaying a hex dump of a file.
Over the years, "bad" characters always unexpectedly popup when least expected. Character count is a way to find problems and fix them proactively before they unexpectedly cause problems.
The Archive folder shows several early versions of the program. The first from 1980 written in Microsoft FORTRAN was converted to UCSD Pascal (1982), which was converted to C (1990), ..., to Delphi (2001), ... There may have been a PL/I version at some point.
Did I mention that I've used character count to identify and remove tabs in files? Tabs (hex 09) are not displayed consistently by many programs (variable number of spaces), do not help with alignment of fields of variable width, and many computer users cannot "see" tabs to fix problems in files. Most users cannot tell if they have a tab character or a number of blanks.
Windows
Delphi source code was compiled with Embarcadero RAD Studio 10.2 on 2018-07-20 to create CharCount.exe.
In Windows with Rtools installed, there is a gcc compiler for the command-line tools charcnt and charcnt2: c:\Rtools\mingw_32\bin\gcc.exe
With C:\Rtools\mingw_32\bin in the path, compile as follows:
gcc charcnt.c legible.h -ocharcnt
gcc charcnt2.c legible.h -ocharcnt2
The sizes.c program shows how to verify 32- and 64-bit integers, signed or unsigned, can be correctly displayed.
Linux
charcnt is quite old, but still compiles with the make file in CentOS:
make -f charcnt.mak
make -f charcnt2.mak
To annoy C experts who hated Delphi and Pascal in the early 1990s, I created the "legible.h" C macros to make C look like Pascal. That was liked even less.
