New Oracle Forms 12.2.1.3 feature for WebSocket sending or synchronous receiving from Forms to a Web Browser engine.

Primary LanguageHTML

FormsWebSocketBasic

Websockets is a two-way extremely powerful communication protocol, you can find here a very good summary from Oracle: http://www.oracle.com/technetwork/cn/community/developer-day/6-java-html5websocket-app-2196804-zhs.pdf

The Oracle Forms 12.2.1.3 new feature 'Websocket JS Interface' - WJSI - allows the connection to a Web Browser session for sending events/data or synchronous receiving data per JS function call, this is a one-way peer-to-peer implementation: Forms calls exactly one JS client point.

The Demo chk_websocket.fmb/chk-websocket.html tries to explain the basic functions with good transparency.

Forms test module started with Forms Stand-alone Application Launcher:

Getting Started

This Oracle Forms Demo was inspired from:

Prerequisites

Setup and Deployment

Following subsequent setups are from: https://community.oracle.com/message/14655456#14655456

Get and Set a free Websocket port

  1. Select a free port for Websocket
  2. In chk_websocket.fmb : Set the PARAMETER.P_PORT=\<your-free-port>
  3. In chk-websocket.html: Find & set "frmwebsocketjsi.connectToServer(\<your-free-port>);"

Environment setup goes something like this

1. Download the Jetty server from :
   http://central.maven.org/maven2/org/eclipse/jetty/aggregate/jetty-all/9.4.5.v20170502/jetty-all-9.4.5.v20170502-uber.jar
   (from the Deployment Guide).
2. Properly sign the jar.
3. Copy the jar to the /forms/java directory.
4. Add the jar file to ARCHIVE (or extensions.jnlp if using Web Start).
5. Add frmwebsocketjsi.jar to ARCHIVE.
6. Config in the formsweb.cfg:
   * enableJavascriptEvent=true
   * JavaScriptBlocksHeartBeat=true
7. Place chk-websocket.html in /forms/java directory for starting:
   `http://<your-forms-host>:<your-forms-port>/forms/java/chk-websocket.html`

Application setup

1.  Compile websocketJSI.pll in the forms directory and save websocketJSI.plx there
2.  Create a new form and attach websocketJSI.pll to your form.
3.  Add object group from websocketJSI.olb per drag and copy
4.  Be sure you have defined your free port in chk_websocket.fmb and chk-websocket.html

Programming

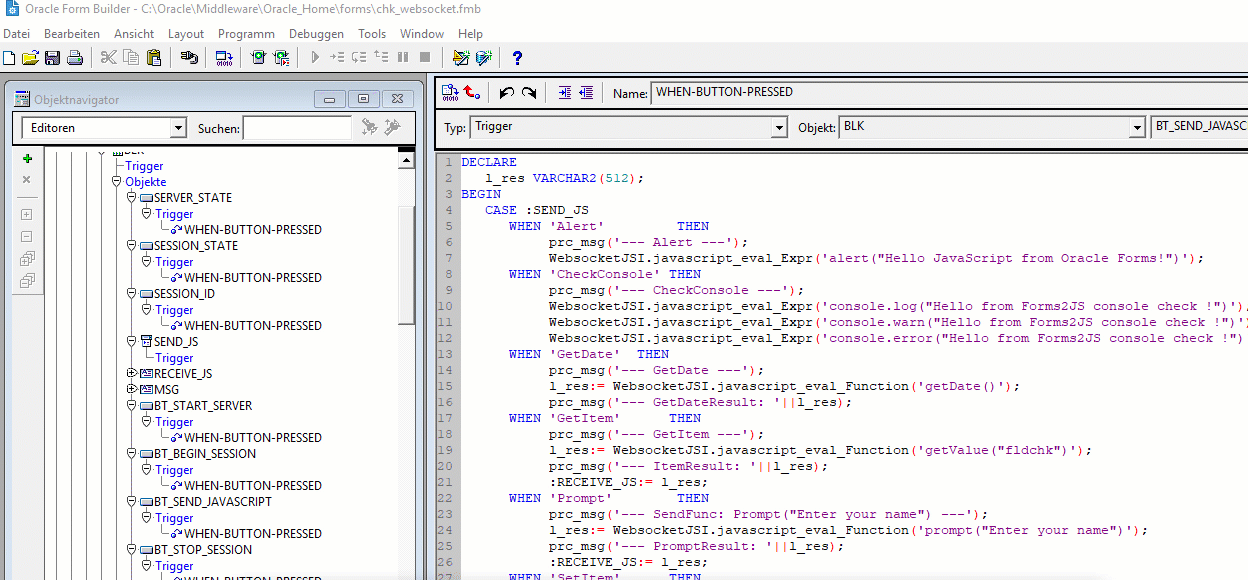

In the chk_websocket.fmb:

  1. Start server : websocketJSI.StartServer(7778);
  2. Start session: websocketJSI.BeginSession(7778, 'MyFxSession');

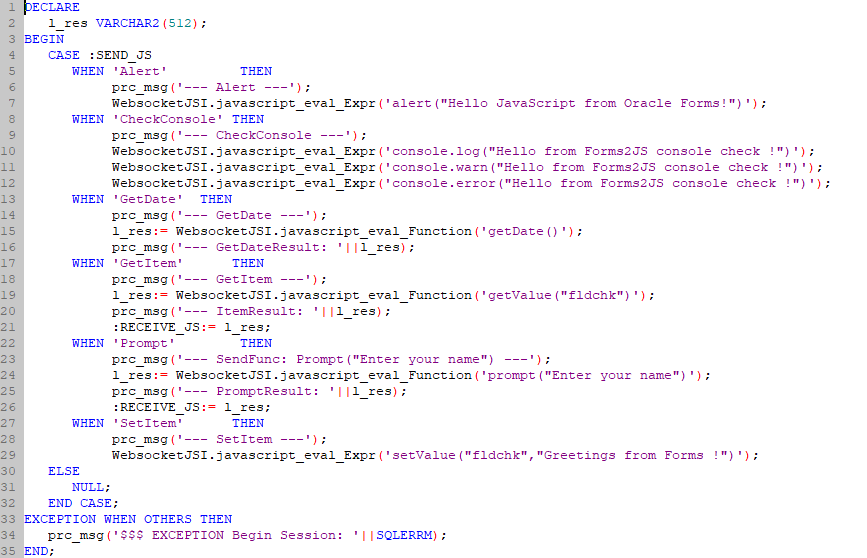

  3. Send/receive events/data in WHEN-BUTTON-PRESSED (BT_SEND_JS):

You have located the chk-websocket.html in the /forms/java directory, some code lines from this source here:

  1. In the HTML page, add a reference to the needed JS file, the file location is in /forms/java
    <script type="text/javascript" src="/forms/java/frmwebsocketjsi.js"></script>
  1. Add JS code to connect to the websocket server from the HTML page.
    frmwebsocketjsi.connectToServer(7778);
  1. Add JS code to connect to the desired session from the HTML page. Example:
    frmwebsocketjsi.beginSession('MyFxSession');

See further the functions behind the buttons in chk_websocket.fmb and chk-websocket.html.

Running the tests

The WJSI fetures in this demo were tested on the IE11 Java plugin and the Forms Application Launcher, based on Java Version 1.8_161.

Start with Forms Stand-alone Application Launcher (FSAL)

The cmd file for starting with FSAL: https://github.com/Fxztam/FormsWebSocketBasic/blob/master/start_websocket-demo.cmd

Following flow was succesfully tested:

  1. Start the chk_websocket.fmx:
    • press 'Start Server'
    • press 'Server State?'
    • press 'Start Session'
    • press ' Session State?'
    • press 'Session ID?'
  2. If all ready here, then next:
  3. Open the chk-websocket.html:
    • open in the Browser 'Development Tools' 'Console'
    • press 'Connect Server' in the chk-websocket.html
    • press 'Begin Session'
  4. The web page session is started.
  5. Interaction via JS can begin:
  6. In the Form select in ComboBox:
    • 'Alert' press 'Send JavaScript'
    • 'Check Console' press 'Send JavaScript'
    • 'Get Item' press 'Send JavaScript'
    • 'Get Date> press 'Send JavaScript'
    • 'Prompt' press 'Send JavaScript'
    • 'Set Item' press 'Send JavaScript'
  7. Finishing the Websocket Service from chk_websocket.fmx
    • press 'Stop Session'
    • press 'Stop Server'.

You can check the availability of a Websocket Port: press 'Port Check'.

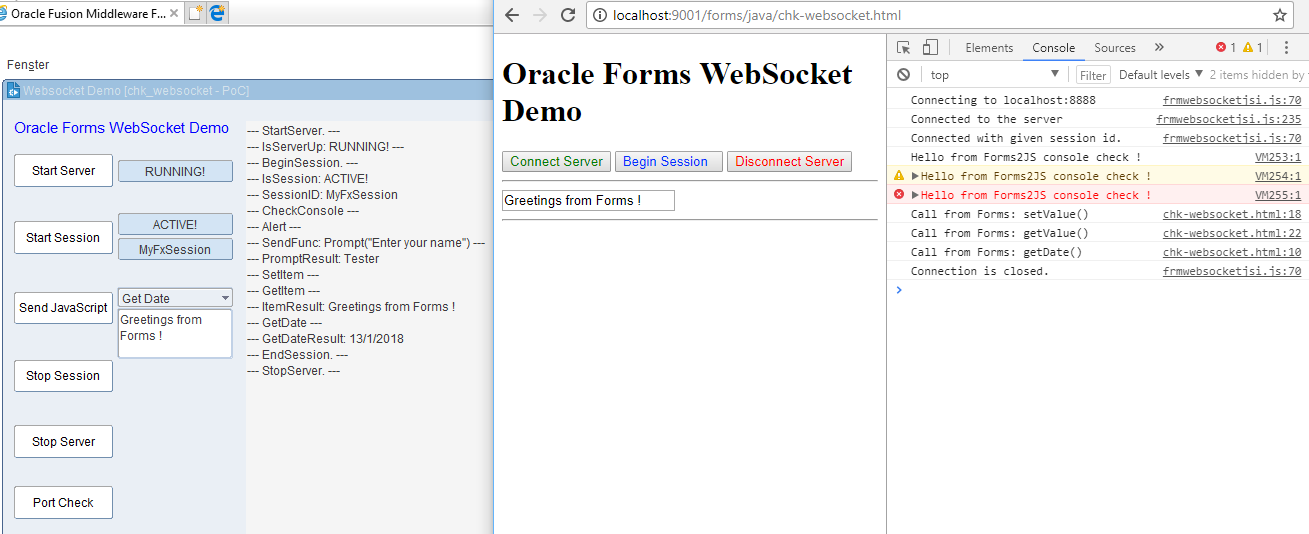

Here the demo:

Try this link "www.fmatz.com/WS-Forms-final.gif" for the full movie.

Known issues

The flow above is important, errors due to deviations from the flow must be remedied by restarting.
