Waldläufer app prototype for Wearable Computing WS22/23
This app is the android Kotlin prototype of the iOS Waldläufer with the possibility to determine the current location using GPS, to record the noise level as well as to suggest the well-being based on the noise level, heartrate and activity.
The noise gets recorded with the microphone using with the Android MediaRecorder for 10 seconds. The output format is THREE_GPP and the audio encoder is AMR_NB.

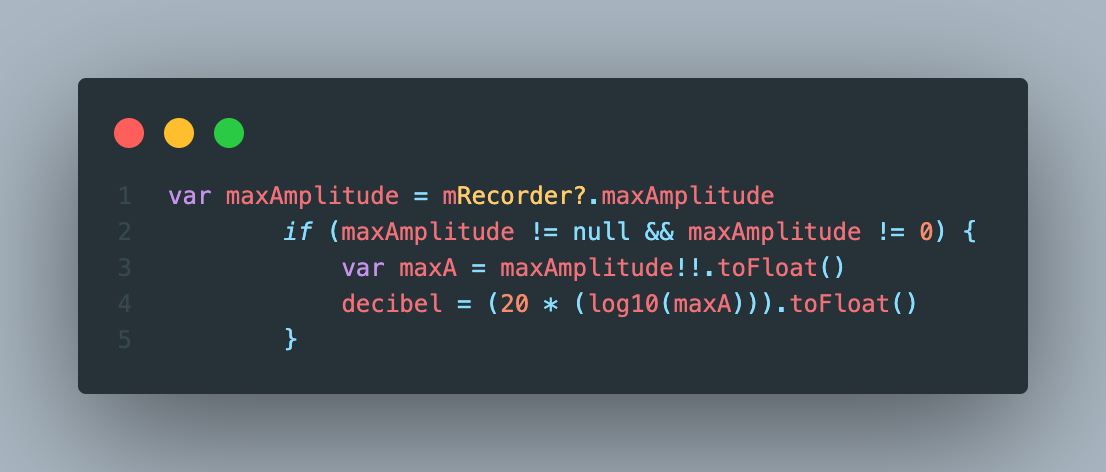

The maximum noise in decibel gets calculated from the max. amplitude:
We estimate one of the following feelings of the user at the current location with the current sound level: 😀, 🙂, 🙁, 😞
The rating is based on this scale from the U.S. Department of Health & Human Services.
We wanted to try to include health and activity data in our well-being estimation to make better suggestions.
Assumption: When a person has a heart rate above the normal range of 60 - 100 bpm (according to the British Heart Foundation) and is not active, they might be stressed and feel worse than initially estimted.
The best way to get health and activity data from an Android device we found is GoogleFit. It includes data recorded from the mobile device as well as data from many different sports apps and watches. Unfortunately Google Fit and the Google Fit API still do not provide enough data and data types to predict the stress level, therefore we decided to try to use heart rate and activity to distinguish a generally elevated heart rate from a heart reate elvated due to activity.
Heart Points get calculated from the heart rate, Metabolic Equivalent of Task (MET) values or walkign speed. The number of Heart Points earned depends on the intensity of the activity.
Example with heart rate:
- 1 HP (Low-medium intensity activity): 1 minute of activity at >50% maximum heart rate
- 2 HPs (High intensity activity): 1 minute of activity at >70% max heart rate
Move Minutes can be earned by moving and doing activities.
Example with going for a walk: Google Fit awards one Move Minute every time they take at least 30 steps within 60 seconds.
We assume an user was active when in the last 19 minutes:
- he moved at least 5 minutes
- and has earned at least 5 heart points
If a user has a heart rate in the normal range or it is elevated and we detected an activity with Google Fit, the feeling suggestion from the sound level stays the same.
If the user has a higher heart rate than 100 and we detect no activity, the user might be stressed or might not be feeling good. Therefore this influences the well-being estimation. This is only a suggestion for the user as there is not enough data to predict the stress level or well-being.
- decibel are very inaccurate
- Google Fit does not provide the right and enough data
- access to sensitive Google Fit data requires Google verification
See /media for screenshots and screenrecordings.

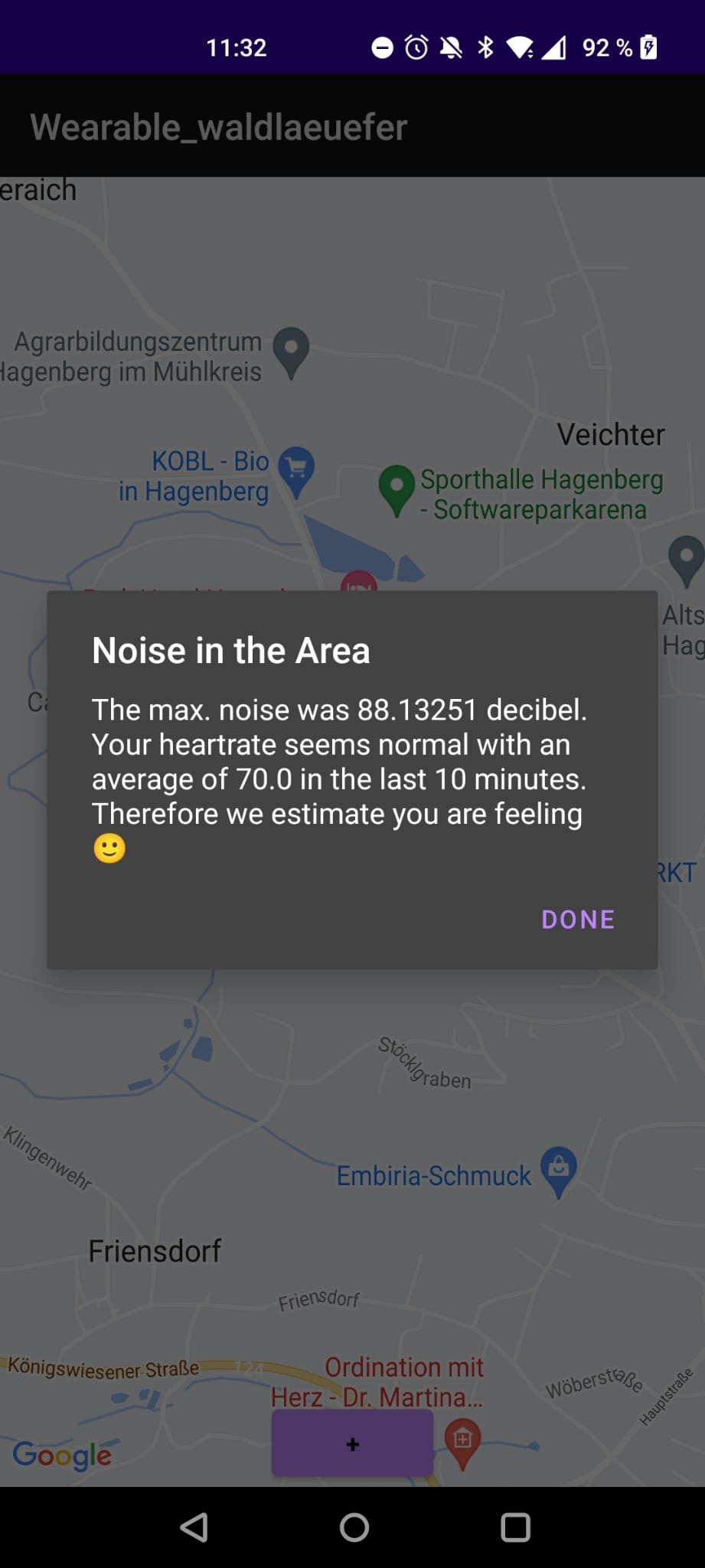

Normal heart rate:

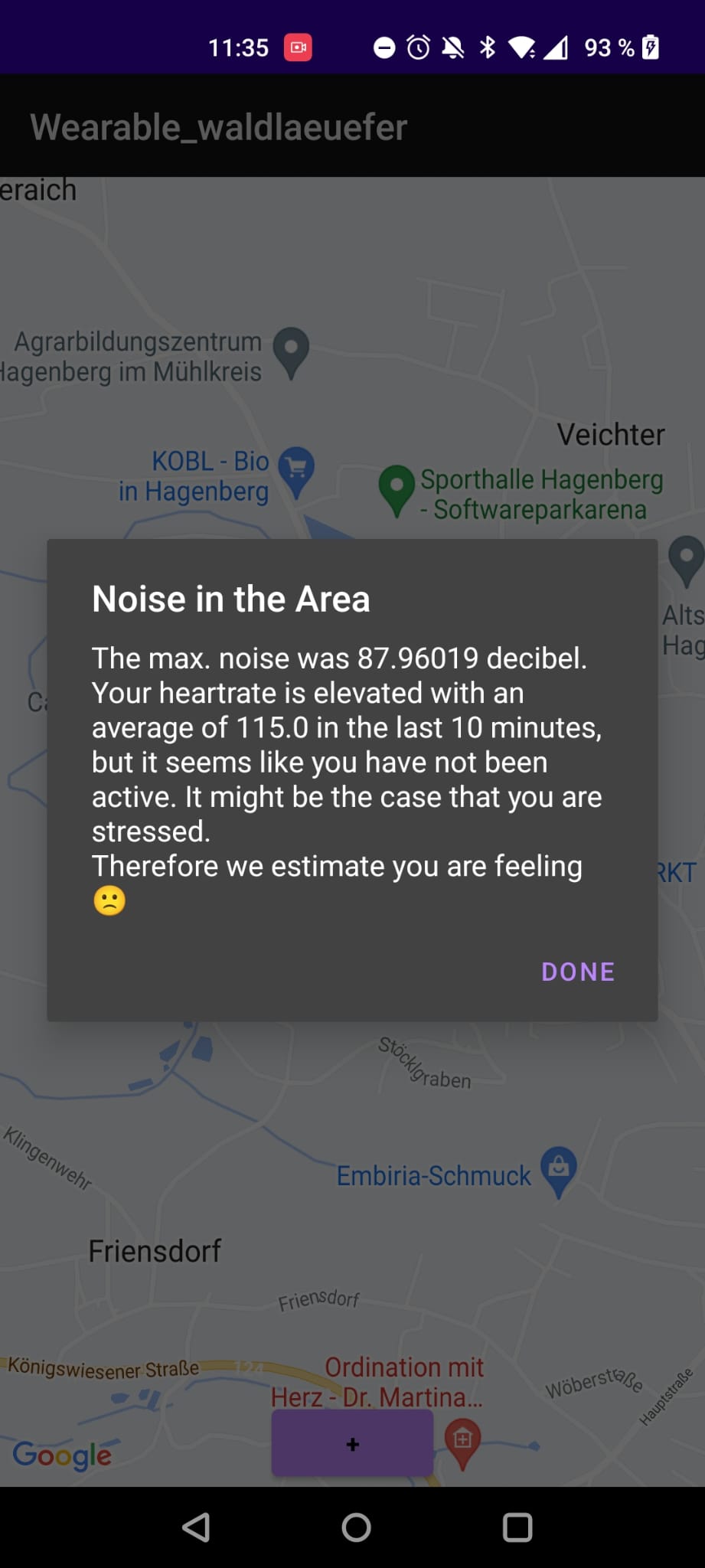

Elevated heart rate without activity:

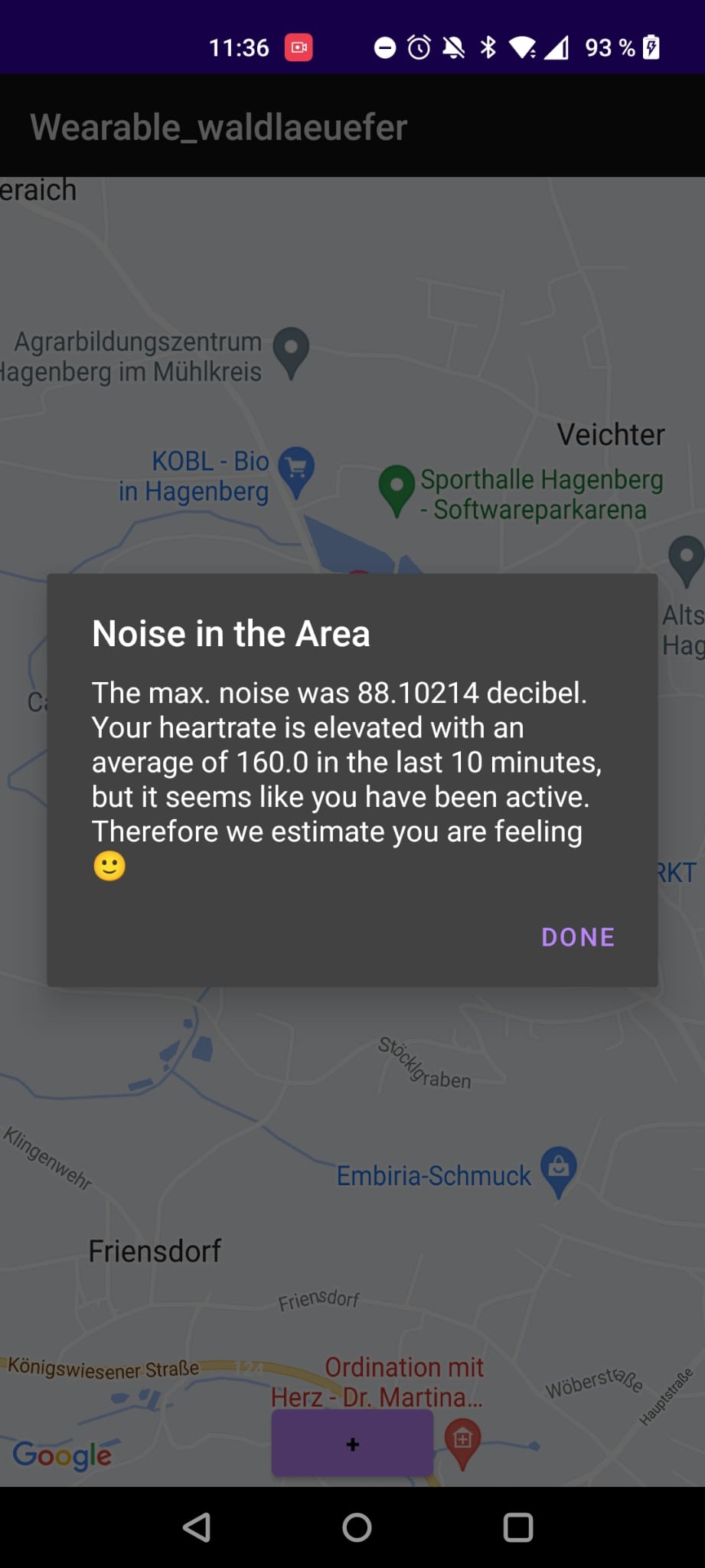

Elevated heart rate with activity:
As Goolge Fit includes sensitive data and this app is not verified by Google, the well-being suggestion with GoogleFit is only testable if the Google Account gets added in the Google API console.
