/NAS-with-NSGA-II

Primary LanguagePython

Implement NSGA2

Based on https://www.iitk.ac.in/kangal/Deb_NSGA-II.pdf

Using https://github.com/google-research/nasbench

Setup

  1. download cuda 10.0, tensorflow 1.15, python 3.6
  2. execute setup.py

Flow

  1. Initialize population randomly.
  2. Generate offspring.
    1. Choose two parents by tournament selection.
    2. Encode selected two parents.
    3. Crossover.
    4. Mutation by using bitwise.
    5. Decode offspring.
    6. Check offspring is valid.
  3. Combine parent and offspring population.
  4. Fast non dominated sort: assign 'rank'
  5. Crowding distance assignment
  6. Select next parent population by Crowded Comparison Operator.

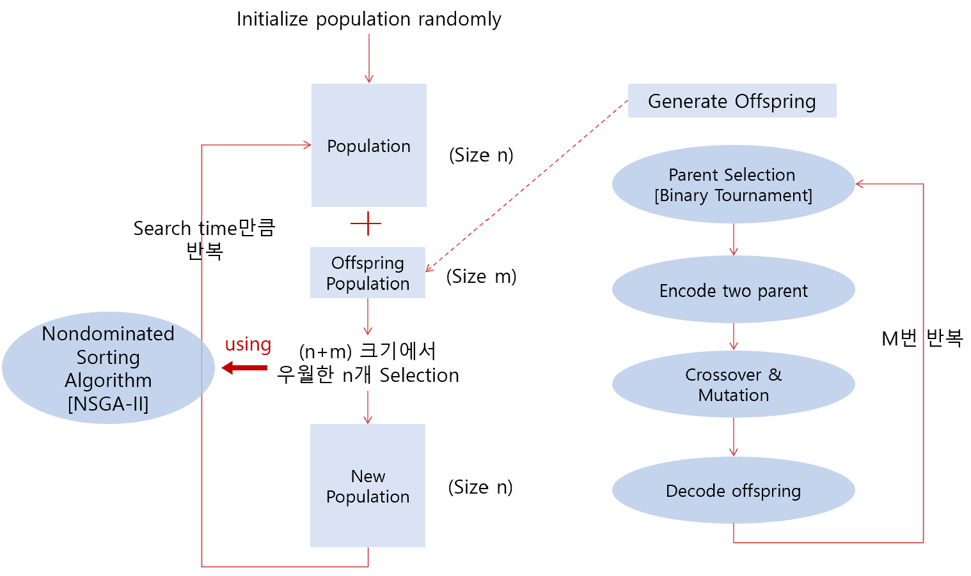

[Model Outline]

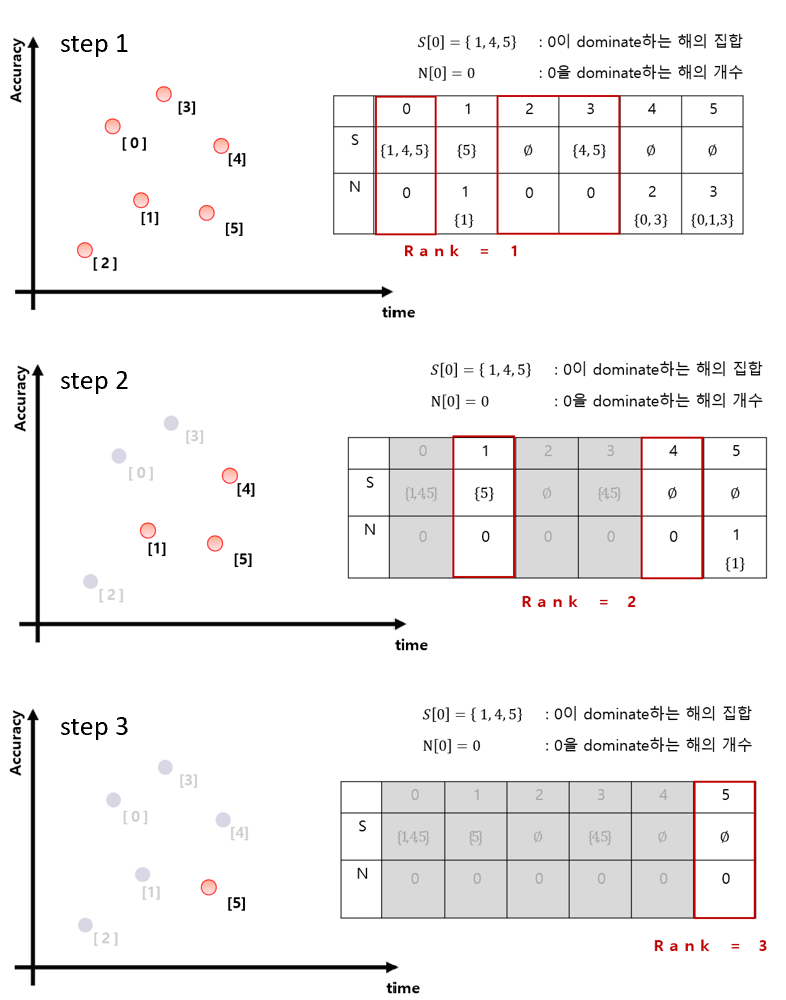

[Nondominated Sorting]

Nondominated Sorting

[Generate Offspring]

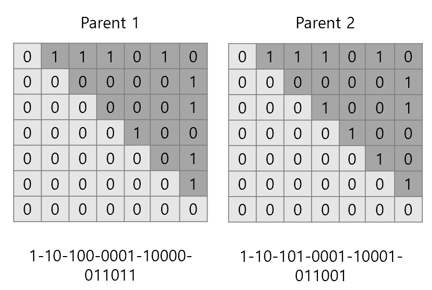

Parent Selection

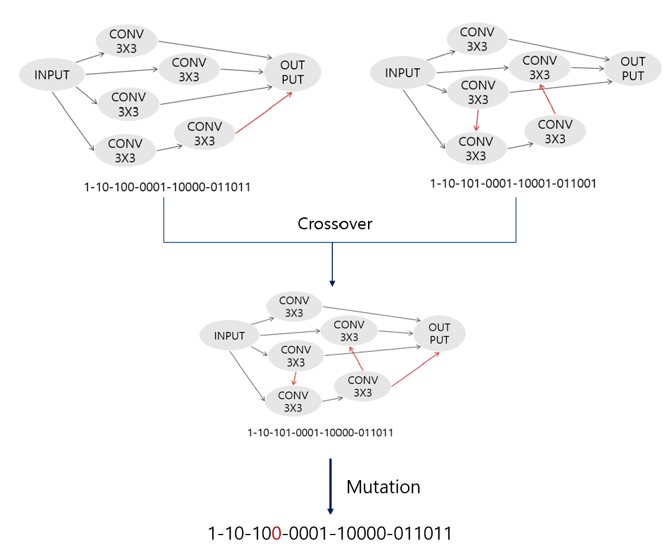

Crossover & Mutation

Data Structure

  • population is list of elems.

    elem = {'acc': data['validation_accuracy'], 'time': data['training_time'], 'spec': spec}

Experiment

experiment

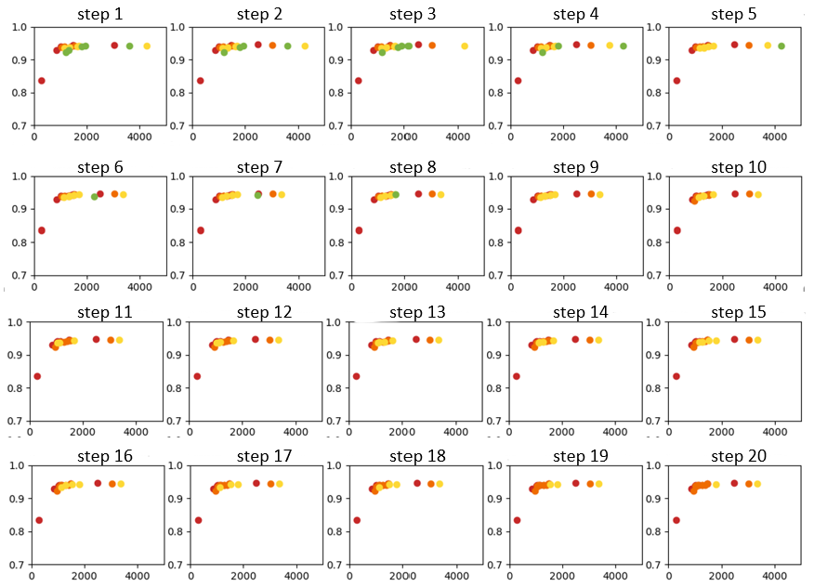

At every step of the evolution, the rank in the nonnominated sorting is expressed by red, orange, yellow, and green in the increasing order.

experiment2
