RVO2 NGL Demos

alt tag

A series of demos showing how to use the RV02 and RV02-3D lib and NGL. For ease of use and compilation I have copied the source code of the libraries to the project directory and included them in the source build.

This demo creates 4 block an a series of agents to navigate around them. It is based on this demo.

This demo creates a circle of agents and makes them travel to thier antipodal position on the circle. It is based on this demo.

Example file showing a demo with 100 agents split in four groups initially positioned in four corners of the environment. Each agent attempts to move to other side of the environment through a narrow passage generated by four obstacles. There is a roadmap to guide the agents around the obstacles.

It is based on this demo.

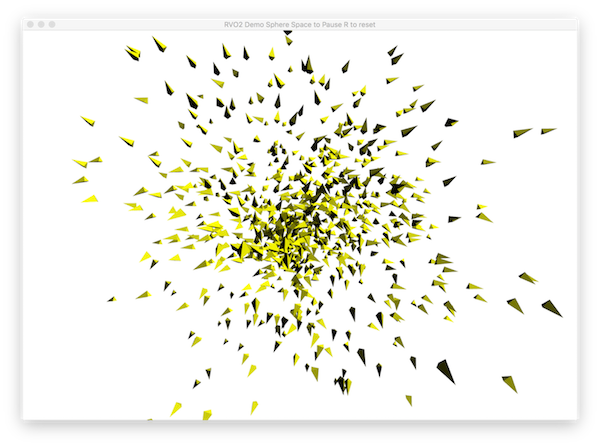

This demo uses the RVO2-3D version from [here] (https://github.com/snape/RVO2-3D). This demo creates a sphere of agents and makes them travel to thier antipodal position on the circle. It is based on this demo.

This demo creates 4 block an a series of agents to navigate around them. It is based on this demo. This version also plots the tracks made by the agents as a series of points.

Code Structure

These demos are all based on the examples shipped with the library and have the same format for each, the initial demos are highlighted above.

	/// a pointer to the sim
    std::unique_ptr<RVO::RVOSimulator > m_sim;
    /// goals for the sim to reach
    std::vector <int> m_goals;
    // called to setup the simulation
    void setupSim();
    // this sets the agent velocities for the frame
    void setPreferredVelocities();
    // sees if all agents have reached the goal
    bool reachedGoal() ;
    // This will update the sim
    void timerEvent(QTimerEvent *);
