SwiftSpeech

Speech Recognition, as simple and elegant as SwiftUI.

Recognize your user's voice elegantly without having to figure out authorization and audio engines, with built-in SwiftUI, Combine, and multi-language support.

SwiftSpeech is a wrapper framework for the Speech / SFSpeechRecognizer APIs for iOS and macOS with built-in SwiftUI, Combine publisher, and multi-language support.

Features
Installation
Getting Started
License

Features

UI control + Speech recognition in just one line of code.
SwiftUI style APIs.
Combine support.
Build your own controls!
Fully open low level APIs.

Installation

SwiftSpeech is available through Swift Package Manager. To use it, add a package dependency using URL:

https://github.com/Cay-Zhang/SwiftSpeech.git

Getting Started

1. Authorization

Although SwiftSpeech takes care of all the verbose stuff of authorization for you, you still have to state the usage descriptions and specify where you want the authorization process to happen before you start to use it.

Usage Descriptions in Info.plist

If you haven't, add these two rows in your Info.plist: NSSpeechRecognitionUsageDescription and NSMicrophoneUsageDescription.

These are the messages your users will see on their first use, in the alerts that ask them for permission to use speech recognition and to access the microphone.

Here's an exmample:

<key>NSSpeechRecognitionUsageDescription</key>
<string>This app uses speech recognition to convert your speech into text.</string>
<key>NSMicrophoneUsageDescription</key>
<string>This app uses the mircrophone to record audio for speech recognition.</string>

One line of code to tackle authorization

In your SceneDelegate.swift, add .automaticEnvironmentForSpeechRecognition() after the initialization of your root view. Boom! That's it! One line of code!

func scene(_ scene: UIScene, willConnectTo session: UISceneSession, options connectionOptions: UIScene.ConnectionOptions) {
    let contentView = ContentView()
        .automaticEnvironmentForSpeechRecognition()  // Just add this line of code!

    if let windowScene = scene as? UIWindowScene {
        let window = UIWindow(windowScene: windowScene)
        window.rootViewController = UIHostingController(rootView: contentView)
        self.window = window
        window.makeKeyAndVisible()
    }
}

For more information, please refer to the documentation for automaticEnvironmentForSpeechRecognition() in Extensions.swift.

2. Try some demos

You can now start to try out some light-weight demos bundled with the framework using Xcode 11's new preview feature. In any of your previews, initialize one of the demo views:

static var previews: some View {

    // Two of the demo views below can take a `localeIdentifier: String` as an argument.
    // Example locale identifiers:
    // 简体中文（**）= "zh_Hans_CN"
    // English (US) = "en_US"
    // 日本語（日本）= "ja_JP"

    // Try one of these at a time and have fun!
    SwiftSpeech.Demos.Basic(localeIdentifier: yourLocaleString)
    SwiftSpeech.Demos.Colors()
    SwiftSpeech.Demos.List(localeIdentifier: yourLocaleString)

}

Open up the Canvas and resume the preview if needed. You should see what your demo looks like. Then, click on the Preview on Device button to the bottom right edge of the preview device to run the demo. Hold on the blue circular button to speak and the recognition result will show up! 😉

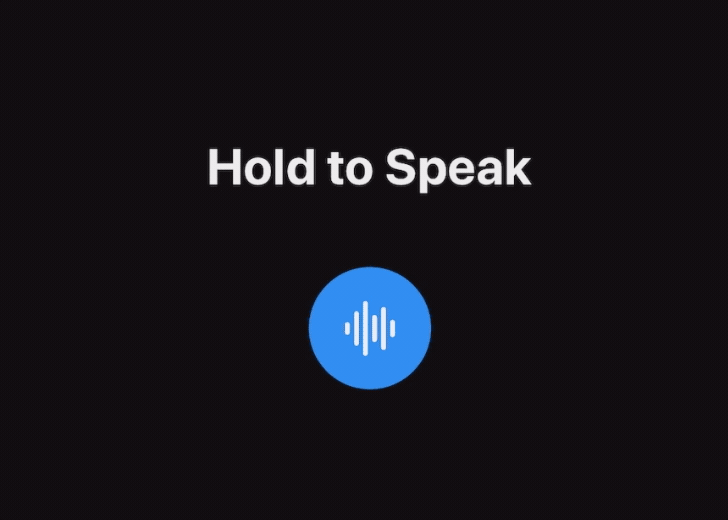

Here are some previews of the demos:

🚧 Gifs still in making... Give me a star to keep me motivated!

3. Build it yourself

Knowing what this framework can do, you can now start to learn about the concepts in SwiftSpeech.

Inspect the source code of SwiftSpeech.Demos.Basic. The only new thing here is this:

SwiftSpeech.RecordButton()  // The "View Component", this here is just an example bundled in the framework, you can easily build your own.
.swiftSpeechRecordOnHold(  // The "Functional Component" (Actually they are view modifiers).
        recognizedText: $text,
        locale: self.locale,
        animation: .spring(response: 0.3, dampingFraction: 0.5, blendDuration: 0)
    )

As you can see, the "Record Button" is composed of two components: a View that is only responsible of UI (The "View Component"), wrapped in a ViewModifier provided by the framework to handle all the stuff about speech recognition (The "Functional Component").

For now, you can just use the sample view component provided by the framework: SwiftSpeech.RecordButton. Let's first familiarize ourselves with the functional component. Currently, there are three functional components available, all of them providing "Record On Hold" speech recognition capability, with different levels of abstraction:

// 1
// `SwiftSpeech.Demos.Basic` & `SwiftSpeech.Demos.Colors` use this component.
// Inspect the source code of them if you want examples!
func swiftSpeechRecordOnHold(
    recognizedText: Binding<String>,
    locale: Locale = .autoupdatingCurrent,
    animation: Animation = defaultAnimation
) -> some View

The first one is the most straight forward and convenient. It takes a Binding<String> and updates the latest recognition result to it. You can pass in the other two arguments which let you specify a locale (language) for recognition and an animation used when user interacts with the view component. You can use these two arguments in other functional components as well.

But frankly, this is more of a shortcut for playing/testing since many apps have to deal with some complicated underlying database and a simple Binding is just not enough for them. And that's when the second one comes to rescue.

// 2
// `SwiftSpeech.Demos.List` uses this component.
// Inspect the source code of it if you want examples!
func swiftSpeechRecordOnHold(
    recordingDidStart: ((_ session: SwiftSpeech.Session) -> Void)?,
    recordingDidStop: ((_ session: SwiftSpeech.Session) -> Void)? = nil,
    recordingDidCancel: ((_ session: SwiftSpeech.Session) -> Void)? = nil,
    locale...animation...
) -> some View

The second one gives you utter control over the whole lifespan of a SwiftSpeech.Session. As the argument names and types suggest, this component runs the provided closures after a recording was started/stopped/canceled. Inside the closures, you will have aceess to the corresponding SwiftSpeech.Session, which will be discussed below.

// 3
// The first functional component introduced above is based on this.
// Inspect `SwiftSpeech.ViewModifiers.RecordOnHold.StringBinding` to have an intuition about how to utilize the `sessionSubject`.
func swiftSpeechRecordOnHold<S: Subject>(sessionSubject: S, locale...animation...) -> some View

The last one is less intuitive but might be useful in some cases where it's easier to use a reactive programming style. The only new argument here is the sessionSubject which conforms to the Combine.Subject protocol (e.g. CurrentValueSubject and PassthroughSubject) and the view will send a SwiftSpeech.Session to the sessionSubject after a new recording was started.

🚧 Documentation still in making... Give me a star to keep me motivated!

Legacy

SpeechRecognizer Class

Initializing

let speechRecognizer = SpeechRecognizer.new(id: id, locale: locale)

This adds a SpeechRecognizer instance to the shared instance pool that's managed by the framework.

⚠️ Warning: You should never keep a strong reference to a SpeechRecognizer instance. Instead, use its id property to keep track of it.

Start Recording

try speechRecognizer.startRecording()

This method will set up the audio stuff automatically for you and start recording the user's voice. You can now start receiving the recognition results by subscribing to one of the publishers the recognizer exposes.

Subscribing

Currently, a SpeechRecognizer instance has two publishers (you only need to subscribe to one of them): stringPublisher and resultPublisher. stringPublisher directly emits the speech text recognized (By default, it will emit partial results, which means you may receive multiple events). You will receive a .finished completion event whenever the recognizer finishes processing the user's voice (i.e. sfSpeechRecognitionResult.isFinal == true), or you explicitly called the cancel() method on the recognizer. Afterward, the recognizer instance will be immediately disposed of. You can subscribe to stringPublisher in the following way:

speechRecognizer.stringPublisher
    .sink { text in
        print("Speech Recognizer: \(text)")
    }
    .store(in: &speechRecognizer.cancelBag)

For resultPublisher, the subscribing process is similar, except that the type of the element it will emit is Result<SFSpeechRecognitionResult, Error> which encapsulates the entire partial result from the underlying SFSpeechRecognizer or the error it emits during recognition.

Retrieving

SpeechRecognizer.recognizer(withID: recordingRecognizerID)

This returns an optional SpeechRecognizer that you can then use to stop/cancel recording.

Stop Recording

SpeechRecognizer.recognizer(withID: recordingRecognizerID)?.stopRecording()

This stops recording the user's voice. Please keep in mind that unless you have explicitly call stopRecording(), the recognition process will not stop (i.e. you will never receive a completion event from the publishers) because the recognizer will keep recording & recognizing the user's voice.

Cancel

SpeechRecognizer.recognizer(withID: recordingChoiceID)?.cancel()

If you are not interested in the recognition result any more and want to stop recording now, you may immediately halt the recognition process and dipose of the recognizer by calling this method.

License

SwiftSpeech is available under the MIT license.

Then, use the following code whenever you want to know if speech recognition is available in your view (e.g. when writing a button for recording, you may want to disable it whenever speech recognition is unavailable).

@Environment(\.isSpeechRecognitionAvailable) var isSpeechRecognitionAvailable: Bool
