Transfer App

Is an App to do monetary transaction between people

Initial Config

  • Build and run container
make build-and-run
  • Install dependencies
make install-dependencies
  • Set .env file
APP_NAME=MyApp
APP_ENV=local
APP_KEY=12345678910
APP_DEBUG=false
APP_URL=http://localhost
APP_TIMEZONE=UTC

DB_CONNECTION=mysql
DB_HOST=172.0.0.1
DB_PORT=3306
DB_DATABASE=mydb
DB_USERNAME=root
DB_PASSWORD=root

AUTHORIZER_ENDPOINT=https://run.mocky.io/v3/8fafdd68-a090-496f-8c9a-3442cf30dae6
NOTIFIER_ENDPOINT=https://run.mocky.io/v3/b19f7b9f-9cbf-4fc6-ad22-dc30601aec04

JWT_KEY=mykey
  • Run migrations
make migrate

API Endpoints

When the docker container is up, the access url is http://localhost:8000

POST

Login /login
User Store /users
Transaction Store /transaction

/login

Do user authentication, if be a success, a access token gonna be returned.

Parameters

Name Required Type Description
email required string User email. Should be unique.
password required string Access app password.

Response

SUCCESS 200
BAD REQUEST 400
UNAUTHORIZED 401
ERROR 500
{
    "access_token": "eyJ0eXAiOiJKV1QiLCJhbGciOiJIUzI1NiJ9.eyJlbWFpbCI6InVzZXJAZW1haWwuY29tIn0.Ts81GNosnduw3Rzxsb_nnqgKM87FfMY77HwOhWm57Z0"
}

/users

Do user authentication, if be a success, a access token gonna be returned.

Parameters

Name Required Type Description
name required string The user name.
cpf required string User document. Should be unique.
email required string User email. Should be unique.
category required string User role in app.

Supported values: user or shopman
password required string Access app password.

Response

SUCCESS 201
BAD REQUEST 400
UNAUTHORIZED 401
ERROR 500

/transaction

Do user authentication, if be a success, a access token gonna be returned.

Parameters

Name Required Type Description
value required float The transaction money value.
payee required int Represents a Common user id.
payer required int Represents a Common user or Shopman user id.

Response

SUCCESS 201
BAD REQUEST 400
UNAUTHORIZED 401
ERROR 500

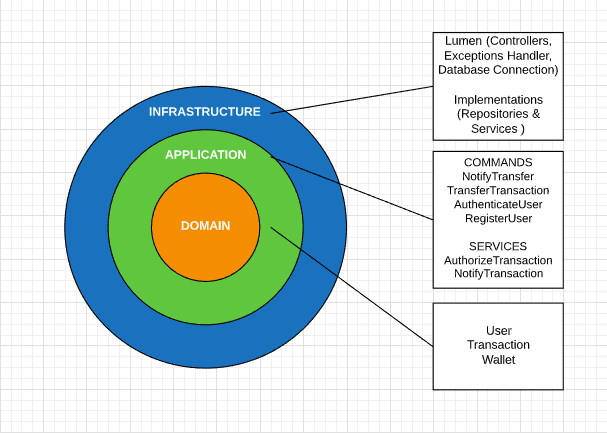

APP Architecture

architecture

The app is based on Clean Architecture and Hexagonal Architecture.

I understand that architecture is the best to isolate business logic, domain and infrastructure.

I think this way, this structure is good because allow modulate the application and reused parts of this app in another applications.

I choose the Lumen framework because is the most familiar framework to me and allow me do RESTFul apis.

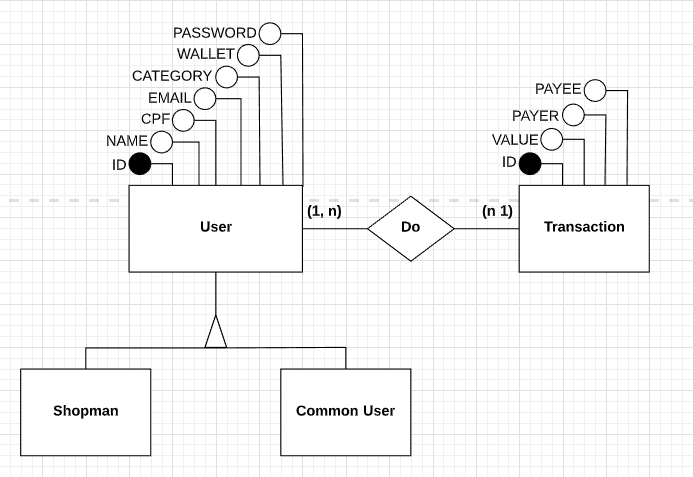

Data Model

data_model

Tests

make run-tests
