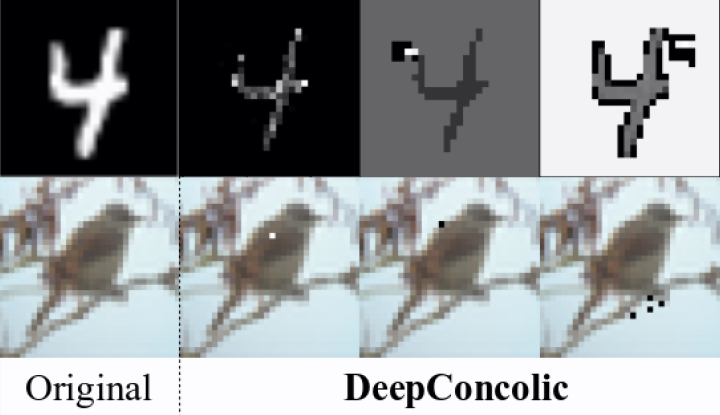

Concolic testing alternates between CONCrete program execution and symbOLIC analysis to explore the execution paths of a software program and to increase code coverage. In this paper, we develop the first concolic testing approach for Deep Neural Networks (DNNs). More specifically, we utilise quantified linear arithmetic over rationals to express test requirements that have been studied in the literature, and then develop a coherent method to perform concolic testing with the aim of better coverage. Our experimental results show the effectiveness of the concolic testing approach in both achieving high coverage and finding adversarial examples.
The paper is available in https://arxiv.org/abs/1805.00089.
usage: deepconcolic.py [-h] [--model MODEL] [--inputs DIR] [--outputs DIR]
[--training-data DIR] [--criterion nc, ssc...]
[--labels FILE] [--mnist-dataset] [--cifar10-dataset]
[--vgg16-model] [--norm linf, l0] [--input-rows INT]
[--input-cols INT] [--input-channels INT]
[--cond-ratio FLOAT] [--top-classes INT]
[--layer-index INT]
Concolic testing for neural networks
optional arguments:
-h, --help show this help message and exit
--model MODEL the input neural network model (.h5)
--inputs DIR the input test data directory
--outputs DIR the outputput test data directory
--training-data DIR the extra training dataset
--criterion nc, ssc...
the test criterion
--labels FILE the default labels
--mnist-dataset MNIST dataset
--cifar10-dataset CIFAR-10 dataset
--vgg16-model vgg16 model
--norm linf, l0 the norm metric
--input-rows INT input rows
--input-cols INT input cols
--input-channels INT input channels
--cond-ratio FLOAT the condition feature size parameter (0, 1]
--top-classes INT check the top-xx classifications
--layer-index INT to test a particular layer
The neural network model under tested is specified by --model
and a set of raw test data should be given
by using --inputs
. Some popular datasets like MNIST and CIFAR10 can be directly specified by using
--mnist-dataset
and --cifar10-dataset
directly. --criterion
is used to choose the coverage
criterion and --norm
helps select the norm metric to measure the distance between inputs. Some examples
to run DeepConcolic are in the following.
To run an MNIST model
python deepconcolic.py --model ../saved_models/mnist_complicated.h5 --mnist-data --outputs outs/
To run an CIFAR10 model
python deepconcolic.py --model ../saved_models/cifar10_complicated.h5 --cifar10-data --outputs outs/
To test a particular layer
python deepconcolic.py --model ../saved_models/cifar10_complicated.h5 --cifar10-data --outputs outs/ --layer-index 2
To run MC/DC for DNNs on the CIFAR-10 model
python deepconcolic.py --model ../saved_models/cifar10_complicated.h5 --criterion ssc --cond-ratio 0.1 --cifar10-data --outputs outs
To run MC/DC for DNNs on the VGG16 model
python deepconcolic.py --vgg16-model --inputs data/ --outputs outs --cond-ratio 0.1 --top-classes 5 --labels labels.txt --criterion ssc
To run Concolic Sign-sign-coverage (MC/DC) for DNNs on the MNIST model
python deepconcolic.py --model ../saved_models/mnist_complicated.h5 --criterion ssclp --mnist-data --outputs outs
To run Lipschitz Constant Testing, please refer to instructions in folder "Lipschitz Constant Testing".
We suggest create an environment using conda
, tensorflow>=2.0.0
conda create --name deepconcolic
source activate deepconcolic
conda install keras
conda install opencv
conda install pillow
pip install pulp
pip install adversarial-robustness-toolbox
@inproceedings{swrhkk2018,
AUTHOR = { Sun, Youcheng
and Wu, Min
and Ruan, Wenjie
and Huang, Xiaowei
and Kwiatkowska, Marta
and Kroening, Daniel },
TITLE = { Concolic Testing for Deep Neural Networks },
BOOKTITLE = { Automated Software Engineering (ASE) },
PUBLISHER = { ACM },
PAGES = { 109--119 },
ISBN = { 978-1-4503-5937-5 },
YEAR = { 2018 }
}
@article{sun2018testing,
AUTHOR = { Sun, Youcheng
and Huang, Xiaowei
and Kroening, Daniel },
TITLE = { Testing Deep Neural Networks },
JOURNAL = { arXiv preprint arXiv:1803.04792 },
YEAR = { 2018 }
}
