Other languages: Vietnamese | Chinese ###DOCUMENT FOR INTEGRATED SYSTEM INGAMESDK
Introduction
InGame SDK is user and payment integrated system for your mobile application. This SDK provides a simple way to integrate and satisfies user account management, payment requirements on mobile. It provides solutions for payment methods such as: Phone Card, Internet Bankingand Google Play Payment.
Steps to integrate SDK:
1. Download SDK
2. Integrate & configure SDK
3. Declare variables, initiate and call SDK function from your application
4. Run SDK samples
I. Download SDK
Download InGame SDK for Android here: https://github.com/InGameVietnam/Android-InGameSDKLib/archive/version-2.0.zip
Or use any git tool, clone this url: https://github.com/InGameVietnam/Android-InGameSDKLib.git
###II. Integrate & configure SDK ####A. Integrate:

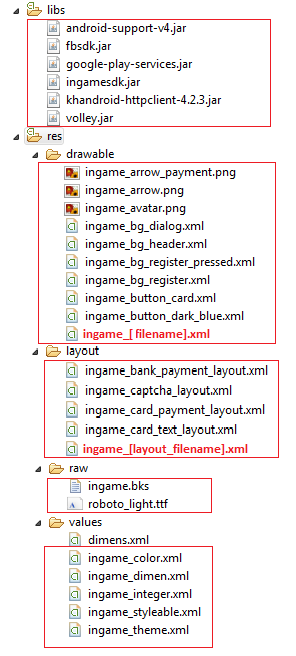

The directory structure
The SDK includes 2 parts
-
Requirement libraries: are files have the extension *.jar inside libs/ folder:
Copy these *.jar files to libs/ folder in your application (If the libs directory does not exist, you can create it.)
-
Resources : The resources needed by the library ingamesdk.jar
You simply copy and paste the folder res/ in your application.
####B. Configure:
[Notice] You need the following information before proceeding with the configuration:
*Get
<your_facebook_application_id>value from Facebook

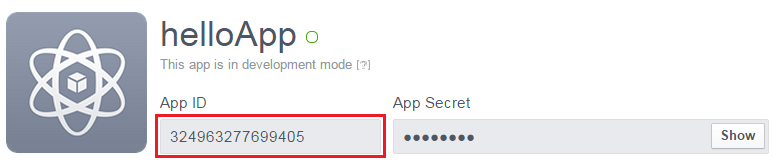

1> First, log into your https://developers.facebook.com/
2> Next, click on My Apps and find the application that you'd like to review.
3> The<your_facebook_application_id>under the section App ID
[Notice] The values be located in the < > you need to replace them as follows:
Replace
<your_package_name>with yourapplication packagename.
Replace<your_facebook_application_id>with yourfacebook app id.
Replace<application_license_key>with yourlicense key.
Replace<ingame_application_id>with yourapp id supplied by ingame.
Replace<ingame_application_key>with yourapp key supplied by ingame.
Configure strings.xml
Open strings.xml file in your application
<string name="facebook_appId"><your_facebook_application_id></string>
<string name="google_license_key"><application_license_key></string>
<string name="App_Id"><ingame_application_id></string>
<string name="App_Key"><ingame_application_key></string>Configure AndroidMainfest.xml
Open AndroidMainfest.xml file in your application
- Add
<permission>tags to grant access to the system:
<uses-permission android:name="android.permission.SEND_SMS" />
<uses-permission android:name="android.permission.INTERNET" />
<uses-permission android:name="android.permission.ACCESS_NETWORK_STATE" />
<uses-permission android:name="android.permission.SYSTEM_ALERT_WINDOW" />
<uses-permission android:name="android.permission.READ_PHONE_STATE" />
<uses-permission android:name="android.permission.WAKE_LOCK" />
<uses-permission android:name="android.permission.WRITE_EXTERNAL_STORAGE" />
<uses-permission android:name="android.permission.READ_EXTERNAL_STORAGE" />
<!-- Google IAP Permission -->
<uses-permission android:name="android.permission.GET_ACCOUNTS" />
<uses-permission android:name="com.android.vending.BILLING" />
- Add
<meta-data>tags inside<application>tag to initial value for system
<application
...........................
<meta-data
android:name="com.facebook.sdk.ApplicationId"
android:value="@string/facebook_appId" />
<meta-data
android:name="com.google.android.gms.version"
android:value="@integer/google_play_services_version" />
<meta-data
android:name="com.IngameSDK.GoogleIAPKey"
android:value="@string/google_license_key" />
<meta-data android:name="com.IngameSDK.AppId"
android:value="@string/App_Id" />
<meta-data android:name="com.IngameSDK.AppKey"
android:value="@string/App_Key" />
<!-- for app flyer -->
<receiver android:exported="true" android:name="com.appsflyer.MultipleInstallBroadcastReceiver">
<intent-filter>
<action android:name="com.android.vending.INSTALL_REFERRER"/>
</intent-filter>
</receiver>
<receiver android:name="com.appsflyer.AppsFlyerLib">
<intent-filter>
<action android:name="android.intent.action.PACKAGE_REMOVED"/>
<data android:scheme="package"/>
</intent-filter>
</receiver>
<meta-data android:name="com.appflyer.dev_key"
android:value="ekymUhihizGufaXWaeH5nn" />
<!-- end for app flyer -->
...........................
</application>
- Add
<activity>tags to configure interface:
<application>
...........................
<activity
android:name="com.ingamesdk.ui.LoginActivity"
android:configChanges="orientation|keyboardHidden|screenSize"
android:theme="@style/UserDialog"
android:windowSoftInputMode="adjustPan" />
<activity
android:name="com.ingamesdk.ui.PaymentActivity"
android:configChanges="orientation|keyboardHidden|screenSize"
android:theme="@style/UserDialog"
android:windowSoftInputMode="adjustPan" />
<activity
android:name="com.ingamesdk.ui.UserInfoActivity"
android:configChanges="orientation|keyboardHidden|screenSize|locale"
android:theme="@style/UserDialog"
android:windowSoftInputMode="adjustPan" />
<activity android:name="com.ingamesdk.ui.AdditionalServicesActivity"
android:theme="@style/UserDialog"
android:configChanges="orientation|keyboardHidden|screenSize|locale"
android:windowSoftInputMode="adjustPan" />
<activity android:name="com.facebook.LoginActivity" />
...........................
</application>
###III. Declare variables, initiate and call SDK function from your application
Create Interface to receive events from the SDK
public class Listener implements IGListenerInterface{
@Override
public void LoginSuccessListener(JSONObject json) {
//Through the session variable you can get account information by:
//json.getString("userID");
//json.getString("userName");
//json.getString("accessToken");
//json.getString("phone");
//json.getString("email");
}
@Override
public void LogOutSuccessListener() {
// TODO Auto-generated method stub
}
@Override
public void GetFriendListSuccessListener(JSONObject json) {
// TODO Auto-generated method stub
}
@Override
public void InviteFriendSuccessListener() {
// TODO Auto-generated method stub
}
}
Declare the following variables inside the main Activity class of applications:
public static InGameSDK ingame_sdk = InGameSDK.getInstance(); // instance of InGameSDK
Set the values to the function InGameSDK inside onCreate(...)
ingame_sdk.callSendInstallationEvent(this); //this function must be called before init sdk.
Listener listener = new Listener();// init your listener
ingame_sdk.init(this, true, true, callback_url);
ingame_sdk.setListener(listener);//set your listener to sdk
The parameters of ingame_sdk.init(...)
public void init(Activity context, boolean isButton, boolean isAutoLogin, String callback_url) {...}
context: The main Activity of your application
isButton: use SDK shorcut Button (True/False)
isAutoLogin: use Auto login function (True/False)
callback_url: The call back link of your server
Add the following to the corresponding handle each functions
@Override
protected void onResume() {
super.onResume();
InGameSDK.getInstance().onResume(this);
}
@Override
protected void onPause() {
super.onPause();
InGameSDK.getInstance().onPause();
}
@Override
protected void onActivityResult(int requestCode, int resultCode, Intent data) {
super.onActivityResult(requestCode, resultCode, data);
InGameSDK.getInstance().onActivityResult(requestCode, resultCode, data);
}

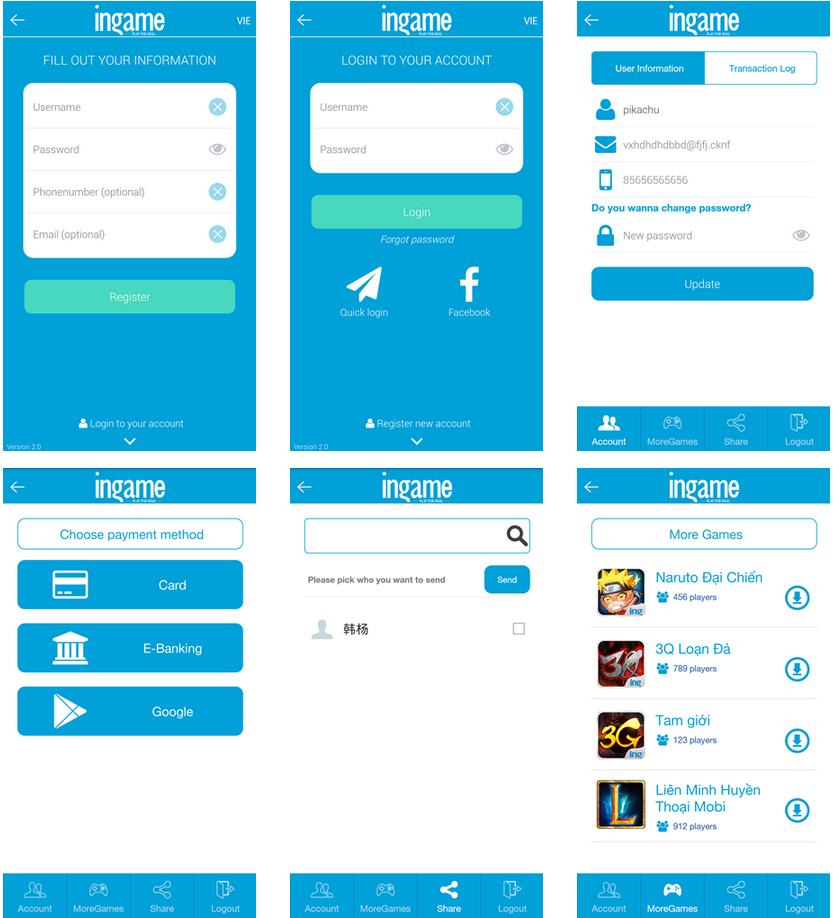

Call the function corresponding that the SDK provides functionality for each operation:
Registration: ingame_sdk.callRegister();
Log in: ingame_sdk.callLogin();
Log out: ingame_sdk.callLogout();
User information: ingame_sdk.callshowUserInfo();
Payment: ingame_sdk.callPayment(String game_order); // game_order: Transaction code is created by Developer (less than 50 characters).
Invite Friend (Show sdk UI) ingame_sdk.callInviteFriend();// after sent request successfully you can receive a message from InviteFriendSuccessListener
Get List FB friend: ingame_sdk.callGetFBFriendList(); //game will receive friend list in GetFriendListSuccessListener(Json json)
Share FB message: ingame_sdk.callShareMessageFromGame(YOUR_MESSAGE, YOUR_LIST_FRIEND_ID);
####IV. Run SDK samples
You can see the more detail in the attached sample code.
