Browser grooves 2019-06-15 at VarnaConf

a Brief introduction to WebAudio and WebMIDI APIs

Motivation

Music Tech Meetups

music-tech-meetup-2019-06-11

My Framework

app-architecture

Example

// actions
const actions$ = new Rx.Subject();
const actions = {
	incr: () => actions$.onNext(
		state => ({num: state.num + 1})),
	initial: {num: 0}
};

// ui
const {div, span, button} = vdom;
const ui = ({state, actions}) => div('#ui', [
	button({on:{click: () => actions.incr()}}, 'Incr'),
	span(`Num: ${state.num}`)
]);

// reducing the stream of actions to the app state
const state$ = actions$
	.startWith(() => actions.initial)
	.scan((state, reducer) => reducer(state), {})
	.share();

// mapping the state to the ui
const ui$ = state$.map(state => ui({state, actions}));

vdom.patchStream(ui$, document.querySelector('#ui'));

Web Audio

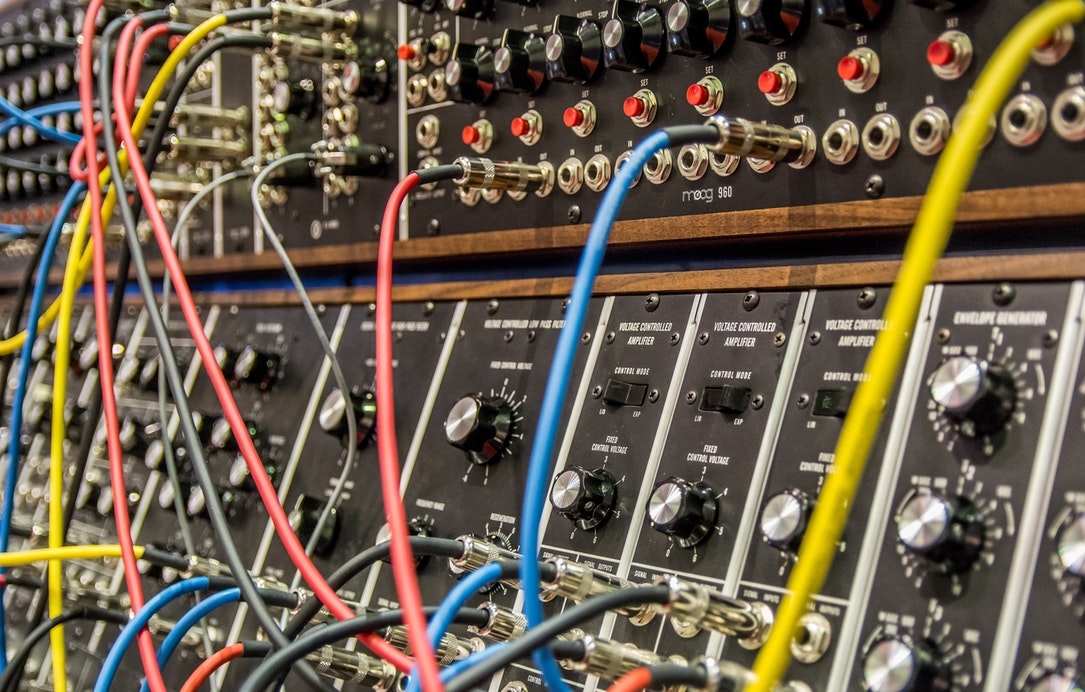

patchage

The Context

oscillator-basic

var context = new AudioContext();

Some Oscillation

oscillator-basic

var oscillator = context.createOscillator();

oscillator.connect(context.destination);

Make some noise

oscillator-basic

// get audio context instance
var context = new AudioContext()

function makeSound() {
	// create a new oscillator node and connect it to the context destination
	var oscillator = context.createOscillator()
	oscillator.connect(context.destination)

	// trigger it to start and schedule it to stop after 2 sec
	oscillator.start(context.currentTime)
	oscillator.stop(context.currentTime + 2)
	// disconnect it also after 2 sec
	setTimeout(() => oscillator.disconnect(context.destination),2000)
}

// some ui
var button = document.createElement('button');
button.innerHTML = 'Make Sound';
button.addEventListener('click', ev => makeSound())
document.querySelector('#ui').appendChild(button);

hmm...

oscillator-basic

// get audio context instance
var context = new AudioContext()

function makeSound() {
	// create a new oscillator node and connect it to the context destination
	var oscillator = context.createOscillator()
	oscillator.connect(context.destination)

	// set the type to sawtooth wave
	oscillator.type = 'sawtooth'
	// set the frequency to 880Hz
	oscillator.frequency.value = 880

	// trigger it to start and schedule it to stop after 1 sec
	oscillator.start(context.currentTime)
	oscillator.stop(context.currentTime + 1)
	// disconnect it after 1 sec
	setTimeout(() => oscillator.disconnect(context.destination),1000)
}

// some ui
var button = document.createElement('button');
button.innerHTML = 'Make Sound';
button.addEventListener('click', ev => makeSound())
document.querySelector('#ui').appendChild(button);

Mega Gain

oscillator-basic

var volume = context.createGain()

volume.gain.value = 0.4

volume.connect(context.destination)

Volume Control

oscillator-basic

// get audio context instance
var context = new AudioContext();
// create a gain node to control volume
var volume = context.createGain();
volume.gain.value = 0.4;
volume.connect(context.destination);

function changeVolume(value) {
	volume.gain.value = value;
}

function makeSound() {
	// create a new oscillator node and connect it to the context destination
	var oscillator = context.createOscillator();
	oscillator.connect(volume);

	// set the type to sawtooth wave
	oscillator.type = 'sawtooth';
	// set the frequency to 880Hz
	oscillator.frequency.value = 880;

	// trigger it to start and schedule it to stop after 1 sec
	oscillator.start(context.currentTime);
	oscillator.stop(context.currentTime + 1);
	// disconnect it after 1 sec
	setTimeout(() => oscillator.disconnect(context.destination),1000);
}

// some ui
var button = document.createElement('button');
button.innerHTML = 'Make Sound';
button.addEventListener('click', ev => makeSound());
document.querySelector('#ui').appendChild(button);
// volume control
var slider = document.createElement('input');
slider.type = 'range';
slider.min = 0;
slider.max = 1;
slider.step = 0.1;
slider.value = volume.gain.value;
slider.addEventListener('change', ev => changeVolume(ev.target.value))
document.querySelector('#ui').appendChild(slider);

cheezy melody

// get audio context instance
var context = new AudioContext()

function playMelody() {
	makeSound('C4', 0)
	makeSound('E4', 1)
	makeSound('C4', 2)
	makeSound('E4', 3)
	makeSound('G4', 4)
}

function makeSound(note = 'A4', start = 0) {

	// create a new oscillator node and connect it to the context destination
	var oscillator = context.createOscillator()
	oscillator.connect(context.destination)

	oscillator.type = 'sawtooth'
	oscillator.frequency.value = noteToFrequency(note)

	// trigger it to start and schedule it to stop after 1 sec
	oscillator.start(context.currentTime + start)
	oscillator.stop(context.currentTime + start + 1)
	// disconnect it after 1 sec
	setTimeout(() => oscillator.disconnect(context.destination), (start + 1) * 1000)
}

function noteToFrequency(note) {
	var notes = ['A', 'A#', 'B', 'C', 'C#', 'D', 'D#', 'E', 'F', 'F#', 'G', 'G#'];
	var keyNumber;
	var octave;

	if (note.length === 3) {
		octave = note.charAt(2);
	} else {
		octave = note.charAt(1);
	}

	keyNumber = notes.indexOf(note.slice(0, -1));

	if (keyNumber < 3) {
		keyNumber = keyNumber + 12 + ((octave - 1) * 12) + 1;
	} else {
		keyNumber = keyNumber + ((octave - 1) * 12) + 1;
	}

	return 440 * Math.pow(2, (keyNumber - 49) / 12);
}

// ui
var button = document.createElement('button');
button.innerHTML = 'Play Melody';
button.addEventListener('click', ev => playMelody())
document.querySelector('#ui').appendChild(button);

Useful Resources

Web MIDI

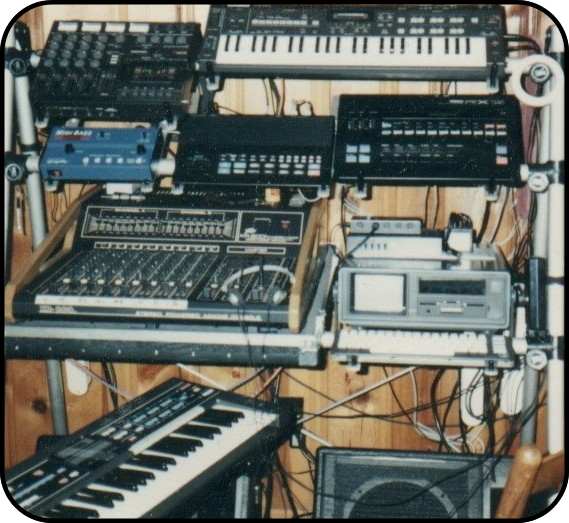

midi-setup

MIDI

midi-desc

  • technical standard from early 80s
  • communications protocol, digital interface & electrical connectors
  • (not the piano roll editor)

General MIDI

general-midi

  • standardized specification for
  • electronic musical instruments that respond to MIDI messages
  • extensions: Yamaha XG, Roland GS

MIDI Message

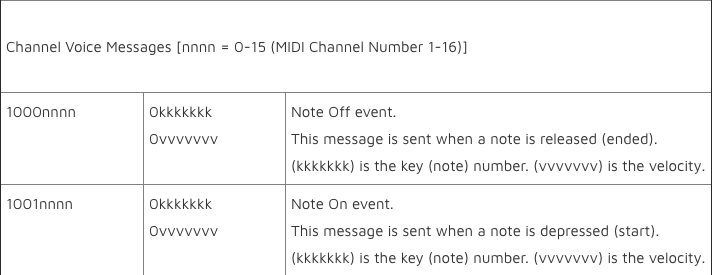

midi-message

  • 3 8bit words (bytes) transmitted serially at a rate of 31.25 kbit/s
  • 1 status and 2 data bytes
  • channel voice: noteOn/noteOff, control change, program change
  • channel mode, system common, system real-time

Code Example

// request midi access
if (navigator.requestMIDIAccess)
	navigator.requestMIDIAccess().then(onMIDIInit, onMIDIReject)

function onMIDIInit(midiAccess) {
	hookUpMIDIInput(midiAccess);
	midiAccess.onstatechange= connection => hookUpMIDIInput(connection.currentTarget);
}

function onMIDIReject(err) {
	alert("The MIDI system failed to start.  You're gonna have a bad time.");
}

function hookUpMIDIInput(midiAccess) {
	let inputs = [];
	// push the inputs in array
	midiAccess.inputs.forEach(input => inputs.push(input));
	// hook midi messages
	inputs.forEach(input => {
		input.onmidimessage = MIDIMessageEventHandler
	});
	// display inputs
	inputsEl.innerHTML = `Inputs: \n${inputs.map(i => i.name).join('\n')}`;
}

function MIDIMessageEventHandler(event) {
	if(event.data[1]){
		var number = event.data[1];
		var note = numberToNote(number);
		switch (event.data[0] & 0xf0) {
			case 0x90:
				if (event.data[2] != 0) {  // if velocity != 0, this is a note-on message
					noteOn(note.pitch, event.data[2]);
					return;
				} else {
					noteOff(note.pitch)
				}
			case 0x80:
				noteOff(note.pitch);
				return;
		}
	}
}

function numberToNote(number) {
	var notes = ["C","C#","D","D#","E","F","F#","G","G#","A","A#","B"];
	var octave = parseInt(number/12, 10);
	var step = number - octave * 12;
	var pitch = notes[step];
	return {pitch: pitch+""+octave, midi: number};
}

// get audio context instance
var context = context || new AudioContext()

function noteOn(note = 'A4', velocity = 1, start = 0) {
	// create a new oscillator node and connect it to the context destination
	var oscillator = context.createOscillator()
	oscillator.connect(context.destination)

	oscillator.type = 'sawtooth'
	oscillator.frequency.value = noteToFrequency(note)

	// trigger it to start and schedule it to stop after 0.3 sec
	oscillator.start(context.currentTime + start)
	oscillator.stop(context.currentTime + start + 0.3)
	// disconnect it after 0.3 sec
	setTimeout(() => oscillator.disconnect(context.destination), (start + 0.3) * 1000)
}

function noteOff(note) {

}


function noteToFrequency(note) {
	var notes = ['A', 'A#', 'B', 'C', 'C#', 'D', 'D#', 'E', 'F', 'F#', 'G', 'G#'];
	var keyNumber;
	var octave;

	if (note.length === 3) {
		octave = note.charAt(2);
	} else {
		octave = note.charAt(1);
	}

	keyNumber = notes.indexOf(note.slice(0, -1));

	if (keyNumber < 3) {
		keyNumber = keyNumber + 12 + ((octave - 1) * 12) + 1;
	} else {
		keyNumber = keyNumber + ((octave - 1) * 12) + 1;
	}

	return 440 * Math.pow(2, (keyNumber - 49) / 12);
}

// ui
var inputsEl = document.createElement('pre');
inputsEl.innerHTML = 'Inputs:';
document.querySelector('#ui').appendChild(inputsEl);

Links and Resources

Wall of shame

Apps

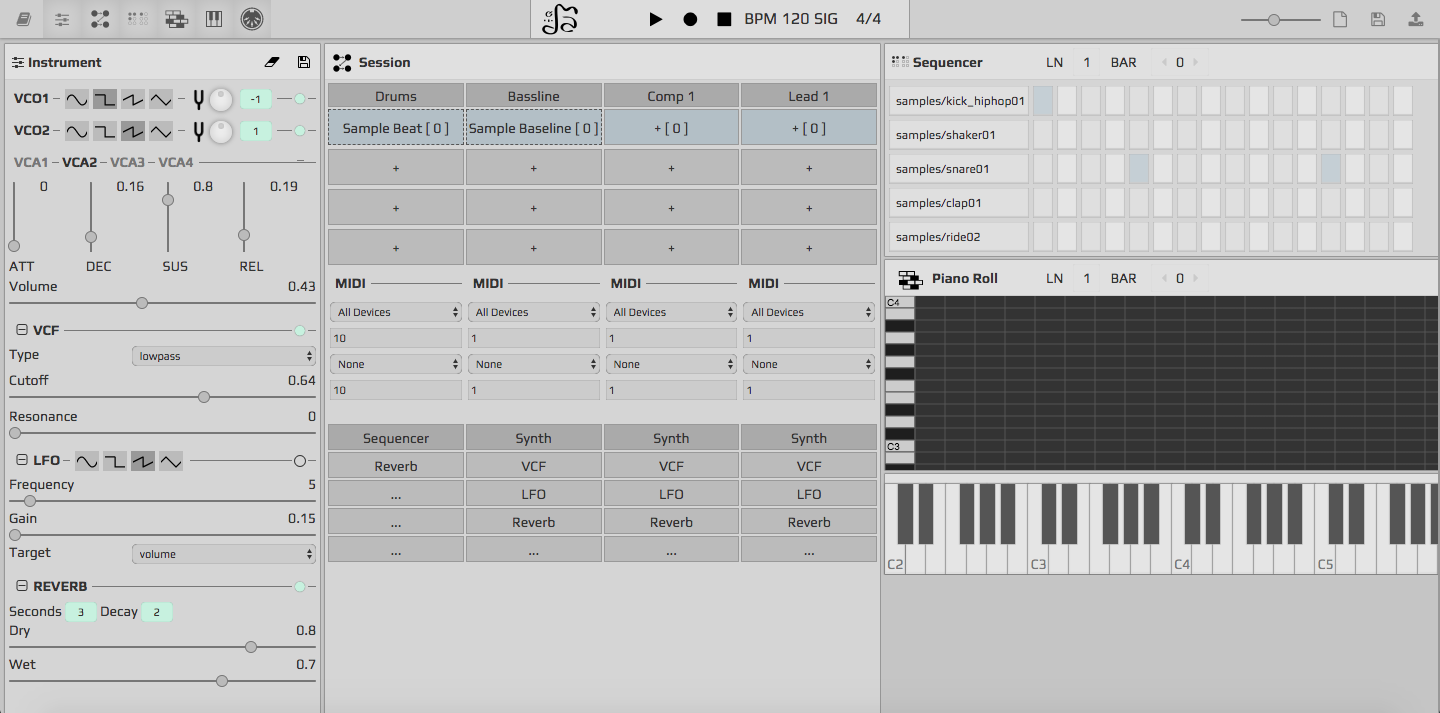

The Jam Station

jam-station

The Jam Station

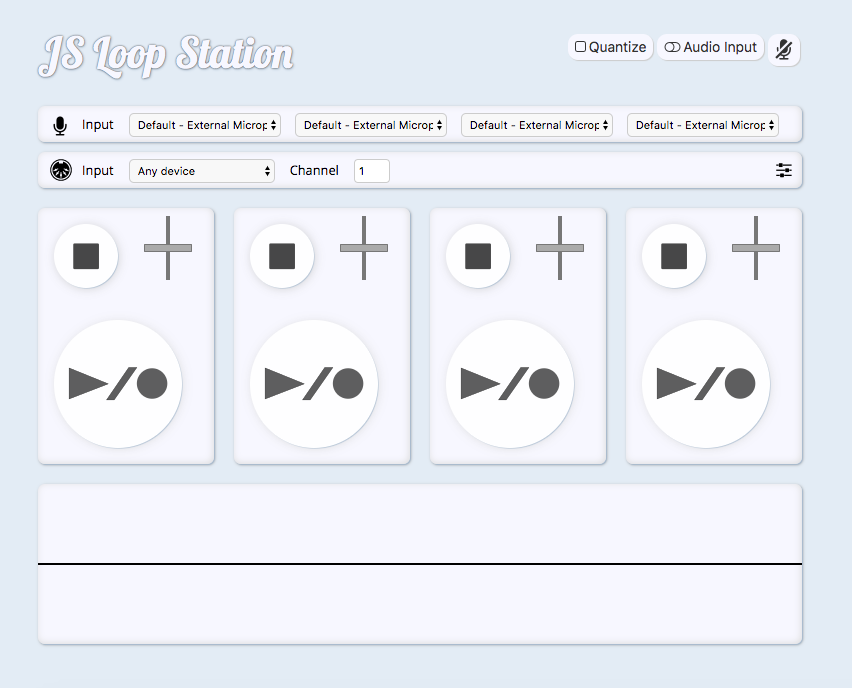

JS Loop Station

jam-station

JS Loop Station

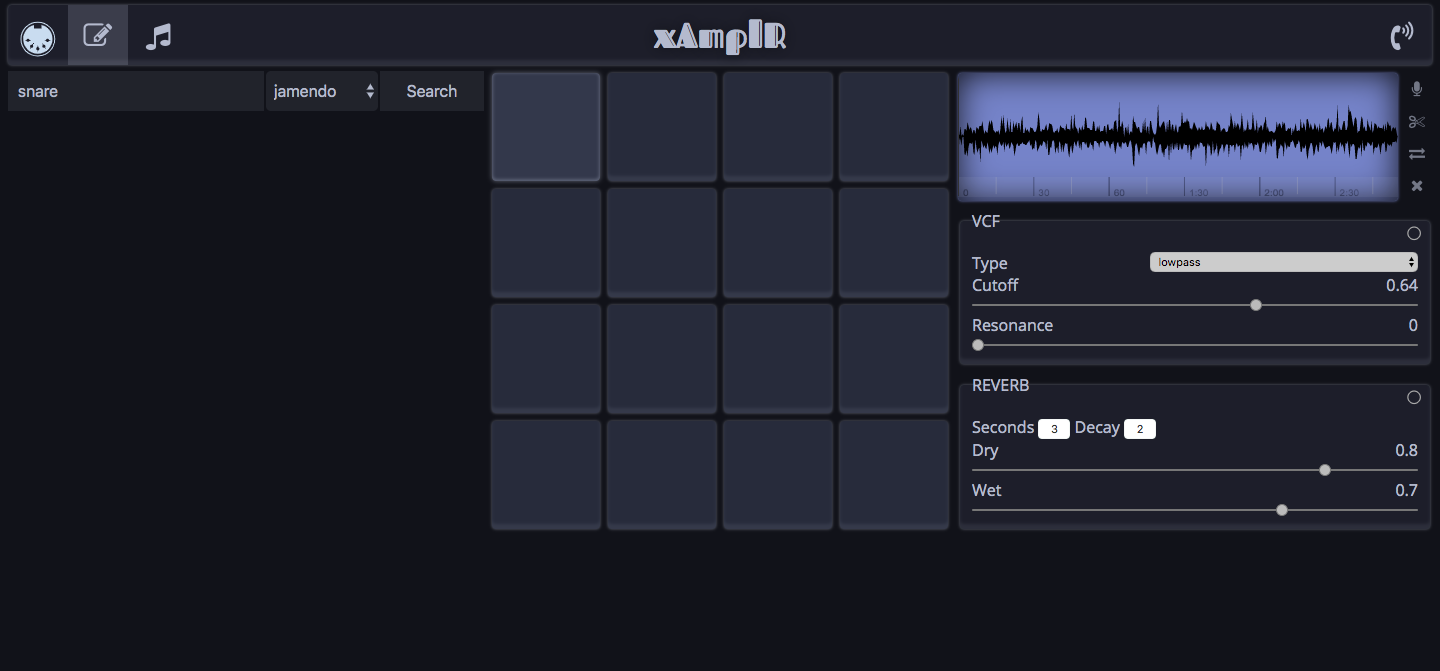

xAmplR

jam-station

xAmplR

Other Examples

Links
