Examples and explanations of RabbitMQ concepts and usage in Go. Taken from the official RabbitMQ tutorials, with extended examples and additional clarifications.
In all examples we assume that a RabbitMQ instance is up and running at 127.0.0.1:5672. The rabbit.sh file
contains a script to start such an instance in a Docker image. Note that all the things that could be persisted
by RabbitMQ are cleaned by this Docker image when it stops (e.g. persistent queues).
This example contains a small program that can be started in consumer o producer mode; a producer (sender) sends messages to a queue, and a consumer (receiver) receives messages from a queue. It's a "Hello World" example.
Producing means nothing more than sending. A program that sends messages is a producer. Consuming has a similar meaning to receiving. A consumer is a program that mostly waits to receive messages. Note that the producer, the consumer, and the message broker do not have to reside on the same host; indeed in most applications they don't. An application can be both a producer and consumer too.
In this simple example, the producer connects to the Rabbit message broker (the server), declares (creates) a queue and send some messages to it. The receiver similarly connects to the broker, declares the queue and starts consuming the messages from the queue. Declaring a queue is an idempotent operation and it's a good practice to perform it on both the consumer and the producer side, to ensure that the queue exists upon connection.
To start the example:
# Start the producer.
go run ./01_hello-world --mode producer
# In one or more other shells, start the consumers.
go run ./01_hello-world --mode consumerThis example creates a work queue that will be used to distribute time-consuming tasks among multiple workers. The main idea behind work queues (aka task queues) is to avoid performing resource-intensive tasks immediately and have to wait for them. Instead, we want to schedule the task to be done later. We encapsulate a task as a message and send it to a queue. A running worker process will pop the tasks/messages and execute the job. When you run many workers at the same time the tasks will be equally distributed among them.
If a worker dies, we'd like the task to be delivered to another worker. In order to make sure a message is never lost, Rabbit supports message acknowledgments. An ack(nowledgement) is sent back by the consumer to tell Rabbit that a particular message has been received and processed, so it can be deleted safely. If a consumer dies (or a timeout happens) before completing the job, no ack is sent and the task could be taken by another worker. Furthermore, we need to mark both the queue and messages as durable in order to avoid losing jobs if the Rabbit server dies.
Finally, another important aspect must be considered. The default fair dispatching of messages assigns one job per connected worker, that is, it just blindly dispatches every n-th message to the n-th consumer (and the n-th client will buffer all n-th messages that it can fetch and store). As a consequence some workers could remain more time idle than others. Think about two workers connected and every odd message being more intensive and time-consuming. In this scenario the second worker is assigned the more intensive jobs, while the first one will remain generally idle for more time. In order keep all the workers busy in an equal way, we can set the prefetch count to the value of 1.
A prefetch of one tells Rabbit not to give more than one message to a worker/consumer at a time. More precisely, don't dispatch a new message to a worker until it has processed and acknowledged the previous one. Instead, Rabbit will dispatch the next message to the next consumer that is not still busy (if any).
To start the example:
# Start the jobs producer.
go run ./02_workers-queue --mode producer
# We can start as many worker as we want, more workers means more
# processing power and more jobs done in a period of time. Run in
# one or more other shells:
go run ./02_workers-queue --mode workerIn previous examples we sent and received messages to and from a queue. In the full messaging model of Rabbit there are also exchanges. The core idea of the RabbitMQ messaging model is that the producer never sends any messages directly to a queue. Actually, quite often the producer doesn't even know if a message will be delivered to any queue at all. Instead, the producer can only send messages to an exchange. Then, Rabbit (which is a message broker indeed) will send those messages to one or more queues bound to that exchange.
An exchange is a very simple thing. On one side it receives messages from producers and on the other side it pushes them to queues. The exchange must know exactly what to do with a message it receives. The rules for exchanges are defined by their type (direct, topic, headers and fanout).

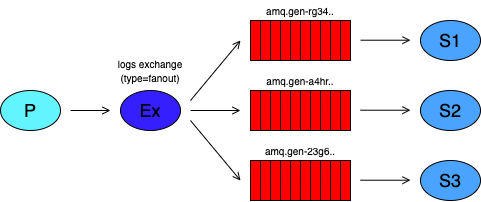

This example is a logging system that implements the publisher/subscriber design pattern. The publisher will send all the produced logs to an exchange, then they will be routed to all subscribers (the consumers). To do this we will use an exchange of type fanout which just broadcasts all the messages it receives to all the queues it knows.
When a consumer/subscriber joins we create a new empty queue with a random name, a queue that is specific for that
subscriber. Then we bind the queue to the logs exchange. Note that the subscriber is not interested in messages
sent before it is connected to the server. Secondly, when the subscriber disconnects, the queue will be dropped.
Basically, queues will be generated and destroyed dynamically when consumers connect and disconnect (and those
queues will be filled with flowing messages only).
To start the example:
# Start the publisher.
go run ./03_publisher-subscribers --mode publisher
# We can start as many subscribers as we want,
# similarly to a real subscription system. Run
# in one or more other shells:
go run ./03_publisher-subscribers --mode subscriberIn this example we're build a logging system as before, but we are going to make it possible to subscribe only to a subset of messages sent by the publisher. The structure is similar to the previous example, but we'll use different routing/binding keys in both queue bindings and message sending.
Routing keys are strings used by producers to control where messages must be sent. Specifically, the messages are routed from the exchange to the queues that are bound to that exchange with a compatible binding key (binding keys are like the routing keys, but for consumers). Different types of exchanges have different types of matching criteria. The fanout exchange used in the previous example just sends all messages to all bound queues, regardless of the keys used. To build this example we use a direct exchange instead. The routing algorithm behind a direct exchange is simple: a message goes to the queues whose binding key exactly matches the routing key of the message.
In the logging system depicted in the figure above, the direct exchange has three queues bound to it. The first queue
is bound with the binding key info, the second queue is bound with the binding key warn and the third queue has
two bindings, one with the binding key warn and the other one with error. Here, a message published to the
exchange with a routing key info will be routed to the first queue. Messages with a routing key of warn will go
to second and third queues. Messages with a routing key of error will go to the third queue only. All other
messages will be discarded. It is perfectly legal to bind multiple queues with the same binding key.
In the example the producer send logs with different severities to an exchange (the severities are reflected in the related routing keys of the system). Subscribers/consumers can listen for logs with one or more severities, binding their freshly-created and exclusive queue with the related binding keys. While consuming their queues, consumers will receive only the subset of messages they subscribed for.
To start the example:
# Start the logs producer (the publisher).
go run ./04_direct-routing --mode publisher
# Start a subscriber for info logs, in a new shell.
go run ./04_direct-routing --mode subscriber --sevs info
# Start a subscriber for warn logs, in a new shell.
go run ./04_direct-routing --mode subscriber --sevs warn
# Start a subscriber for warn and error logs, in a new shell.
go run ./04_direct-routing --mode subscriber --sevs warn-errorThere is another type of exchange named topic. With these type of exchange we can route messages with multiple
criteria. Messages sent to a topic exchange can't have an arbitrary routing key - it must be a list of words, delimited
by dots (e.g. quick.orange.rabbit). Binding queues to an exchange use a similar format, but there are some special
characters the star * and the hash #. The matching rules are similar to those of the direct exchange with some
differences: a star (*) can substitute for exactly one word, a hash (#) can substitute for multiple words. When
these special characters aren't used in bindings, the topic exchange will behave just like a direct one.
This simple program is a more advanced logging system where both the severities and the source form the routing key,
following the pattern <facility>.<severity>. In the consumer both members can be a special character, to represent
the two forms of wildcards. Based on the routing key used on the producer side, bound queues should or should not
receive some messages. E.g.:
nginx.*will receive all messages from the nginx facility*.errorwill receive only error logs from all facilitiescron.infowill receive only info logs from the cron facility
To start the example:
# Start the logs producer (publisher).
go run ./05_topics-routing --mode publisher
# Start a subscriber that listens for errors from
# all sources, in a different shell.
go run ./05_topics-routing --mode subscriber --bind *.error
# Start a subscriber for info logs from nginx,
# in a different shell.
go run ./05_topics-routing --mode subscriber --bind nginx.infoThis example is a simple implementation of a pattern called Remote Procedure Call (RPC). With this pattern we
want to run a function on a remote computer, collecting the response on the client side. The system is composed by one
or more clients and one or more RPC servers. In the example clients send RPC request messages to a shared work
queue (the RPC requests queue, named rpc-queue), while servers read those requests, perform the job, and reply with
RPC response messages in a consumer exclusive callback queue.
In order to receive the response in a specific queue we need to send the callback queue address with the RPC request.
We use the reply-to field for this purpose. Callback queues are exclusive and generated upon clients connection.
RPC responses are auto-acked from the queue while RPC requests must be acknowledged by the server when it finishes
working on that task. There is another field, the correlation-id used to correlate the response with its related
RPC request.
Note that we send one RPC request per time and we wait for the response synchronously. It's probably better to send multiple RPC requests in batch, record all correlation IDs and check this list while receiving responses (not done here since we are interested in the architecture not in performance).
To start the example:
# Start the RPC server (actually, three concurrent servers are started).
go run ./06_rpc --mode server
# Start one or more clients in different shells.
go run ./06_rpc --mode clientPublisher confirms are a RabbitMQ extension to implement reliable publishing. When publisher confirms are enabled on an AMQP channel, messages published by clients are confirmed asynchronously by the message broker, meaning they have been taken care of on the server side. We can imagine publisher confirms as acknowledges that the server send to the producer. Publisher confirms are not enabled by default and must be enabled at the channel level.
We use several approaches. In the first one we send each message waiting synchronously the broker confirmation. The confirmation is performed serially, that is, after each message we wait the confirmation (so we don't batch messages to be published and confirmation to be received). This approach is simple, but not efficient in terms of performance.
In the second approach we send messages in batches and we wait for confirmations in batches. After every nmessages
sent we want to receive n broker confirmation (basically for all of them). Working with batches of messages improves
the throughput drastically over the first approach. There are still some drawbacks, the more obvious is that we block
the entire process waiting for confirmations. As an example, if the last message in a batch is particularly slow to
be confirmed, we are basically stopped waiting a single confirmation, when there are available resources on both the
client and the server side that could process other concurrent messages.
In the third approach (not showed here) we can asynchronously and independently send messages and receive confirmations, eliminating blocking scenarios generated by single messages. Slow publications/confirmations do not influence other publications/confirmations. If, for instance, we accumulate too many messages to be confirmed, we could slow the producer process to handle backpressure. The system could be still slowed down due to a general non-responsiveness of the network or the Rabbit server, but there will not be the possibility that a single message could hang the system.
To start the example:
# Start the producer with publisher confirms.
go run ./07_pub-confirm
