Apache ShenYu is a Java native API Gateway for service proxy, protocol conversion and API governance.

Primary LanguageJavaApache License 2.0Apache-2.0

Light Logo Dark Logo

Scalable, High Performance, Responsive API Gateway Solution for all MicroServices

https://shenyu.apache.org/

EN docs 简体中文文档

github forks github stars github contributors Docker Pulls



Architecture


Why named Apache ShenYu

ShenYu (神禹) is the honorific name of Chinese ancient monarch Xia Yu (also known in later times as Da Yu), who left behind the touching story of the three times he crossed the Yellow River for the benefit of the people and successfully managed the flooding of the river. He is known as one of the three greatest kings of ancient China, along with Yao and Shun.

  • Firstly, the name ShenYu is to promote the traditional virtues of our Chinese civilisation.

  • Secondly, the most important thing about the gateway is the governance of the traffic.

  • Finally, the community will do things in a fair, just, open and meritocratic way, paying tribute to ShenYu while also conforming to the Apache Way.


Features

  • Proxy: Support for Apache® Dubbo™, Spring Cloud, gRPC, Motan, SOFA, TARS, WebSocket, MQTT
  • Security: Sign, OAuth 2.0, JSON Web Tokens, WAF plugin
  • API governance: Request, response, parameter mapping, Hystrix, RateLimiter plugin
  • Observability: Tracing, metrics, logging plugin
  • Dashboard: Dynamic traffic control, visual backend for user menu permissions
  • Extensions: Plugin hot-swapping, dynamic loading
  • Cluster: NGINX, Docker, Kubernetes
  • Language: provides .NET, Python, Go, Java client for API register

Quick Start (docker)

Create network for Shenyu

> docker network create shenyu

Run Apache ShenYu Admin

> docker pull apache/shenyu-admin
> docker run -d --name shenyu-admin-quickstart -p 9095:9095 --net shenyu apache/shenyu-admin

Run Apache ShenYu Bootstrap

> docker pull apache/shenyu-bootstrap
> docker run -d --name shenyu-quickstart -p 9195:9195 -e "shenyu.local.enabled=true" -e SHENYU_SYNC_WEBSOCKET_URLS=ws://shenyu-admin-quickstart:9095/websocket --net shenyu apache/shenyu-bootstrap

Set router

{
  "name" : "Shenyu",
  "data" : "hello world"
}
  • Set routing rules (Standalone)

Add localKey: 123456 to Headers. If you need to customize the localKey, you can use the sha512 tool to generate the key based on plaintext and update the shenyu.local.sha512Key property.

curl --location --request POST 'http://localhost:9195/shenyu/plugin/selectorAndRules' \
--header 'Content-Type: application/json' \
--header 'localKey: 123456' \
--data-raw '{
    "pluginName": "divide",
    "selectorHandler": "[{\"upstreamUrl\":\"127.0.0.1:8080\"}]",
    "conditionDataList": [{
        "paramType": "uri",
        "operator": "match",
        "paramValue": "/**"
    }],
    "ruleDataList": [{
        "ruleHandler": "{\"loadBalance\":\"random\"}",
        "conditionDataList": [{
            "paramType": "uri",
            "operator": "match",
            "paramValue": "/**"
        }]
    }]
}'
{
  "name" : "Shenyu",
  "data" : "hello world"
}

Plugin

Whenever a request comes in, Apache ShenYu will execute it by all enabled plugins through the chain of responsibility.

As the heart of Apache ShenYu, plugins are extensible and hot-pluggable.

Different plugins do different things.

Of course, users can also customize plugins to meet their own needs.

If you want to customize, see custom-plugin .


Selector & Rule

According to your HTTP request headers, selectors and rules are used to route your requests.

Selector is your first route, It is coarser grained, for example, at the module level.

Rule is your second route and what do you think your request should do. For example a method level in a module.

The selector and the rule match only once, and the match is returned. So the coarsest granularity should be sorted last.

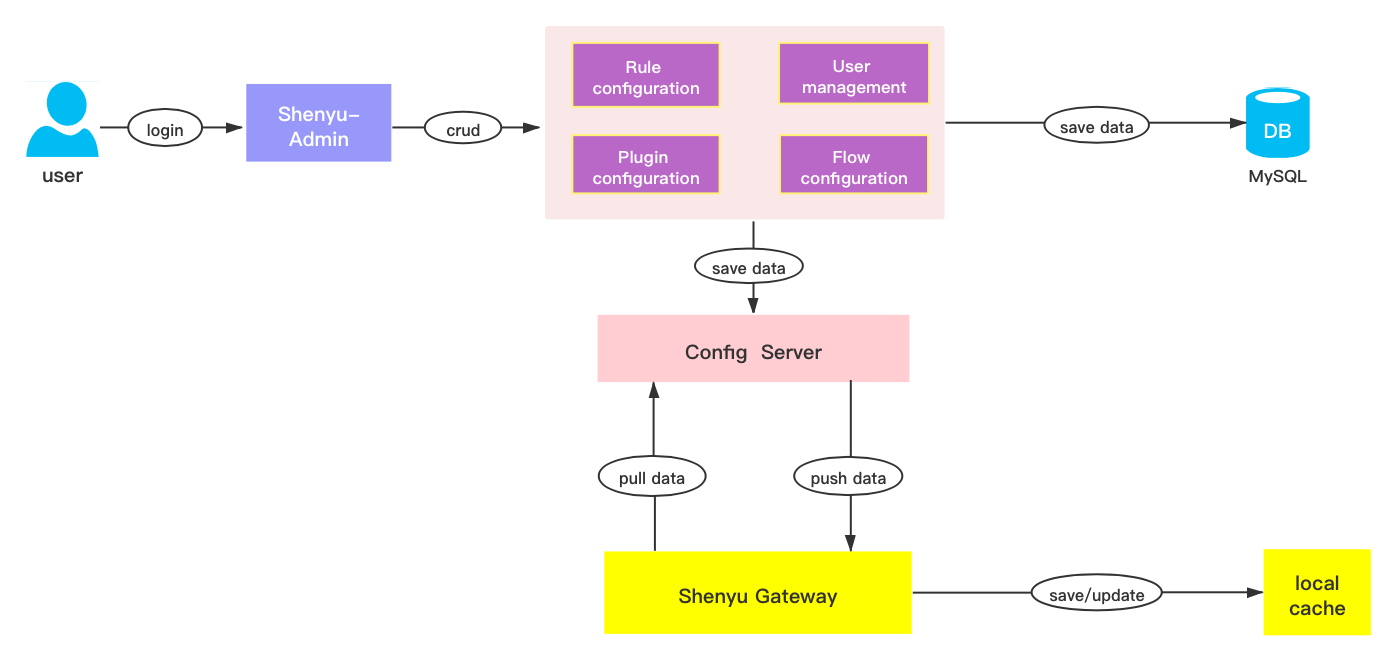

Data Caching & Data Sync

Since all data have been cached using ConcurrentHashMap in the JVM, it's very fast.

Apache ShenYu dynamically updates the cache by listening to the ZooKeeper node (or WebSocket push, HTTP long polling) when the user changes configuration information in the background management.


Prerequisite

  • JDK 1.8+
