Sample Strands Agent Chatbot

A comprehensive AI agent testing platform built with Strands Agents framework, designed for rapid prototyping and testing of business-specific AI tools. This platform enables plug-and-play integration of Built-in tools, Custom tools, MCP servers, and Agents with easy toggle functionality.

Overview

This demo platform serves as a testing ground for AI agents tailored to specific business requirements. It provides a flexible environment where you can:

Define and integrate custom tools based on your business needs
Toggle tools on/off with a simple UI interface
Test different tool combinations to find optimal configurations
Deploy locally or to the cloud with minimal configuration
Leverage pre-built MCP servers deployable to AWS Lambda

Key Features

AI-Powered Chat: Built on AWS Bedrock with Claude Sonnet 4
Real-time Streaming: Server-Sent Events for live responses
Plug & Play Tools: Easy integration of Built-in, Custom, MCP tools, and Agents
Toggle Interface: Visual tool management with on/off switches
File Upload Support: Text, image, PDF, and various file format processing
Analysis Dashboard: Real-time tool execution monitoring
MCP Connection Status: Real-time monitoring of MCP server connectivity
Dual Deployment: Local development and cloud deployment options
Quick Setup: One-command deployment for both environments
Session Management: Automatic session isolation with fresh start on refresh

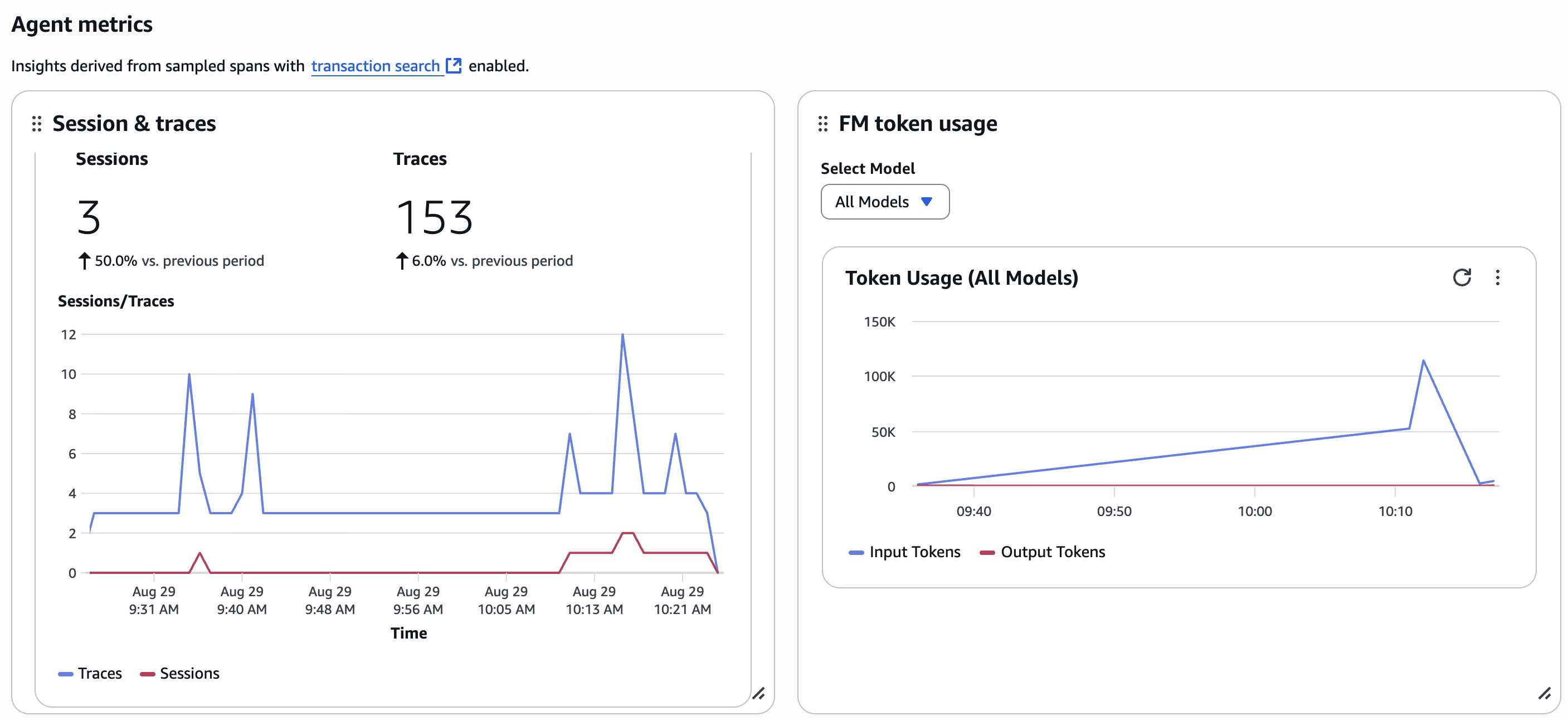

AgentCore Observability: Full trace and log monitoring with AWS CloudWatch integration

Architecture

The platform supports both local development and cloud deployment with a comprehensive MCP ecosystem:

1) Cloud Deployment

Frontend & Backend: Deployed as containerized tasks on AWS Fargate
Application Load Balancer: Traffic distribution across containers
Amazon ECR: Docker container registry
AI Engine: Amazon Bedrock for LLM capabilities with AgentCore Code Interpreter
IAM Authentication: Secure access control
Serverless MCP Farm: Lambda-based MCP servers for scalable tool execution
Stateful MCP Farm: ECS-hosted MCP servers for persistent operations

2) Local Development

Local Machine: Direct connection to Strands Agents
Development Server: Local FastAPI backend with Next.js frontend
Cloud Integration: Connects to Amazon Bedrock and both MCP farms

MCP Server Architecture

The platform includes two types of MCP server deployments:

Serverless MCP Farm (AWS Lambda)

AWS Documentation: Official AWS service documentation
AWS Pricing: Real-time pricing information
Bedrock Knowledge Base: Enterprise knowledge retrieval
Tavily Web Search: Web search capabilities

Stateful MCP Farm (AWS ECS)

Nova Act Browser: Advanced browser automation with natural language control and Playwright API integration
Python Runtime: Sandboxed Python code execution using Pyodide

Tool Management System

The platform supports four distinct types of tools, each with plug-and-play capabilities:

Built-in Tools

Core Strands framework tools that provide essential functionality:

Calculator: Mathematical operations and computations
HTTP Request: API calls and web data fetching
Image Generator: AI-powered image creation
Image Reader: Image analysis and description

Custom Tools

Business-specific tools tailored to your requirements:

Diagram Creator: Create AWS cloud architecture diagrams and UML diagrams with server-optimized rendering
Weather Lookup: Get current weather information for any city worldwide
Visualization Creator: Create interactive charts and visualizations from data
Bedrock Code Interpreter: Execute Python code using AWS Bedrock Code Interpreter with automatic file download support

MCP Servers

Modular Context Protocol servers providing external integrations:

Serverless MCP Servers (Lambda)

AWS Documentation: Search AWS documentation using official Search API

AWS Pricing: Access real-time AWS pricing information and analyze cost
Bedrock Knowledge Base Retrieval: Query Amazon Bedrock Knowledge Bases using natural language
Tavily Web Search: Perform web search using Tavily AI
Financial Analysis: Analyze stock prices and market trends using Yahoo Finance API

Stateful MCP Servers (ECS)

Nova Act Browser: Advanced browser automation combining natural language instructions with direct Playwright API access. Supports high-level actions like "click the blue submit button" alongside precise element targeting with CSS selectors

Python Runtime: Execute Python code safely in a sandboxed environment using Pyodide

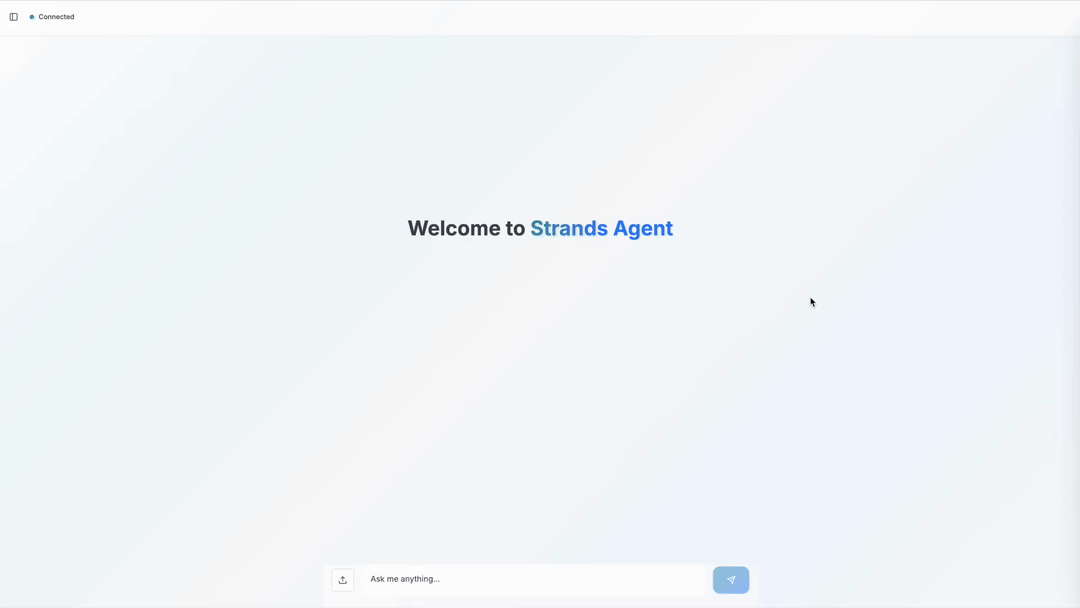

Agents (Sub-Agents)

Specialized AI agents for complex workflows:

Spending Analysis Tool: Personal spending pattern analysis with demographic comparisons and behavioral insights
Financial Narrative Tool: Creative storytelling tool that transforms spending data into narratives with AI-generated images

Adding MCP Servers

You can easily add new MCP servers through the intuitive interface:

Name: Provide a descriptive name for your MCP server
Description: Brief description of what the server provides
Category: Organize servers by category (general, finance, etc.)
Server URL: The endpoint URL (should end with /mcp for Streamable HTTP protocol). Supports AWS Parameter Store references using ssm://parameter-name format
Connection Status: Real-time monitoring shows connection status:
- Connected: Server is responding and accessible
- Disconnected: Server is unreachable or returning errors
- Invalid URL: URL format is incorrect or placeholder
- Unknown: Connection status not yet determined

📚 Detailed Guide: See docs/guides/Add_New_Serverless_MCP.md for step-by-step instructions on creating and deploying serverless MCP servers to AWS Lambda.

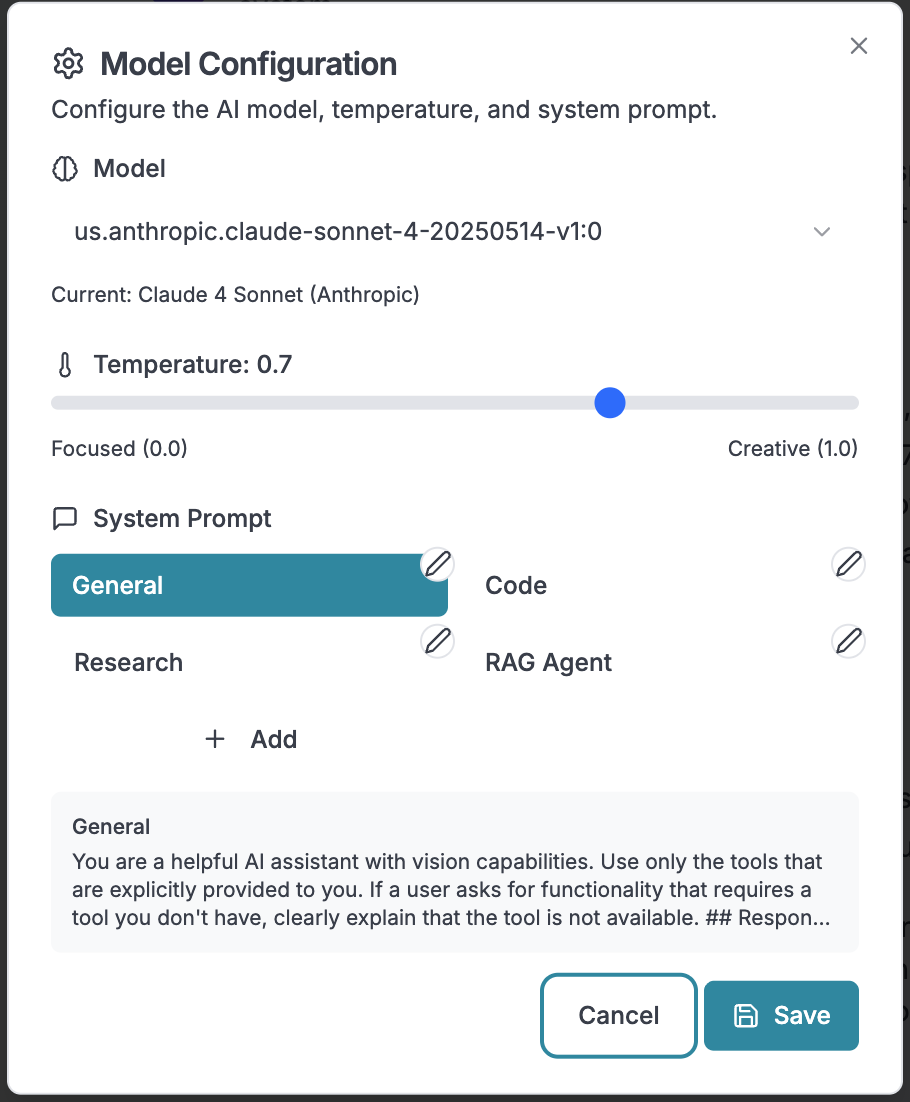

Model Configuration

Configure AI models, temperature, and system prompts:

Model Selection: Choose from various AI models including Claude Sonnet 4 Temperature Control: Adjust creativity vs. focus (0.0 = Focused, 1.0 = Creative) System Prompts: Customize behavior with predefined prompt templates:

General: Default helpful AI assistant behavior
Code: Specialized for programming and technical tasks
Research: Optimized for research and analysis tasks
RAG Agent: Configured for retrieval-augmented generation

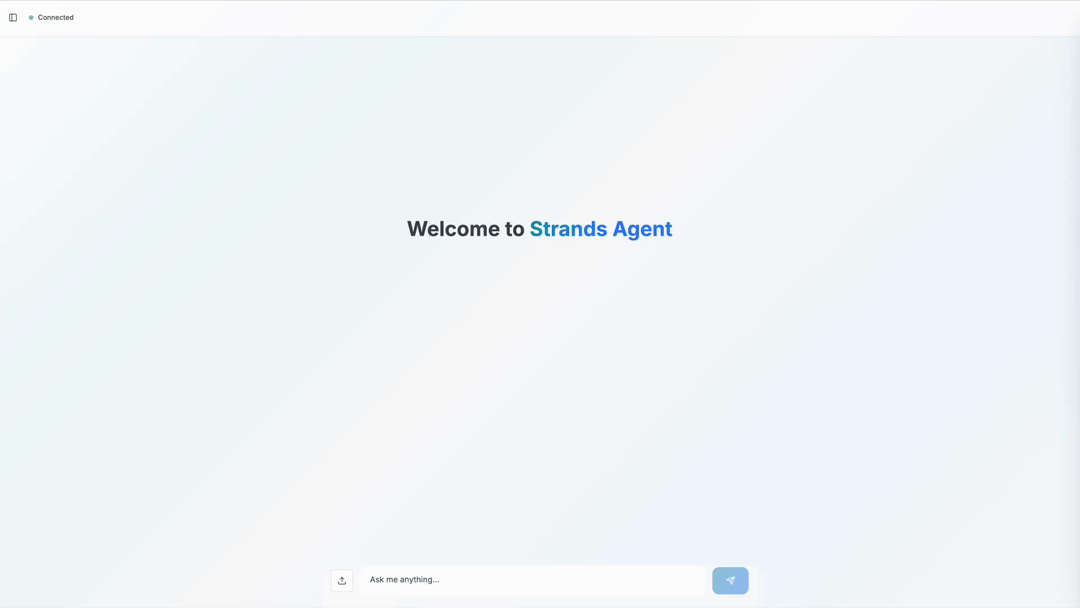

Main Chat Interface

Real-time streaming responses with typing indicators
File upload support (text, images, PDFs, and various formats)
Tool execution visualization with status indicators
Analysis panel for complex operations
Conversation history and export capabilities

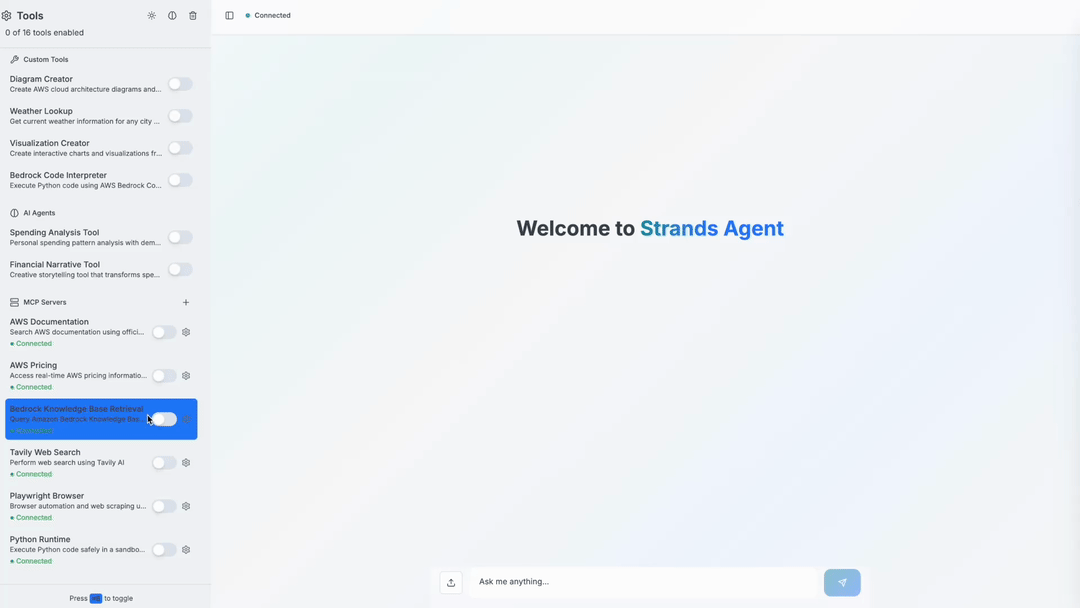

Tool Management Panel

Visual toggle switches for each tool category
Real-time tool status indicators
Tool configuration options
MCP server connection management
Performance metrics and usage statistics

Quick Start

Prerequisites

Python 3.8+
Node.js 18+
Docker & Docker Compose
AWS credentials (for Bedrock access)

Local Deployment

Clone and setup:

git clone https://github.com/aws-samples/sample-strands-agent-chatbot.git
cd sample-strands-agent-chatbot
chmod +x start.sh

Configure environment:

cd agent-blueprint
cp .env.example .env
# Edit .env with your AWS credentials and API keys

Start the application:
```
./start.sh
```
Access the application:
- Frontend: http://localhost:3000
- Backend API: http://localhost:8000
- API Docs: http://localhost:8000/docs

Cloud Deployment

For detailed deployment instructions, see DEPLOYMENT.md.

Quick start:

# 1. Deploy main application
cd agent-blueprint/chatbot-deployment/infrastructure
./scripts/deploy.sh

# 2. Deploy MCP servers
cd ../../serverless-mcp-farm
./deploy-server.sh

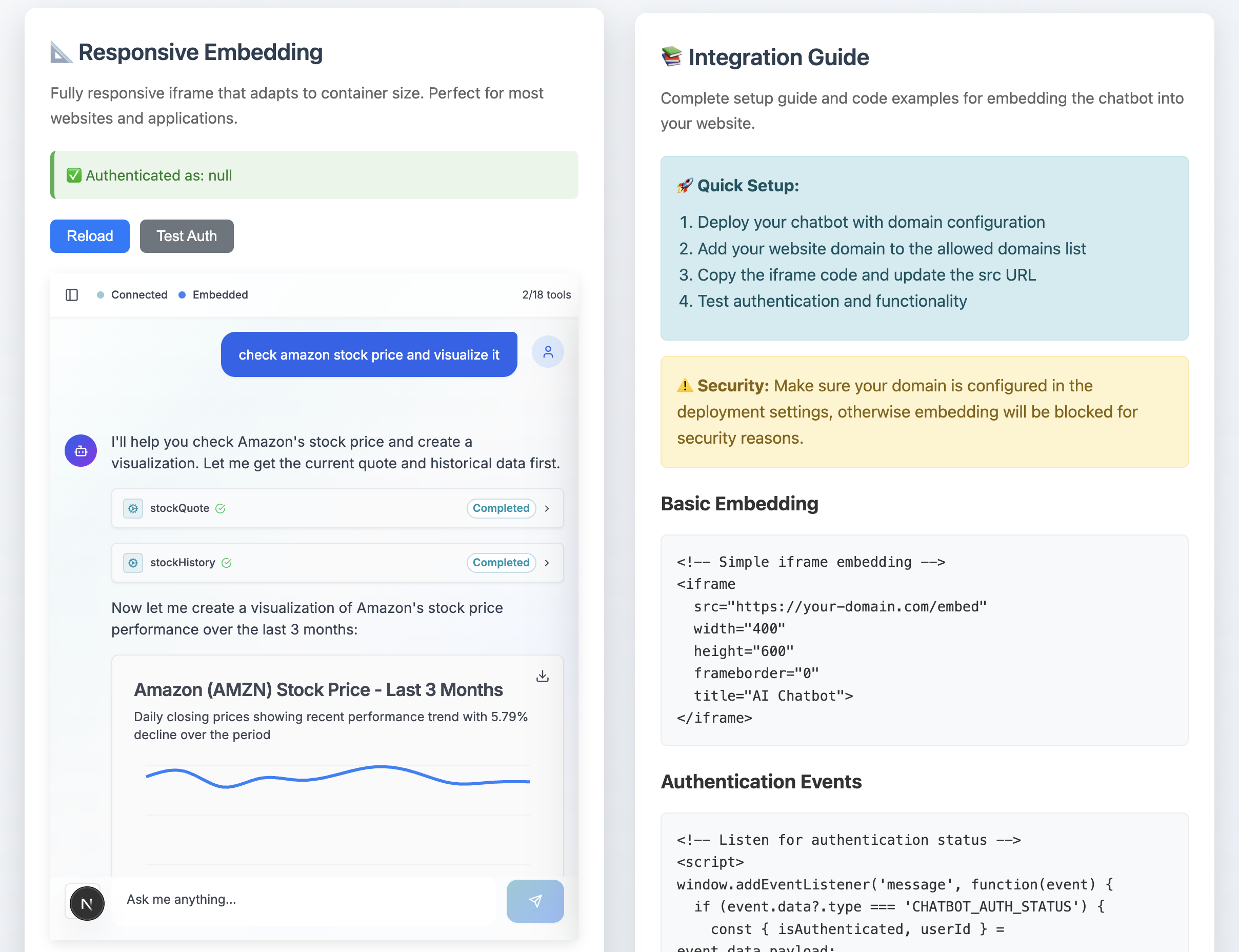

Iframe Embedding Support

The chatbot supports iframe embedding for seamless integration into existing websites and applications.

📋 Quick Start:

<iframe
  src="https://your-chatbot-domain.com/embed"
  width="100%"
  height="600"
  frameborder="0"
  title="AI Chatbot">
</iframe>

Key Features:

Responsive Design: Adapts to any container size
Floating Widget: Pop-up chat button with customizable styling
Cross-Origin Communication: Authentication status and event handling
Framework Support: React, Vue, Angular integration examples
Security: CORS configuration and CSP header support

📚 Complete Guide: See docs/guides/EMBEDDING_GUIDE.md for comprehensive embedding instructions, including:

Interactive demo at /embed-example.html
Framework integration (React, Vue, Angular)
Floating chat widget implementation
Cross-origin communication setup
Security configuration and troubleshooting
Production deployment best practices

Technology Stack

Backend

Framework: FastAPI (Python 3.8+)
AI Engine: Strands Agents (v1.2.0) with AWS Bedrock
Real-time: Server-Sent Events (SSE) with session isolation
HTTP Client: aiohttp for MCP server connectivity checks
Storage: In-memory session management with local filesystem
Containerization: Docker

Frontend

Framework: Next.js 15 (React 18)
Language: TypeScript
Styling: Tailwind CSS + shadcn/ui components
State Management: React Hooks with session storage
Real-time: EventSource API for SSE connections
File Processing: Multi-file upload with document support

Infrastructure

Local: Docker Compose with hot reload
Cloud: AWS (ECS Fargate, ALB, S3)
MCP Servers: AWS Lambda with Streamable HTTP transport
Deployment: AWS CDK with automated infrastructure setup

Configuration

Tool Configuration

Edit chatbot-app/backend/unified_tools_config.json:

{
  "strands_tools": [
    {
      "id": "calculator",
      "name": "Calculator",
      "enabled": true,
      "category": "utilities",
      "description": "Perform mathematical calculations"
    }
  ],
  "custom_tools": [
    {
      "id": "spending_analysis_tool",
      "name": "Spending Analysis Tool",
      "enabled": true,
      "category": "finance",
      "description": "Personal spending pattern analysis with data visualization"
    }
  ],
  "mcp_servers": [
    {
      "id": "aws_docs",
      "name": "AWS Documentation",
      "enabled": false,
      "transport": "streamable_http",
      "url": "https://your-lambda-url.amazonaws.com/mcp",
      "category": "documentation"
    }
  ],
  "agents": [
    {
      "id": "spending_analysis_agent",
      "name": "Spending Analysis Agent",
      "enabled": true,
      "category": "finance",
      "description": "Personal spending pattern analysis with demographic comparisons"
    },
    {
      "id": "financial_narrative_agent",
      "name": "Financial Narrative Agent",
      "enabled": true,
      "category": "finance",
      "description": "Creative storytelling tool that transforms spending data into humorous narratives"
    }
  ]
}

Environment Configuration

agent-blueprint/.env: Main configuration file for deployment and API keys
agent-blueprint/.env.example: Template with all available options
chatbot-app/backend/.env: Backend-specific settings (auto-generated)
chatbot-app/frontend/.env.local: Frontend-specific settings (auto-generated)

Pre-built MCP Servers

The platform includes ready-to-deploy Lambda MCP servers with Streamable HTTP transport:

AWS Documentation Server

Purpose: Retrieve AWS service documentation
Deployment: agent-blueprint/direct-lambda-mcp/aws-documentation/
Usage: Ask questions about AWS services and best practices
Origin: https://github.com/awslabs/mcp/tree/main/src/aws-documentation-mcp-server

AWS Pricing Server

Purpose: Get real-time AWS pricing information
Deployment: agent-blueprint/direct-lambda-mcp/aws-pricing/
Usage: Compare costs across AWS services and regions
Origin: https://github.com/awslabs/mcp/tree/main/src/aws-pricing-mcp-server

Bedrock KB Retrieval Server

Purpose: Search enterprise knowledge bases
Deployment: agent-blueprint/direct-lambda-mcp/bedrock-kb-retrieval/
Usage: Enterprise knowledge retrieval and Q&A
Origin: https://github.com/awslabs/mcp/tree/main/src/bedrock-kb-retrieval-mcp-server

Tavily Web Search Server

Purpose: Web search capabilities with AI-powered results
Deployment: agent-blueprint/direct-lambda-mcp/tavily-web-search/
Usage: Real-time web information and research

Nova Act Browser Server

Purpose: Hybrid browser automation with natural language control and Playwright API access
Deployment: agent-blueprint/fargate-mcp-farm/nova-act-mcp/
Usage: Natural language browser interactions ("click the login button") and precise API control (CSS selectors, JavaScript execution)
Features:
- High-level natural language actions (navigate, act, extract)
- Low-level Playwright API tools (get_page_structure, quick_action, execute_js, wait_for_condition)
- Session management with headless/headed mode support
- Screenshot capture and page analysis
API Key: Requires Nova Act API key configuration via AWS Parameter Store or .env.local

Python Runtime Server

Purpose: Safe Python code execution in sandboxed environment
Deployment: agent-blueprint/stateful-mcp/python-mcp/
Usage: Data analysis, computations, and Python script execution
Origin: https://github.com/pydantic/pydantic-ai/tree/main/mcp-run-python

Deployment Options

Local Development

./start.sh

AWS Cloud Deployment

# See DEPLOYMENT.md for complete instructions
# 1. Deploy main application (creates VPC)
cd agent-blueprint/chatbot-deployment/infrastructure
./scripts/deploy.sh

# 2. Deploy serverless MCP servers (independent)
cd ../../serverless-mcp-farm
./deploy-server.sh

# 3. Deploy shared infrastructure (uses VPC)
cd ../fargate-mcp-farm/shared-infrastructure
./deploy.sh

# 4. Deploy stateful MCP servers (uses VPC + shared ALB)
cd ../
./deploy-all.sh -s nova-act-mcp

See DEPLOYMENT.md for detailed AWS deployment instructions using CDK.

Adding New Tools

Built-in Tools: Extend Strands framework capabilities
Custom Tools: Create business-specific functionality
MCP Servers: Develop external service integrations
Agents: Build specialized AI workflows

🔍 AgentCore Observability Setup

This application includes full AgentCore observability integration with AWS CloudWatch for comprehensive trace and log monitoring.

Prerequisites

AWS CLI installed and configured
AWS credentials with appropriate permissions (see below)
CloudWatch Transaction Search enabled

Required AWS Permissions

Your AWS role/user needs these permissions:

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Action": [
        "logs:CreateLogGroup",
        "logs:CreateLogStream",
        "logs:PutLogEvents",
        "logs:DescribeLogGroups",
        "logs:DescribeLogStreams"
      ],
      "Resource": "arn:aws:logs:*:*:log-group:agents/*"
    },
    {
      "Effect": "Allow",
      "Action": [
        "cloudwatch:PutMetricData"
      ],
      "Resource": "*"
    }
  ]
}

Quick Setup

Run the observability setup script:
```
chmod +x setup-observability.sh
./setup-observability.sh
```
This will:
- Create CloudWatch log groups and streams
- Generate the .env file with OTEL configuration
- Provide next steps for enabling Transaction Search
Enable CloudWatch Transaction Search:
- Open CloudWatch Console
- Navigate to Application Signals (APM) → Transaction search
- Choose Enable Transaction Search
- Select ingest spans as structured logs
- Choose Save
Start the application:
```
cd chatbot-app && ./start.sh
```

Viewing Traces

After setup, you can monitor your agent interactions in:

CloudWatch Application Signals: Traces and performance metrics
CloudWatch GenAI Observability Dashboard: Dedicated AgentCore monitoring
CloudWatch Logs: Detailed log streams with structured data
Session-based filtering: Use session.id to track individual conversations

What Gets Tracked

HTTP Requests: All API calls and streaming endpoints
Bedrock Calls: LLM inference requests and responses
Tool Executions: Individual tool calls with inputs/outputs
Session Context: Conversation-level trace grouping
Error Tracking: Failed operations and exceptions

Features Implemented

✅ Session ID Context Propagation: Each conversation appears as a unified trace
✅ Tool Execution Spans: All tool calls are instrumented with execute_tool.* spans
✅ Auto-instrumentation: FastAPI, Bedrock, and HTTP calls automatically traced
✅ Real-time Monitoring: Ultra-fast batch processing for immediate trace visibility

License

MIT License - see LICENSE file for details.

Support

For issues and questions:

Troubleshooting Guide: See docs/guides/TROUBLESHOOTING.md for common issues and solutions
Deployment Issues: Check the troubleshooting section in DEPLOYMENT.md
Prerequisites: Ensure all prerequisites are installed
AWS Setup: Verify AWS credentials and permissions
MCP Connectivity: Test MCP server connectivity
