Palace Manager

This is a The Palace Project maintained fork of the NYPL Library Simplified Circulation Manager.

Installation

Docker images created from this code are available at:

Docker images are the preferred way to deploy this code in a production environment.

Git Branch Workflow

Branch	Python Version
main	Python 3
python2	Python 2

The default branch is main and that's the working branch that should be used when branching off for bug fixes or new features.

Python 2 stopped being supported after January 1st, 2020 but there is still a python2 branch which can be used. As of August 2021, development will be done in the main branch and the python2 branch will not be updated unless absolutely necessary.

Set Up

Python Set Up

Homebrew (OSX)

If you do not have Python 3 installed, you can use Homebrew to install it by running the command brew install python3.

If you do not yet have Homebrew, you can install it by running the following:

/bin/bash -c "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/HEAD/install.sh)"

While you're at it, go ahead and install the following required dependencies:

brew install pkg-config libffi
brew install libxmlsec1
brew install libjpeg

Linux

Most distributions will offer Python packages. On Arch Linux, the following command is sufficient:

pacman -S python

pyenv

pyenv pyenv lets you easily switch between multiple versions of Python. It can be installed using the command curl https://pyenv.run | bash. You can then install the version of Python you want to work with.

It is recommended that pyenv-virtualenv be used to allow pyenv to manage virtual environments in a manner that can be used by the poetry tool. The pyenv-virtualenv plugin can be installed by cloning the relevant repository into the plugins subdirectory of your $PYENV_ROOT:

mkdir -p $PYENV_ROOT/plugins
cd $PYENV_ROOT/plugins
git clone https://github.com/pyenv/pyenv-virtualenv

After cloning the repository, pyenv now has a new virtualenv command:

$ pyenv virtualenv
pyenv-virtualenv: no virtualenv name given.

Poetry

You will need to set up a local virtual environment to install packages and run the project. This project uses poetry for dependency management.

Poetry can be installed using the command curl -sSL https://install.python-poetry.org | python3 -.

More information about installation options can be found in the poetry documentation.

Elasticsearch

Docker

The easiest way to setup a local elasticsearch environment is to use docker.

docker run -d --name es -e discovery.type=single-node -p 9200:9200 elasticsearch:6.8.6
docker exec es elasticsearch-plugin -s install analysis-icu
docker restart es

Local

Download it here.
cd into the elasticsearch-[version number] directory.
Run $ elasticsearch-plugin install analysis-icu
Run $ ./bin/elasticsearch.
You may be prompted to download Java SE. If so, go ahead and do so.
Check http://localhost:9200 to make sure the Elasticsearch server is running.

Database

Docker

docker run -d --name pg -e POSTGRES_USER=palace -e POSTGRES_PASSWORD=test -e POSTGRES_DB=circ -p 5432:5432 postgres:12

You can run psql in the container using the command

docker exec -it pg psql -U palace circ

Local

Download and install Postgres if you don't have it already.
Use the command psql to access the Postgresql client.
Within the session, run the following commands:

CREATE DATABASE circ;
CREATE USER palace with password 'test';
grant all privileges on database circ to palace;

Environment variables

To let the application know which database to use set the SIMPLIFIED_PRODUCTION_DATABASE env variable.

export SIMPLIFIED_PRODUCTION_DATABASE="postgres://palace:test@localhost:5432/circ"

Running the Application

As mentioned in the pyenv section, the poetry tool should be executed under a virtual environment in order to guarantee that it will use the Python version you expect. To use a particular Python version, you should create a local virtual environment in the cloned circulation repository directory. Assuming that you want to use, for example, Python 3.9.9:

pyenv virtualenv 3.9.9 circ

This will create a new local virtual environment called circ that uses Python 3.9.9. Switch to that environment:

pyenv local circ

On most systems, using pyenv will adjust your shell prompt to indicate which virtual environment you are now in. For example, the version of Python installed in your operating system might be 3.10.1, but using a virtual environment can substitute, for example, 3.9.9:

$ python --version
Python 3.10.1

$ pyenv local circ
(circ) $ python --version
Python 3.9.9

For brevity, these instructions assume that all shell commands will be executed within a virtual environment.

Install the dependencies:

poetry install --no-root -E pg-binary

Run the application with:

poetry run python app.py

Check that there is now a web server listening on port 6500:

curl http://localhost:6500/

The Admin Interface

Access

By default, the application is configured to provide a built-in version of the admin web interface. The admin interface can be accessed by visiting the /admin endpoint:

# On Linux
xdg-open http://localhost:6500/admin/

# On MacOS
open http://localhost:6500/admin/

If no existing users are configured (which will be the case if this is a fresh instance of the application), the admin interface will prompt you to specify an email address and password that will be used for subsequent logins. Extra users can be configured later.

Creating A Library

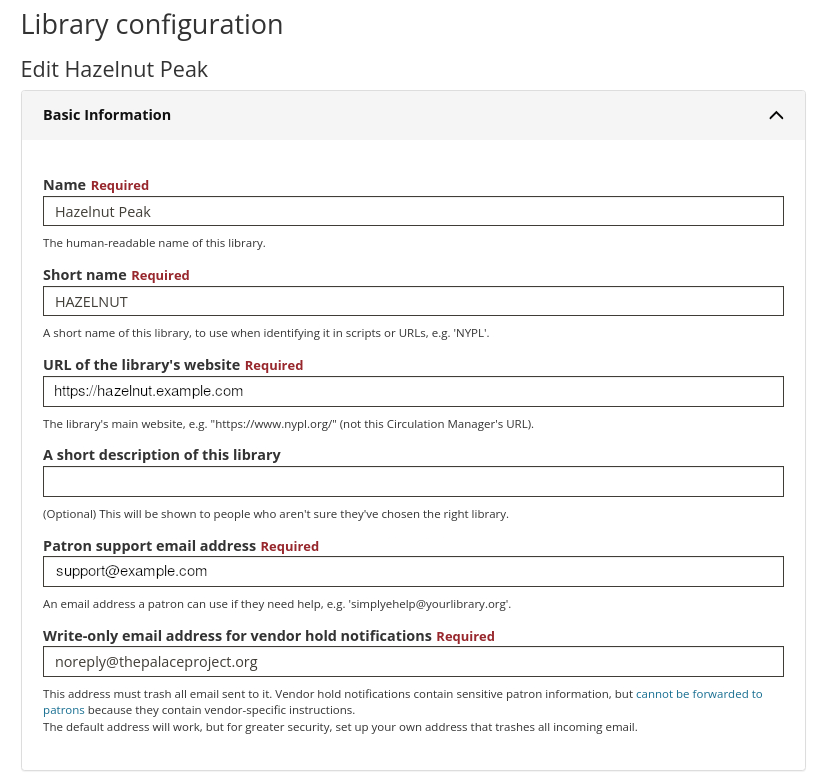

Navigate to System Configuration → Libraries and click Create new library. You will be prompted to enter various details such as the name of the library, a URL, and more. For example, the configuration for a hypothetical library, Hazelnut Peak, might look like this:

Note that the Patron support email address will appear in OPDS feeds served by the application, so make sure that it is an email address you are happy to make public.

At this point, the library exists but does not contain any collections and therefore won't be of much use to anyone.

Adding Collections

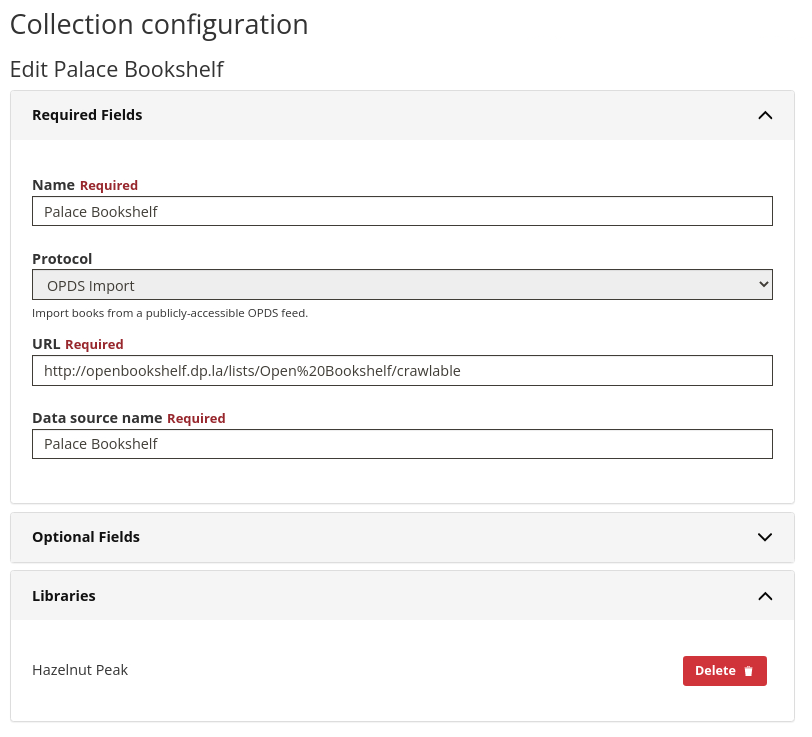

Navigate to System Configuration → Collections and click Create new collection. You will prompted to enter details that will be used to source the data for the collection. A good starting point, for testing purposes, is to use an open access OPDS feed as a data source. The Open Bookshelf is a good example of such a feed. Enter the following details:

Note that we associate the collection with the Hazelnut Peak library by selecting it in the Libraries drop-down. A collection can be associated with any number of libraries.

Importing

At this point, we have a library named Hazelnut Peak configured to use the Palace Bookshelf collection we created. It's now necessary to tell the application to start importing books from the OPDS feed. When the application is running inside a Docker image, the image is typically configured to execute various import operations on a regular schedule using cron. Because we're running the application from the command-line for development purposes, we need to execute these operations ourselves manually. In this particular case, we need to execute the opds_import_monitor:

(circ) $ ./bin/opds_import_monitor
{"host": "hazelnut",
 "app": "simplified",
 "name": "OPDS Import Monitor",
 "level": "INFO",
 "filename": "opds_import.py",
 "message": "[Palace Bookshelf] Following next link: http://openbookshelf.dp.la/lists/Open%20Bookshelf/crawlable",
 "timestamp": "2022-01-17T11:52:35.839978+00:00"}
...

The command will cause the application to crawl the configured OPDS feed and import every book in it. At the time of writing, this command will take around an hour to run the first time it is executed, but subsequent executions complete in seconds. Please wait for the import to complete before continuing!

When the import has completed, the books are imported but no OPDS feeds will have been generated, and no search service has been configured.

Configuring Search

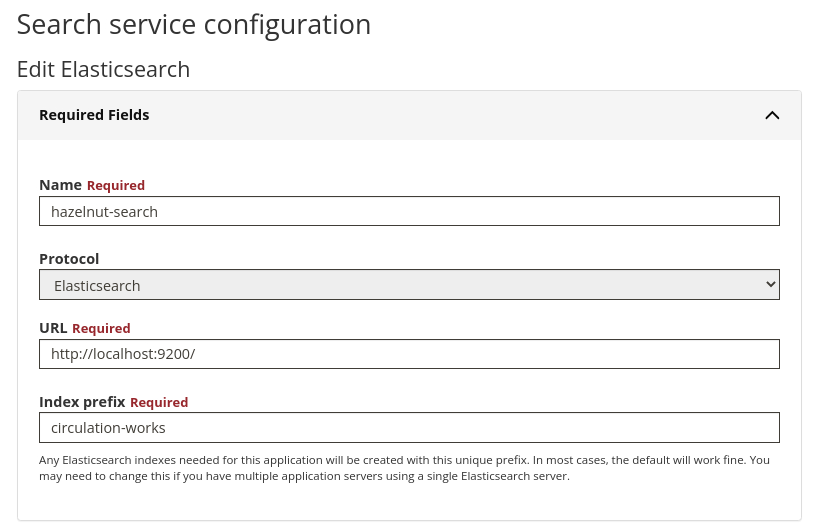

Navigate to System Configuration → Search and add a new Elasticsearch configuration. The required URL is the URL of the Elasticsearch instance configured earlier:

Generating Search Indices

As with the collection configured earlier, the application depends upon various operations being executed on a regular schedule to generate search indices. Because we're running the application from the local command-line, we need to execute those operations manually:

./bin/search_index_clear
./bin/search_index_refresh

Neither of the commands will produce any output if the operations succeed.

Generating OPDS Feeds

When the collection has finished importing, we are required to generate OPDS feeds. Again, this operation is configured to execute on a regular schedule in the Docker image, but we'll need to execute it manually here:

./bin/opds_entry_coverage

The command will produce output indicating any errors.

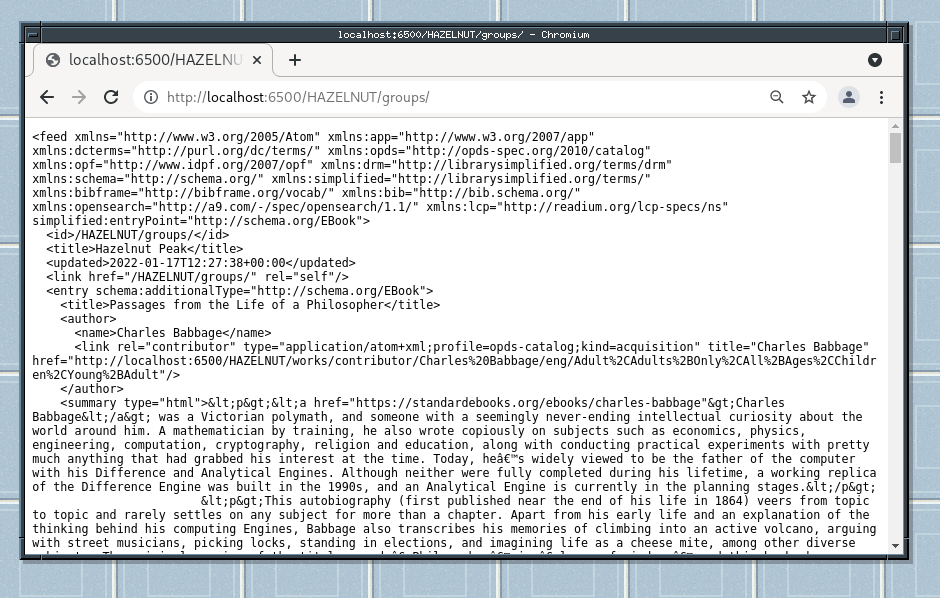

Navigating to http://localhost:6500/ should show an OPDS feed containing various books:

Troubleshooting

The ./bin/repair/where_are_my_books command can produce output that may indicate why books are not appearing in OPDS feeds. A working, correctly configured installation, at the time of writing, produces output such as this:

(circ) $ ./bin/repair/where_are_my_books
Checking library Hazelnut Peak
 Associated with collection Palace Bookshelf.
 Associated with 171 lanes.

0 feeds in cachedfeeds table, not counting grouped feeds.

Examining collection "Palace Bookshelf"
 7838 presentation-ready works.
 0 works not presentation-ready.
 7824 works in the search index, expected around 7838.

We can see from the above output that the vast majority of the books in the Open Bookshelf collection were indexed correctly.

Installation Issues

When running the poetry install ... command, you may run into installation issues. On newer macos machines, you may encounter an error such as:

error: command '/usr/bin/clang' failed with exit code 1
  ----------------------------------------
  ERROR: Failed building wheel for xmlsec
Failed to build xmlsec
ERROR: Could not build wheels for xmlsec which use PEP 517 and cannot be installed directly

This typically happens after installing packages through brew and then running the pip install command.

This blog post explains and shows a fix for this issue. Start by trying the xcode-select --install command. If it does not work, you can try adding the following to your ~/.zshrc or ~/.bashrc file, depending on what you use:

export CPPFLAGS="-DXMLSEC_NO_XKMS=1"

Code Style

Code style on this project is linted using pre-commit. This python application is included in our pyproject.toml file, so if you have the applications requirements installed it should be available. pre-commit is run automatically on each push and PR by our CI System.

You can run it manually on all files with the command: pre-commit run --all-files.

You can also set it up, so that it runs automatically for you on each commit. Running the command pre-commit install will install the pre-commit script in your local repositories git hooks folder, so that pre-commit is run automatically on each commit.

Configuration

The pre-commit configuration file is named .pre-commit-config.yaml. This file configures the different lints that pre-commit runs.

Linters

Built in

Pre-commit ships with a number of lints out of the box, we are configured to use:

trailing-whitespace - trims trailing whitespace.
end-of-file-fixer - ensures that a file is either empty, or ends with one newline.
check-yaml - checks yaml files for parseable syntax.
check-json - checks json files for parseable syntax.
check-ast - simply checks whether the files parse as valid python.
check-shebang-scripts-are-executable - ensures that (non-binary) files with a shebang are executable.
check-executables-have-shebangs - ensures that (non-binary) executables have a shebang.
check-merge-conflict - checks for files that contain merge conflict strings.
check-added-large-files - prevents giant files from being committed.
mixed-line-ending - replaces or checks mixed line ending.

Black

We lint using the black code formatter, so that all of our code is formatted consistently.

isort

We lint to make sure our imports are sorted and correctly formatted using isort. Our isort configuration is stored in our tox.ini which isort automatically detects.

autoflake

We lint using autoflake to flag and remove any unused import statement. If an unused import is needed for some reason it can be ignored with a #noqa comment in the code.

Continuous Integration

This project runs all the unit tests through Github Actions for new pull requests and when merging into the default main branch. The relevant file can be found in .github/workflows/test-build.yml. When contributing updates or fixes, it's required for the test Github Action to pass for all Python 3 environments. Run the tox command locally before pushing changes to make sure you find any failing tests before committing them.

For each push to a branch, CI also creates a docker image for the code in the branch. These images can be used for testing the branch, or deploying hotfixes.

Testing

The Github Actions CI service runs the unit tests against Python 3.7, 3.8 and 3.9 automatically using tox.

To run pytest unit tests locally, install tox.

pip install tox

Tox has an environment for each python version, the module being tested, and an optional -docker factor that will automatically use docker to deploy service containers used for the tests. You can select the environment you would like to test with the tox -e flag.

Factors

When running tox without an environment specified, it tests circulation and core using all supported Python versions with service dependencies running in docker containers.

Python version

Factor	Python Version
py37	Python 3.7
py38	Python 3.8
py39	Python 3.9

All of these environments are tested by default when running tox. To test one specific environment you can use the -e flag.

Test Python 3.8

tox -e py38

You need to have the Python versions you are testing against installed on your local system. tox searches the system for installed Python versions, but does not install new Python versions. If tox doesn't find the Python version its looking for it will give an InterpreterNotFound errror.

Pyenv is a useful tool to install multiple Python versions, if you need to install missing Python versions in your system for local testing.

Module

Factor	Module
core	core tests
api	api tests

Docker

If you install tox-docker tox will take care of setting up all the service containers necessary to run the unit tests and pass the correct environment variables to configure the tests to use these services. Using tox-docker is not required, but it is the recommended way to run the tests locally, since it runs the tests in the same way they are run on the Github Actions CI server.

pip install tox-docker

The docker functionality is included in a docker factor that can be added to the environment. To run an environment with a particular factor you add it to the end of the environment.

Test with Python 3.8 using docker containers for the services.

tox -e "py38-{api,core}-docker"

Local services

If you already have elastic search or postgres running locally, you can run them instead by setting the following environment variables:

SIMPLIFIED_TEST_DATABASE
SIMPLIFIED_TEST_ELASTICSEARCH

Make sure the ports and usernames are updated to reflect the local configuration.

# Set environment variables
export SIMPLIFIED_TEST_DATABASE="postgres://simplified_test:test@localhost:9005/simplified_circulation_test"
export SIMPLIFIED_TEST_ELASTICSEARCH="http://localhost:9200"

# Run tox
tox -e "py38-{api,core}"

Override `pytest` arguments

If you wish to pass additional arguments to pytest you can do so through tox. Every argument passed after a -- to the tox command line will the passed to pytest, overriding the default.

Only run the test_google_analytics_provider tests with Python 3.8 using docker.

tox -e "py38-api-docker" -- tests/api/test_google_analytics_provider.py

Usage with Docker

Check out the Docker README in the /docker directory for in-depth information on optionally running and developing the Circulation Manager locally with Docker, or for deploying the Circulation Manager with Docker.

Performance Profiling

There are three different profilers included to help measure the performance of the application. They can each be enabled by setting environment variables while starting the application.

AWS XRay

Environment Variables

PALACE_XRAY: Set to enable X-Ray tracing on the application.
PALACE_XRAY_NAME: The name of the service shown in x-ray for these traces.
PALACE_XRAY_ANNOTATE_: Any environment variable starting with this prefix will be added to to the trace as an annotation.
- For example setting PALACE_XRAY_ANNOTATE_KEY=value will set the annotation key=value on all xray traces sent from the application.
PALACE_XRAY_INCLUDE_BARCODE: If this environment variable is set to true then the tracing code will try to include the patrons barcode in the user parameter of the trace, if a barcode is available.

Additional environment variables are provided by the X-Ray Python SDK.

cProfile

This profiler uses the werkzeug ProfilerMiddleware to profile the code. This uses the cProfile module under the hood to do the profiling.

Environment Variables

PALACE_CPROFILE: Profiling will the enabled if this variable is set. The saved profile data will be available at path specified in the environment variable.
The profile data will have the extension .prof.
The data can be accessed using the pstats.Stats class.

Example code to print details of the gathered statistics:

import os
from pathlib import Path
from pstats import SortKey, Stats

path = Path(os.environ.get("PALACE_CPROFILE"))
for file in path.glob("*.prof"):
    stats = Stats(str(file))
    stats.sort_stats(SortKey.CUMULATIVE, SortKey.CALLS)
    stats.print_stats()

PyInstrument

This profiler uses PyInstrument to profile the code.

Environment Variables

PALACE_PYINSTRUMENT: Profiling will the enabled if this variable is set. The saved profile data will be available at path specified in the environment variable.

The profile data will have the extension .pyisession.
The data can be accessed with the pyinstrument.session.Session class.

Example code to print details of the gathered statistics:

import os
from pathlib import Path

from pyinstrument.renderers import HTMLRenderer
from pyinstrument.session import Session

path = Path(os.environ.get("PALACE_PYINSTRUMENT"))
for file in path.glob("*.pyisession"):
    session = Session.load(file)
    renderer = HTMLRenderer()
    renderer.open_in_browser(session)

barmintor/palace-circulation

Palace Manager

Installation

Git Branch Workflow

Set Up

Python Set Up

Homebrew (OSX)

Linux

pyenv

Poetry

Elasticsearch

Docker

Local

Database

Docker

Local

Environment variables

Running the Application

The Admin Interface

Access

Creating A Library

Adding Collections

Importing

Configuring Search

Generating Search Indices

Generating OPDS Feeds

Troubleshooting

Installation Issues

Code Style

Configuration

Linters

Built in

Black

isort

autoflake

Continuous Integration

Testing

Factors

Python version

Module

Docker

Local services

Override pytest arguments

Usage with Docker

Performance Profiling

AWS XRay

Environment Variables

cProfile

Environment Variables

PyInstrument

Environment Variables

Override `pytest` arguments
