In this episode, we are going to build a Blazor WebAssembly application, and I am going to show you how to manipulate audio and video files using FFmpegBlazor.
FFmpegBlazor provides the ability to utilize ffmpeg.wasm from a Blazor WebAssembly application using C#, to leverage all the benefits of ffmpeg.
At the end of this demo, we are going to be able to extract the audio track of an MP4 video and create an MP3 audio file, create an MP4 video from an image and an audio track, add a watermark to a video, and concatenate two videos into one, all inside the browser.

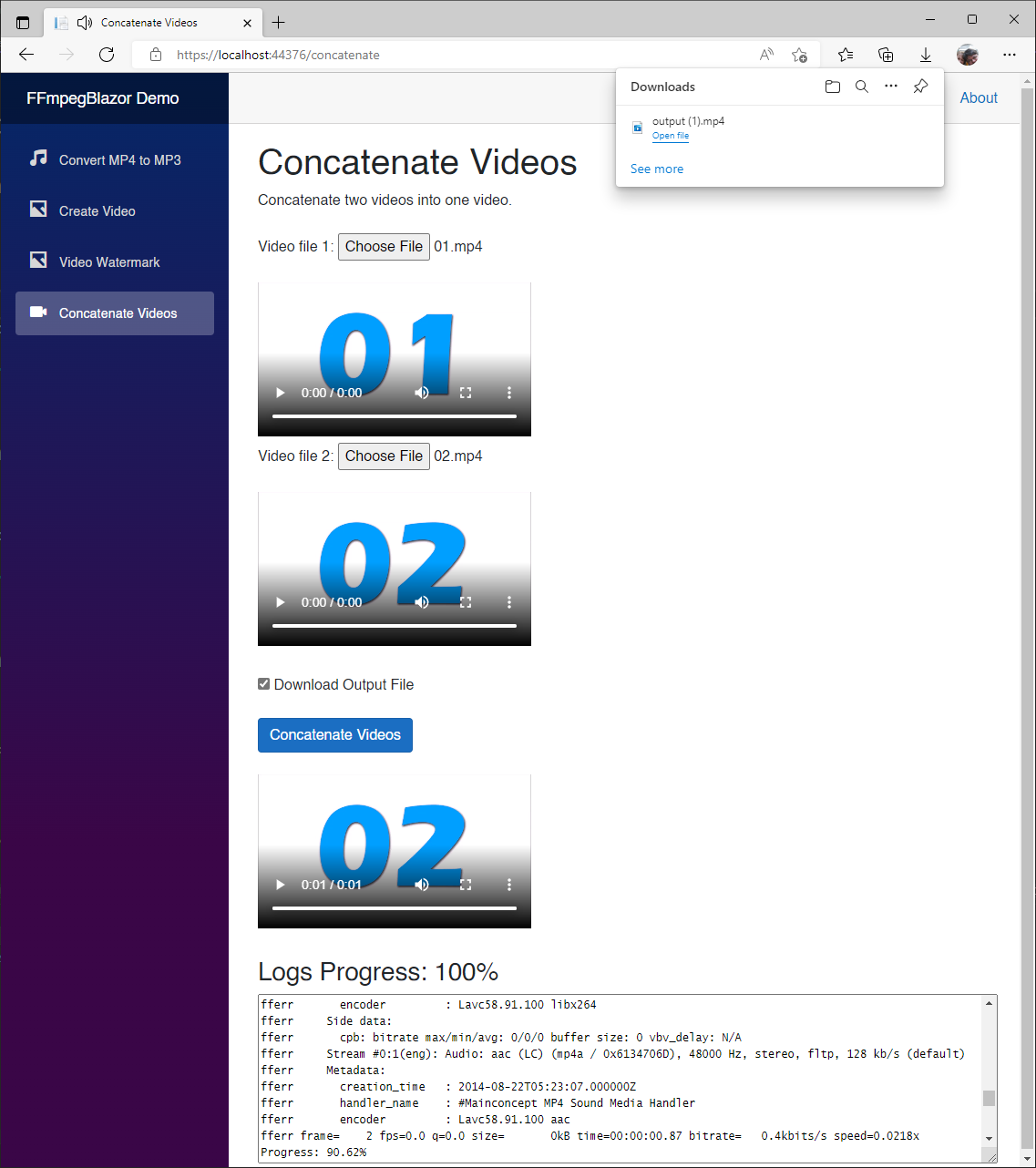

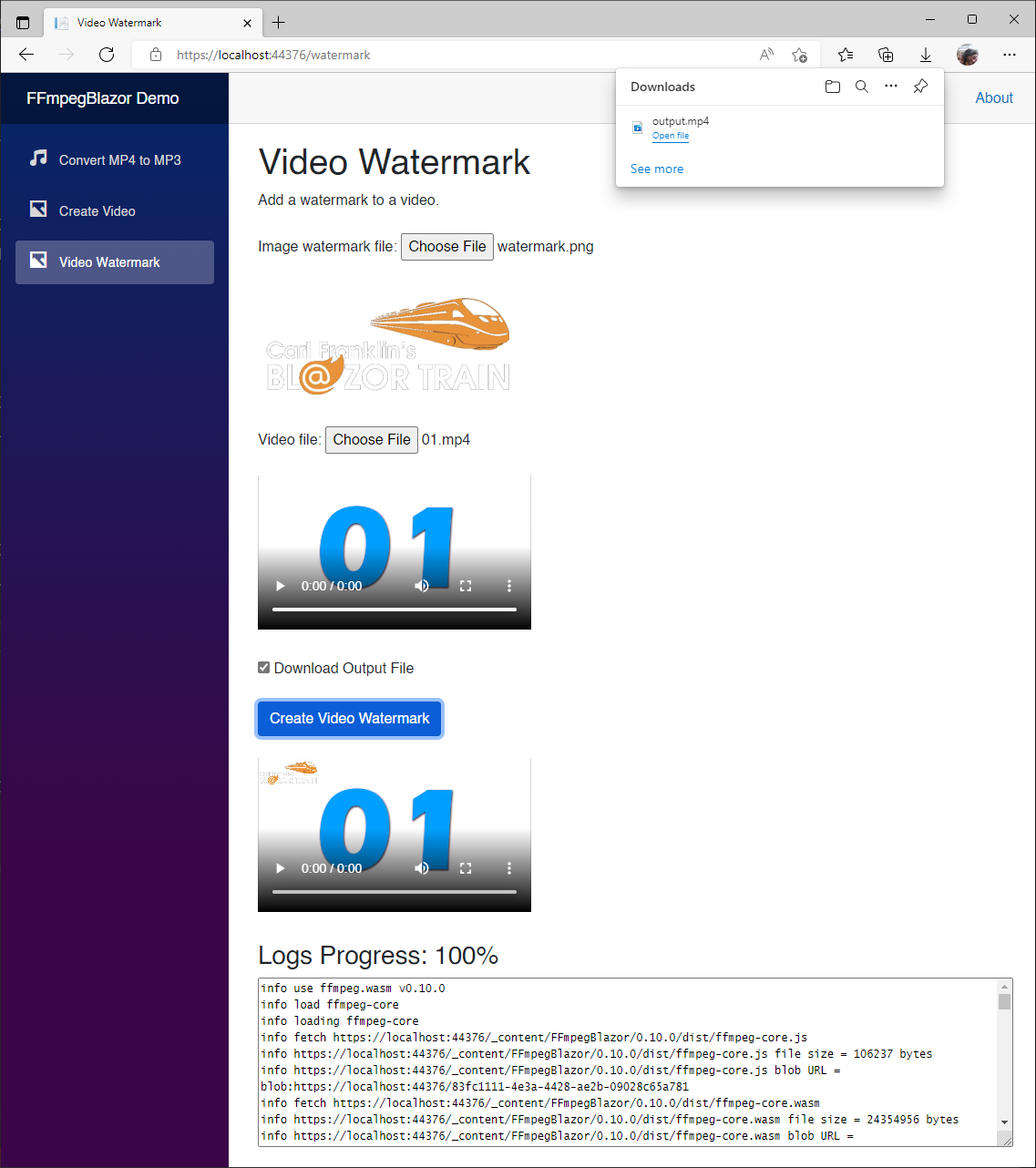

Stay tuned, the end results will look like this:
Let's get to it.
The following prerequisites are needed for this demo.
Download the latest version of the .NET 6.0 SDK here.
For this demo, we are going to use the latest version of Visual Studio 2022.

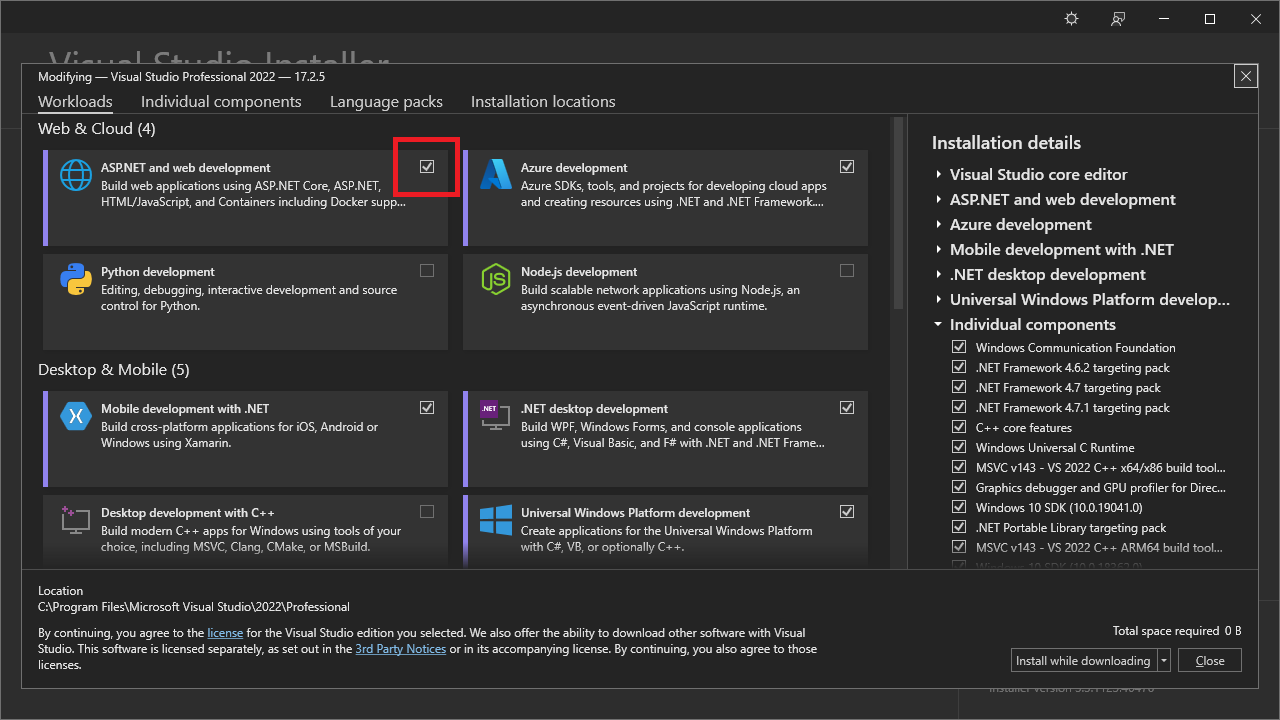

In order to build Blazor apps, the ASP.NET and web development workload needs to be installed.
We are also going to use the FFmpegBlazor NuGet package for this demo.

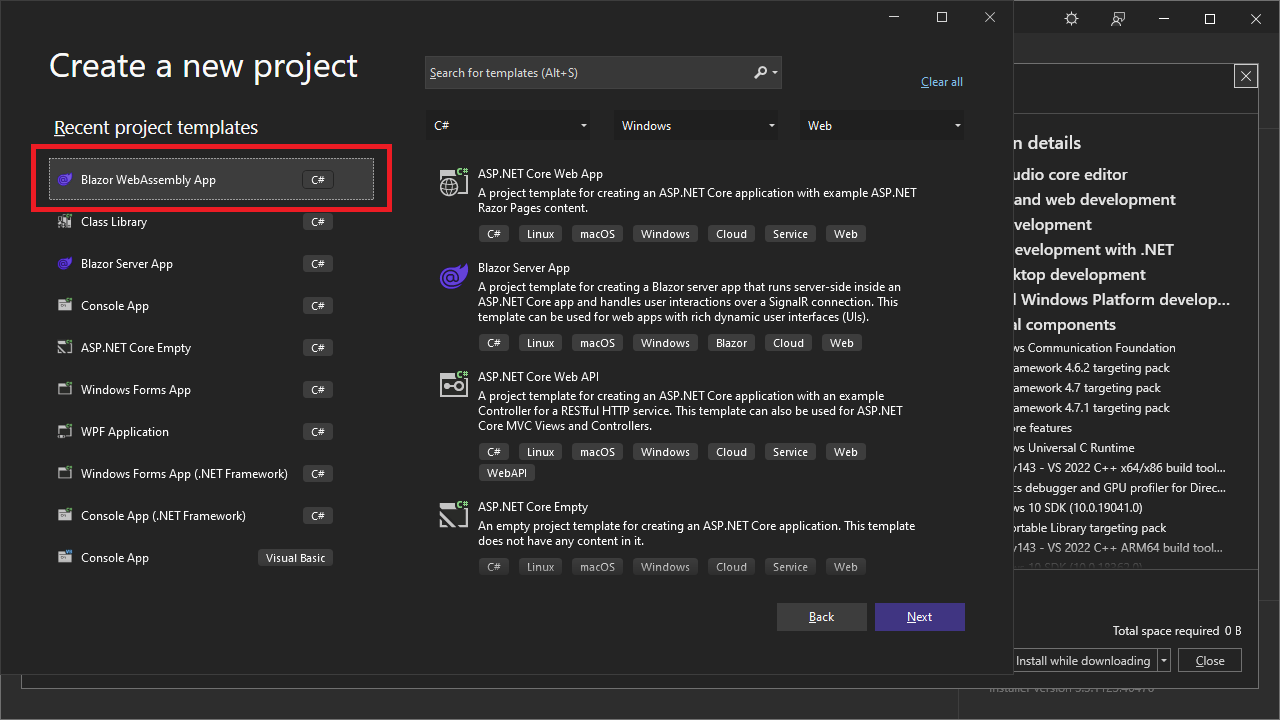

In the following demo we will create a Stand-Alone Blazor WebAssembly application.

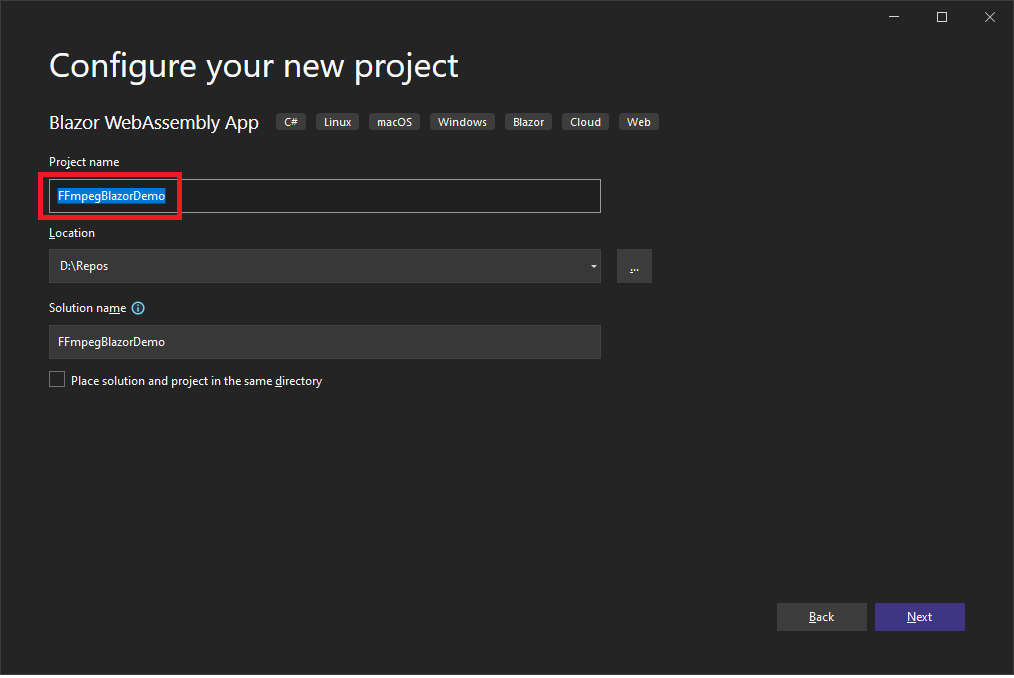

Name it FFmpegBlazorDemo

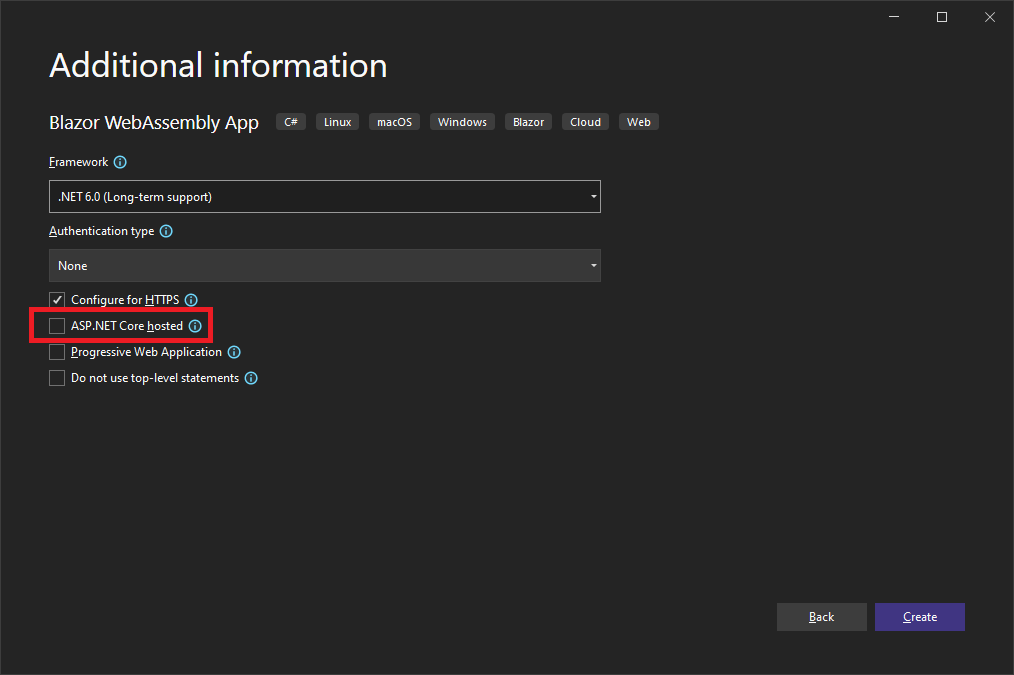

To create a stand-alone WebAssembly app, make sure you do NOT select ASP.NET Core hosted on the next screen.

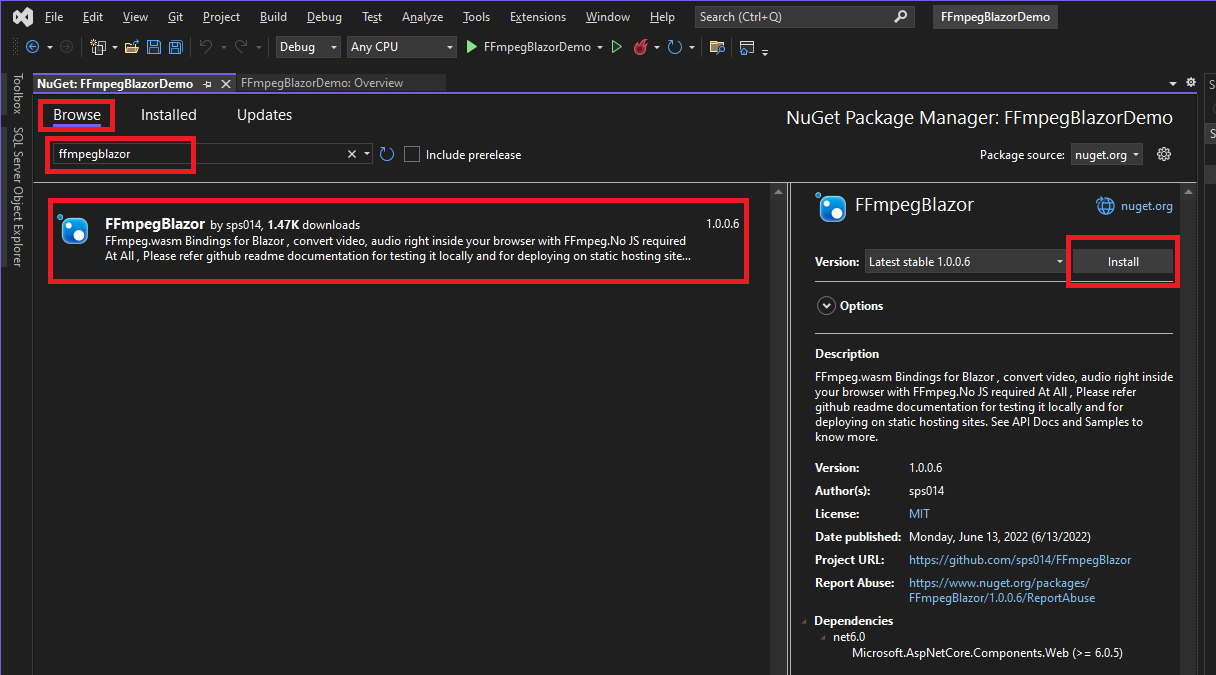

Add a NuGet reference to FFmpegBlazor library.
📘 You can also run
dotnet add package FFmpegBlazorfrom the NuGet Package Explorer or theCommand Prompt.
From the FFmpegBlazor NuGet docs:
"FFmpegBlazor provides ability to utilize ffmpeg.wasm from Blazor Wasm C#. ffmpeg.wasm is a pure Webassembly / Javascript port of FFmpeg. It enables video & audio record, convert and stream right inside browsers. FFmpegBlazor integrates nicely with Blazor InputFile Component. Supports Lazy loading of ffmpeg binary. It is self hosted version one time download of core ffmpeg wasm lib will be 25Mb."

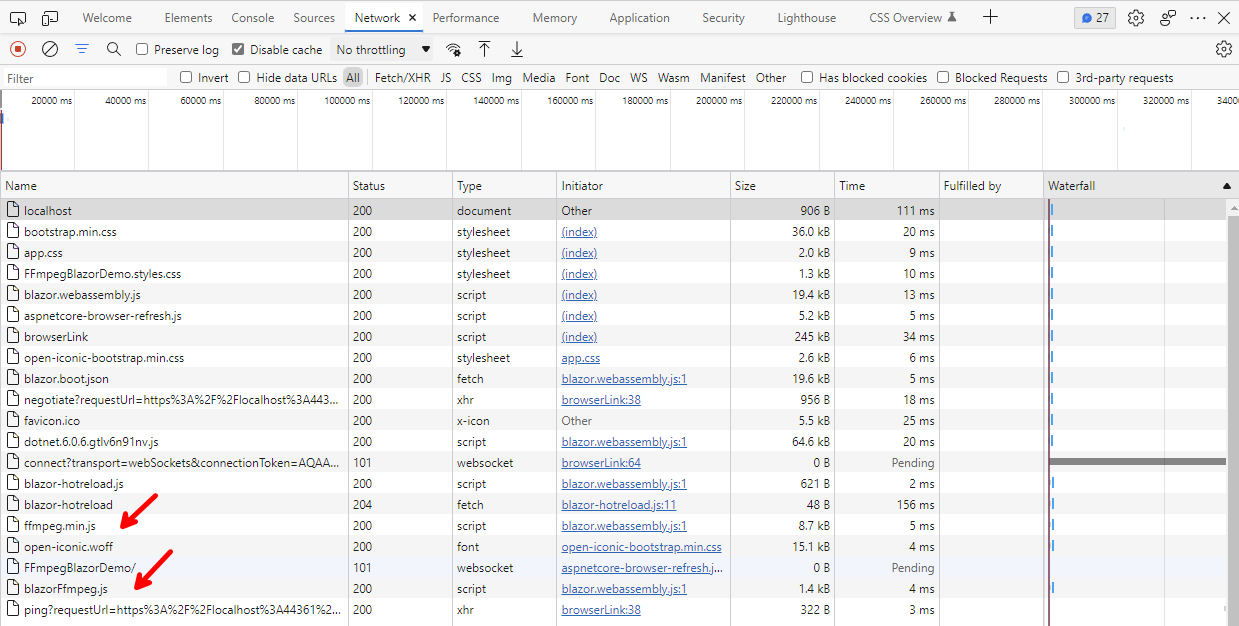

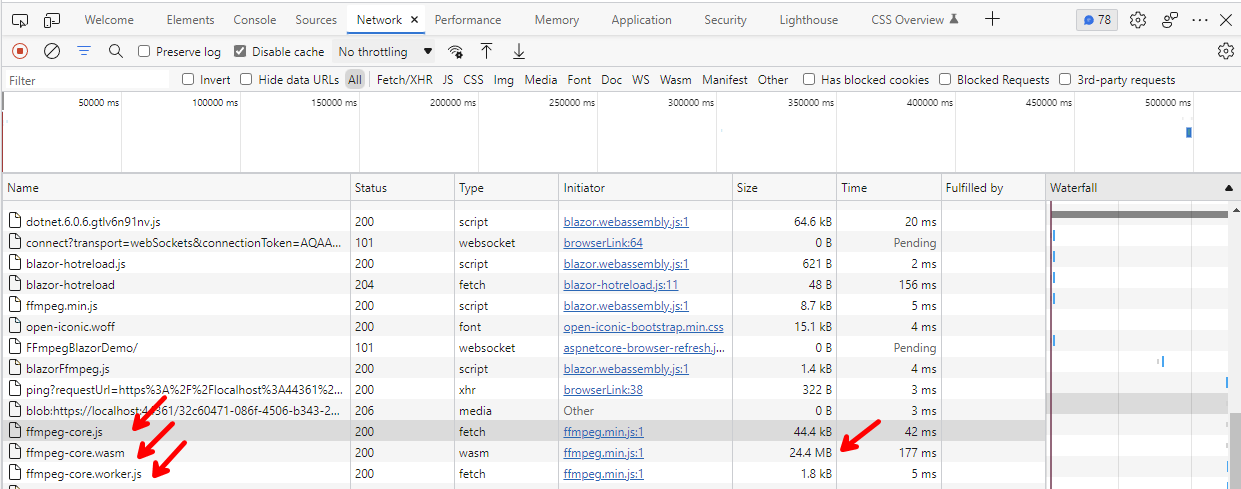

On first load, we are only going to see a couple of tiny JavaScript files being downloaded:
Then, when we actually use the library, the 25 MB core FFmpeg WASM library will be downloaded, on demand.
As you can see, the 25 MB just took 177 ms to download on my machine.
So, let's give it a try!
First thing we have to do, after adding the package, is to implement a workaround, which it will not be needed after .NET 7, once Multi-threading support becomes available in WASM.
This is to avoid a SharedArrayBuffer not defined exception that you will get otherwise.
📘 If you see an
SharedArrayBuffer not definedexception in the console logs, you need to implement the workaround below.
The workaround is to add two headers in a web.config file (also required on the server-side for a hosted WebAssembly app)
- Cross-Origin-Embedder-Policy: require-corp
- Cross-Origin-Opener-Policy: same-origin
Add a web.config file to the root of the project, with the following content:
<?xml version="1.0" encoding="utf-8"?>
<configuration>
<system.webServer>
<httpProtocol>
<customHeaders>
<add name="Cross-Origin-Embedder-Policy" value="require-corp"/>
<add name="Cross-Origin-Opener-Policy" value="same-origin"/>
</customHeaders>
</httpProtocol>
</system.webServer>

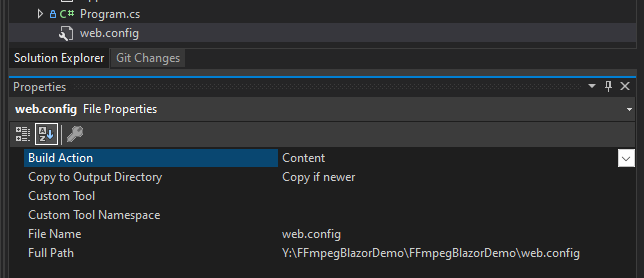

</configuration>Make sure Build Action is set to Content, and Copy to Output Directory is set to Copy if newer.
Finally, you will have to run the application in IIS Express, otherwise you will still get the SharedArrayBuffer not defined exception, so let's change that so we do not forget later.
From:
To:
Now we are ready to give it a try!
The first demo we are going to do, is to replicate the sample code in the NuGet package docs, with some enhancements. We are going to extract the audio from an MP4 video, and create an MP3 audio file.
The sample demo in the NuGet package docs logs data to the browser's console logs, let's create a Logger component, so we can see the logs right on the page, as well as as progress indicator.
Add a Logger.razor razor component to the Shared folder, with the following code:
<div>
<h3>Logs @Progress</h3>
<textarea rows="@Rows" readonly
style="font-family:Lucida Sans Typewriter; font-size:12px;width:100%;">
@LogMessages
</textarea>
</div>
@code {
[Parameter]
public int Rows { get; set; } = 10;
[Parameter]
public string Progress { get; set; } = string.Empty;
[Parameter]
public string LogMessages { get; set; } = string.Empty;
}As you can see, we have added three parameters Rows to indicate how many rows for the logging messages we can display, Progress to indicate completion progress when processing a file, and LogMessages to display logging entries.
Now, go to the Pages/index.razor page and replace the code with this code:
@page "/"
@using FFmpegBlazor
@inject IJSRuntime Runtime
@implements IDisposable
<PageTitle>Convert MP4 to MP3</PageTitle>
<h1>Convert MP4 to MP3</h1>
Extract audio from an MP4 video and create an MP3 audio file.
<br />
<br />
<div>
<label for="videoFile">Video file:</label>
<InputFile id="videoFile" OnChange="LoadVideoFile" />
</div>
<br />
<video width="300" autoplay controls src="@videoInputUrl" />
<br />
<br />
<input type="checkbox" @bind-value="@download" /> Download Output File
<br />
<br />
<button class="btn btn-primary" @onclick="Process">Convert MP4 to MP3</button>
<br />
<br />
<audio controls src="@audioOutputUrl" />
<br />
<Logger LogMessages="@logMessages" Progress="@progressMessage" Rows="10"/>
@code
{
FFMPEG? ffMpeg;
byte[]? videoBuffer;
string? videoInputUrl = string.Empty;
string audioOutputUrl = string.Empty;
string logMessages = string.Empty;
string progressMessage = string.Empty;
bool download = false;
const string inputFile = "input.mp4";
const string outputFile = "output.mp3";
protected override async Task OnInitializedAsync()
{
// Wire-up events
if (FFmpegFactory.Runtime == null)
{
FFmpegFactory.Logger += LogToConsole;
FFmpegFactory.Progress += ProgressChange;
}
// Initialize Library
await FFmpegFactory.Init(Runtime);
}
private async void LoadVideoFile(InputFileChangeEventArgs v)
{
// Clear logs and progress
logMessages = string.Empty;
progressMessage = string.Empty;
// Get first file from input selection
var file = v.GetMultipleFiles()[0];
//Maximum size for file that can be read
int maxSize = 100000000;
// Read all bytes
using var stream = file.OpenReadStream(maxSize);
videoBuffer = new byte[file.Size];
// Read all bytes
await stream.ReadAsync(videoBuffer);
// Create a video link from the buffer, so that video can be played
videoInputUrl = FFmpegFactory.CreateURLFromBuffer(videoBuffer,
inputFile, file.ContentType);
// Re render DOM
StateHasChanged();
}
private async void Process()
{
// Create an instance of FFmpeg
ffMpeg = FFmpegFactory.CreateFFmpeg(new FFmpegConfig() { Log = true });
// Download all dependencies from the CDN
await ffMpeg.Load();
if (!ffMpeg.IsLoaded) return;
// Write buffer to in-memory files (special emscripten files,
// FFmpegwasm only interacts with this file)
ffMpeg.WriteFile(inputFile, videoBuffer);
// Pass CLI argument here equivalent to ffmpeg -i inputFile.mp4 outputFile.mp3
await ffMpeg.Run("-i", inputFile, outputFile);
// Delete in-memory file
ffMpeg.UnlinkFile(inputFile);
}
private async void ProgressChange(Progress message)
{
// Display progress % (0-1)
// Cap the progress as it doesn't always report (0-1)
var progressRatio =
message.Ratio <= 0 ? 0 : message.Ratio >= 100 ? 1 : message.Ratio;
progressMessage = $"Progress: {progressRatio.ToString("P2")}";
Console.WriteLine(progressMessage);
LogToUi(progressMessage);
// If FFmpeg processing is complete, generate a media URL so that it can be
// played and/or downloaded
if (message.Ratio == 1)
{
progressMessage = $"Progress: 100%";
// Get a bufferPointer from C WASM to C#
var res = await ffMpeg!.ReadFile(outputFile);
// Generate a URL from the file bufferPointer
audioOutputUrl = FFmpegFactory.CreateURLFromBuffer(res, outputFile,
"audio/mp3");
// Download the file if required
if (download)
{
FFmpegFactory.DownloadBufferAsFile(res, outputFile,
"audio/mp3");
}
// Rerender DOM
StateHasChanged();
}
}
private void LogToConsole(Logs message)
{
var logMessage = $"{message.Type} {message.Message}";
Console.WriteLine(logMessage);
LogToUi(logMessage);
}
private void LogToUi(string message)
{
logMessages += $"{message}\r\n";
// Re-render DOM
StateHasChanged();
}
public void Dispose()
{
FFmpegFactory.Logger -= LogToConsole;
FFmpegFactory.Progress -= ProgressChange;
}
}Most of the code has comments, but some of the most important pieces are:
- Injecting
IJSRuntimewith@inject IJSRuntime Runtimeto be able to callFFmpegBlazorJavaScript functions. - Initialization of
FFmpegFactorywithFFmpegFactory.Init(Runtime). - Wiring-up of
LoggerandProgressevents. - Creating an instance of
FFmpegwithffMpeg = FFmpegFactory.CreateFFmpeg(new FFmpegConfig() { Log = true });. - Executing
FFmpegfunctions likeWriteFileandRun.
📘 With
ffMpeg.Runwe can potentially run anyFFmpegarguments available, which makesFFmpegBlazorvery powerful. Refer to the officialFFmpegdocumentation here for more information.
Let's get rid of Pages/FetchData.razor, Pages/Counter.razor, and Shared/SurveyPrompt.razor, as we are not going to need them anymore.
Update Pages/NavMenu.razor with this code:
<div class="top-row ps-3 navbar navbar-dark">
<div class="container-fluid">
<a class="navbar-brand" href="">FFmpegBlazor Demo</a>
<button title="Navigation menu" class="navbar-toggler" @onclick="ToggleNavMenu">
<span class="navbar-toggler-icon"></span>
</button>
</div>
</div>
<div class="@NavMenuCssClass" @onclick="ToggleNavMenu">
<nav class="flex-column">
<div class="nav-item px-3">
<NavLink class="nav-link" href="" Match="NavLinkMatch.All">
<span class="oi oi-musical-note" aria-hidden="true"></span>
Convert MP4 to MP3
</NavLink>
</div>
</nav>
</div>
@code {
private bool collapseNavMenu = true;
private string? NavMenuCssClass => collapseNavMenu ? "collapse" : null;
private void ToggleNavMenu()
{
collapseNavMenu = !collapseNavMenu;
}

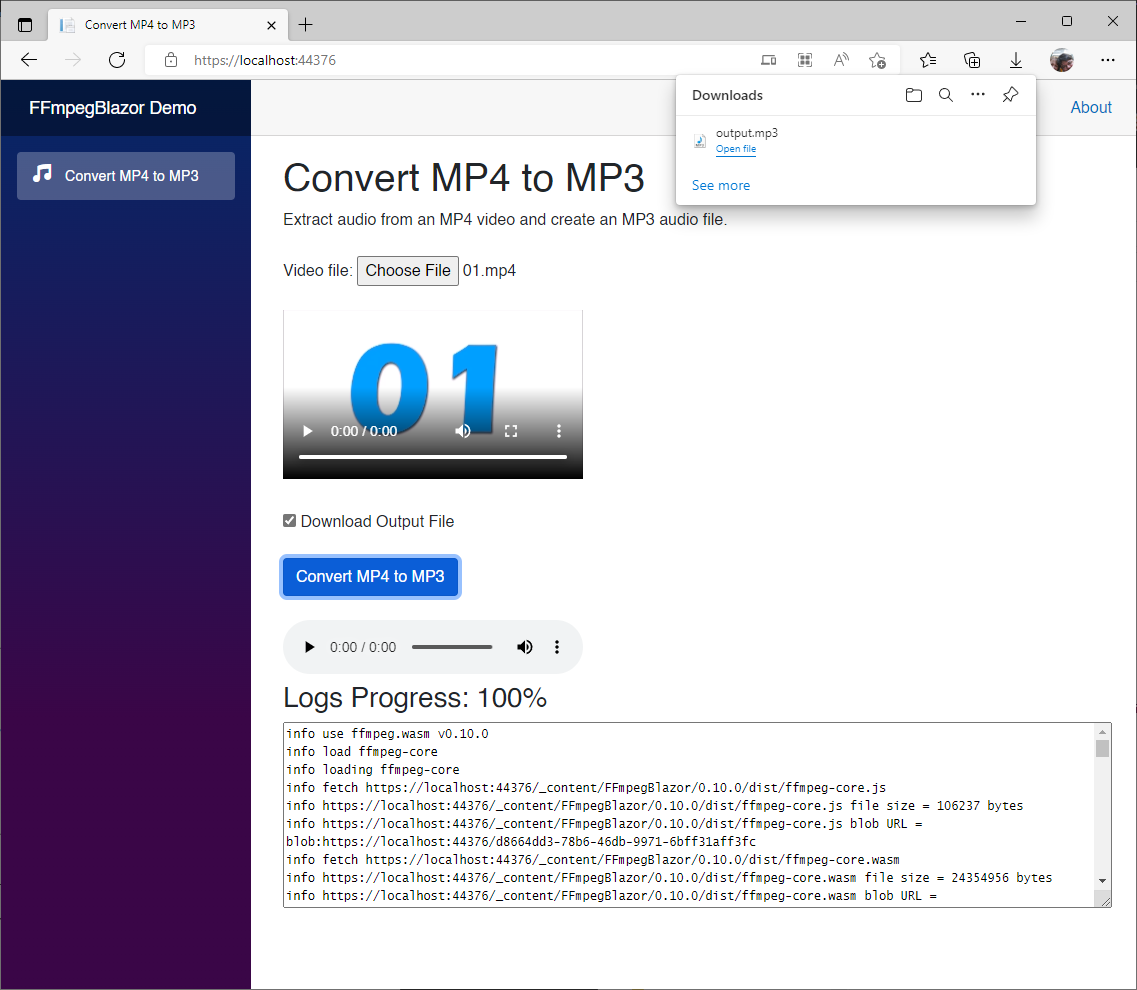

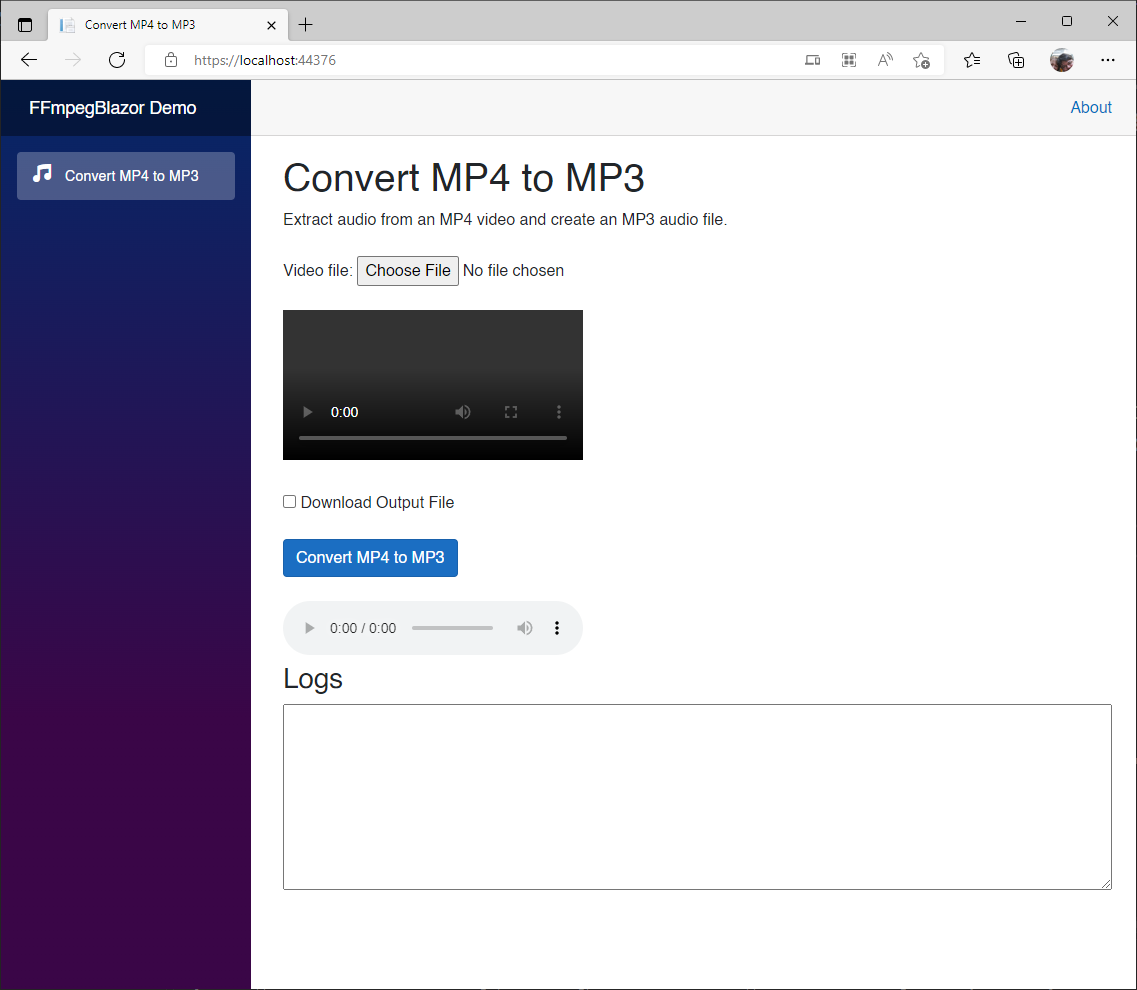

}Now let's run the app. You will be presented with this:
Click on Choose File to select an MP4 video file. The file will load, and play on the Video player. You have the option to just convert the file to MP3, or convert, and download by checking the Download Output File box, let's check the box and click the Convert MP4 to MP3 button.
After clicking the Convert MP4 to MP3 button, you will see the log messages, the progress completed, the downloaded output.mp3 file, and the Audio player ready to play the MP3 file.
Click Play on the Audio player to play the MP3 file, or click on the downloaded file in the browser to play it on your default audio player.
The audio track has been extracted from the MP4 video file. Nice!
So, what else can we do with FFmpegBlazor? How about create a video from an image file and an audio file? Let's do that now.

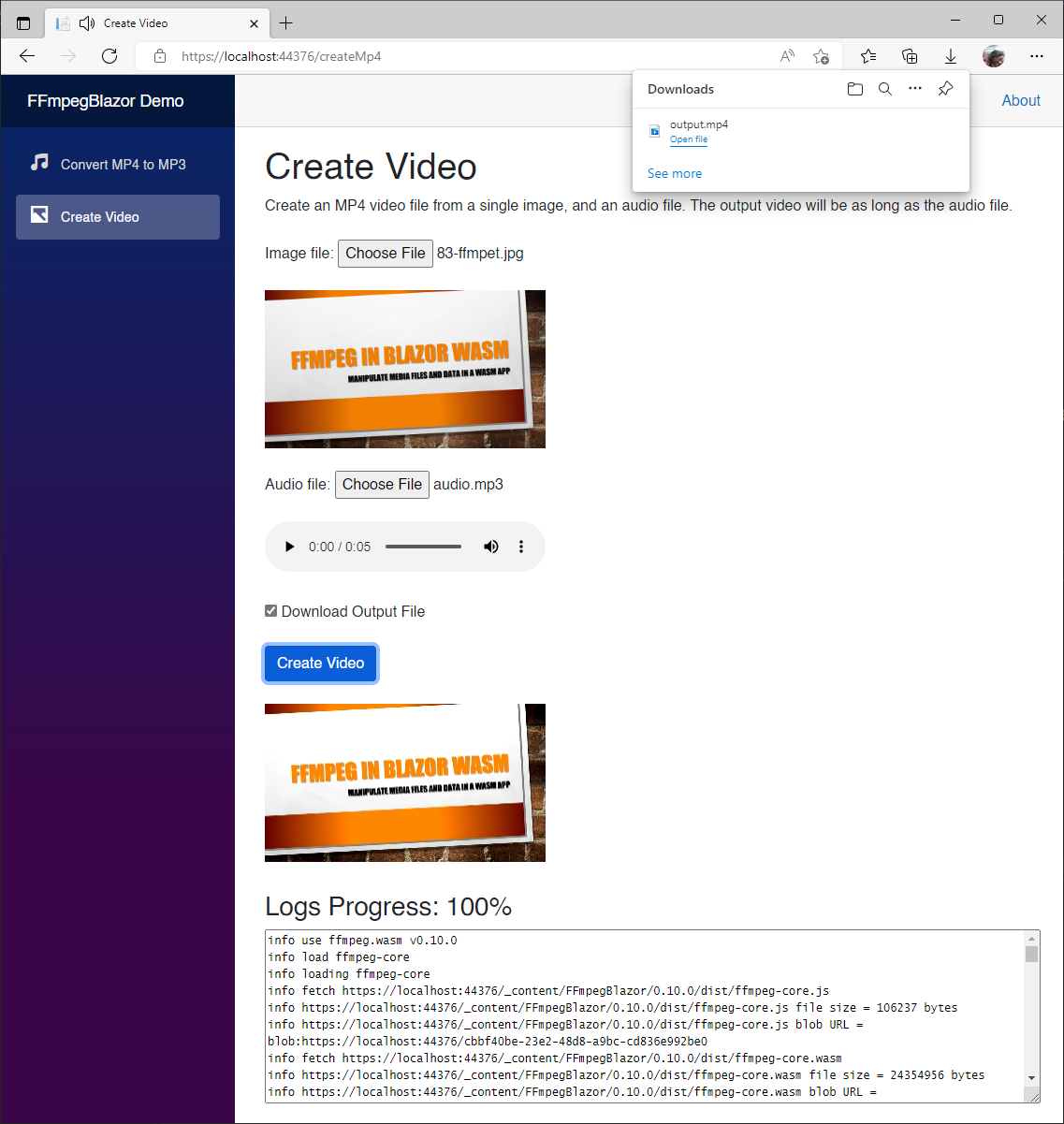

In this demo, we are going to create an MP4 video file from a single image, and an audio file. The output video will last the same time as the audio file.
Create a new CreateMp4.razor page and add the following code:
@page "/createMp4"
@using FFmpegBlazor
@inject IJSRuntime Runtime
@using Microsoft.AspNetCore.Components.Forms
@implements IDisposable
<PageTitle>Create Video</PageTitle>
<h1>Create Video</h1>
Create an MP4 video file from a single image, and an audio file.
The output video will be as long as the audio file.
<br />
<br />
<div>
<label for="imageFile">Image file:</label>
<InputFile id="imageFile" OnChange="LoadImageFile" />
</div>
<br />
<img width="300" src="@imageInputUrl" />
<br />
<br />
<div>
<label for="audioFile">Audio file:</label>
<InputFile id="audioFile" OnChange="LoadAudioFile" />
</div>
<br />
<audio controls src="@audioInputUrl" />
<br />
<br />
<input type="checkbox" @bind-value="@download" /> Download Output File
<br />
<br />
<button class="btn btn-primary" @onclick="Process">Create Video</button>
<br />
<br />
<video width="300" autoplay controls src="@videoOutputUrl" />
<br />
<br />
<Logger LogMessages="@logMessages" Progress="@progressMessage" Rows="10"/>
@code
{
FFMPEG? ffMpeg;
byte[]? audioBuffer;
byte[]? imageBuffer;
string? imageInputUrl = string.Empty;
string? audioInputUrl = string.Empty;
string videoOutputUrl = string.Empty;
string logMessages = string.Empty;
string progressMessage = string.Empty;
bool download = false;
const string inputImageFile = "input.png";
const string inputAudioFile = "input.mp3";
const string outputFile = "output.mp4";
//Max size for file that can be read
const int maxSize = 100000000;
protected override void OnInitialized()
{
// Wire-up events
if (FFmpegFactory.Runtime != null)
{
FFmpegFactory.Logger += LogToConsole;
FFmpegFactory.Progress += ProgressChange;
}
base.OnInitialized();
}
private async void LoadImageFile(InputFileChangeEventArgs i)
{
// Clear logs and progress
logMessages = string.Empty;
progressMessage = string.Empty;
// Get first file from input selection
var file = i.GetMultipleFiles()[0];
// Read all bytes
using var stream = file.OpenReadStream(maxSize);
imageBuffer = new byte[file.Size];
// Read all bytes
await stream.ReadAsync(imageBuffer);
// Create a video link from the buffer, so that video can be played
imageInputUrl = FFmpegFactory.CreateURLFromBuffer(imageBuffer,
inputImageFile, file.ContentType);
// Rerender DOM
StateHasChanged();
}
private async void LoadAudioFile(InputFileChangeEventArgs a)
{
// Get first file from input selection
var file = a.GetMultipleFiles()[0];
// Read all bytes
using var stream = file.OpenReadStream(maxSize);
audioBuffer = new byte[file.Size];
// Read all bytes
await stream.ReadAsync(audioBuffer);
// Create a video link from the buffer, so that video can be played
audioInputUrl = FFmpegFactory.CreateURLFromBuffer(audioBuffer,
inputAudioFile, file.ContentType);
// Re render DOM
StateHasChanged();
}
private async void Process()
{
// Create an instance of FFmpeg
ffMpeg = FFmpegFactory.CreateFFmpeg(new FFmpegConfig() { Log = true });
// Download all dependencies from the CDN
await ffMpeg.Load();
if (!ffMpeg.IsLoaded) return;
// Write buffer to in-memory files (special emscripten files,
// FFmpeg only interacts with this file)
ffMpeg.WriteFile(inputImageFile, imageBuffer);
ffMpeg.WriteFile(inputAudioFile, audioBuffer);
// Pass CLI argument here equivalent to ffmpeg -i image.png -i sound1.mp3 -r 30 -s 1280x720 -preset ultrafast -crf 25 movie.mp4
await ffMpeg.Run("-i", inputImageFile, "-i", inputAudioFile, "-r", "30", "-s", "1280x720", "-preset", "ultrafast", "-crf", "25", outputFile);
// Delete in-memory file
ffMpeg.UnlinkFile(inputImageFile);
ffMpeg.UnlinkFile(inputAudioFile);
}
private async void ProgressChange(Progress message)
{
// Display progress % (0-1)
// Cap progress as it doesn't always reports (0-1)
var progressRatio =
message.Ratio <= 0 ? 0 : message.Ratio >= 100 ? 1 : message.Ratio;
progressMessage = $"Progress: {progressRatio.ToString("P2")}";
Console.WriteLine(progressMessage);
LogToUi(progressMessage);
// If FFmpeg processing is complete, generate a media URL
// so that it can be played and/or downloaded)
if (message.Ratio == 1)
{
progressMessage = $"Progress: 100%";
// Get a bufferPointer from C WASM to C#
var res = await ffMpeg!.ReadFile(outputFile);
// Generate a URL from the file bufferPointer
videoOutputUrl = FFmpegFactory.CreateURLFromBuffer(res,
outputFile, "video/mp4");
// Download the file
if (download)
{
FFmpegFactory.DownloadBufferAsFile(res,
outputFile, "video/mp4");
}
// Re render DOM
StateHasChanged();
}
}
private void LogToConsole(Logs message)
{
var logMessage = $"{message.Type} {message.Message}";
Console.WriteLine(logMessage);
LogToUi(logMessage);
}
private void LogToUi(string message)
{
logMessages += $"{message}\r\n";
// Re render DOM
StateHasChanged();
}
public void Dispose()
{
FFmpegFactory.Logger -= LogToConsole;
FFmpegFactory.Progress -= ProgressChange;
}
}Add the following NavLink code to the Pages/NavMenu.razor page, below the Convert MP4 to MP3 section:
<div class="nav-item px-3">
<NavLink class="nav-link" href="createMp4">
<span class="oi oi-image" aria-hidden="true"></span> Create Video
</NavLink>
</div>Run the app, and go to Create Video. Provide an image, an audio file, check the Download Output File, and press the Create Video button.
You just created a video based on an image, and an audio file.
Click Play on the Video player to play the MP4 file, or click on the downloaded file in the browser to play it on your default video player.
The video has been created from a single image and an audio file.
Now, let's add a watermark to an existing video.
Add a new Watermark.razor file and copy the following code:
@page "/watermark"
@using FFmpegBlazor
@inject IJSRuntime Runtime
@implements IDisposable
<PageTitle>Video Watermark</PageTitle>
<h1>Video Watermark</h1>
Add a watermark to a video.
<br />
<br />
<div>
<label for="imageFile">Image watermark file:</label>
<InputFile id="imageFile" OnChange="LoadImageFile" />
</div>
<br />
<img width="300" src="@imageInputUrl" />
<br />
<br />
<div>
<label for="videoFile">Video file:</label>
<InputFile id="videoFile" OnChange="LoadVideoFile" />
</div>
<br />
<video width="300" autoplay controls src="@videoInputUrl" />
<br />
<br />
<input type="checkbox" @bind-value="@download" /> Download Output File
<br />
<br />
<button class="btn btn-primary" @onclick="Process">Create Video Watermark</button>
<br />
<br />
<video width="300" hautoplay controls src="@videoOutputUrl" />
<br />
<br />
<Logger LogMessages="@logMessages" Progress="@progressMessage" Rows="10"/>
@code
{
FFMPEG? ffMpeg;
byte[]? imageBuffer;
byte[]? videoBuffer;
string? imageInputUrl = string.Empty;
string? videoInputUrl = string.Empty;
string videoOutputUrl = string.Empty;
string logMessages = string.Empty;
string progressMessage = string.Empty;
bool download = false;
const string inputImageFile = "input.png";
const string inputVideoFile = "input.mp4";
const string outputFile = "output.mp4";
const int maxSize = 100000000;
protected override void OnInitialized()
{
// Wire-up events
if (FFmpegFactory.Runtime != null)
{
FFmpegFactory.Logger += LogToConsole;
FFmpegFactory.Progress += ProgressChange;
}
base.OnInitialized();
}
private async void LoadImageFile(InputFileChangeEventArgs i)
{
// Clear logs and progress
logMessages = string.Empty;
progressMessage = string.Empty;
// Get first file from input selection
var file = i.GetMultipleFiles()[0];
// Read all bytes
using var stream = file.OpenReadStream(maxSize);
imageBuffer = new byte[file.Size];
// Read all bytes
await stream.ReadAsync(imageBuffer);
// Create a video link from the buffer, so that video can be played
imageInputUrl = FFmpegFactory.CreateURLFromBuffer(imageBuffer,
inputImageFile, file.ContentType);
// Re render DOM
StateHasChanged();
}
private async void LoadVideoFile(InputFileChangeEventArgs v)
{
// Get first file from input selection
var file = v.GetMultipleFiles()[0];
// Read all bytes
using var stream = file.OpenReadStream(maxSize);
videoBuffer = new byte[file.Size];
// Read all bytes
await stream.ReadAsync(videoBuffer);
// Create a video link from the buffer,
// so that video can be played and/or downloaded
videoInputUrl = FFmpegFactory.CreateURLFromBuffer(videoBuffer,
inputVideoFile, file.ContentType);
// Rerrender DOM
StateHasChanged();
}
private async void Process()
{
// Create an instance of FFmpeg
ffMpeg = FFmpegFactory.CreateFFmpeg(new FFmpegConfig() { Log = true });
// Download all dependencies from the CDN
await ffMpeg.Load();
if (!ffMpeg.IsLoaded) return;
// Write buffer to in-memory files (special emscripten files,
// FFmpeg only interacts with this file)
ffMpeg.WriteFile(inputImageFile, imageBuffer);
ffMpeg.WriteFile(inputVideoFile, videoBuffer);
// Pass CLI argument here equivalent to ffmpeg -i input.mp4
// -i logo.png -filter_complex
// "overlay=(main_w-overlay_w)/2:(main_h-overlay_h)/2" -codec:a copy output.mp4
await ffMpeg.Run("-i", inputVideoFile, "-i",
inputImageFile, "-filter_complex", "overlay=0:0", "-codec:a", "copy",
outputFile);
// Delete in-memory file
ffMpeg.UnlinkFile(inputImageFile);
ffMpeg.UnlinkFile(inputVideoFile);
}
private async void ProgressChange(Progress message)
{
// Display progress % (0-1)
// Cap progress as it doesn't always report (0-1)
var progressRatio =
message.Ratio <= 0 ? 0 : message.Ratio >= 100 ? 1 : message.Ratio;
progressMessage = $"Progress: {progressRatio.ToString("P2")}";
Console.WriteLine(progressMessage);
LogToUi(progressMessage);
// If FFmpeg processing is complete, generate a media URL
// so that it can be played and/or downloaded)
if (message.Ratio == 1)
{
progressMessage = $"Progress: 100%";
// Get a bufferPointer from C WASM to C#
var res = await ffMpeg!.ReadFile(outputFile);
// Generate a URL from the file bufferPointer
videoOutputUrl = FFmpegFactory.CreateURLFromBuffer(res,
outputFile, "video/mp4");
// Download the file
if (download)
{
FFmpegFactory.DownloadBufferAsFile(res,
outputFile, "video/mp4");
}
// Re render DOM
StateHasChanged();
}
}
private void LogToConsole(Logs message)
{
var logMessage = $"{message.Type} {message.Message}";
Console.WriteLine(logMessage);
LogToUi(logMessage);
}
private void LogToUi(string message)
{
logMessages += $"{message}\r\n";
// Re render DOM
StateHasChanged();
}
public void Dispose()
{
FFmpegFactory.Logger -= LogToConsole;
FFmpegFactory.Progress -= ProgressChange;
}
}Add the following NavLink code to the Pages/NavMenu.razor page, below the Create Video section:
<div class="nav-item px-3">
<NavLink class="nav-link" href="watermark">
<span class="oi oi-image" aria-hidden="true"></span> Video Watermark
</NavLink>
</div>Run the app, and go to Video Watermark. Provide an image, a video file, check the Download Output File and press the Create Video Watermark button.
You just added a watermark to a video. Just getting better and better huh?
Finally, how about concatenating two videos together? Let's do that now.
In this demo, we are going to take any two random videos, and concatenate them together, one after the other one.
Let's create Pages/Concatenate.razor, and add the following code:
@page "/concatenate"
@using FFmpegBlazor
@implements IDisposable
<PageTitle>Concatenate Videos</PageTitle>
<h1>Concatenate Videos</h1>
Concatenate two videos into one video.
<br />
<br />
<div>
<label for="videoFile1">Video file 1:</label>
<InputFile id="videoFile1" OnChange="LoadVideoFile1" />
</div>
<br />
<video width="300" autoplay controls src="@videoInputUrl1" />
<div>
<label for="videoFile2">Video file 2:</label>
<InputFile id="videoFile2" OnChange="LoadVideoFile2" />
</div>
<br />
<video width="300" autoplay controls src="@videoInputUrl2" />
<br />
<br />
<input type="checkbox" @bind-value="@download" /> Download Output File
<br />
<br />
<button class="btn btn-primary" @onclick="Process">Concatenate Videos</button>
<br />
<br />
<video width="300" autoplay controls src="@videoOutputUrl" />
<br />
<br />
<Logger LogMessages="@logMessages" Progress="@progressMessage" Rows="10" />
@code
{
FFMPEG? ffMpeg;
byte[]? videoBuffer1;
byte[]? videoBuffer2;
string videoInputUrl1 = string.Empty;
string videoInputUrl2 = string.Empty;
string videoOutputUrl = string.Empty;
string logMessages = string.Empty;
string progressMessage = string.Empty;
bool download = false;
const string inputFile1 = "videoInput1.mp4";
const string inputFile2 = "videoInput2.mp4";
const string outputFile = "output.mp4";
const int maxSize = 100000000;
protected override void OnInitialized()
{
// Wire-up events
if (FFmpegFactory.Runtime != null)
{
FFmpegFactory.Logger += LogToConsole;
FFmpegFactory.Progress += ProgressChange;
}
base.OnInitialized();
}
private async void LoadVideoFile1(InputFileChangeEventArgs v)
{
// Clear logs and progress
logMessages = string.Empty;
progressMessage = string.Empty;
// Unlink files if previously called
if (ffMpeg != null)
{
if (videoInputUrl1 != string.Empty)
{
videoInputUrl1 = "";
ffMpeg.UnlinkFile(inputFile1);
}
if (inputFile2 != string.Empty)
{
videoInputUrl2 = "";
ffMpeg.UnlinkFile(inputFile2);
}
}
// Get first file from input selection
var file = v.GetMultipleFiles()[0];
// Read all bytes
using var stream = file.OpenReadStream(maxSize);
videoBuffer1 = new byte[file.Size];
// Read all bytes
await stream.ReadAsync(videoBuffer1);
// Create a video link from the buffer,
// so that video can be played and/or downloaded
videoInputUrl1 = FFmpegFactory.CreateURLFromBuffer(videoBuffer1,
inputFile1, file.ContentType);
// Re render DOM
StateHasChanged();
}
private async void LoadVideoFile2(InputFileChangeEventArgs v)
{
// Get first file from input selection
var file = v.GetMultipleFiles()[0];
// Read all bytes
using var stream = file.OpenReadStream(maxSize);
videoBuffer2 = new byte[file.Size];
// Read all bytes
await stream.ReadAsync(videoBuffer2);
// Create a video link from the buffer,
// so that video can be played and/or downloaded
videoInputUrl2 = FFmpegFactory.CreateURLFromBuffer(videoBuffer2,
inputFile2, file.ContentType);
// Re render DOM
StateHasChanged();
}
private async void Process()
{
// Create an instance of FFmpeg
ffMpeg = FFmpegFactory.CreateFFmpeg(new FFmpegConfig() { Log = true });
// Download all dependencies from the CDN
await ffMpeg.Load();
if (!ffMpeg.IsLoaded) return;
// Write buffer to in-memory files (special emscripten files,
// FFmpeg only interacts with this file)
ffMpeg.WriteFile(inputFile1, videoBuffer1);
ffMpeg.WriteFile(inputFile2, videoBuffer2);
// Pass CLI argument here equivalent to ffmpeg -i inputFile1.mp4
// -i inputFile2.mp4 outputFile.mp3 -filter_complex concat=n=2:v=1:a=0
// -vn -y output.mp4
await ffMpeg.Run("-i", inputFile1, "-i",
inputFile2, "-filter_complex", "concat=n=2:v=1:a=0",
"-vn", "-y", outputFile);
// Delete in-memory files
ffMpeg.UnlinkFile(inputFile1);
ffMpeg.UnlinkFile(inputFile2);
}
private async void ProgressChange(Progress message)
{
// Display progress % (0-1)
// Cap progress as it doesn't always report (0-1)
var progressRatio =
message.Ratio <= 0 ? 0 : message.Ratio >= 100 ? 1 : message.Ratio;
progressMessage = $"Progress: {progressRatio.ToString("P2")}";
Console.WriteLine(progressMessage);
LogToUi(progressMessage);
// If FFmpeg processing is complete, generate a media URL
// so that it can be played and/or downloaded)
if (message.Ratio == 1)
{
progressMessage = $"Progress: 100%";
// Get a bufferPointer from C WASM to C#
var res = await ffMpeg!.ReadFile(outputFile);
// Generate a URL from the file bufferPointer
videoOutputUrl = FFmpegFactory.CreateURLFromBuffer(res,
outputFile, "video/mp4");
// Download the file
if (download)
{
FFmpegFactory.DownloadBufferAsFile(res,
outputFile, "video/mp4");
}
// Re render DOM
StateHasChanged();
}
}
private void LogToConsole(Logs message)
{
var logMessage = $"{message.Type} {message.Message}";
Console.WriteLine(logMessage);
LogToUi(logMessage);
}
private void LogToUi(string message)
{
logMessages += $"{message}\r\n";
// Re render DOM
StateHasChanged();
}
public void Dispose()
{
FFmpegFactory.Logger -= LogToConsole;
FFmpegFactory.Progress -= ProgressChange;
}
}Add a new NavLink to the Pages/NavMenu.razor file, below the Video Watermark section.
<div class="nav-item px-3">
<NavLink class="nav-link" href="concatenate">
<span class="oi oi-video" aria-hidden="true"></span> Concatenate Videos
</NavLink>
</div>Now run the application.
After selecting two videos, checking the Download Output File box, and clicking the Concatenate Videos button, you will be able to see the concatenated video on the third video component, as well in the downloads.
You can press play on the third video component, or click on the downloaded file by the browser to see the end results.
In this episode, we saw how to edit videos, and audio using FFmpegBlazor in a Blazor WebAssembly application.
We were able to extract the audio track of an MP4 video and create an MP3 audio file, create an MP4 video from a single image and an audio track, add a watermark to a video, and concatenate two videos into one.
Most importantly, we learned how easily we can leverage FFmpegBlazor to basically use any functionally provided by FFmpeg in a Blazor WebAssembly application. Now, that's powerful!
For more information about FFmpeg, and FFmpegBlazor, check the links in the resources section below.
The complete code for this demo can be found in the link below.
| Resource Title | Url |
|---|---|
| BlazorTrain | https://blazortrain.com |
| The .NET Show | https://thedotnetshow.com |
| Download .NET | https://dotnet.microsoft.com/en-us/download |
| FFmpegBlazor | https://github.com/sps014/FFmpegBlazor |
| FFmpegBlazor NuGet Package | https://www.nuget.org/packages/FFmpegBlazor/ |
| FFmpeg Documentation | https://ffmpeg.org/ffmpeg.html |
