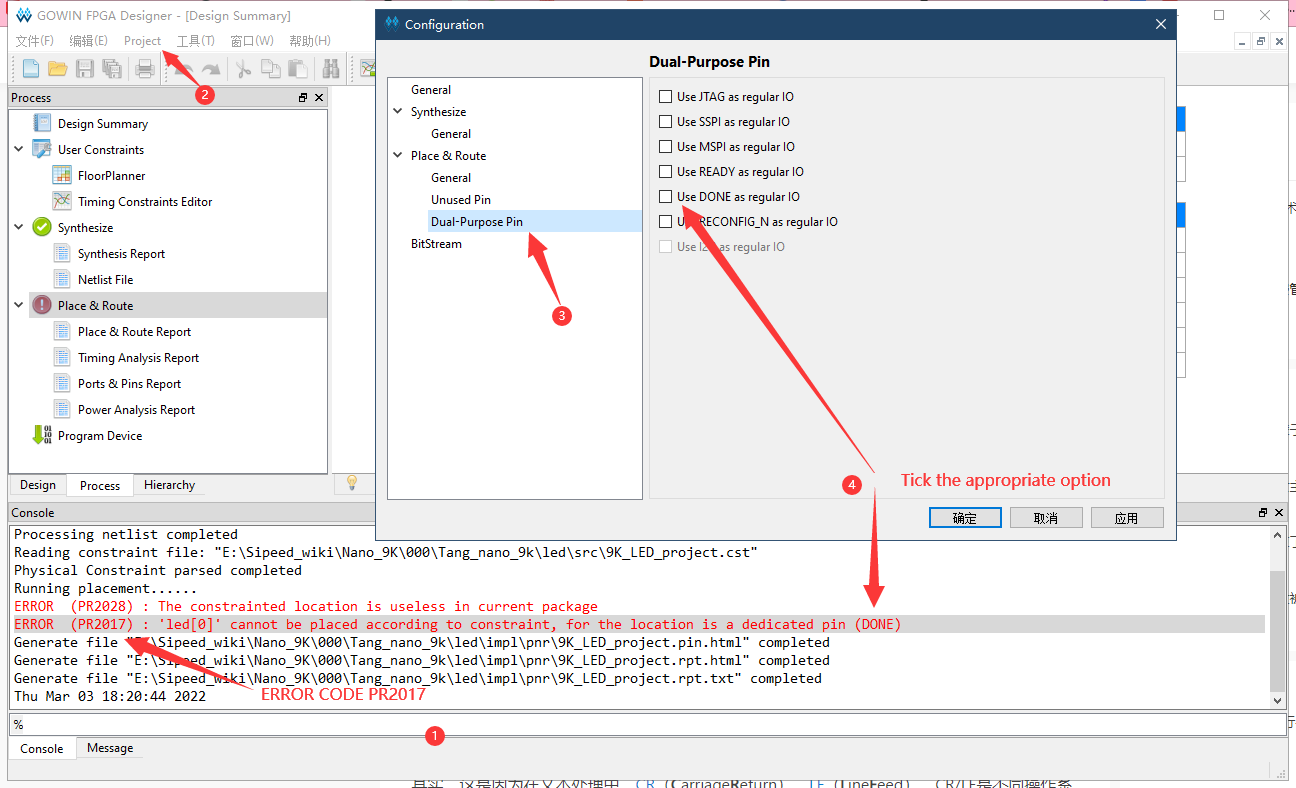

When you meet error code PR2017. Do what is shown below.(Just enable corresponding IO as regular IO)
Demo project for drive LED and on board led. The related LED tutorial can be found at https://wiki.sipeed.com/hardware/en/tang/Tang-Nano-Doc/examples.html

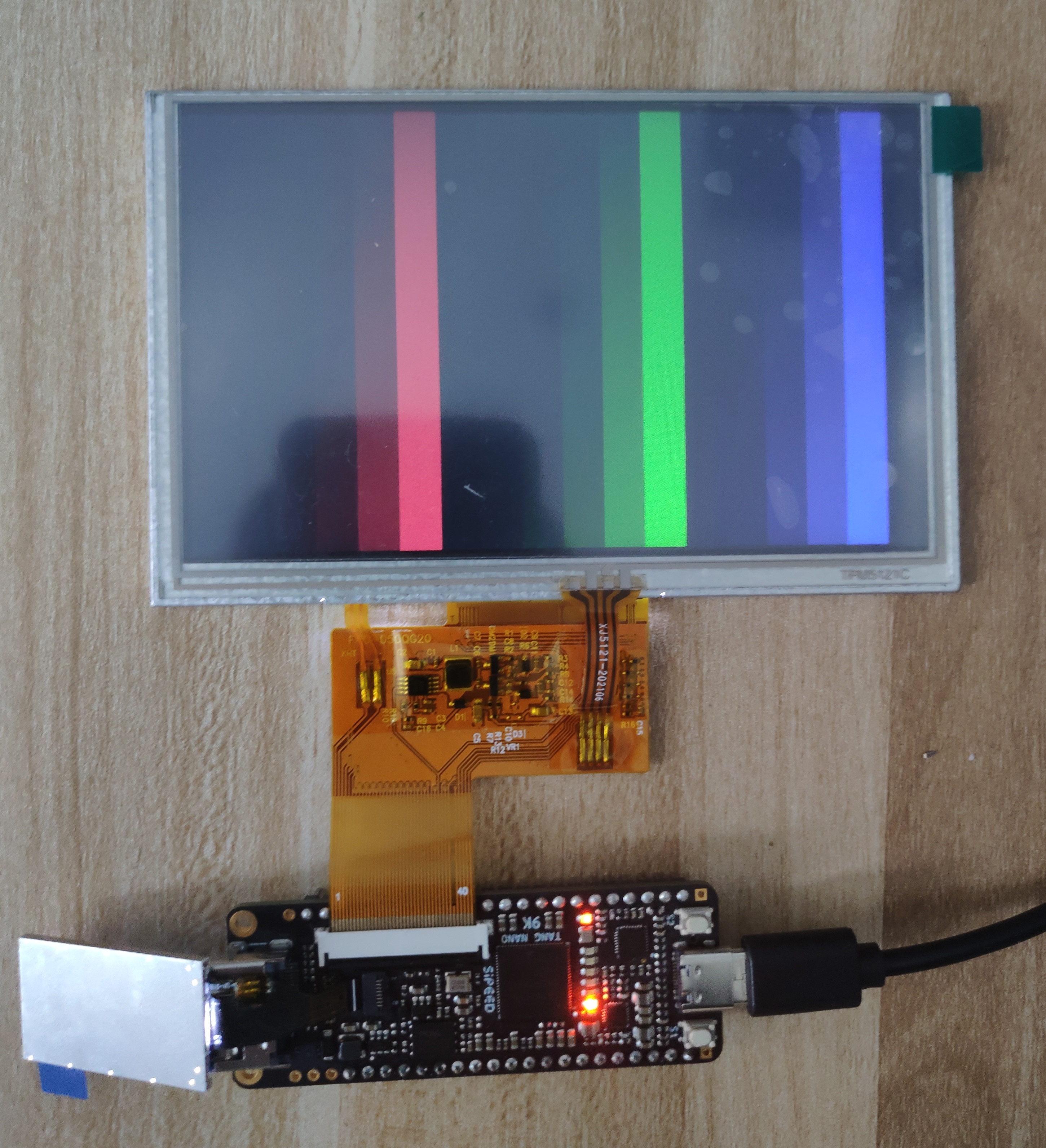

Demo project for drive RGB LCD and on board led.

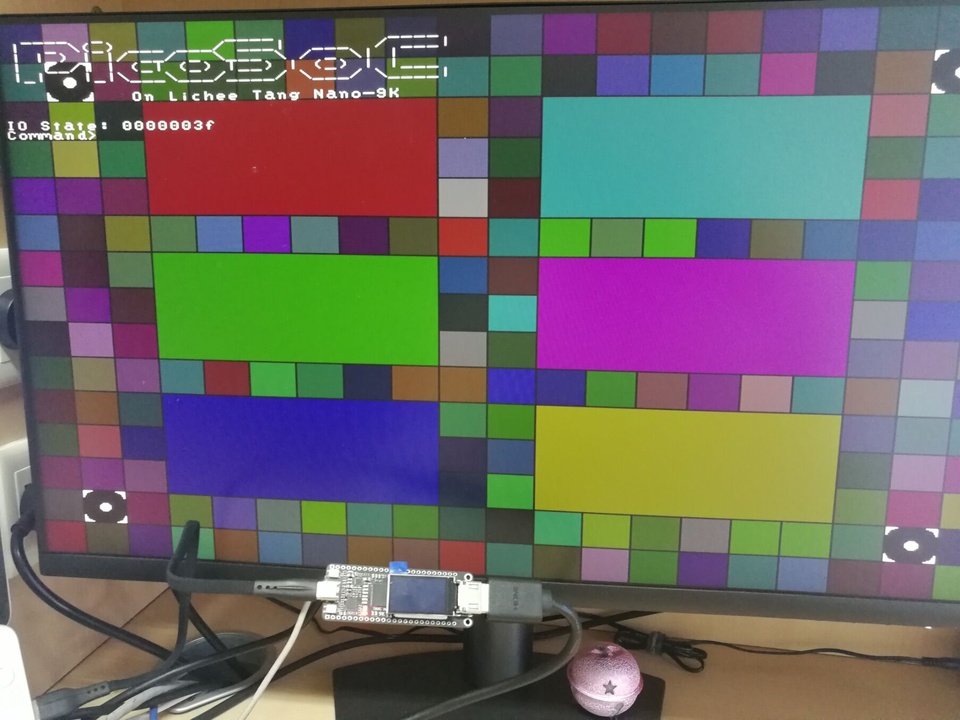

A PicoRV32-based SoC example with HDMI terminal from SimpleVout, SPI Flash XIP from picosoc, and custom UART ISP for flash programming. UART baudrate default at 115200.
See README.md for detailed description.
- Visit https://wiki.sipeed.com/hardware/en/tang/Tang-Nano-9K/examples/picorv/picorv.html to quick run this example
- 中文访问 https://wiki.sipeed.com/hardware/zh/tang/Tang-Nano-9K/examples/picorv/picorv.html 来快速使用
This is an example to drive the 1.14 inch lcd screen which can connect with this board.
Be sure match board with screen in the same order
