darong-khalibre/liferay-oidc-plugin

Plugin for Liferay, enabling OpenID Connect authentication

OpenID Connect Liferay plugin

This plugin uses the OpenID Connect protocol to make Liferay use external authentication sources like social networks and SSO systems. It is available in the Liferay Marketplace.

Introduction

The OpenID Connect protocol delegates authentication to a so called Provider, and supplies the requesting application (in our case: Liferay) with an access token (like a temporary, restricted password) to request additional user information. With this user information, a Liferay-account is created if it does not exist, and to Liferay the user authentication is confirmed.

Components

The plugin comprises of two parts:

• a Servlet Filter (using Liferay's servlet filter hook) to intercept the normal login flow and redirect to the OpenID Connect provider, get the access token and get user information
• an Autologin (using Liferay's portal properties hook auto.login.hooks=) to complete the authentication

Configuration

The following portal properties are required (in portal-ext.properties) for a complete setup:

openidconnect.enableOpenIDConnect

Whether to enable the plugin (effectively allowing you to disable the plugin without uninstalling it). Boolean, either 'true' or 'false'. Default is false.

openidconnect.authorization-location

Complete url to the OpenID Connect Provider's authorization location. Example for Google: https://accounts.google.com/o/oauth2/v2/auth

openidconnect.token-location

Complete url to the OpenID Connect Provider's token location. Example for Google: https://www.googleapis.com/oauth2/v4/token

openidconnect.profile-uri

Complete URL to the 'user info' endpoint. Example for Google: https://www.googleapis.com/plus/v1/people/me/openIdConnect

openidconnect.issuer

The information retrieved from the user info endpoint has to be verified against a preconfigured string, according to the OpenID Connect spec. This 'issuer' claim is used for that. Example for Google: https://accounts.google.com

openidconnect.client-id

Register your Liferay portal as a 'client app' with the Google developer console, and the resulting client id is the openid connect client id. Non-working example for Google: 7kasuf1-123123adfaafdsflni7me2kr.apps.googleusercontent.com

openidconnect.secret

Secret of the client, after registration of the Liferay portal, just like the client-id.

openidconnect.scope

Scope(s) of the access token (space separated), should be the same (or a subset) of the scopes allowed by the provider to the client. Default value: openid profile email

Complete copy-paste-friendly code block with all properties

openidconnect.enableOpenIDConnect=true
openidconnect.token-location=https://www.googleapis.com/oauth2/v4/token
openidconnect.authorization-location=https://accounts.google.com/o/oauth2/v2/auth
openidconnect.profile-uri=https://www.googleapis.com/plus/v1/people/me/openIdConnect
openidconnect.issuer=https://accounts.google.com
openidconnect.client-id=7kasuf1-123123adfaafdsflni7me2kr.apps.googleusercontent.com
openidconnect.secret=xyz
openidconnect.scope=openid profile email

Try out with Google as OIDC Provider

• Create a project at https://console.developers.google.com/apis/dashboard, of type 'web application'
• Create credentials, of type 'OAuth Client ID'
  • Application type: 'web application'
  • Name: anything, like 'My Liferay portal'
  • Authorised redirect URIs: http://localhost:8080/c/portal/login (or any public URL, but it has to end in the Liferay's special path /c/portal/login)
  • Copy-paste the created client credentials into your portal-ext.properties
• Configure the plugin with the rest of the properties, as stated above.

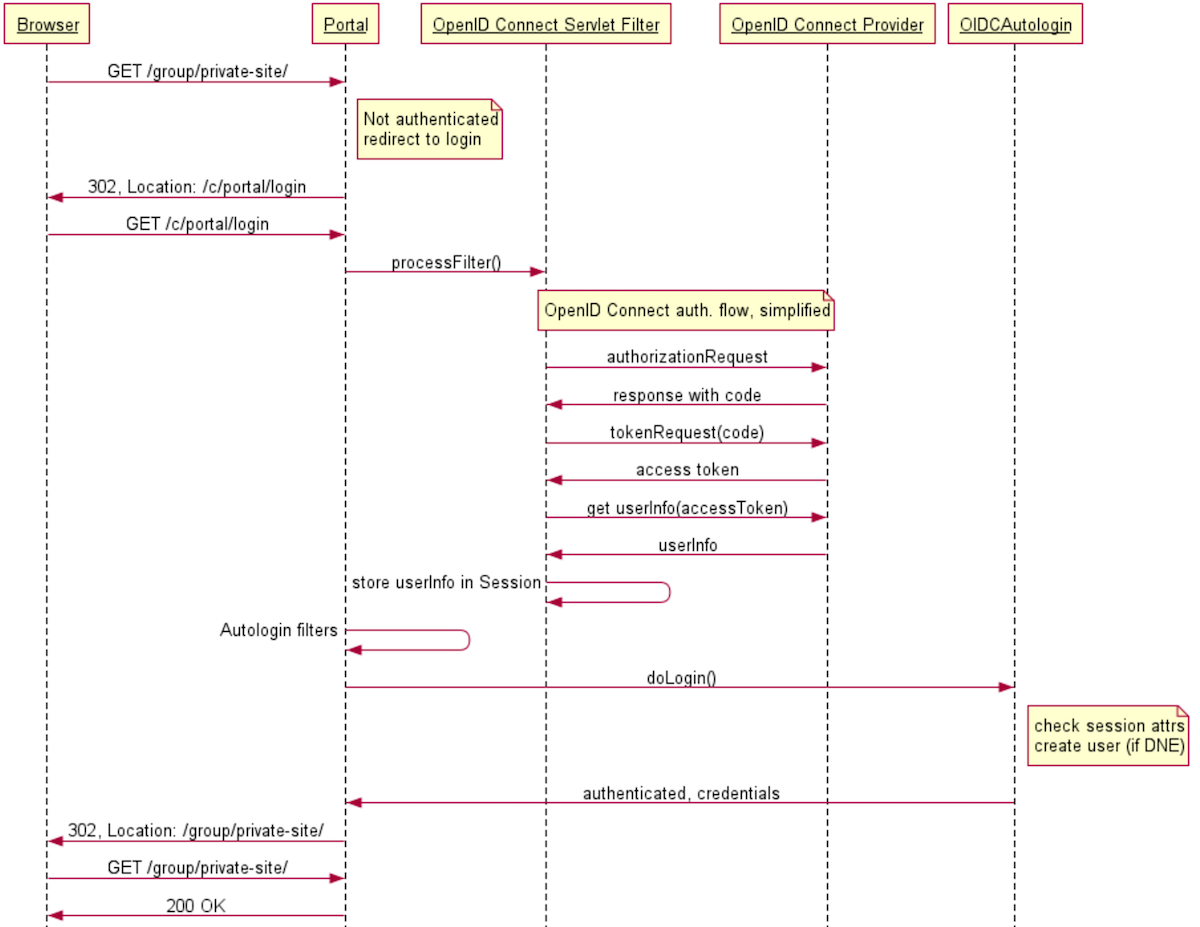

Sequence diagram

This diagram focuses on the interaction of typical Liferay components and components of the plugin. It simplifies the actual OpenID Connect authorization code flow a bit, which is documented properly in other locations.

Sequence diagram rendered by https://www.websequencediagrams.com/, with source code:

title Liferay OpenID Connect authentication

Browser->Portal: GET /group/private-site/
note right of Portal
    Not authenticated
    redirect to login
end note
Portal->Browser: 302, Location: /c/portal/login
Browser->Portal: GET /c/portal/login
Portal->OpenID Connect Servlet Filter: processFilter()
note over OpenID Connect Servlet Filter, OpenID Connect Provider: OpenID Connect auth. flow, simplified
OpenID Connect Servlet Filter->OpenID Connect Provider: authorizationRequest
OpenID Connect Provider->OpenID Connect Servlet Filter: response with code
OpenID Connect Servlet Filter->OpenID Connect Provider: tokenRequest(code)
OpenID Connect Provider->OpenID Connect Servlet Filter: access token
OpenID Connect Servlet Filter->OpenID Connect Provider: get userInfo(accessToken)
OpenID Connect Provider->OpenID Connect Servlet Filter: userInfo
OpenID Connect Servlet Filter->OpenID Connect Servlet Filter: store userInfo in Session
Portal->Portal: Autologin filters
Portal->OIDCAutologin: doLogin()
note right of OIDCAutologin
    check session attrs
    create user (if DNE)
end note
OIDCAutologin->Portal: authenticated, credentials
Portal->Browser: 302, Location: /group/private-site/
Browser->Portal: GET /group/private-site/
Portal->Browser: 200 OK

License

This software is licensed under the Apache 2 license.
