Project Kawa Devboard

Documentation for the Project Kawa Devboard. This repository contains everything the Wifi-Client requires, including code, circuit design and housing.

⚠️ The Kawa Devboard is part of my condition monitoring project - Project Kawa - which isn't public. However, this repo is public, because the development board itself works pretty well after a long-term test of now over a year. You can use this board for your own project, if it fits your needs.

✏️ The board is compatible with most open source home-automation systems, so feel free to use this board for other appliances than the Project Kawa.

✏️ In this repo you'll find not only the hardware of the devboard, but also the source. Keep in mind that the code is written for the Project Kawa Server, which isn't public, but feel free to tweak it for your own application.

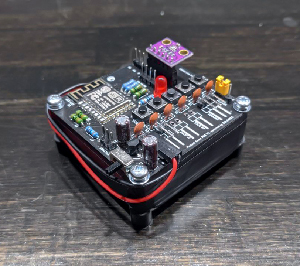

Project Kawa Devboard

1 Description

Project Kawa Devboard is part of the Project Kawa environment. This client is designed to test new sensors or new firmware, to debug code or find optimizations in the PCB layout. The latest version may not work without properly -> nightly builds.

This repository contains mostly code that is in development, as well as hardware-design that might only work under special conditions or differ from this documentation. This is not an out-of-the-box solution and requires some knowledge in a variety of fields. If you don't have an education in the field of electronics you should not proceed with this project, you might harm yourself or create damage by the risk of fire. Further you should be comfortable working with VS Code Workspaces.

Please note: All paths and settings are described for Windows. Will be updated in the future.

2 Usage

This requires a working build of the firmware and filesystem already flashed to the chip, see Initial Upload. Please note: The description can differ from the actual process, depending on the development state of this device.

2.1 LED indicator

There are different kinds of LED-states to indicate the device's status:

Short, almost unnoticeable blink: Wakeup from deepsleep, running normal cycle
Rapid blinking 25 times: Wifi is not setup (this should happen after the initial upload)
Rapid blinking 2 times: Changes have been written to the config
On-Off every one second: Wifi-setup is running, hotspot is open

2.2 Setup wifi

The device needs to connect to your local network via 2.4GHz wifi. To setup your network's credentials you need to

press and hold BUTTON 1
click the RESET button
the device opens a hotspot called kawa setup
connect any wifi-enabled device to it
enter your network-credentials
select the connected sensor
select the sleep interval (shorter intervals should only be used for testing and debugging)
reset the controller afterwards

Now your Kawa Devboard is ready for use. As soon as the device connects to your wifi it will automatically connect to the server by its own, assuming that the server is running.

Note: The captive portal may not work properly, if so try:

Use another device
Click yes if your device asks you to stay connected (happens when the device notices, that no internet connection is available)
Refresh the captive portal redirection page (sometimes the script or the stylesheet aren't loaded properly)
Enter the IP address 1.2.3.4 manually into a browser

2.3 Reading sensor data

Once the wifi credentials are set up correct the device starts its main task: reading sensor data. There is no further interaction needed. The data is sent as json, example:

{
  "device": {
    "id": "179309432879183923",
    "boardname": "devboard",
    "firmware_version": "0.1.0",
    "filesystem_version": "0.1.0",
    "mode": "production",
    "sensor_status": true,
    "sensor_name": "BMP280",
    "battery_status": true,
    "battery_value": 3.30,
    "sleep_interval": 3600,
    "connection_time": 7.334,
    "ssid": "the_network_ssid",
    "dbm": -78,
    "quality": 44,
    "hostname": "kawa_179309432879183923",
    "ip_address": "192.168.0.200",
    "mac_address": "00:80:41:ae:fd:7e"
  },
  "data": {
    "temperature": {
      "value": 25.2,
      "unit": "°C"
    },
    "pressure": {
      "value": 989.2,
      "unit": "mBar"
    },
    "altitude": {
      "value": 433,
      "unit": "m"
    },
    "humidity": {
      "value": 44.23,
      "unit": "%"
    }
  }
}

The server must answer with status code 201 and a json of the following format:

value = {
    "status": "ok",
    "update_firmware": false,
    "new_firmware": "0.0.0",
    "update_spiffs": false,
    "new_spiffs": "0.0.0"
}

Due to the OTA-update functionality the client must know when to update. This is done by toggling the respective keys to true. With this the client will instantly download the given new version. The maximum size of the json is 2048 bytes.

2.4 Status codes

The devices accepts the following status codes as answer when posting data:

201: data has been added to the database
406: data has not been added to the database
500: server error

3 Hardware

The core of this application is a ESP12F SOC by espressif.

3.1 Board

The board is a two layered pcb, with mostly push-through components. This is due to easier hacking into the system, when something new needs testing without making a new pcb.

A complete bill of material can be found inside the bom folder. For the production files select the latest zip-file inside the boards folder.

Important note: There is no deep discharge protection for the battery. Do not use non-protected batteries with this setup!

3.2 Housing

The housing is made with a 3D printer, files can be found inside the projects cad folder. More information will be added.

4 Environment

4.1 Used software

The firmware is created with VS Code with the Arduino-Core (extension: CTRL+P -> ext install vscode-arduino))
The content of the filesystem is compiled with mkspiffs and uploaded with esptool.
The pcb design is done with Autodesk Eagle 9.6.2, but may be continued with EasyEDA due to a better library-to-production support.

A full list of the used software, including versions, libraries and tools can be found at the top of the src.ino.

4.2 VS-Code setup

4.2.1 code-workspace

Workspace-root is the repository-root. All relative paths are from this directory. Add the repository-root to a new workspace and save this workspace (can be saved inside or outside of the repo).

4.2.2 arduino.json

Stored inside the .vscode/ folder. This folder does not exist when cloning the repo and should appear automatically after creating the workspace, if not:

Create it: command-palette -> Arduino: Initialize
Edit it: command-palette -> Arduino: Board Config

Take the current board config from the description at the top of the src file.

Add the following lines to the json-file:

  "sketch": "code\\src\\src.ino",
  "output": "code\\build\\firmware\\latest",

For the Arduino-Board-Config see the header-comment of the src-file.

4.2.3 c_cpp_properties.json

Stored inside the .vscode/ folder, create (or add):

"configurations": [
    {
        "name": "Win32",
        "intelliSenseMode": "gcc-x64",
        "includePath": [
            "${workspaceRoot}\\code\\src\\",
            "${workspaceRoot}\\code\\src\\headers\\**",
            "C:\\Program Files (x86)\\Arduino\\hardware\\arduino\\avr\\cores\\arduino\\**",
            "${env:LOCALAPPDATA}\\Arduino15\\packages\\esp8266\\tools\\**",
            "${env:LOCALAPPDATA}\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.0\\**",
            "${env:LOCALAPPDATA}\\Arduino15\\packages\\esp8266\\hardware\\esp8266\\3.0.0\\libraries\\**",
            "${env:HOMEPATH}\\Documents\\Arduino\\libraries\\ArduinoJson\\**",
            "${env:HOMEPATH}\\Documents\\Arduino\\libraries\\DallasTemperature\\**",
            "${env:HOMEPATH}\\Documents\\Arduino\\libraries\\OneWire\\**",
            "${env:HOMEPATH}\\Documents\\Arduino\\libraries\\Adafruit_Unified_Sensor\\**",
            "${workspaceRoot}\\code\\assets\\libraries\\Adafruit_BME280_Library\\**"
        ],
        "forcedInclude": [
            "C:\\Program Files (x86)\\Arduino\\hardware\\arduino\\avr\\cores\\arduino\\Arduino.h"
        ],
        "cStandard": "c11",
        "cppStandard": "c++17",
        "defines": []
    }
]

Please note: Some include-paths are only valid if you have chosen the standard path when you installed the Arduino-IDE on a Windows computer.

4.3 Eagle libraries

Can be found inside the pcb-folder. Must not be added to EAGLE if you don't plan on changing the board.

5 Building & Debugging

Tested and released firmware and filesystem versions can be found inside the respective folder

Those firmware-versions with the letter d after the version indicator are debug-versions. This means that you can hookup a serial-to-usb chip and get debug messages printed to a serial monitor. Baud-rate is always 115200. Versions without that letter are for production environment, you won't get any messages printed to the serial port.

5.1 Initial upload

To flash the firmware and filesystem initially you need to upload both with a usb-to-serial converter (popular method: use a FTDI232 module). The upload process requires you to

press and hold the UPLOAD button
press and release the RESET button
release the UPLOAD button as soon as the upload begins
click the RESET button after the upload is done

The initial firmware can be uploaded with the command-palette -> Arduino: Upload.

The initial filesystem can be uploaded with SPIFFS for Arduino.

5.2 OTA upload

New firmware/filesystem will be automatically installed by the Project Kawa Server. With every post-request (device -> server) the server answers with the newest firmware/filesystem version. If the current one is older the device will download and install the latest one. This process is called OTA.

This requires a working initial firmware to be flashed onto the device, see Initial Setup.

In order for the OTA to work you then have to copy the newest firmware/filesystem into the server's bin-directory. Please refer to the server's documentation for the correct filename or use the test server from the /dev folder. The test server returns only the file set at the top-section. Do not use the test server in a production environment.

5.3 Build the firmware

The firmware is built when the src-file is compiled without any errors (command-palette -> Arduino: Verify). The binary file is then stored inside the latest-folder of build-directory, as instructed in the 4.2.2 arduino.json.

5.4 Build the filesystem

Currently in testing.

5.5 Debug

To debug the firmware uncomment the #define DEBUG statement inside the definitions.h file. Connect a serial-to-usb device to the RX-TX pins of the device, upload the changed code and open the serial monitor with 115200 baud rate.

To debug the captive portal content (files inside the data folder) you can use any static file server. Tip: Run Python's builtin module python -m http.server inside the data folder.

6 License & Disclaimer

MIT.

All content on this repository is provided as is. None of these components have been tested or certified. The use of this content is at your own risk.

7 Changelog

7.1 Firmware

v0.1.2: Updated libraries.
v0.1.1: Updated battery range.
v0.1.0: Added location and updated api.
v0.0.0: Creation.

7.2 Filesystem

v0.1.0: Added location.
v0.0.0: Creation.

7.3 PCB

Rev0: Creation.

7.4 Housing

Rev1: Updated for FFF.
Rev0: Creation.
