Note: We put the original Fabflix (8080 port) and the load balancer (80 port) on the same AWS instance. So We have 3 AWS instances and 1 GCP.

  • General

    cd Project5 && sudo sh ./deploy.sh

    • Collaborations and Work Distribution:

    Chenxi Yang:

    1. task 3 -- Enabled load balancer and routing queries to Master/Slave SQL respectively
    2. task 4 -- Prepared the codebase for measurement and wrote the processing script; Solved the login issue in testing and preparing the test plan in JMeter

    Jingwen Mo:

    1. task 1 -- Connection pooling in Spring boot
    2. task 2 -- Master-Slave Replication
    3. task 3 -- Enabled load balancer in aws and gcp
    4. task 4 -- tested and measured the performance, and collected the results

  • Connection Pooling

    • filename/path of all code/configuration files in GitHub of using JDBC Connection Pooling.

    Project5/src/main/resources/application.properties Project5/src/main/java/com/cs122b/project/Fabflix/Service/DBService.java

    • Explain how Connection Pooling is utilized in the Fabflix code.

    Firstly, we configure the connection pooling in spring boot by do the configuration in application.properties, then spring will create a bean for us, and we can inject this DataSource bean and use it to get connection with MySQL.

    • Explain how Connection Pooling works with two backend SQL.

    There are two datasources(Thread pool) in our project, the datasource is binded and connect to the local slave SQL, only for reading data, the writedatasource is connected to the master SQL, and is used to perform write operation. The dbservice request connection from datasources and close that connection after work is done. For the search dbservice, Spring AOP is used for performance monitoring.

  • Master/Slave

    • Include the filename/path of all code/configuration files in GitHub of routing queries to Master/Slave SQL.

    Project5/src/main/resources/application.properties Project5/src/main/java/com/cs122b/project/Fabflix/Service/DBService.java

    • How read/write requests were routed to Master/Slave SQL?

    We configured two datasources in application.properties, one for read, one for write, and we connect the write datasoure with the master slave. When we have to insert or update the database we use the read datasource.

  • JMeter TS/TJ Time Logs

    • Instructions of how to use the log_processing.* script to process the JMeter logs.

    pip install jsonlines
python3 log_processing.py test01.log

  • JMeter TS/TJ Time Measurement Report

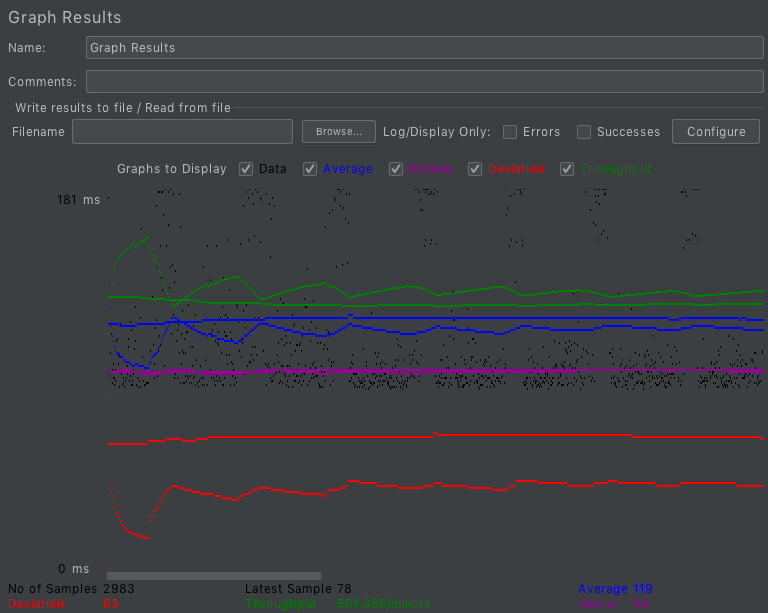

Single-instance Version Test Plan Graph Results Screenshot Average Query Time(ms) Average Search Servlet Time(ms) Average JDBC Time(ms) Analysis
Case 1: HTTP/1 thread 119 2.934646327857861 2.7373635035199464 The average query time JMeter calculated is 119, which is the whole time spent from sending the request to receiving the response. TS is aroud 2.93 while JS is aroud 2.73, we can see that TS>TJ, which satisfied our expectation that TJ is part of TS. Time diffence between AQT and TS is the time spent in the network transmit, which is much larger than TS.
Case 2: HTTP/10 threads 189 13.760883089491918 13.730279687259431 We can see that 10 thread is slower than 1 thread since the load for the server is heavier and TS>TJ, which satisfied our expectation
Case 3: HTTPS/10 threads 175 17.3745397431918 17.31245554104441 We can see that https is slower than http and TS>TJ, which satisfied our expectation
Case 4: HTTP/10 threads/No connection pooling 492 77.68907252533053 49.86028800994501 We can see that no connection pooling is slower than using connection pooling and TS>TJ, which satisfied our expectation
Scaled Version Test Plan Graph Results Screenshot Average Query Time(ms) Average Search Servlet Time(ms) Average JDBC Time(ms) Analysis
Case 1: HTTP/1 thread 117 master:3.531809883097542, slave:3.7946399822747416, avg:3.66 master:3.187468437825763, slave:3.468511991875923, avg:3.33 We can see that the previous single version is slower than this scaled version since we have two servers to splite the incoming request flow and TS>TJ which satisfied our expectation
Case 2: HTTP/10 threads 273 master: 5.0240276454654555, slave:4.204780390688259, avg:4.61 master:4.860670053831647, slave:4.11700182388664, avg:4.49 We can see that the previous single version is slower than this scaled version and TS>TJ which satisfied our expectation; Also 10 thread is slower than 1 thread since the load for the server is heavier
Case 3: HTTP/10 threads/No connection pooling 175 master:49.95578317359235, slave:10.402232293506493, avg:30.18 master:41.909705471535425, slave:9.289837856623377, avg:25.6 We can see that the previous single version is slower than this scaled version and no connection pooling is slower than using connection pooling and TS>TJ, which satisfied our expectation
