This repository contains my own implementations of different actor-critic methods. It uses Weights&Biases for training statistics and visualizations. For long experiments, the statistics file saved can get very big in memory size.
 |
 |
|---|---|

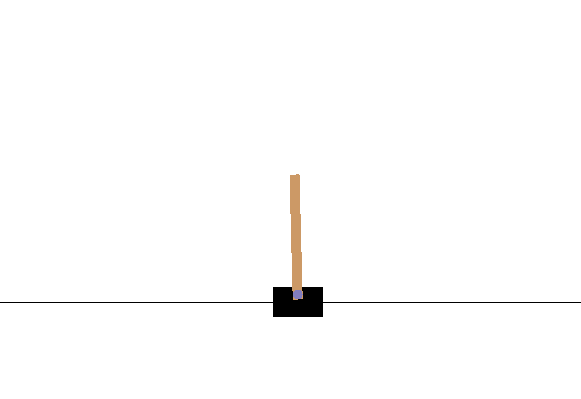

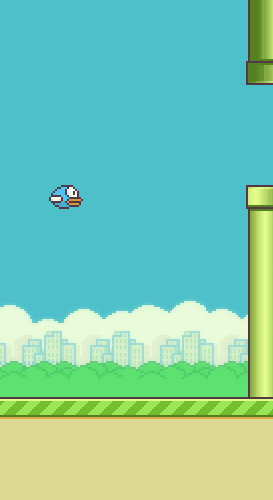

| Trained agent playing CartPole | Trained agent playing FlappyBird |
Available implementations:
- REINFORCE with Critic as Baseline
- Batch Actor-Critic
- Online Actor-Critic
- Advantage Actor-Critic (A2C)
There is an interface to add environments to train the agents. At this moment it has:
Install all needed packages with:
pip install -r requirements.txt
To train a new agent to play one of the available environments, use the
script train_agent.py. The experiment configuration is passed as a
.json file. The configurations folder has files with the best set of
hyperparameters I found for each agent and environment.
Here is an example to train a Batch Actor-Critic agent on CartPole with default configurations:
python train_agent.py --config_file configurations/cart_pole_batchAC.json
To use new configurations just change the values of the file you are using,
or create a copy with different values and pass it to the script.
The trained agent files are saved by default in an experiments folder
inside this project.
To see all the script options use:
python train_agent.py -h
To test a trained agent on the environment, use the
script test_agent.py. You can watch the agent playing with the
--render_games flag.
Here is an example to test and watch a trained agent for CartPole located in
experiments/cart_pole_batchAC for 10 episodes:
python test_agent.py --experiment_dir experiments/cart_pole_batchAC --episodes 10 --render_games
By default, the agents stores the state of itself 20 times during
the complete training process. The script animated_progress.py shows the
agent playing a game one time for each saved state. It lets you visualize
how the agent makes progress in trying to solve the current task.
Here is an example to visualize the progress of an agent for CartPole located in
experiments/cart_pole_batchAC:
python animated_progress.py --experiment_dir experiments/cart_pole_batchAC
Here are my experiments best results for each environment and agent type. The experiment duration is on my MSI GeForce RTX 2060 SUPER, for a time reference frame.
| Experiment name | End step | Training time | Test mean reward |
|---|---|---|---|
| cart_pole_REINFORCE_05 | 131 | 31s | 193,58 |
| cart_pole_batchAC_06 | 836 | 1m 2s | 200 |
| cart_pole_onlineAC_default_05 | 20.000 | 4m 36s | 193,369 |
| cart_pole_A2C_default_02 | 1.250 | 1m 12s | 173,279 |
| flappybird_REINFORCE_04 | 13.265 | 48m 59s | 7,29 |
| flappybird_batchAC_06 | 44.590 | 2h 35m 34 | 7,58 |
| flappybird_onlineAC_04 | 555.347 | 2h 53m 4s | 5,33 |
| flappybird_A2C_02 | 7.500 | 35m 48s | 7,26 |
The mean test reward is running the agent for 100 episodes. For FlappyBird a perfect score is 10, for CartPole is 200.
Here are all the experiments for each environment. You can download and visualize them using the scripts:
