This is the second project of the Udacity Deep Reinforcement Learning course. In this project Udacity provides a Unity3D application that is used as a training environment with DDPG (Deep Deterministic Policy Gradient). The goal of this environment is for the robot arm to follow the green ball. The environment provides position and angles of the joints. The resulting vector is passed to the Jupiter Notebook as a state.
Number of agents: 1
Number of actions: 4
States look like: [ 0.00000000e+00 -4.00000000e+00 0.00000000e+00 1.00000000e+00
-0.00000000e+00 -0.00000000e+00 -4.37113883e-08 0.00000000e+00
0.00000000e+00 0.00000000e+00 0.00000000e+00 0.00000000e+00
0.00000000e+00 0.00000000e+00 -1.00000000e+01 0.00000000e+00
1.00000000e+00 -0.00000000e+00 -0.00000000e+00 -4.37113883e-08
0.00000000e+00 0.00000000e+00 0.00000000e+00 0.00000000e+00
0.00000000e+00 0.00000000e+00 5.75471878e+00 -1.00000000e+00
5.55726671e+00 0.00000000e+00 1.00000000e+00 0.00000000e+00
-1.68164849e-01]
States have length: 33
The agent tries to find the action with the most future cumulative reward, and thus trains the deep Neural network to predict the best action, given a random state.

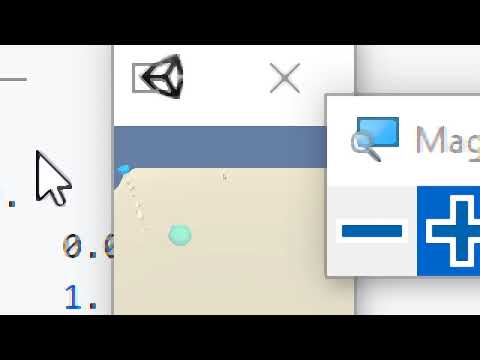

Training in progress not wasting any GPU cycles on rendering a full size image

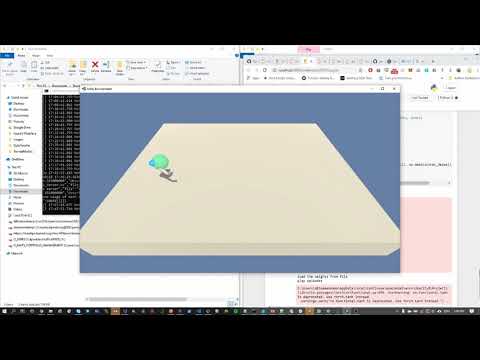

Trained robot arm
As with most machine learning projects, its best to start with setting up a virtual environment. This way the packages that need to be imported, don't conflict with Python packages that are already installed. For this project I used the Anaconda environment based on Python 3.6.
While the example project provides a requirements.txt, I ren into this error while adding the required packages to your project
!pip -q install ./
ERROR: Could not find a version that satisfies the requirement torch==0.4.0 (from unityagents==0.4.0) (from versions: 0.1.2, 0.1.2.post1, 0.1.2.post2)
ERROR: No matching distribution found for torch==0.4.0 (from unityagents==0.4.0)
The solution, is to install a downloaded wheel file form the PyTorch website yourself. I downloaded "torch-0.4.1-cp36-cp36m-win_amd64.whl" from the PyTorch site https://pytorch.org/get-started/previous-versions/
(UdacityRLProject1) C:\Clients\Udacity\deep-reinforcement-learning\[your project folder]>pip install torch-0.4.1-cp36-cp36m-win_amd64.whl
Processing c:\clients\udacity\deep-reinforcement-learning\[your project folder]\torch-0.4.1-cp36-cp36m-win_amd64.whl
Installing collected packages: torch
Successfully installed torch-0.4.1
After resolving the dependencies, i still had a code issue, because the action returned a numpy.int64 instead of an in32.
packages\unityagents\environment.py", line 322, in step
for brain_name in list(vector_action.keys()) + list(memory.keys()) + list(text_action.keys()):
AttributeError: 'numpy.int64' object has no attribute 'keys'
When all dependencies and issues are resolved, the training can begin.
To start, and make sure the environment works, I have used the DDPG example that was referred to by the training video. My first training result was just using the defaults from the example, and didn't perform at all. I re read the paper but had to see what other students where encountered, before getting better results.
I found a few possible issues with using the default solution and tried them one by one.
1. reduce noise
The noise that is added to the training was to much so i reduced the sigma from 0.2 to 0.1. This alone did not do a lot for the training results
2. increase episode length
Next I found that the agent probaly needed more time to get to it's goal then de maximum episode length that A specified. Thus the agent rarely got to it's goal. and if it did, it was because it was already close. This was the first time the score excided 1.0. Unfortunately it got stuck at around 2.x. not nearly the 30 i needed
3. Normalize
By defining batch normalisation and adding it to the forward pass
Still around the 2.x and not increasing.
4. Increase replay buffer size
Helped get above 3.x in the first step, but the learning didn't increase enough over time
5. resetting the agent after every
Agent.reset() helped get above 3.x in the first 100 episodes even without the previous 4. increased buffer size step
No mayor change in learning
6. learninig for more then 500 episodes
When trying to learn for more then 500 episodes connection with the Udacity environment gets lost.
Reloading saved weights to continue learning didn't work, probably because I didn't save and reload the target networks of the actor and critic.
7. increasing learning rate
When the steps in learning are to small, it can take a long time before the optimal value is found, make it to big, and you will overshoot your optimal value.
1. First we initialize the agent in the Navigation notebook
Navigation.ipynb
# initialise an agent
agent = Agent(state_size=33, action_size=4, random_seed=2)
2. This sets the state and action size for the agent and creates an Actor, and a Critic neural net, with corresponding target network.
ddpg_agent.py
# Actor Network (w/ Target Network)
self.actor_local = Actor(state_size, action_size, random_seed).to(device)
self.actor_target = Actor(state_size, action_size, random_seed).to(device)
self.actor_optimizer = optim.Adam(self.actor_local.parameters(), lr=LR_ACTOR)
# Critic Network (w/ Target Network)
self.critic_local = Critic(state_size, action_size, random_seed).to(device)
self.critic_target = Critic(state_size, action_size, random_seed).to(device)
self.critic_optimizer = optim.Adam(self.critic_local.parameters(), lr=LR_CRITIC, weight_decay=WEIGHT_DECAY)
DDPG is a algorithm that requires a actor and critic network. Both of these network also have target networks, that get small updates from the local network. This way the values don't change to much over a short time, and learning becomes more stable.
3. Adding noise to increase exploration instead of only exploiting the paths that have lead to success
ddpg_agent.py
# Noise process
self.noise = OUNoise(action_size, random_seed)
Here we define noise that will be added to the action that is obtained from the actor network.
4. Replay buffer, to store past experiences
ddpg_agent.py
# Replay memory
self.memory = ReplayBuffer(action_size, BUFFER_SIZE, BATCH_SIZE, random_seed)
Because DDPG is a off policy algorithm (see bottom of the page), just like Q learning. It can learn from past experiences that are stored in the replay buffer.
5. Learn
The critic network takes actions and states and produces a Q value. This is compared to the actual value in the environment, the difference between expected Q and actual reward from the environment is used to calculate a loss, which it tries to minimize. When the critic starts giving estimates about the Q value given states and actions, the actor network can use these trained values, to train the best action for a given state.

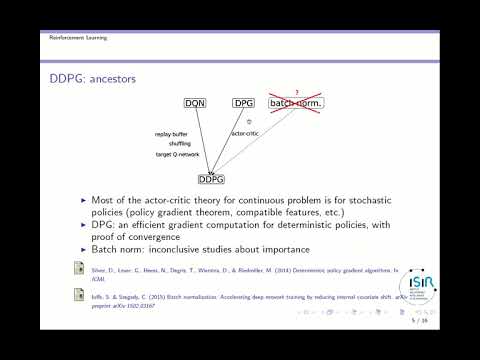

for a more detailed explanation see the video below
First, we get the next states from the stored experiences
ddpg_agent.py
states, actions, rewards, next_states, dones = experiences
Using these next_states we ask the actor network to predict the next actions
# ---------------------------- update critic ---------------------------- #
# Get predicted next-state actions and Q values from target models
actions_next = self.actor_target(next_states)
Then we use these next actions to get the predicted Q targets using the Critic network
Q_targets_next = self.critic_target(next_states, actions_next)
Using the rewards and the dones from the experiences that came out of the replay buffer, plus the next Q targets (Q_targets_next) we just obtained we can calculate the target Q values (Q_targets).
# Compute Q targets for current states (y_i)
Q_targets = rewards + (gamma * Q_targets_next * (1 - dones))
Then we check if we get the same Q values, if we just add the states and actions to the local Critic network.
# Compute critic loss
Q_expected = self.critic_local(states, actions)
If there is a difference, we change the weights of the local critic network to give results that are closer to the calculated Q values (Q_targets)
critic_loss = F.mse_loss(Q_expected, Q_targets)
# Minimize the loss
self.critic_optimizer.zero_grad()
critic_loss.backward()
self.critic_optimizer.step()
When the Critic network is getting better at producing the Q values (using given states and actions as input), because it has been training on values gained from experiences. It starts giving the right Q values, even if it wouldn’t have the recorded experiences anymore.
At this point we can use the Critic’s learned states, actions to Q values relationship to train the Actor. We use the states from the replay memory as input for the Actor network to find the best action
# ---------------------------- update actor ---------------------------- #
# Compute actor loss
actions_pred = self.actor_local(states)
Then we check with the trained Critic network what the Q values are and take the mean. If these Q values are high, then the Actor network made a good prediction.
Because in training we try to minimize the loss, we take the negative of the Q values, because less is better
actor_loss = -self.critic_local(states, actions_pred).mean()
# Minimize the loss
self.actor_optimizer.zero_grad()
actor_loss.backward()
self.actor_optimizer.step()
The on-policy aggression is like SARSA, they assume that their experience comes from the agents himself, and they try to improve agents policy right down this online stop. So, the agent plays and then it improves and plays again. And what you want to do is you want to get optimal Strategies as quickly as possible.
Off-policy algorithms like Q-learning, as an example, they have slightly relax situation. They don't assume that the sessions you're obtained, you're training on, are the ones that you're going to use when the agent is going to finally get kind of unchained and applied to the actual problem. Because of this, it can use data from an experience replay buffer
Model-based reinforcement learning has an agent try to understand the world and create a model to represent it. Here the model is trying to capture 2 functions, the transition function from states
However, it is not necessary to learn a model, and the agent can instead learn a policy directly using algorithms like Q-learning or policy gradient.
A simple check to see if an RL algorithm is model-based or model-free is:
If, after learning, the agent can make predictions about what the next state and reward will be before it takes each action, it's a model-based RL algorithm.
