This repository contains the files associated with the manuscript “Visual Diagnostics of a Model Explainer – Tools for the Assessment of LIME Explanations” by Katherine Goode and Heike Hofmann. The rest of this readme contains:
- information about the files in the repository,
- instructions for knitting the manuscript,
- descriptions of the bullet data used in the manuscript, and
- information on the font sizes used for the figures in the manuscript.
The contents of the folders and main directory are described below:
Contains the R code associated with the manuscript that is not directly included in paper.Rnw (such as some external data cleaning and file organization):
- 01-raw-file-compression contains R code for compressing the static figure used in the manuscript and accessing and compressing the raw bullet data to be uploaded to GitHub
- 02-data-preparation contains R code for preparing the raw bullet data (bullet training data, bullet testing data, and example matching signatures) to be used in the manuscript and saves zip versions of the prepared data sets to be uploaded to GitHub
- 03-submission-steps contains the to do list and R code for preparing the files for submission to the ASA Data Science Journal
Contains the files associated with the cover letter submitted to the ASA Data Science journal.
Contains the data used to generate the manuscript:
- bullet-test.csv.zip and bullet-train.csv.zip contain the data used for the bullet examples in the manuscript. See “Additional Information on Bullet Data” below for more information about the data.
- example-signatures.csv.zip contains signature data from two matching bullet lands that is used to generate a figure in the manuscript.
- raw contains the raw versions of the data files (from
Heike and CSAFE) that the above datasets are derived from. Do not
alter the data in these files:
- CCFs_withlands.csv.zip: raw version of the bullet training data
- h224-set1-features.rds.zip and h224-set11-features.rds.zip: raw versions of the bullet testing data
- signatures.rds.zip: raw version of the example matching signatures data
- README.txt contains descriptions of the data files (and code files) provided with the submission of the paper.
Contains the static figures associated with the project:
- figure-06-1.png.zip is the one figure in the manuscript that is not generated using R code.

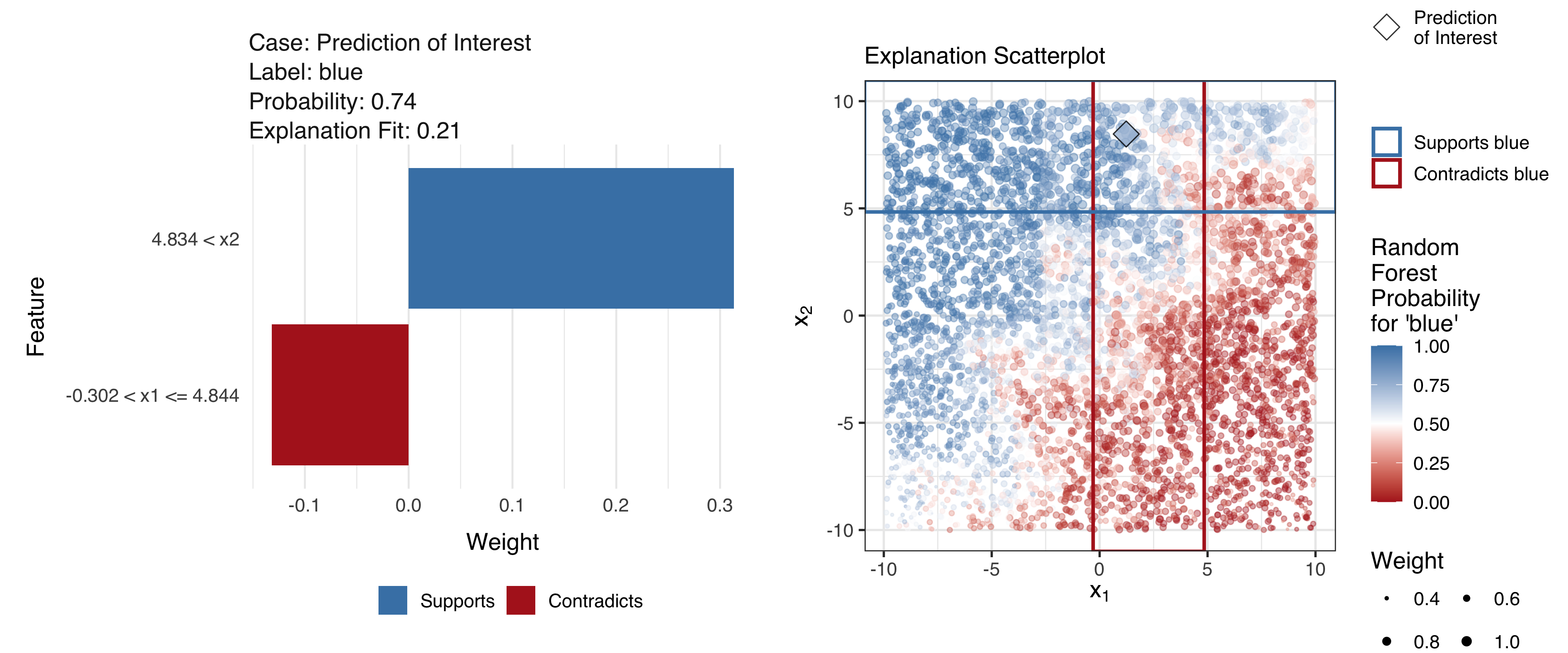

- figure-readme.png is a figure used in this readme.
Contains information on the land engraved areas (LEAs) excluded from the Hamby bullets used to create the training data.
Contains the files associated with an old version of the manuscript that is much longer than the submitted version.
Contains folders with the files submitted to the ASA Data Science Journal. The folders within are named by the date of submission. The files are moved here using code in the file code/03-submission-steps.R. The only submission files not included on GitHub are the EPS figures due to size constraints.
Contains the files associated with the manuscript’s supporting information document:
- support-info-references.bib contains the bibtex information for the references in the supporting information document.
- supporting-information.pdf and supporting-information.Rnw are the supporting information document.
Main Directory
- .gitattributes is needed for GitHub large file storage.
- .gitignore contains objects to be ignored by git.
- paper.Rnw, paper.pdf, and paper.tex are the manuscript. Note that paper.pdf and paper.tex are generated by paper.Rnw.
- README.Rmd and README.md are the readme files that generated this output.
- references.bib contains the bibtex information for the references in the manuscript.
- WileyNJG-AMS.bst and WileyNJG-v2.cls contain the latex formatting specifications for the ASA Data Science Journal.
When the manuscript is compiled, various files will be generated (such as data-bullet-explain.rds and figure-10-1.png). The first time the manuscript is compiled, it will take a while (possibly up to several hours). Once these files have been generated, the manuscript will take much less time to compile (approximately a few minutes).
Follow these instructions to compile the manuscript:
- Pull the repository from GitHub.
- Install R packages goodekat/lime and goodekat/limeaid from GitHub using the remotes R package. (Note that goodekat/lime is a forked versions of thomasp85/lime with minor changes to extract objects for the analysis in the manuscript.)
remotes::install_github("goodekat/lime")
remotes::install_github("goodekat/limeaid")- Compile manuscript (via the paper.Rnw file).
The data used in the manuscript for the bullet comparison examples is described below. Note that this text is also included in the manuscript supporting information and the file data/README.txt that is submitted with the manuscript.
The bullet-train data has 83,028 rows and 13 columns that contain comparison features described in Hare, Hofmann, and Carriquiry (2017) based on high resolution microscopy scans of fired bullets from Hamby sets 173 and 252 (Hamby, Brundage, and Thorpe 2009). This dataset is created from the x3p scans of bullet land engraved areas available from the NIST Ballistics Toolmark Research Database. It contains comparisons from 408 bullet-land signatures. 12 of the overall 420 lands (6 lands per bullets, 35 bullets in each set) are excluded from the comparison. Six of these lands show so-called “tank rash” - damage to the bullets after it exited the barrel (see tank rash scans). Another bullet (Bullet E from Hamby 173) is excluded because it could not be matched visually to the barrel it was supposedly from (see scans from bullet E).
bullet-train is generated from the raw file of comparison features, which is found here. The steps taken to create bullet-train from the raw data are found here. These steps involve renaming some variables, selecting the variables of interest for the manuscript, and adjusting the land IDs associated with the signatures.
The variables in the data are described below. Further descriptions of the comparison features are found in Hare, Hofmann, and Carriquiry (2017).
- case: ID number associated with the bullet-land signature comparison.
- land_id1, land_id2: IDs describing the two land engraved areas in the comparison. The format is “study-barrel-bullet-land”.
- ccf: Maximized cross-correlation between two LEA signatures.
- rough_cor: Correlation after detrending aligned signatures.
- D: Euclidean distance (in millimeters) between two aligned signatures.
- sd_D: Standard deviation of the previous measure along the signature.
- matches, mismatches: Number of matching/non-matching peaks and valleys in the aligned signatures.
- cms: Consecutively matching striae is a measure introduced by Biasotti (1959) describing the longest run of matching peaks between two aligned signatures.
- non_cms: The number of consecutively non-matching peaks.
- sum_peaks: The depth of peaks measured as the sum of matching peaks between two aligned signatures (in microns).
- samesource: Ground truth whether a pair is from the same source (“TRUE”) or from different sources (“FALSE”).
bullet-test has 364 rows and 13 columns that contains comparison features from test sets 1 and 11 of the Hamby 224 Clone Test Sets. Each test set is arranged as a combination of three bullets: two known bullets and a questioned bullet. Similar to the training set, each bullet has 6 lands. The data contains comparisons of bullet-lands within a set. With three bullets with six lands per set, there are a total of (2 sets) x (3! bullet comparisons) x (6^2 land comparisons) = 432 comparisons. However, there are only 364 comparisons in the bullet-test data. This is due to the fact that some of the lands are missing from the data (due to tank rash): land 4 from the unknown bullet in set 1, land 2 from bullet 1 in set 11, and land 4 from the unknown bullet in set 11. bullet-test is generated from the raw versions of the data for set 1 and set 11. The variables in the test data are the same as the training data described above.
example-signatures contains the signature data from aligned signatures of two bullet-lands from the same source. The variables in the data are as follows:
- land: Indicator variable whether the observation corresponds to “Signature 1” or “Signature 2”.
- x: The (relative) x position of the signature (in microns).
- y: The (relative) y position of the signature height (in microns).
The font sizes in the figures are calculated based on how the figures are scaled due to the specification of both fig.width and out.width in the Rnw file to ensure that they are consistent across figures. The text sizes are either set to 7 pt or 5.5 pt (Helvetica) as indicated by the table below. Note that the text in the manuscript is 9 pt (Times) and a similar approach was used to ensure that line sizes are larger than 0.5 pt.
| Part of Graphic | Font Size |
|---|---|
| Title | 7 pt |
| Subtitle | 7 pt |
| Axis labels | 7 pt |
| Facet labels that act as x-axis or y-axis labels | 7 pt |
| Facet labels that act as titles for lime R package plots | 7 pt |
| Legend titles | 7 pt |
| Interior labels (such as those created using geom_text) | 7 pt |
| Axis tick labels | 5.5 pt |
| Facet labels (general) | 5.5 pt |
| Legend labels | 5.5 pt |
Note: The only figure that does not follow these values is Figure 11 where the facet labels were set to font size 5 (Helvetica) in order for them to fit appropriately.
Biasotti, Alfred A. 1959. “A Statistical Study of the Individual Characteristics of Fired Bullets.” Journal of Forensic Sciences 4 (1): 34–50.
Hamby, James E., David J. Brundage, and James W. Thorpe. 2009. “The Identification of Bullets Fired from 10 Consecutively Rifled 9mm Ruger Pistol Barrels: A Research Project Involving 507 Participants from 20 Countries.” AFTE Journal 41 (2): 99–110.
Hare, Eric, Heike Hofmann, and Alicia Carriquiry. 2017. “Automatic Matching of Bullet Land Impressions.” Annals of Applied Statistics 11 (4): 2332–56. https://doi.org/10.1214/17-AOAS1080.
