Tealium Client-and-Server-Side Data Layer Testing Framework

Meta

This is the repository with the Tealium iQ- & Tealium CDP-related code for the client-and-server-side data layer testing framework presented in this article series:

For the Python code and step-by-step guide to set up the Google Cloud Platform part of the framework, see https://github.com/loldenburg/datalayertests-gcp

Summary

This framework validates Tealium Data Layer Events via ...

Tealium iQ (tealium-iq folder): client-side for ad-hoc testing in your browser via a Mocha/Chai-JS based tag + Extension (folders tealium-iq/tags and tealium-iq/extensions)
Tealium Functions (tealium-functions folder): server-side to test all Events of all users

Both frameworks use the same JSON-schema-based data layer test definitions (see shared/globals).

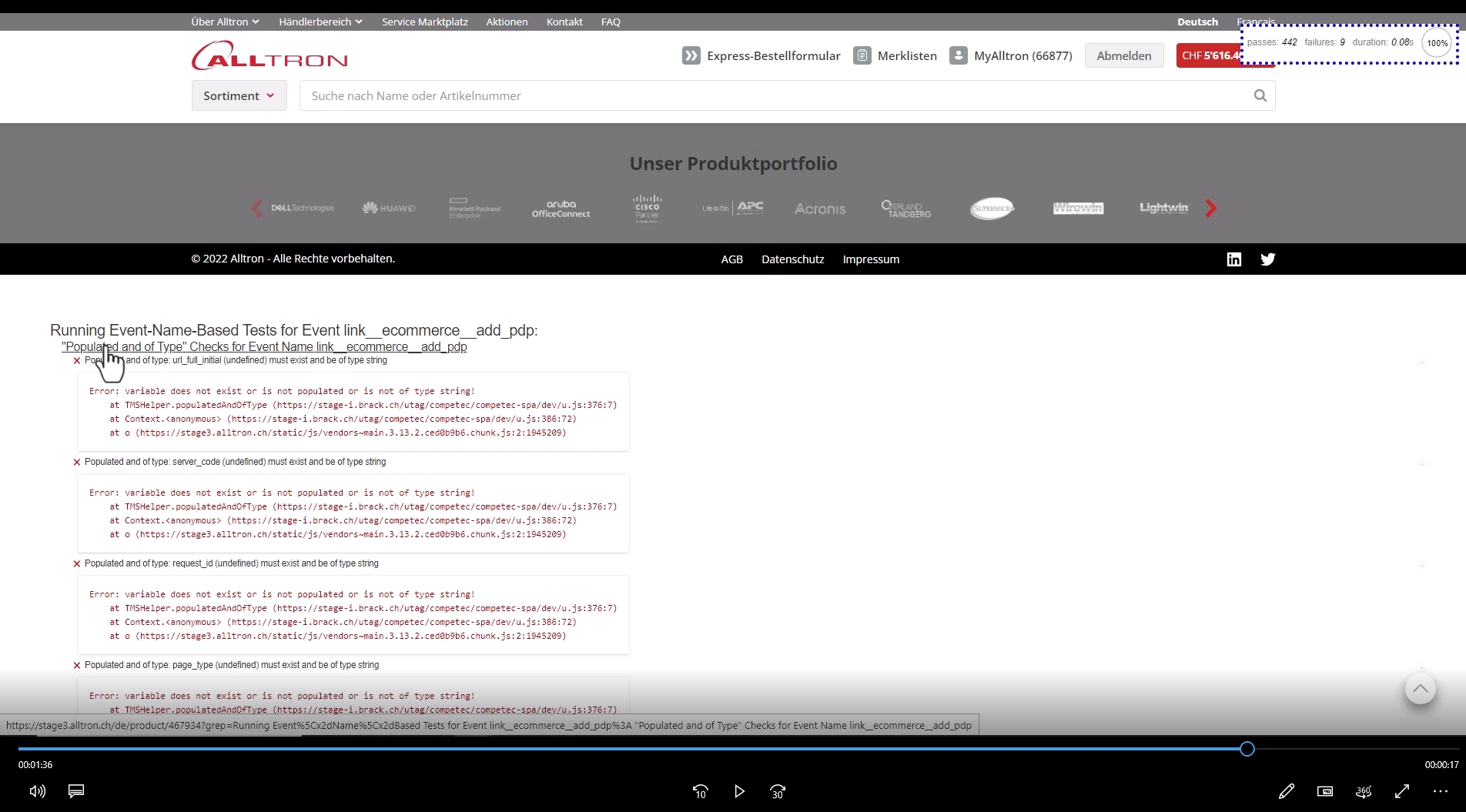

In the Tealium iQ (MochaChai) variant, errors are reported visually as you browse. YouTube video on MochaChai JS client-side data layer tests

In the server-side variant, errors are logged in the Tealium Functions console and/or to your destination of choice (you need to set this part up yourself), e.g. a Google Cloud Function + Firestore for deeper debugging + BigQuery & Data Studio or an influxDB / Grafana dashboard for monitoring.

Tealium Function Logs

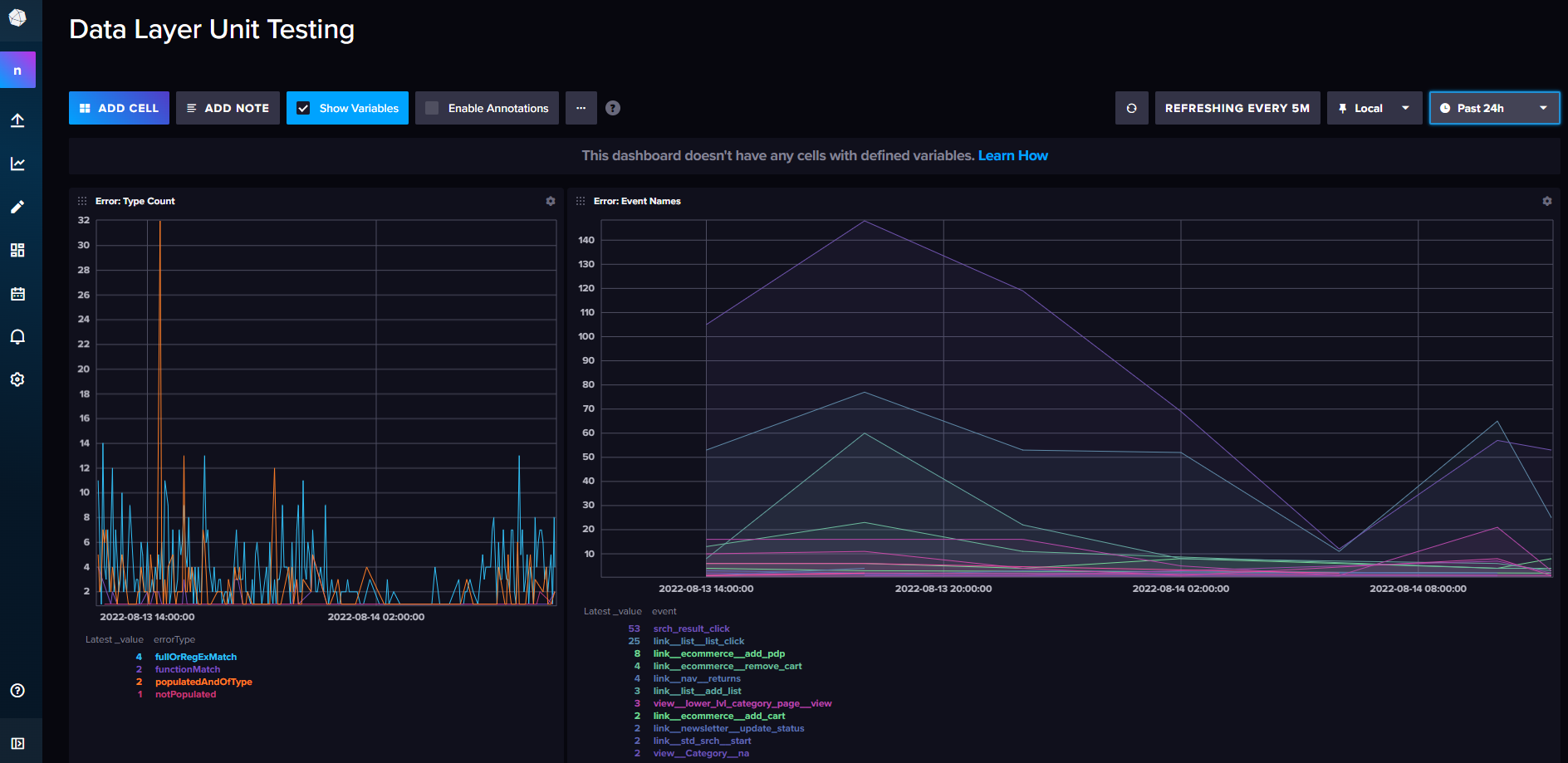

InfluxDB

Google Cloud Firestore

Data Studio (via BigQuery)

The Tealium Functions part of this framework is a much-enhanced and partially rewritten fork of Łukasz Cieloch's draft at https://github.com/LukaszCieloch/automated-event-validation

Getting started - Step by Step Guide

This "getting started" guide only shows how to set up the components in Tealium. To actually benefit from these components, you of course need to define the actual Data Layer tests. For this, see the chapters after this one. Most of the steps are also shown in this video: https://drive.google.com/open?id=1yf3KfnderZeAtrypkVteJzYWkTWgJnlh

Tealium iQ (Mocha & Chai JS)

You need

A Tag which loads the mocha / chai JS libraries
2 Pre-Loader Extensions: a) one to define the tests (unless you load them as a JS file into Tealium e.g. via Google Cloud Storage or another CDN) b) one to run the tests
Depending on your setup, you also need an "All Tags" Extension that defines the event_name. The Event Name is the identifier that defines which tests are run

Mocha Chai JS Tag

The Tag simply loads the Mocha and Chai JS libraries asynchronously and makes sure they are not loaded multiple times on the same page. After successful loading, it triggers the Data Layer Tests in the Extension (see next chapter).

Create a new tag of type "Tealium Custom Container" and call it e.g. "MochaChai Data Layer Tests".
Uncheck the "PROD" environment so the tag never fires on production (unless you want that)
Go into the tag -> Advanced -> Tag Template.
Paste the code from tealium-iq/tags/mochachai.js and click "Apply"
Add any Load Rules to further restrict the test execution further (e.g. only if a certain "testing cookie" is active)
Save the tag.
Move the tag to the end of the execution order so it is the last one to fire.

Extensions

a) Mocha Chai JS Tests Definition and Helper Functions

Create a "Pre-Loader" Extension of type "Advanced JavaScript" and name it "MochaChai Data Layer Test Map & Helpers"
Add the code from tealium-iq/extensions/eventMapAndHelpers.js.
Approve the Extension to all environments where you want it to run (you should not run it on PROD).

b) Mocha Chai JS Tests Runner

Create another "Pre-Loader" Extension of type "Advanced JavaScript".
Add the code from tealium-iq/extensions/mochachai-iq-extension.js.
Approve the Extension to all environments where you want it to run (you should not run it on PROD).
Make sure that this Extension comes AFTER the "MochaChai Data Layer Test Map & Helpers" created under a)

c) All Tags Extension (optional) to define the event_name

If you do not have an event_name variable in your data layer already, you need to define this variable for all Data Layer Events that Tealium processes. See notes further down on how to create a good event name.
Create an "All Tags" Extension of type "Advanced JavaScript".
Add the code from tealium-iq/extensions/example-define-event-name.js and adjust the code so it makes sense for your setup.

Now publish your Tealium Profile. You should be seeing the MochaChai JS tests running now.

Log to the console instead of the browser window (optional)

To enable logging mocha test results to the console instead of the browser window, you can set a cookie "mocha2console" to any value, e.g. by executing this in your browser console:

document.cookie = "mocha2console=123";

To change the criteria for logging to the console, change document.cookie.indexOf("mocha2console") !== -1 in the tag template (tealium-iq/tags/mochachai.js) to anything that makes sense for your case.

Run scenarios automatically

This framework can also be a good anchor point for automatically run scenarios like a checkout. To record and (re-)run or export/import scenarios, you can use Chrome Recorder, part of Chrome’s Developer Tools. Check out this video how to: https://www.youtube.com/watch?v=TLJCfYltMEc

Tealium Functions (server-side testing)

This guide assumes you have a running connection already between your Tealium iQ profile and your Tealium Customer Data Hub (CDH) profile (see this guide otherwise).

Go to Tealium CDH.
Create an Event Feed under Event Stream -> Live Events. The Event Feed should include all Events you want to run tests against (e.g. all Events from production environments and website X or Y).
- If you have a lot of traffic, you might want to sample the traffic by setting a cookie to a random number between 1 and 100 in Tealium iQ and including only those with a number higher than e.g. 80 in the stream.
Go to "Functions" -> Create a Tealium Function of the type "(After) Processed Event".
Paste the code from tealium-functions/unit_test.js.
Save and Publish your CDH Profile.

Gulp Build Functionality

To benefit from the automatic building of the JS test map and shared helper functions via gulp, run npm install and check the last chapter in this guide.

Event Names

All tests are triggered by Event Names. The Event Name is identified via the Data Layer variable event_name. An Event Name is whatever you define it to be. An example could be a concatenation (separator: __ (double underscore) of:

the Tealium Event ("view"/"link") plus
- component_category + "_" + component_subcategory
  - or page_type
    - or "na" if neither of the above (unspecific pageviews)

Examples:

link__srchFilter__select
view__ecommerce__purchase

The Data Layer Test code will look if there is a test defined for the given Event Name in the testing map (TMSHelper.event2DLVarMap) . If so, it imports the test schema and execute the test.

The `allEvents` and `allProdEvents` Tests

Even if an event name has no specific test defined yet, the allEvents test will always run. Similarly, if an Event has a prod_id property, it is assumed that this is a product-specific Event, so the allProdEvents test will also run. In these "all-encompassing" tests, you should specify all the variables that should always be there and what they are expected to look like.

This allows you to reduce the event-specific test definitions to only those variables that are different for that particular event. So the more you handle in the allEvents and allProdEvents tests, the more you can scale your tests and avoid redundancies.

What is a good Event Name?

Make sure to define your event names not too granularly so you don't need to write too many tests for very similar events (see "Importing (referencing) other test definitions" below on how to set up your test definitions with as little redundancy as possible)). E.g. an event name containing the URL Path is too low-granular, because it would assume that every page has its own data layer test.

Test Schemas ("globals")

The actual test schemas (in the shared/globals folder) are JSON files named after the event name + .json, e.g. view__ecommerce__purchase.json. Some examples have been provided in that folder for you to get started. The actual test definitions in your case of course depend on your specific data layer.

For example, this is how the test schema could look like for PDP Views:

{
  "import": [
    "ecommerceGeneralTemplate"
  ],
  "eventSchema": {
    "populatedAndOfType": {
      "url_permaLink_de": "string",
      "order_id": "!!"
    },
    "fullOrRegExMatch": {
      "prod_action": "detail",
      "prod_id": "/\\d+/",
      "page_type": "Product"
    },
    "functionMatch": {
      "prod_cat_l1": "checkCategoryNames"
    }
  }
}

See the following paragraphs to illustrate this example:

Importing (referencing) other test definitions

The eventSchema property is used to define the test schema for the given event. It overrides any other imported definitions.

The eventSchema property is mandatory if the schema requires imports. If there are no imports, you can directly write the test definitions (without eventSchema around them).

The import property is used to import entire predefined test schemas. Here, we import the ecommerceGeneralTemplate schema which could contain all variables common for all e-commerce events. This means we do not have to define commonly shared tests in each event schema again.

You can import multiple test schemas. If the same data layer variable is defined in multiple imported schemas, the definition from the last imported schema wins.

Example for importing schemas

Event ecommerce_add_pdp.json

defines a fullOrRegExpMatch (see below) test: "var_a": "1" (var_a has to equal "1")
imports ["tpl_cartAddEvents"]

tpl_cartAddEvents.json

defines a fullOrRegExpMatch (see below) test: "var_a": "2" (var_a has to equal "2")
defines another test: "var_b": "/som.RegExp/"

=> The final testSchema will be

"var_a": "1" because the highest eventSchema (the first one to be loaded, in this example is ecommerce_add_pdp) " wins" in case of conflicting test definitions)
"var_b": "/som.RegExp/" -> was not overridden by another definition in ecommerce_add_pdp

Test Types

The test schema is a JSON file and can have the following properties (test definitions):

populatedAndOfType
fullOrRegExMatch
functionMatch

They are explained as follows:

populatedAndOfType

Checks if the data layer variable is populated and of the given type. Supported types are JS return values of typeof ( e.g. "object", "string") plus "array". The Helper Function (in templates/helpers) TMSHelper.typeOf is for this. It mimicks Tealium's own ut.typeOf function.

Special Commands:

** = "optional". Example: "url_permaLink_de": "**string" (url_permaLink is not mandatory, but if it is part of the data layer, it has to be a string)
!! = "must not be populated". Example: "order_id": "!!". Test passes if the given data layer variable is not populated ( not undefined, null, "", false, []).
switch statements (if var a == b, then c == d): see Logical Tests (Switch Statements) below

Example:

{
  "populatedAndOfType": {
    "url_permaLink_de": "string",
    "prod_action": "array",
    "user_debid": "**string",
    "order_id": "!!"
  }
}

fullOrRegExMatch

Checks ...

if a data layer variable's value matches the given Regular Expression (string starting and ending with "/", e.g. "variable": "/^Regexp-as-string\\! So-Backslashes-need-to-be-doublescaped$/")
or is equal to the given value ("variable": "exactlyThisValuePlease")

It is also possible to add links to predefined Regular Expressions with //name. The Regexes are stored in the TMSHelper Object and you can add to them by changing the shared/templates/helpers.js file. For example, "//positiveInt" will check TMSHelper.positiveInt. If the definition of TMSHelper.positiveInt (a positive integer number) ever changes, you don't need to update all test schemas using it.

Example:

{
  "fullOrRegExMatch": {
    "prod_action": "detail",
    "prod_stock": "/^(n|[1-9]\\d*)$/",
    "page_type": "Product",
    "prod_id": "//positiveInt"
  }
}

Logical Tests (Switch Statements)

In more complex cases, you can use switches to check if a given data layer variable's value matches the given RegEx depending on the given switch Key. This works for populatedAndOfType and fullOrRegExMatch.

Example below: Check url_rootDomain and switch on ut.profile. The default allows you to specify a fallback (in case ut.profile does not match any of the other values provided).

Example:

{
  "fullOrRegExMatch": {
    "url_rootDomain": {
      "switch": {
        "ut.profile": {
          "main": "maindomain.ch",
          "profile2": "/(value1|value2|value3)\\.ch/",
          "anotherprofile": "/(value4|value5)\\.ch/",
          "default": "unexpected domain"
        }
      }
    }
  }
}

functionMatch

For more complex logic, the functionMatch logic allows to run a custom JS function that must be part of the TMSHelper.functionMatchFunctions object (see template/helpers). Functions must return true or false if the test is (not) passed.

{
  "functionMatch": {
    "page_type": "validatePageTypeOnSearch"
  }
}

This will run TMSHelper.functionMatchFunctions.validatePageTypeOnSearch(eventData, "value of page_type")

Array Variables

If your variable to test is an array (e.g. for product list tracking), don't worry. The tests will automatically validate every Array element.

Ignore Variables by Tealium Profile

In many cases, you want to ignore certain data layer variables on a specific platform (=Tealium Profile). For this, you add this variable to the TMSHelper.ignoreKeysForPlatform ignore list (in shared/templates/helpers.js):

TMSHelper.ignoreKeysForPlatform = {
    "profile1": ["variable_that_never_exists_on_profile1"],
    "profile2": [
        "cp.a_cookie_variable_that_never_exists_on_profile2",
        "some_other_variable_that_never_exists_on_profile2"
    ]
};

In the example above, if the data layer Event is sent from Tealium profile "profile2", no data layer tests will be run for variables cp.a_cookie_variable_that_never_exists_on_profile2 and some_other_variable_that_never_exists_on_profile2.

Error Logging

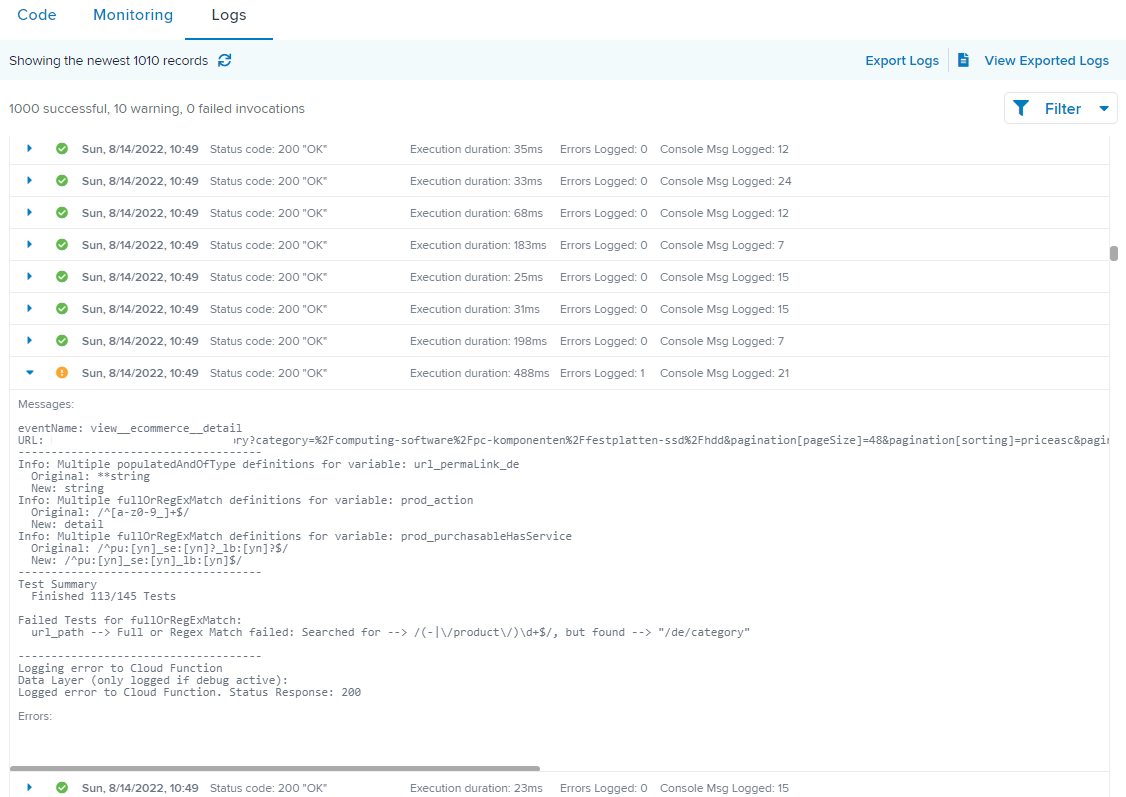

Tealium Function Logs

At the end of the Test Script, the error object and some context messages are printed to the Tealium logs if it contains errors. Filter the logs for "Exceptions" to see all failed tests.

Gulp Workflows to automatically build the Test Maps after changes

Gulp Workflows are used to automatically put all the pieces together without tedious copy-paste effort. Run npm install once to install the necessary libraries and dependencies from package.json.

Full Build

After changing a test definition or a helper function, simply run gulp build from your terminal. After that, you only need to a) copy the updated tealium-iq/extensions/eventMapAndHelpers.js to the corresponding Extension in Tealium iQ. b) update your Tealium Function with updated tealium-functions/unit_tests.js file.

More Details

If you want to find out more about the Gulp Workflows, read on.

gulp build actually does the following things:

update the shared helper functions (including the functions used for "Function Matches" tests) used by both Mocha and Tealium Functions
generate a concatenated Event Map JS Object by concatenating all .json files (all test schemas) in shared/globals
Inserts both the as well as minified versions of them and inserts them also into extensions/eventMapAndHelpers.js Extension
Insert the updated Event Map into the Tealium Function (functions/unit_test.js)

The following explains each of the build actions:

1. Update shared Helper Functions

The client-side Mocha tests share most Helper functions with the server-side Tealium functions. To avoid duplicate maintenance effort, the shared functions are located in shared/templates/helpers.js. Only edit them there.

After updates to the helper functions, this task also re-inserts them (in minified form) into the Tealium Function ( unit_test.js).

You can trigger the task individually via gulp updateHelpers.

2 and 3. Generate concatenated Event Map & Helpers Files

Concatenates all JSON test schemas and Helper Functions into one file (shared/templates/eventMap.js and eventMapAndHelpers.js plus minified versions). The eventMapAndHelpers.min.js is also copied to tealium-iq/extensions/eventMapAndHelpers.js. After that, you can simply copy the code from there to the "Event Map & Helpers" Extension in Tealium.

4. Insert updated Event Map into Tealium Function (unit_test.js)

Updates the Tealium Function (unit_test.js) with eventMap.min.js. gulp updateTFMap

Support / Questions

Raise your questions in this repo or via email to lukas.oldenburg at dim28.ch.
