These are some simple games for the MicroView device, a little Arduino Uno compatible board with a built-in 64x48 pixel OLED display.

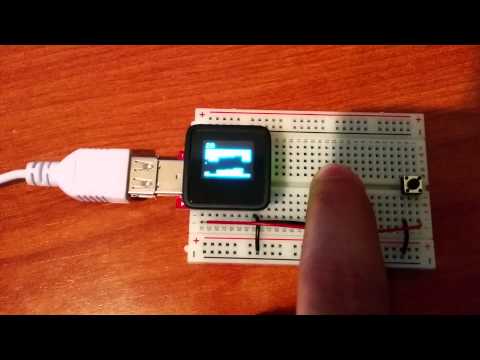

It's a mix between Flapy Bird and that old Copter game. I think the code is self explanatory, and you only have to put a push button between a data pin (A0 / pin 7 by default) and GND (pin 8) to play.
The other button shown on the video is just to reset the MicroView.

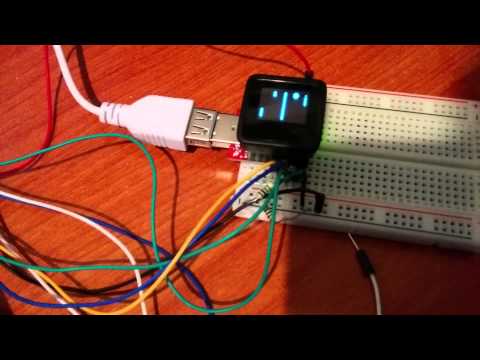

As the name suggests, it's a Pong game. It's for two players only, and I've used the original Atari CX30 Paddle Controllers. The wiring is really simple, as each controller only has a push button and a 1MΩ potentiometer.
This is how I wired the controllers and the MicroView:
| Signal | DB-9 Connector Pin | MicroView Pin |
|---|---|---|
| GND | 8 | 8 |
| Vcc | 7 | 15 |
| P1 Button | 3 | 7 |
| P2 Button | 4 | 6 |
| P1 Paddle | 9 | 5 |
| P2 Paddle | 5 | 4 |
As the potentiometer is not wired internally to GND, you have to put two 1MΩ resistors between pins 4 & 5 from the MicroView and pin 8.

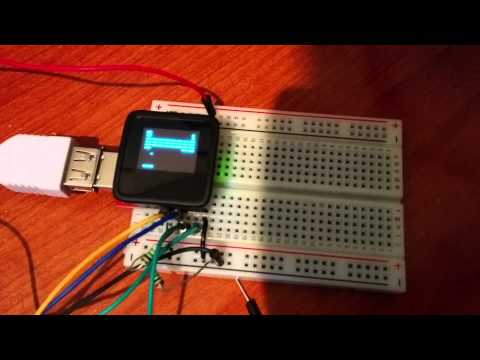

Using some code from the previous games I made a BreakOut clone. Do you know a system without one?
The wiring is the same as before, but only Player 1 inputs are used.
