A simple Alexa TV Remote Skill

Primary LanguagePython

alexa-tv-remote

This is a simple fun project to send commands to your TV using a standard Alexa skill. Once created, Alexa will invoke your Lambda function, which will interpret your response and publish the required command into an AWS IOT topic. The Raspberry Pi (RPi) subscribes to this topic and converts the received messages into IR pulses for your TV to interpret.

The Alexa Skill Kit also has a Video skill, which provides a fixed set of phrases and requires OAuth in order to bind to your device, feel free to use this skill as a starting point if you want to go down this route!

Further improvements to this skill could be as follows:

  • Improve the voice interface to make it less clunky
  • Allow the user to show the EPG and scroll
  • Allow the user to change the input mode (ex. HDMI1, DVI)
  • Allow the user to ask for a programme, it would be expected that the correct channel would be found or a schedule/reminder could be set.

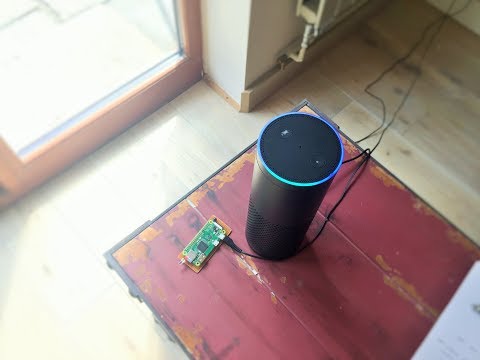

Youtube Video

Youtube Video

https://www.youtube.com/watch?v=9lI3Rk-w2vo

Finding your way round

Below is a breakdown of the folders and files of this project, each is explained more within this README.md file.

alexa
 - ask.json (Intent document for the Alexa skill configuration)
lambda
 - lambda.py (Lambda Skill which is invoked by the Alexa Skill Service)
 - resources.yaml (CloudFormation template to setup deployment resources and IOT policies)
 - serverless.yml (Serverless Framework configuration for deploying the Lambda function)
 - serverless.env.yml (Serverless Framework environmental file, you will need to edit this file)
rpi
 - rpi.py (RPI python script, you will need LIRC and AWSIoTPythonSDK to use this)

Alexa

The Alexa folder contains the skill configuration required for interacting with the Lambda function. This skill configuration will be uploaded during the Alexa skill creation.

Lambda

The Lambda folder contains all the files needed to setup a Lambda function and the necessary IAM roles and policies needed for the service to function correctly and make deployments easy.

RPi

The RPi folder contains the python script which receives messages from AWS IOT and sends them to the LIRC daemon, causing an Infra-Red LED to be activated as required to send information to the TV.

Getting started

Prerequites

Git clone this repository onto your computer, you will need the files in order to deploy them into AWS and your RaspberryPi.

git clone https://github.com/martysweet/alexa-tv-remote.git

Lambda

To get started, you need an AWS account. If you don't already have one, you can signup at https://aws.amazon.com/free.

Once you have logged in, you will need to deploy the resources.yaml template via Cloudformation in your desired region. In this example, we will use eu-west-1.

  1. Create New Stack
  2. Upload the lambda/resources.yaml file
  3. Name the stack alexa-tv-remote
  4. Click next a few times
  5. Check 'I acknowledge that AWS CloudFormation might create IAM resources.'
  6. Click Create

You can see the following resources which have been created by looking at the 'Outputs' section.

Deployed CloudFormation

For reference, we have the following resources created:

  • arn:aws:iam::062003756207:role/alexa-tv-remote-ApplicationRole-1IO44IHND9BGT
  • arn:aws:iam::062003756207:user/alexa-tv-remote-DeploymentUser-P4618MAD7BAG
  • alexa-tv-remote-deploymentbucket-fqcs8cex2orr
  • alexa-tv-remote-IotPolicy-OGD6CZAM8KVZ

Next we need to setup access keys for our deployment user. Navigate to IAM in the AWS Console, click on 'Users' and locate your created alexa-tv-remote-DeploymentUser. Click on the user, click on the 'Security Credentials' tab and finally click 'Create Access Key'.

Copy the Access key ID and Secret access key to somewhere, like a notepad. You should treat these keys as private, anyone with access to them will have access into your AWS account!

Once you have created an access key, your IAM user should look similar to this.

IAM Deploy User

Once the deployment user has active access keys, we are going to create we need to setup our AWS CLI command line tool.

First, ensure you have the AWS CLI installed then run the below command to configure the Access Keys and Secret Key into a profile called alexa-tv-remote.

$ aws configure --profile alexa-tv-remote
AWS Access Key ID [None]: MYACCESSKEYIJUSTCREATED
AWS Secret Access Key [None]: MYSECRETKEYIJUSTCREATED
Default region name [eu-west-1]: eu-west-1
Default output format [json]: json

Great! Next, ensure you have the serverless framework installed by following this guide.

Now we can use the serverless framework to deploy our Lambda function using the deployment user we created above. Within this project, make sure you are working in the lambda directory.

$ cd lambda
$ pwd
/your/dev/path/alexa-tv-remote/lambda

Update the serverless.env.yml file with the outputs of the CloudFormation template we created earlier.

Serverless Config

Now, lets deploy with serverless! $ serverless deploy --stage prod

Serverless Deployment

If that worked, you should see a Lambda function within the AWS Console. This function will be triggered by the Alexa service when a user asks Alexa for the skill.

Lambda Deployed

Take a note of your Lambda Amazon Resource Name (ARN), you will need this later. In our example, the ARN is:

  • arn:aws:lambda:eu-west-1:062003756207:function:alexa-tv-remote-prod-skill

AWS IOT

The next step is to setup your AWS IOT device, and download the certificates which your RaspberryPi will use to authenticate itself with the service.

The Lambda function we setup above will use the IOT service to send messages in real time your the RaspberryPi, which will use the messages to control the IR LED.

First, go to the AWS IOT service within the AWS Console. If you are a new user, you may need to click 'Get Started'. From there, click 'Registry' then 'Things'.

IOT Register Thing

We are going to name the thing alexa-tv-remote-thing.

IOT Thing Name

Click 'Create Thing', then click on 'Security'.

IOT Create Certificate Splash

Click 'Create Certificate'.

IOT Certificate Created

From this page, download all 4 certificates and save them into the rpi folder within your local copy of this repository. When downloading the root CA certificate, be sure to name it root-CA.crt. Your folder should then look like the following:

IOT Downloaded Certificates

By default, the rpi.py script expects root-CA.crt, private.pem.key and client.crt, so we will rename our certificates to meet those file names.

$ cd rpi
$ mv 68be1a2be9-certificate.pem.crt client.crt
$ mv 68be1a2be9-private.pem.key private.pem.key

We will be using those certificates shortly. Back in the AWS Console, click on the 'Active' button then click the 'Attach a Policy' button and select the alexa-tv-remote-.... policy which the CloudFormation template created earlier. Click the 'Done' button once selected.

IOT Select Policy

Great! That's all that's needed in the AWS IOT console, we will test out the certificates in the RPi section below.

Alexa

To create an Alexa skill, log into the AWS Develop Console and be sure to click on the 'Alexa' tab then 'Alexa Skills Kit'. Next, click on 'Add new Skill'.

Fill in the fields as below:

Alexa Create Skill

Click save, next launch the beta 'Skill Builder'

Alexa Interaction model

Click on 'Code Editor', then drag and drop the alexa/ask.json file into your browser. Click 'Apply Changes', 'Save Model' then 'Build Model'.

Alexa Code Editor

Once the model has successfully built, click 'Configuration'. Populate the Lambda invocation ARN with the Lambda functions ARN we created earlier and click 'Next'.

Alexa Lambda Configuration

Great! Our Alexa skill is setup! Let's run a quick test in the next section to ensure everything is working as expected.

Testing Alexa -> Lambda -> IOT

First, pop back to the AWS IOT console and open the 'Test' section. From here we can subscribe to topics to check the Lambda function is outputting data which is going to be consumed by the RapsberryPi. Enter alexa-tv-remote and click 'Subscribe to Topic'. Click on the topic to the left to see the stream.

IOT Subscribe Test

Next, we are going to use the Alexa similator to invocate the lambda fucntion which will push a message into the IOT topic. Pop back to the Alexa testing panel and enter the following phrase "change channel to BBC News" before clicking 'Ask Alexa TV Remote'.

Alexa Test Request

If all has gone well, you should see the following message on the IOT Topic!

IOT Test Request

This array is going to tell the RapsberryPi to send infrared signals for KEY_1, KEY_3 then KEY_0 in sequence, changing channel to 130, which is BBC News on Freeview.

RPi

To setup the hardware for your RapsberryPi, use the following tutorial http://www.raspberry-pi-geek.com/Archive/2015/10/Raspberry-Pi-IR-remote.

Note additionally you may need to add the following to your /boot/config.txt file, where the GPIO pin matches the one you will be using then reboot.

dtoverlay=lirc-rpi,gpio_out_pin=5

You can test the setup has worked by manually invoking LIRC using the irsend command.

Next, if you are working on another machine, copy your rpi folder onto your RPi along with all the certificates created earlier.

pi@raspberrypi:~ $ mkdir alexa-tv-remote
user@desktop:PROJECTPATH $ scp rpi/* pi@rpi-ip-address:~/alexa-tv-remote/
pi@raspberrypi:~ $ cd alexa-tv-remote && ls -lh
-rw-r--r-- 1 pi pi  451 Jun 18 11:56 68be1a2be9-public.pem.key
-rw-r--r-- 1 pi pi 1.2K Jun 18 11:56 client.crt
-rw-r--r-- 1 pi pi 1.7K Jun 18 11:56 private.pem.key
-rw-r--r-- 1 pi pi 1.8K Jun 18 11:56 root-CA.crt
-rw-r--r-- 1 pi pi 2.0K Jun 18 11:56 rpi.py

Next, install the AWSIotPythonSDK onto the RPI.

pi@raspberrypi:~/alexa-tv-remote $ pip install AWSIoTPythonSDK -t .
Downloading/unpacking AWSIoTPythonSDK
  Downloading AWSIoTPythonSDK-1.1.1.tar.gz (55kB): 55kB downloaded
  Running setup.py (path:/tmp/pip-build-0TSMsZ/AWSIoTPythonSDK/setup.py) egg_info for package AWSIoTPythonSDK

Installing collected packages: AWSIoTPythonSDK
  Running setup.py install for AWSIoTPythonSDK

Successfully installed AWSIoTPythonSDK
Cleaning up...

Now lets run it! Once it's running, use the Alexa development portal to resend the test request to made above. If all goes well, you should see the message be received and your TV should change channel!

pi@raspberrypi:~/alexa-tv-remote $ python rpi.py
2017-06-18 12:01:14,655 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Paho MQTT Client init.
2017-06-18 12:01:14,658 - AWSIoTPythonSDK.core.protocol.mqttCore - INFO - ClientID: alexa-tv-remote-device
2017-06-18 12:01:14,659 - AWSIoTPythonSDK.core.protocol.mqttCore - INFO - Protocol: MQTTv3.1.1
2017-06-18 12:01:14,663 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Register Paho MQTT Client callbacks.
2017-06-18 12:01:14,667 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - mqttCore init.
2017-06-18 12:01:14,670 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Load CAFile from: root-CA.crt
2017-06-18 12:01:14,674 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Load Key from: private.pem.key
2017-06-18 12:01:14,677 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Load Cert from: client.crt
2017-06-18 12:01:14,681 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Custom setting for backoff timing: baseReconnectTime = 1 sec
2017-06-18 12:01:14,684 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Custom setting for backoff timing: maximumReconnectTime = 32 sec
2017-06-18 12:01:14,687 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Custom setting for backoff timing: minimumConnectTime = 20 sec
2017-06-18 12:01:14,691 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Custom setting for publish queueing: queueSize = -1
2017-06-18 12:01:14,694 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Custom setting for publish queueing: dropBehavior = Drop Newest
2017-06-18 12:01:14,698 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Custom setting for draining interval: 0.5 sec
2017-06-18 12:01:14,701 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Set maximum connect/disconnect timeout to be 10 second.
2017-06-18 12:01:14,705 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Set maximum MQTT operation timeout to be 5 second
2017-06-18 12:01:14,709 - AWSIoTPythonSDK.core.protocol.mqttCore - INFO - Connection type: TLSv1.2 Mutual Authentication
2017-06-18 12:01:15,270 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Connect result code 0
2017-06-18 12:01:15,272 - AWSIoTPythonSDK.core.protocol.mqttCore - INFO - Connected to AWS IoT.
2017-06-18 12:01:15,276 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Connect time consumption: 60.0ms.
2017-06-18 12:01:15,283 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Started a subscribe request 1
2017-06-18 12:01:15,330 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - _resubscribeCount: -1
2017-06-18 12:01:15,332 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Subscribe request 1 sent.
2017-06-18 12:01:15,342 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Subscribe request 1 succeeded. Time consumption: 50.0ms.
2017-06-18 12:01:15,344 - AWSIoTPythonSDK.core.protocol.mqttCore - DEBUG - Recover subscribe context for the next request: subscribeSent: False
Received a new message:
["KEY_1", "KEY_3", "KEY_0"]
from topic:
alexa-tv-remote
--------------

You will now be able in invoke you skill using the following methods, and the request will get through to your RapsberryPi.

  • Alexa, ask television to change channel to channel 4
  • Alexa, ask television to change channel to Quest
  • Alexa, open television
    • change channel to channel 4

Feel free to experiment within the Skill Builder to improve the interface in which you can interact with the Alexa skill!

Questions

If you have any questions, open an issue with as much information as possible. Be sure to obscure any private/secret information, such as your deployment keys and account id.
