ZTE H388X (TIM HUB+) Custom Component for Home Assistant

A Home Assistant (HA) custom component for the ZTE H388X (TIM HUB+) router.

Features

Supports both xDSL (ADSL/VDSL) and FTTH (SFP/Ethernet) connections.
Retrieves details including:
- Connection status (connected/disconnected)
- Line statistics (downstream/upstream rates, SNR margin, attenuation, profile, CRC/FEC errors, TX/RX power, etc.)
- Connection uptime
- Bytes and packets received/sent
- WAN IP address and DNS servers
- MAC addresses
- And more...

See the full list of entities

  - zteh388x_dsl_atuc_fec_errors
  - zteh388x_dsl_currentprofile
  - zteh388x_dsl_data_path
  - zteh388x_dsl_downcrc_errors
  - zteh388x_dsl_downinterleavedelay
  - zteh388x_dsl_downinterleavedepth
  - zteh388x_dsl_downstream_attenuation
  - zteh388x_dsl_downstream_current_rate
  - zteh388x_dsl_downstream_max_rate
  - zteh388x_dsl_downstream_noise_margin
  - zteh388x_dsl_downstream_power
  - zteh388x_dsl_downstreaminp
  - zteh388x_dsl_enable
  - zteh388x_dsl_fec_errors
  - zteh388x_dsl_link_retrain
  - zteh388x_dsl_module_type
  - zteh388x_dsl_showtime_start
  - zteh388x_dsl_status
  - zteh388x_dsl_tlinkencapsulationused
  - zteh388x_dsl_upcrc_errors
  - zteh388x_dsl_upinterleavedelay
  - zteh388x_dsl_upinterleavedepth
  - zteh388x_dsl_upstream_attenuation
  - zteh388x_dsl_upstream_current_rate
  - zteh388x_dsl_upstream_max_rate
  - zteh388x_dsl_upstream_noise_margin
  - zteh388x_dsl_upstream_power
  - zteh388x_dsl_upstreaminp
  - zteh388x_ethernet_bytesreceived
  - zteh388x_ethernet_bytessent
  - zteh388x_ethernet_if_errorid
  - zteh388x_ethernet_lastchange
  - zteh388x_ethernet_linkduplex
  - zteh388x_ethernet_linkspeed
  - zteh388x_ethernet_macaddress
  - zteh388x_ethernet_packetsreceived
  - zteh388x_ethernet_packetssent
  - zteh388x_ethernet_singlerxstrength
  - zteh388x_ethernet_singlestatus
  - zteh388x_ethernet_singletxstrength
  - zteh388x_ethernet_status
  - zteh388x_internet_ad_atmencapsulation
  - zteh388x_internet_ad_atmqos
  - zteh388x_internet_ad_authtype
  - zteh388x_internet_ad_connerror
  - zteh388x_internet_ad_connstatus
  - zteh388x_internet_ad_connstatus6
  - zteh388x_internet_ad_conntrigger
  - zteh388x_internet_ad_destaddress
  - zteh388x_internet_ad_dns1
  - zteh388x_internet_ad_dns2
  - zteh388x_internet_ad_dns3
  - zteh388x_internet_ad_enablepassthrough
  - zteh388x_internet_ad_gateway
  - zteh388x_internet_ad_ipaddress
  - zteh388x_internet_ad_ipmode
  - zteh388x_internet_ad_isnat
  - zteh388x_internet_ad_linkmode
  - zteh388x_internet_ad_mode
  - zteh388x_internet_ad_mtu
  - zteh388x_internet_ad_pagetype
  - zteh388x_internet_ad_strservlist
  - zteh388x_internet_ad_sub_destaddress0
  - zteh388x_internet_ad_sub_destaddress1
  - zteh388x_internet_ad_subnetmask
  - zteh388x_internet_ad_transtype
  - zteh388x_internet_ad_uplink
  - zteh388x_internet_ad_uptime
  - zteh388x_internet_ad_username
  - zteh388x_internet_ad_vlanenable
  - zteh388x_internet_ad_wancname
  - zteh388x_internet_ad_wantype
  - zteh388x_internet_ad_workifmac
  - zteh388x_internet_ad_xdslmode
  - zteh388x_internet_eth_authtype
  - zteh388x_internet_eth_connerror
  - zteh388x_internet_eth_connstatus
  - zteh388x_internet_eth_connstatus6
  - zteh388x_internet_eth_conntrigger
  - zteh388x_internet_eth_dns1
  - zteh388x_internet_eth_dns2
  - zteh388x_internet_eth_dns3
  - zteh388x_internet_eth_enablepassthrough
  - zteh388x_internet_eth_gateway
  - zteh388x_internet_eth_ipaddress
  - zteh388x_internet_eth_ipmode
  - zteh388x_internet_eth_isnat
  - zteh388x_internet_eth_linkmode
  - zteh388x_internet_eth_mode
  - zteh388x_internet_eth_mtu
  - zteh388x_internet_eth_pagetype
  - zteh388x_internet_eth_priority
  - zteh388x_internet_eth_strservlist
  - zteh388x_internet_eth_subnetmask
  - zteh388x_internet_eth_transtype
  - zteh388x_internet_eth_uplink
  - zteh388x_internet_eth_uptime
  - zteh388x_internet_eth_username
  - zteh388x_internet_eth_vlanenable
  - zteh388x_internet_eth_vlanid
  - zteh388x_internet_eth_wancname
  - zteh388x_internet_eth_wantype
  - zteh388x_internet_eth_workifmac
  - zteh388x_internet_eth_xdslmode
  - zteh388x_internet_fwa_addressingtype
  - zteh388x_internet_fwa_connerror
  - zteh388x_internet_fwa_connstatus
  - zteh388x_internet_fwa_dns1
  - zteh388x_internet_fwa_dns2
  - zteh388x_internet_fwa_dns3
  - zteh388x_internet_fwa_gateway
  - zteh388x_internet_fwa_ipaddress
  - zteh388x_internet_fwa_ipmode
  - zteh388x_internet_fwa_isnat
  - zteh388x_internet_fwa_linkmode
  - zteh388x_internet_fwa_mode
  - zteh388x_internet_fwa_mtu
  - zteh388x_internet_fwa_pagetype
  - zteh388x_internet_fwa_priority
  - zteh388x_internet_fwa_remainleasetime
  - zteh388x_internet_fwa_strservlist
  - zteh388x_internet_fwa_subnetmask
  - zteh388x_internet_fwa_uplink
  - zteh388x_internet_fwa_uptime
  - zteh388x_internet_fwa_vlanenable
  - zteh388x_internet_fwa_vlanid
  - zteh388x_internet_fwa_wancname
  - zteh388x_internet_fwa_wantype
  - zteh388x_internet_fwa_workifmac
  - zteh388x_internet_fwa_xdslmode
  - zteh388x_internet_vd_authtype
  - zteh388x_internet_vd_connerror
  - zteh388x_internet_vd_connstatus
  - zteh388x_internet_vd_connstatus6
  - zteh388x_internet_vd_conntrigger
  - zteh388x_internet_vd_dns1
  - zteh388x_internet_vd_dns2
  - zteh388x_internet_vd_dns3
  - zteh388x_internet_vd_enablepassthrough
  - zteh388x_internet_vd_gateway
  - zteh388x_internet_vd_ipaddress
  - zteh388x_internet_vd_ipmode
  - zteh388x_internet_vd_isnat
  - zteh388x_internet_vd_linkmode
  - zteh388x_internet_vd_mode
  - zteh388x_internet_vd_mtu
  - zteh388x_internet_vd_pagetype
  - zteh388x_internet_vd_priority
  - zteh388x_internet_vd_strservlist
  - zteh388x_internet_vd_subnetmask
  - zteh388x_internet_vd_transtype
  - zteh388x_internet_vd_uplink
  - zteh388x_internet_vd_uptime
  - zteh388x_internet_vd_username
  - zteh388x_internet_vd_vlanenable
  - zteh388x_internet_vd_vlanid
  - zteh388x_internet_vd_wancname
  - zteh388x_internet_vd_wantype
  - zteh388x_internet_vd_workifmac
  - zteh388x_internet_vd_xdslmode
  - zteh388x_iptv_ad_addressingtype
  - zteh388x_iptv_ad_atmencapsulation
  - zteh388x_iptv_ad_atmqos
  - zteh388x_iptv_ad_connerror
  - zteh388x_iptv_ad_connstatus
  - zteh388x_iptv_ad_destaddress
  - zteh388x_iptv_ad_dns1
  - zteh388x_iptv_ad_dns2
  - zteh388x_iptv_ad_dns3
  - zteh388x_iptv_ad_gateway
  - zteh388x_iptv_ad_ipaddress
  - zteh388x_iptv_ad_ipmode
  - zteh388x_iptv_ad_isnat
  - zteh388x_iptv_ad_linkmode
  - zteh388x_iptv_ad_mode
  - zteh388x_iptv_ad_mtu
  - zteh388x_iptv_ad_pagetype
  - zteh388x_iptv_ad_remainleasetime
  - zteh388x_iptv_ad_strservlist
  - zteh388x_iptv_ad_sub_destaddress0
  - zteh388x_iptv_ad_sub_destaddress1
  - zteh388x_iptv_ad_subnetmask
  - zteh388x_iptv_ad_uplink
  - zteh388x_iptv_ad_uptime
  - zteh388x_iptv_ad_vlanenable
  - zteh388x_iptv_ad_wancname
  - zteh388x_iptv_ad_wantype
  - zteh388x_iptv_ad_workifmac
  - zteh388x_iptv_ad_xdslmode
  - zteh388x_iptv_eth_addressingtype
  - zteh388x_iptv_eth_connerror
  - zteh388x_iptv_eth_connstatus
  - zteh388x_iptv_eth_dns1
  - zteh388x_iptv_eth_dns2
  - zteh388x_iptv_eth_dns3
  - zteh388x_iptv_eth_gateway
  - zteh388x_iptv_eth_ipaddress
  - zteh388x_iptv_eth_ipmode
  - zteh388x_iptv_eth_isnat
  - zteh388x_iptv_eth_linkmode
  - zteh388x_iptv_eth_mode
  - zteh388x_iptv_eth_mtu
  - zteh388x_iptv_eth_pagetype
  - zteh388x_iptv_eth_priority
  - zteh388x_iptv_eth_remainleasetime
  - zteh388x_iptv_eth_strservlist
  - zteh388x_iptv_eth_subnetmask
  - zteh388x_iptv_eth_uplink
  - zteh388x_iptv_eth_uptime
  - zteh388x_iptv_eth_vlanenable
  - zteh388x_iptv_eth_vlanid
  - zteh388x_iptv_eth_wancname
  - zteh388x_iptv_eth_wantype
  - zteh388x_iptv_eth_workifmac
  - zteh388x_iptv_eth_xdslmode
  - zteh388x_iptv_vd_addressingtype
  - zteh388x_iptv_vd_connerror
  - zteh388x_iptv_vd_connstatus
  - zteh388x_iptv_vd_dns1
  - zteh388x_iptv_vd_dns2
  - zteh388x_iptv_vd_dns3
  - zteh388x_iptv_vd_gateway
  - zteh388x_iptv_vd_ipaddress
  - zteh388x_iptv_vd_ipmode
  - zteh388x_iptv_vd_isnat
  - zteh388x_iptv_vd_linkmode
  - zteh388x_iptv_vd_mode
  - zteh388x_iptv_vd_mtu
  - zteh388x_iptv_vd_pagetype
  - zteh388x_iptv_vd_priority
  - zteh388x_iptv_vd_remainleasetime
  - zteh388x_iptv_vd_strservlist
  - zteh388x_iptv_vd_subnetmask
  - zteh388x_iptv_vd_uplink
  - zteh388x_iptv_vd_uptime
  - zteh388x_iptv_vd_vlanenable
  - zteh388x_iptv_vd_vlanid
  - zteh388x_iptv_vd_wancname
  - zteh388x_iptv_vd_wantype
  - zteh388x_iptv_vd_workifmac
  - zteh388x_iptv_vd_xdslmode
  - zteh388x_sfp_bytesreceived
  - zteh388x_sfp_bytessent
  - zteh388x_sfp_if_errorid
  - zteh388x_sfp_lastchange
  - zteh388x_sfp_linkduplex
  - zteh388x_sfp_linkspeed
  - zteh388x_sfp_macaddress
  - zteh388x_sfp_packetsreceived
  - zteh388x_sfp_packetssent
  - zteh388x_sfp_singlerxstrength
  - zteh388x_sfp_singlestatus
  - zteh388x_sfp_singletxstrength
  - zteh388x_sfp_status
  - zteh388x_voip_fwa_addressingtype
  - zteh388x_voip_fwa_connerror
  - zteh388x_voip_fwa_connstatus
  - zteh388x_voip_fwa_dns1
  - zteh388x_voip_fwa_dns2
  - zteh388x_voip_fwa_dns3
  - zteh388x_voip_fwa_gateway
  - zteh388x_voip_fwa_ipaddress
  - zteh388x_voip_fwa_ipmode
  - zteh388x_voip_fwa_isnat
  - zteh388x_voip_fwa_linkmode
  - zteh388x_voip_fwa_mode
  - zteh388x_voip_fwa_mtu
  - zteh388x_voip_fwa_pagetype
  - zteh388x_voip_fwa_priority
  - zteh388x_voip_fwa_remainleasetime
  - zteh388x_voip_fwa_strservlist
  - zteh388x_voip_fwa_subnetmask
  - zteh388x_voip_fwa_uplink
  - zteh388x_voip_fwa_uptime
  - zteh388x_voip_fwa_vlanenable
  - zteh388x_voip_fwa_vlanid
  - zteh388x_voip_fwa_wancname
  - zteh388x_voip_fwa_wantype
  - zteh388x_voip_fwa_workifmac
  - zteh388x_voip_fwa_xdslmode

Installation and configuration

Download the custom_components/zteh388x folder in this repository.

Copy the zteh388x directory to your Home Assistant /config/custom_components directory (create this directory if it does not exist). Your configuration should look like this:

  config
  └── custom_components
      └── zteh388x
          └── __init__.py
          └── manifest.json
          └── sensor.py
          └── transform.py
          └── interface_mapping.conf

In your configuration file (e.g., configuration.yaml) add the following sensor and replace the default values (host, username, password, linetype, interval):

sensor:
  - platform: zteh388x
    host: 192.168.1.1       # Replace with your router's IP address
    username: admin         # Replace with your router's username
    password: password	    # Replace with your router's password
    linetype: eth           # Use 'eth' for SFP or Ethernet (i.e., external ONT); use 'dsl' for xDSL (ADSL or VDSL)
    interval: 300           # Sensors update interval in seconds; default is 120 seconds

Restart Home Assistant.

Tip

To store your password, consider using the secrets.yaml file instead. Replace the password line with:
password: !secret zteh388x
Then, in secrets.yaml, add the following:
zteh388x: password # Replace with your router's password

Note

If you're using an xDSL (ADSL or VDSL) connection, set linetype: dsl; for a fiber (FTTH) connection using an SFP module or external ONT, set linetype: eth.

To avoid overloading the router with requests, use an interval of 30 seconds or more.

Important

Because the router allows only one admin account (admin), this custom component will terminate any active sessions on the router's management page each time the sensors are refreshed. In case you need to access the management page (e.g., from your computer), either disable the custom component or set a longer update interval.

Note

The router’s 32-bit integer limit causes counters to reset after reaching 2^32 bytes. This affects the bytesreceived and bytessent sensors (available for SFP or Ethernet connections only), which reset approximately every 4 GB.
To mitigate this behavior, the custom component detects the reset and calculates the cumulative value instead. If you restart your Home Assistant instance, the counter will reset by picking the current value available from the router.

(Optional) Interface friendly names

By default, entities will have names like zteh388x_igd.wd2.wcd1.wcppp1_uptime, as these are the names provided by the router's APIs. Here, wdX represents the interface (e.g., DSL, SFP, Ethernet), while wcd1.wcppp1 corresponds to the INTERNET_ETH section in the router's GUI. The following mapping has been defined, however please note that in your case it might be different.

ID	Friendly name
WD3	SFP
WD2	ETH
WD1	DSL

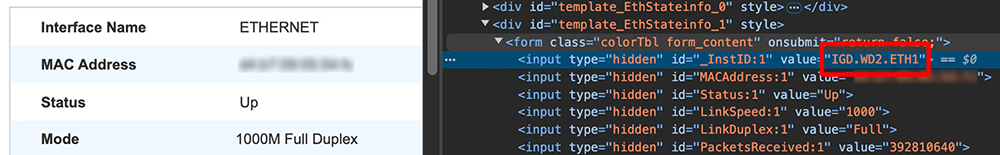

The integration maps these names to the same friendly name appearing in the router's GUI, as shown in the following table:

Line type	Category	ID	Friendly name (GUI)
SFP/Ethernet	Line stats	IGD.WD3.ETH5	SFP
SFP/Ethernet	Line stats	IGD.WD2.ETH1	ETHERNET
SFP/Ethernet	Internet stats	IGD.WD2.WCD1.WCIP1	INTERNET_FWA
SFP/Ethernet	Internet stats	IGD.WD2.WCD1.WCIP2	VOIP_FWA
SFP/Ethernet	Internet stats	IGD.WD2.WCD1.WCIP3	IPTV_ETH
SFP/Ethernet	Internet stats	IGD.WD2.WCD1.WCPPP1	INTERNET_ETH
DSL	Line stats	IGD.WD1.LINE0	DSL
DSL	Internet stats	IGD.WD1.WCD1.WCIP1	IPTV_VD
DSL	Internet stats	IGD.WD1.WCD3.WCIP1	IPTV_AD
DSL	Internet stats	IGD.WD1.WCD1.WCPPP1	INTERNET_VD
DSL	Internet stats	IGD.WD1.WCD2.WCPPP1	INTERNET_AD

To disable mappings and revert to default interface names, edit interface_mapping.conf inside the custom_components/zteh388x directory by commenting out (#) all the lines.
You can also change the exiting mapping or add any new mappings by following the format described in the file.
If needed, you can retrieve the default interface name by inspecting the router’s administrator page, as shown in this example:

(Optional) Debug

The custom component will only log certain errors. For troubleshooting purposes, you can enable debug-level logging.
This will also include the raw XML output from API responses and may significantly increase log size, so enable it only when necessary.
In order to enable debug-level logging, add the following section to your configuration file (e.g., configuration.yaml):

logger:
  default: warning
  logs:
    custom_components.zteh388x: debug

Tested on

Home Assistant (Container) 2024.9.x - 2025.1.x
ZTE H388X - HW: V10.0.0 SW: AGZHP_1.4.0

Possible improvements

Convert the script to asynchronous, per Home Assistant best practices
Test SFP and DSL connections
...

Disclaimer

This software is provided "as-is", without any express or implied warranties. The author is not liable for any damages, legal or regulatory violations resulting from your use of the software.
You use this software at your own risk.
The author is under no obligation to provide maintenance, support, updates, or modifications to the software.
"TIM" and "ZTE", along with their logos, are the property of their respective owners and are used for illustrative purposes only. Their use does not imply any affiliation with or endorsement by these companies.

masoneff3/ha_zteh388x
