Load Balancing CyberArk Servers

There are several services in CyberArk products that requires load balancing:

CyberArk Server	Description
Password Vault Web Access (PVWA)	Web console for CyberArk PAM
Privilege Session Manager (PSM)	Jump host and session recording for CyberArk PAM
PSM Gateway (PSMGW)	Placed in front of PSM to deliver sessions in browser windows, a.k.a. HTML5 Gateway
Central Credential Provider (CCP)	CyberArk Secrets Manager for static, monolithic, traditional, and COTS applications
Conjur	CyberArk Secrets Manager for DevOps and CI/CD applications

For development environments or small-to-mid enterprise environments, deploying state-of-the-art Application Delivery Controllers (ADCs) may not be an optimized solution.
This guide provides an overview on how open source software can help to load balance CyberArk Servers

Lab Environment

Software Versions

Software	Version
CyberArk PAM	12.2
CyberArk CCP	12.2
Conjur	12.5
Load Balancer OS	RHEL 8.5
keepalived	2.1.5
nginx	1.14.1

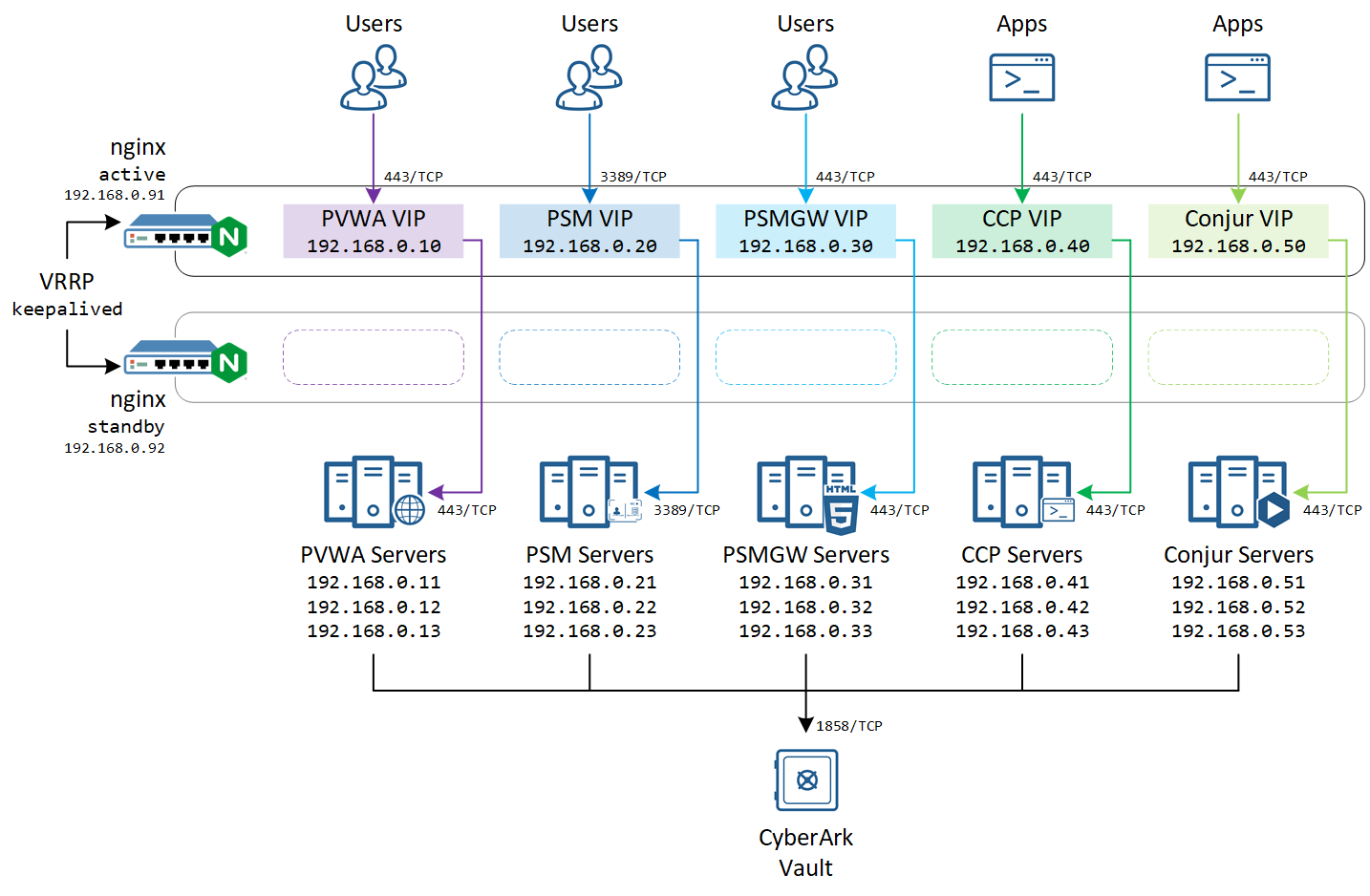

Servers/Networking

Function	Hostname	IP Address
LB	lb{1..2}.vx	192.168.0.{91..92}
PVWA VIP	pvwa.vx	192.168.0.10
PVWA	pvwa{1..3}.vx	192.168.0.{11..13}
PSM VIP	psm.vx	192.168.0.20
PSM	psm{1..3}.vx	192.168.0.{21..23}
PSMGW VIP	psmgw.vx	192.168.0.30
PSMGW	psmgw{1..3}.vx	192.168.0.{31..33}
CCP VIP	ccp.vx	192.168.0.40
CCP	ccp{1..3}.vx	192.168.0.{41..43}
Conjur VIP	conjur.vx	192.168.0.50
Conjur	conjur{1..3}.vx	192.168.0.{51..53}

1. Keepalived Setup

Keepalived provides high availability capabilities to automatically failover the virtual services in event of a node failure
- Keepalived uses virtual router redundancy protocol (VRRP) to assign the virtual IP to the master node
- Keepalived can optionally create Linux Virtual Server (LVS) to perform load balancing, but NGINX or HAProxy is usually chosen for their expansive load balancing options, e.g. HTTP SSL termination
- The NGINX service listens on the virtual IPs managed by keepalived
Ref:
- https://access.redhat.com/documentation/en-us/red_hat_enterprise_linux/7/html/load_balancer_administration/ch-keepalived-overview-vsa
- https://docs.nginx.com/nginx/admin-guide/high-availability/ha-keepalived/

1.1. Install keepalived on both nodes

yum -y install keepalived

Edit the keepalived config file /etc/keepalived/keepalived.conf on both nodes
- The respective reference config files for master and backup nodes are in the next Keepalived Configuration Files Section

mv /etc/keepalived/keepalived.conf /etc/keepalived/keepalived.conf.bak
vi /etc/keepalived/keepalived.conf

1.2. Keepalived Configuration Files

1.2.1. Master Node Configuration

global_defs{
    script_user root
    enable_script_security
}
vrrp_script check_vip_health {
    script "/usr/libexec/keepalived/nginx-ha-check.sh"
    interval 10
    weight   50
}
vrrp_instance VI_1 {
    state MASTER
    interface eth0
    virtual_router_id 10
    priority 100
    advert_int 1
    unicast_src_ip 192.168.0.91/24
    unicast_peer {
        192.168.0.92/24
    }
    virtual_ipaddress {
        192.168.0.10/24
        192.168.0.20/24
        192.168.0.30/24
        192.168.0.40/24
        192.168.0.50/24
    }
    authentication {
        auth_type PASS
        auth_pass cyberark
    }
    track_script {
        check_vip_health
    }
    notify "/usr/libexec/keepalived/nginx-ha-notify.sh"
}

1.2.2. Backup Node Configuration

global_defs{
    script_user root
    enable_script_security
}
vrrp_script check_vip_health {
    script "/usr/libexec/keepalived/nginx-ha-check.sh"
    interval 10
    weight   50
}
vrrp_instance VI_1 {
    state BACKUP
    interface eth0
    virtual_router_id 10
    priority 90
    advert_int 1
    unicast_src_ip 192.168.0.92/24
    unicast_peer {
        192.168.0.91/24
    }
    virtual_ipaddress {
        192.168.0.10/24
        192.168.0.20/24
        192.168.0.30/24
        192.168.0.40/24
        192.168.0.50/24
    }
    authentication {
        auth_type PASS
        auth_pass cyberark
    }
    track_script {
        check_vip_health
    }
    notify "/usr/libexec/keepalived/nginx-ha-notify.sh"
}

1.3. Prepare the Notification and Tracking Scripts

The load balancer pair in this guide has serveral services on HTTPS (PVWA, PSMGW, CCP, Conjur), this means the NGINX configuration needs to listen on the respective virtual IP rather than 0.0.0.0. Hence, the scripts provided below behaves as such:
- Tracking script verify if the node is able to reach the virtual IP
- Notification script starts the NGINX service if the node changes to MASTER, and stops the NGINX services if the changes to BACKUP or `FAULT
If the load balancer is meant for only 1 service:
- The NGINX configuration can be changed to listen on 0.0.0.0
- The NGINX service can be active on both nodes
- The NGINX and the tracking and nofication scripts can be modified to be much simpler

☝️ Note: keepalived scripts should be placed in /usr/libexec/keepalived/ where the correct SELinux file context keepalived_unconfined_script_t is assigned

Trying to get keepalive to run scripts from elsewhere may result in permission denied errors
Google for keepalive setenforce 0 and you find that many guides disable SELinux - this script-doesn't-run behaviour is one of the reasons for disabling SELinux

1.3.1. Tracking Script

Prepare the HA check script on both nodes

vi /usr/libexec/keepalived/nginx-ha-check.sh

The HA check script will curl to the PVWA virtual IP - this script returns 0 if curl is successful

#!/bin/bash
curl -Lk https://192.168.0.10 -o /dev/null -s
exit $?

Add executable permission to script

chmod +x /usr/libexec/keepalived/nginx-ha-check.sh

1.3.2. Notification Script

Prepare the HA notify script on both nodes

vi /usr/libexec/keepalived/nginx-ha-notify.sh

The HA notify script will start the nginx service when the node state changes to master, and stop the nginx service when the node state changes to backup or fault

#!/bin/bash
TYPE=$1
NAME=$2
STATE=$3
case $STATE in
  "MASTER")
    systemctl start nginx
    logger -t nginx-ha-keepalived "VRRP $TYPE $NAME changed to $STATE state"
    exit 0
    ;;
  "BACKUP"|"FAULT")
    systemctl stop nginx
    logger -t nginx-ha-keepalived "VRRP $TYPE $NAME changed to $STATE state"
    exit 0
    ;;
  *)
    logger -t nginx-ha-keepalived "Unknown state $STATE for VRRP $TYPE $NAME"
    exit 1
    ;;
esac

Add executable permission to script

chmod +x /usr/libexec/keepalived/nginx-ha-notify.sh

1.4. Start Keepalived

Allow VRRP communication through firewall and start keepalived service on both nodes

firewall-cmd --add-rich-rule='rule protocol value="vrrp" accept' --permanent
firewall-cmd --reload
systemctl enable --now keepalived

2. NGINX Setup

NGINX provides reverse proxy and load balancing capabilities to broker connection to, and handle failures for backend CyberArk servers
- A server block is configured for each virtual service, listening on the virtual IP managed by keepalived
- NGINX http module: for HTTP-based services (PVWA, PSMGW, CCP and Conjur), enables SSL termination
- NGINX stream module: for TCP/UDP-based services (PVWA, PSM, PSMGW, CCP and Conjur), straightforward SSL passthrough
Ref:
Install NGINX, enable NGINX to listen on ports in SELinux, add firewall rules

yum -y install nginx
setsebool -P httpd_can_network_connect on
firewall-cmd --permanent --add-service https && firewall-cmd --reload

Edit the NGINX listener and load balancing config file /etc/nginx/nginx.conf
- The respective reference config files for PVWA, PSM, PSMGW, CCP and Conjur are in below NGINX Configuration Files Section

mv /etc/nginx/nginx.conf /etc/nginx/nginx.conf.bak
vi /etc/nginx/nginx.conf
nginx -t

☝️ Note: Do not start or enable the nginx service, the nginix service start/stop are controlled by nginx-ha-notify script in keepalived

2.1. Generating SSL certificates

2.1.1. Generate a self-signed certificate authority

Method 1 - Generate key first, then CSR, then certificate

Generate private key of the self-signed certificate authority

[root@ccyberark ~]# openssl genrsa -out cacert.key 2048
Generating RSA private key, 2048 bit long modulus (2 primes)
...........................................................................+++++
.......................................+++++
e is 65537 (0x010001)

Generate certificate of the self-signed certificate authority
Note: change the common name of the certificate according to your environment

[root@conjur ~]# openssl req -x509 -new -nodes -key cacert.key -days 365 -sha256 -out cacert.pem
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:.
State or Province Name (full name) []:
Locality Name (eg, city) [Default City]:.
Organization Name (eg, company) [Default Company Ltd]:.
Organizational Unit Name (eg, section) []:
Common Name (eg, your name or your server's hostname) []:vx Lab Certificate Authority
Email Address []:

Method 2 - Generate key and certificate in a single command

[root@ccyberark ~]# openssl req -newkey rsa:2048 -days "365" -nodes -x509 -keyout cacert.key -out cacert.pem
Generating a RSA private key
...............................................+++++
.........+++++
writing new private key to 'cacert.key'
-----
You are about to be asked to enter information that will be incorporated
into your certificate request.
What you are about to enter is what is called a Distinguished Name or a DN.
There are quite a few fields but you can leave some blank
For some fields there will be a default value,
If you enter '.', the field will be left blank.
-----
Country Name (2 letter code) [XX]:.
State or Province Name (full name) []:
Locality Name (eg, city) [Default City]:.
Organization Name (eg, company) [Default Company Ltd]:.
Organizational Unit Name (eg, section) []:
Common Name (eg, your name or your server's hostname) []:vx Lab Certificate Authority
Email Address []:

2.1.2. Generate PVWA certificates

openssl genrsa -out pvwa.key 2048
openssl req -new -key pvwa.key -subj "/CN=CyberArk Password Vault Web Access" -out pvwa.csr
echo "subjectAltName=DNS:pvwa.vx,DNS:pvwa1.vx,DNS:pvwa2.vx,DNS:pvwa3.vx" > pvwa-openssl.cnf
openssl x509 -req -in pvwa.csr -CA cacert.pem -CAkey cacert.key -CAcreateserial -days 365 -sha256 -out pvwa.pem -extfile pvwa-openssl.cnf

2.1.3. Generate PSMGW certificates

openssl genrsa -out psmgw.key 2048
openssl req -new -key psmgw.key -subj "/CN=CyberArk HTML5 Gateway" -out psmgw.csr
echo "subjectAltName=DNS:psmgw.vx,DNS:psmgw1.vx,DNS:psmgw2.vx,DNS:psmgw3.vx" > psmgw-openssl.cnf
openssl x509 -req -in psmgw.csr -CA cacert.pem -CAkey cacert.key -CAcreateserial -days 365 -sha256 -out psmgw.pem -extfile psmgw-openssl.cnf

2.1.4. Generate CCP certificates

openssl genrsa -out ccp.key 2048
openssl req -new -key ccp.key -subj "/CN=CyberArk Central Credential Provider" -out ccp.csr
echo "subjectAltName=DNS:ccp.vx,DNS:ccp1.vx,DNS:ccp2.vx,DNS:ccp3.vx" > ccp-openssl.cnf
openssl x509 -req -in ccp.csr -CA cacert.pem -CAkey cacert.key -CAcreateserial -days 365 -sha256 -out ccp.pem -extfile ccp-openssl.cnf

2.1.5. Generate Conjur certificates

openssl genrsa -out conjur.key 2048
openssl req -new -key conjur.key -subj "/CN=CyberArk Conjur" -out conjur.csr
echo "subjectAltName=DNS:conjur.vx,DNS:conjur-master.vx,DNS:conjur-standby1.vx,DNS:conjur-standby2.vx," > conjur-openssl.cnf
openssl x509 -req -in conjur.csr -CA cacert.pem -CAkey cacert.key -CAcreateserial -days 365 -sha256 -out conjur.pem -extfile conjur-openssl.cnf

2.2. NGINX Configuration Files

2.2.1. PVWA

Configurations on PVWA servers to capture client IP address

Configure HTTP_X_Forwarded_For on PVWA servers - edit C:\inetpub\wwwroot\PasswordVault\web.config

  <appSettings>
    ••• other configurations •••
    <add key="LoadBalancerClientAddressHeader" value="HTTP_X_Forwarded_For" />
  </appSettings>

SSL Termination

☝️ Note: Certificate authentication does not work with SSL Terminated load balancing, use SSL Passthrough if certificate authentication is required

events {}
http {
  upstream pvwa {
    server 192.168.0.11:443;
    server 192.168.0.12:443;
    server 192.168.0.13:443;
  }
  server {
    listen 192.168.0.10:443 ssl;
    server_name pvwa.vx

    ssl on;
    ssl_certificate         /etc/nginx/ssl/pvwa.pem;
    ssl_certificate_key     /etc/nginx/ssl/pvwa.key;
    ssl_trusted_certificate /etc/nginx/ssl/cacert.pem;

    ssl_session_cache shared:SSL:20m;
    ssl_session_timeout 10m;

    ssl_prefer_server_ciphers on;
    ssl_protocols             TLSv1.2 TLSv1.3;
    ssl_ciphers               HIGH:!aNULL:!MD5;

    add_header Strict-Transport-Security "max-age=31536000";

    location / {
      proxy_pass https://pvwa;
      proxy_set_header Host              $host;
      proxy_set_header X-Real-IP         $remote_addr;
      proxy_set_header X-Forwarded-For   $proxy_add_x_forwarded_for;
      proxy_set_header X-Forwarded-Proto $scheme;
    }
  }
}

SSL Passthrough

load_module /usr/lib64/nginx/modules/ngx_stream_module.so;
events {}
stream {
  upstream pvwa {
    server 192.168.0.11:443;
    server 192.168.0.12:443;
    server 192.168.0.13:443;
  }
  server {
    listen 192.168.0.10:443;
    proxy_pass pvwa;
  }
}

2.2.2. PSM

Allow NGINX to listen on RDP port

Attempting to bind to ports other than other listed on http_port_t will result in permission denied because of SELinux, add the required ports to http_port_t to enable binding on them

yum install -y policycoreutils-python-utils
semanage port -a -t http_port_t -p tcp 3389

SSL Termination

Not Supported

SSL Passthrough

load_module /usr/lib64/nginx/modules/ngx_stream_module.so;
events {}
stream {
  upstream psm {
    server 192.168.0.21:3389;
    server 192.168.0.22:3389;
    server 192.168.0.23:3389;
  }
  server {
    listen 192.168.0.20:3389;
    proxy_pass psm;
  }
}

2.2.3. PSMGW

SSL Termination

Ref: https://guacamole.apache.org/doc/1.4.0/gug/reverse-proxy.html

events {}
http {
  upstream psmgw {
    server 192.168.0.31:443;
    server 192.168.0.32:443;
    server 192.168.0.33:443;
  }
  server {
    listen 192.168.0.30:443 ssl;
    server_name psmgw.vx

    ssl on;
    ssl_certificate         /etc/nginx/ssl/psmgw.pem;
    ssl_certificate_key     /etc/nginx/ssl/psmgw.key;
    ssl_trusted_certificate /etc/nginx/ssl/cacert.pem;

    ssl_session_cache shared:SSL:20m;
    ssl_session_timeout 10m;

    ssl_prefer_server_ciphers on;
    ssl_protocols             TLSv1.2 TLSv1.3;
    ssl_ciphers               HIGH:!aNULL:!MD5;

    add_header Strict-Transport-Security "max-age=31536000";

    location / {
      proxy_pass https://psmgw;
      proxy_set_header Host              $host;
      proxy_set_header X-Real-IP         $remote_addr;
      proxy_set_header X-Forwarded-For   $proxy_add_x_forwarded_for;
      proxy_set_header X-Forwarded-Proto $scheme;
      proxy_buffering off;
      proxy_http_version 1.1;
      proxy_set_header Upgrade $http_upgrade;
      proxy_set_header Connection $http_connection;
    }
  }
}

SSL Passthrough

load_module /usr/lib64/nginx/modules/ngx_stream_module.so;
events {}
stream {
  upstream psmgw {
    server 192.168.0.31:443;
    server 192.168.0.32:443;
    server 192.168.0.33:443;
  }
  server {
    listen 192.168.0.30:443;
    proxy_pass psmgw;
  }
}

2.2.4. CCP

Configurations on CCP servers to capture client IP address

Configure HTTP_X_Forwarded_For on CCP servers - edit C:\inetpub\wwwroot\AIMWebService\web.config

  <appSettings>
    ••• other configurations •••
    <add key="TrustedProxies" value="192.168.0.40"/>
    <add key="LoadBalancerClientAddressHeader" value="HTTP_X_Forwarded_For" />
  </appSettings>

SSL Termination

☝️ Note: Certificate authentication does not work with SSL Terminated load balancing, use SSL Passthrough if certificate authentication is required

events {}
http {
  upstream ccp {
    server 192.168.0.41:443;
    server 192.168.0.42:443;
    server 192.168.0.43:443;
  }
  server {
    listen 192.168.0.40:443 ssl;
    server_name ccp.vx

    ssl on;
    ssl_certificate         /etc/nginx/ssl/ccp.pem;
    ssl_certificate_key     /etc/nginx/ssl/ccp.key;
    ssl_trusted_certificate /etc/nginx/ssl/cacert.pem;

    ssl_session_cache shared:SSL:20m;
    ssl_session_timeout 10m;

    ssl_prefer_server_ciphers on;
    ssl_protocols             TLSv1.2 TLSv1.3;
    ssl_ciphers               HIGH:!aNULL:!MD5;

    add_header Strict-Transport-Security "max-age=31536000";

    location / {
      proxy_pass https://ccp;
      proxy_set_header Host              $host;
      proxy_set_header X-Real-IP         $remote_addr;
      proxy_set_header X-Forwarded-For   $proxy_add_x_forwarded_for;
      proxy_set_header X-Forwarded-Proto $scheme;
    }
  }
}

SSL Passthrough

load_module /usr/lib64/nginx/modules/ngx_stream_module.so;
events {}
stream {
  upstream ccp {
    server 192.168.0.41:443;
    server 192.168.0.42:443;
    server 192.168.0.43:443;
  }
  server {
    listen 192.168.0.40:443;
    proxy_pass ccp;
  }
}

2.2.5. Conjur

Configurations on Conjur servers to capture client IP address (for SSL Terminated load balancing)

podman exec conjur evoke proxy add 192.168.0.50

Allow NGINX to listen on PostgreSQL port

Attempting to bind to ports other than other listed on http_port_t will result in permission denied because of SELinux, add the required ports to http_port_t to enable binding on them
Notice that -m modify is used here in contrast to -a add used in above PSM configuration, this is because port 5432 is already configured for postgresql_port_t

yum install -y policycoreutils-python-utils
semanage port -m -t http_port_t -p tcp 5432

SSL Termination

☝️ Note:

The NGINX http module doesn't work very well for Conjur:
- CSR functions on authn-k8s does not work with SSL Terminated load balancing
- HTTP-based proxy cannot work with PostgreSQL replication
This http module based configuration only works for the Conjur UI and basic API functions (such as authn)
Thus, the stream module based configuration below may be more suitable in most environments

events {}
http {
  upstream conjur {
    server 192.168.0.51:443;
    server 192.168.0.52:443;
    server 192.168.0.53:443;
  }
  server {
    listen 192.168.0.50:443 ssl;
    server_name conjur.vx

    ssl on;
    ssl_certificate         /etc/nginx/ssl/conjur.pem;
    ssl_certificate_key     /etc/nginx/ssl/conjur.key;
    ssl_trusted_certificate /etc/nginx/ssl/cacert.pem;

    ssl_session_cache shared:SSL:20m;
    ssl_session_timeout 10m;

    ssl_prefer_server_ciphers on;
    ssl_protocols             TLSv1.2 TLSv1.3;
    ssl_ciphers               HIGH:!aNULL:!MD5;

    add_header Strict-Transport-Security "max-age=31536000";

    location / {
      proxy_pass https://conjur;
      proxy_set_header Host              $host;
      proxy_set_header X-Real-IP         $remote_addr;
      proxy_set_header X-Forwarded-For   $proxy_add_x_forwarded_for;
      proxy_set_header X-Forwarded-Proto $scheme;
    }
  }
}

SSL Passthrough

load_module /usr/lib64/nginx/modules/ngx_stream_module.so;
events {}
stream {
  upstream conjur-http {
    server 192.168.0.51:443;
    server 192.168.0.52:443;
    server 192.168.0.53:443;
  }
  upstream conjur-postgresql {
    server 192.168.0.51:5432;
    server 192.168.0.52:5432;
    server 192.168.0.53:5432;
  }
  server {
    listen 192.168.0.50:443;
    proxy_pass conjur-http;
  }
  server {
    listen 192.168.0.50:5432;
    proxy_pass conjur-postgresql;
  }
}

matiya/load-balancing-cyberark

Load Balancing CyberArk Servers

Lab Environment

Software Versions

Servers/Networking

1. Keepalived Setup

1.1. Install keepalived on both nodes

1.2. Keepalived Configuration Files

1.2.1. Master Node Configuration

1.2.2. Backup Node Configuration

1.3. Prepare the Notification and Tracking Scripts

1.3.1. Tracking Script

1.3.2. Notification Script

1.4. Start Keepalived

2. NGINX Setup

2.1. Generating SSL certificates

2.1.1. Generate a self-signed certificate authority

Method 1 - Generate key first, then CSR, then certificate

Method 2 - Generate key and certificate in a single command

2.1.2. Generate PVWA certificates

2.1.3. Generate PSMGW certificates

2.1.4. Generate CCP certificates

2.1.5. Generate Conjur certificates

2.2. NGINX Configuration Files

2.2.1. PVWA

Configurations on PVWA servers to capture client IP address

SSL Termination

SSL Passthrough

2.2.2. PSM

Allow NGINX to listen on RDP port

SSL Termination

SSL Passthrough

2.2.3. PSMGW

SSL Termination

SSL Passthrough

2.2.4. CCP

Configurations on CCP servers to capture client IP address

SSL Termination

SSL Passthrough

2.2.5. Conjur

Configurations on Conjur servers to capture client IP address (for SSL Terminated load balancing)

Allow NGINX to listen on PostgreSQL port

SSL Termination

SSL Passthrough
