A repository to collect different firmwares for the daisy-based löwenzahnhonig module.
To compile the firmwares contained in this repository and possibly make changes to them you need to install the arduino ide. You'll also need to add daisy support which is very well explained in a video by electro-smith themselves.

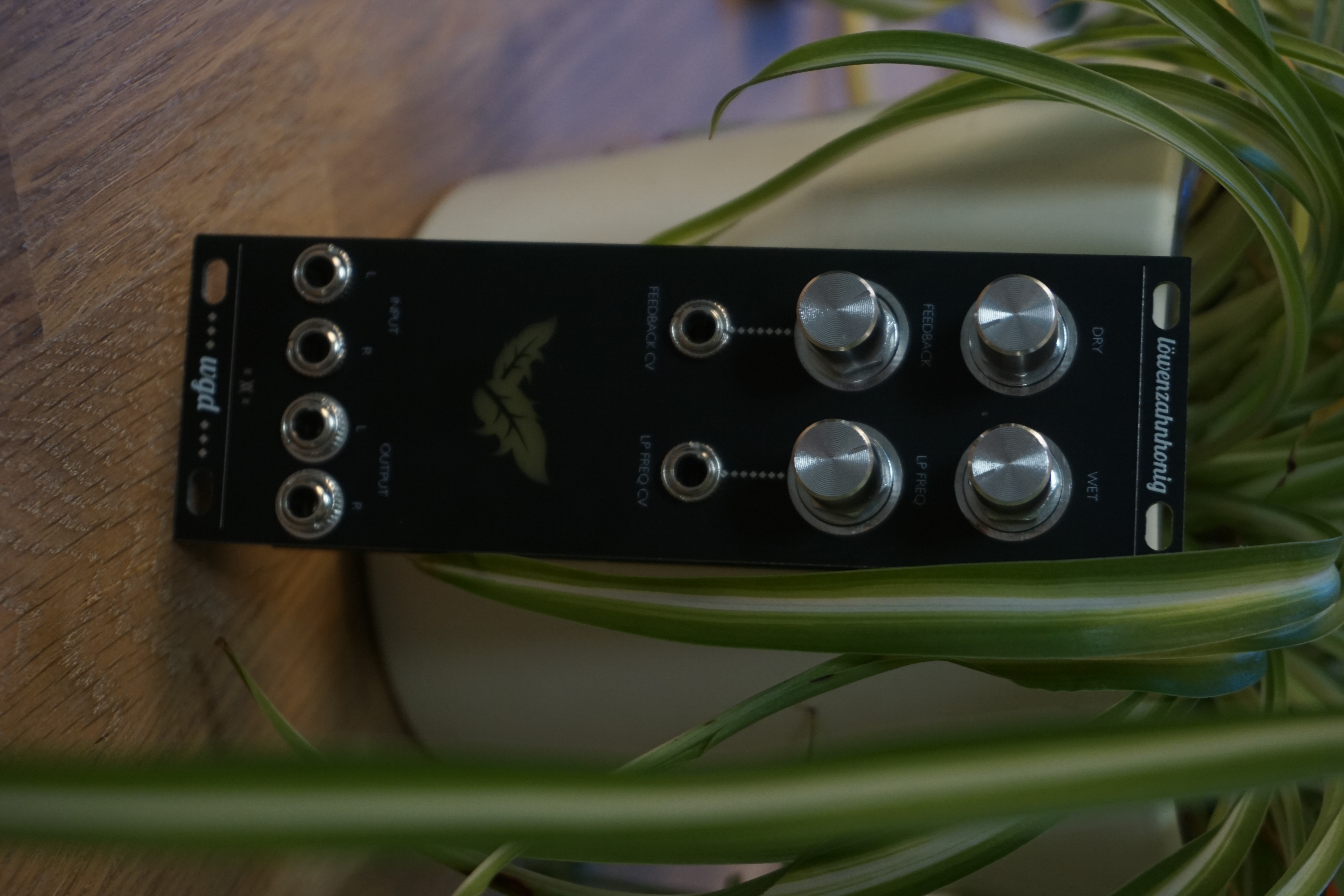

One side of the modules front panel has a generic labelling. This table contains a mapping of which control is associated with which pin of the daisy seed.
| Control | Daisy Pin |
|---|---|
| P1 | A0 |
| P2 | A1 |
| P3 | A2 |
| P4 | A3 |
| CV1 | A4 |
| CV2 | A5 |
New firmwares for the löwenzahnhonig module are always very welcome. Feel free to open a PR anytime. Each new firmware should be located in a new sub-folder with the same name as the .ino file together with a README.md file telling users about the controls and other possibly interesting stuff.
