Docker setup for cross-compiling Bitgesell core for Android (SDK 28+) from a Docker container
- Uses
NDKversion =23see (Dockerfilefor more details) - Works with
libc++version andQt 5.15.2(tested on this release0.1.9)
- Setup environment(needs Docker)
Build the docker image from Dockerfile:
git clone https://https://github.com/naftalimurgor/android-bitgesell-docker
cd android-bitgesell-docker/
docker build -t android-bitgesell .Clone the Bitgesell repo with the Android Patch(see respective branch):
git clone https://github.com/naftalimurgor/bitgesell.git
cd bitgesell
# patched for Android based on this patched release:
git checkout android-patch-0.1.9
# run the container
docker run --rm -v $(pwd):/work --user root -it android-bitgesell /bin/bash
cd /workwhile inside the container in bash interractive mode,
- Cross compile libs:
/work
make -C depends/ HOST=aarch64-linux-androidNote: ensure you provide platform triplet i.e aarch64-linux-android for 64-bit ARM architecture for Linux.
which outputs on success:
....
/bin/mkdir -p '/work/depends/work/staging/aarch64-linux-android/zeromq/4.3.1-559e011f607/work/depends/aarch64-linux-android/include'
/usr/bin/install -c -m 644 include/zmq.h include/zmq_utils.h '/work/depends/work/staging/aarch64-linux-android/zeromq/4.3.1-559e011f607/work/depends/aarch64-linux-android/include'
/bin/mkdir -p '/work/depends/work/staging/aarch64-linux-android/zeromq/4.3.1-559e011f607/work/depends/aarch64-linux-android/lib/pkgconfig'
/usr/bin/install -c -m 644 src/libzmq.pc '/work/depends/work/staging/aarch64-linux-android/zeromq/4.3.1-559e011f607/work/depends/aarch64-linux-android/lib/pkgconfig'
make[1]: Leaving directory '/work/depends/work/build/aarch64-linux-android/zeromq/4.3.1-559e011f607'
Postprocessing zeromq...
Caching zeromq...
copying packages: boost libevent zlib qt qrencode bdb miniupnpc zeromq
to: /work/depends/aarch64-linux-android
make: Leaving directory '/work/depends'The cross-compiled libs for Android are :
- boost libevent zlib qt qrencode bdb miniupnpc zeromqNote: make -C depends/ HOST=aarch64-linux-android needs faster internet connection as curl times out forcing redownload from https://BGLcore.org/depends which doesn't have any of the packages.
Note: To clean up:
make -C depends/ clean #cleans up the dependencies- Run
./autogen.shto generate all the necessary config files:
./autogen.sh- Set
clangC++ compiler for current session:
export API=28
export TOOLCHAIN=/opt/android-sdk-linux/ndk/23.1.7779620/toolchains/llvm/prebuilt/linux-x86_64/bin
export CC=$TOOLCHAIN/aarch64-linux-android${API}-clang
export CXX=$TOOLCHAIN/aarch64-linux-android${API}-clang++
export AR=$TOOLCHAIN/llvm-ar
export RANLIB=$TOOLCHAIN/llvm-ranlib
export STRIP=$TOOLCHAIN/llvm-strip
Symlink QtCore lib for configure to find it easily:
cd depends/$HOST/lib/pkgconfig
for f in *Qt5*_arm64-v8a.pc; do
ln -s "$f" "${f/_arm64-v8a/}"
done
cd /workAlso, expose pkgconfig path also for ./configure to locate PKG_CONFIG_PATH:
export PKG_CONFIG_PATH=$(pwd)/depends/$HOST/lib/pkgconfigSymlink qt files (with _arm64-v8a*.a) so the linker finds them:
Check if files exist:
# check for unsuffixed files
ls -l /work/depends/aarch64-linux-android/lib/libqtfreetype.a
ls -l /work/depends/aarch64-linux-android/plugins/platforms/libplugins_platforms_qtforandroid.a
If these files exist, they are symlinks to the _arm64-v8a versions, and the linker should find them. If they don’t exist, create symlinks to match the expected names:
ln -s /work/depends/aarch64-linux-android/lib/libqtfreetype_arm64-v8a.a \
/work/depends/aarch64-linux-android/lib/libqtfreetype.a
ln -s /work/depends/aarch64-linux-android/plugins/platforms/libplugins_platforms_qtforandroid_arm64-v8a.a \
/work/depends/aarch64-linux-android/plugins/platforms/libplugins_platforms_qtforandroid.aVerify symlinked files:
ls -l /work/depends/aarch64-linux-android/lib/libqtfreetype*
ls -l /work/depends/aarch64-linux-android/plugins/platforms/libplugins_platforms_qtforandroid*./configureto generate Make file:
./configure --prefix=/work/depends/aarch64-linux-android --host=aarch64-linux-android --with-gui=qt5 LDFLAGS="-L/work/depends/aarch64-linux-android/lib -L/work/depends/aarch64-linux-android/plugins/platforms" --disable-testsUpon success should output:
Build Options:
with external callbacks = no
with benchmarks = no
with tests = no
with coverage = no
with examples = no
module ecdh = no
module recovery = yes
module extrakeys = yes
module schnorrsig = yes
asm = no
ecmult window size = 15
ecmult gen prec. bits = 4
valgrind = no
CC = /opt/android-sdk-linux/ndk/23.1.7779620/toolchains/llvm/prebuilt/linux-x86_64/bin/aarch64-linux-android28-clang
CPPFLAGS = -I/work/depends/aarch64-linux-android/include/
SECP_CFLAGS = -O2 -std=c89 -pedantic -Wno-long-long -Wnested-externs -Wshadow -Wstrict-prototypes -Wundef -Wno-overlength-strings -Wall -Wno-unused-function -Wextra -Wcast-align -Wconditional-uninitialized -fvisibility=hidden
CFLAGS = -std=c11
LDFLAGS = -L/work/depends/aarch64-linux-android/lib -lc++
Options used to compile and link:
external signer = yes
multiprocess = no
with experimental syscall sandbox support = no
with libs = yes
with wallet = yes
with sqlite = yes
with bdb = yes
with gui / qt = yes
with qr = yes
with zmq = yes
with test = no
with fuzz binary = yes
with bench = no
with upnp = yes
with natpmp = yes
use asm = yes
USDT tracing = no
sanitizers =
debug enabled = no
gprof enabled = no
werror = no
LTO = no
target os = linux-android
build os = linux-gnu
CC = /opt/android-sdk-linux/ndk/23.1.7779620/toolchains/llvm/prebuilt/linux-x86_64/bin/aarch64-linux-android28-clang
CFLAGS = -pthread -std=c11
CPPFLAGS = -U_FORTIFY_SOURCE -D_FORTIFY_SOURCE=2 -DHAVE_BUILD_INFO -DPROVIDE_FUZZ_MAIN_FUNCTION -I/work/depends/aarch64-linux-android/include/
CXX = /opt/android-sdk-linux/ndk/23.1.7779620/toolchains/llvm/prebuilt/linux-x86_64/bin/aarch64-linux-android28-clang++ -std=c++17
CXXFLAGS = -Wstack-protector -fstack-protector-all -std=c++17 --std=c++17
LDFLAGS = -Wl,-z,relro -Wl,-z,now -Wl,-z,separate-code -pie -L/work/depends/aarch64-linux-android/lib -lc++
ARFLAGS = cr
make -j $(nproc)Run make
make HOST=aarch64-linux-android -j $(nproc)Should output:
root@fc88f2344529:/work# make -j8
Making all in src
make[1]: Entering directory '/work/src'
make[2]: Entering directory '/work/src'
make[3]: Entering directory '/work'
make[3]: Leaving directory '/work'
CXX qt/qt_BGL_qt-main.o
CXX qt/qt_libBGLqt_a-bantablemodel.o
CXX qt/qt_libBGLqt_a-BGL.o
CXX qt/qt_libBGLqt_a-BGLaddressvalidator.o
CXX qt/qt_libBGLqt_a-BGLamountfield.o
CXX qt/qt_libBGLqt_a-BGLunits.o
CXX qt/qt_libBGLqt_a-BGLgui.o
CXX qt/qt_libBGLqt_a-clientmodel.o
CXX qt/qt_libBGLqt_a-csvmodelwriter.o
CXX qt/qt_libBGLqt_a-guiutil.o
CXX qt/qt_libBGLqt_a-intro.o
CXX qt/qt_libBGLqt_a-modaloverlay.o
CXX qt/qt_libBGLqt_a-networkstyle.o
CXX qt/qt_libBGLqt_a-notificator.o
CXX qt/qt_libBGLqt_a-optionsdialog.o
CXX qt/qt_libBGLqt_a-optionsmodel.o
CXX qt/qt_libBGLqt_a-peertablemodel.o
CXX qt/qt_libBGLqt_a-platformstyle.o
CXX qt/qt_libBGLqt_a-qvalidatedlineedit.o
CXX qt/qt_libBGLqt_a-qvaluecombobox.o
CXX qt/qt_libBGLqt_a-rpcconsole.o
CXX qt/qt_libBGLqt_a-splashscreen.o
CXX qt/qt_libBGLqt_a-trafficgraphwidget.o
CXX qt/qt_libBGLqt_a-utilitydialog.o
CXX qt/qt_libBGLqt_a-moc_addressbookpage.o
...- Build the BGL-qt GUI apk
make -C src/qt apkThe above process outputs the following:
Download https://jcenter.bintray.com/org/apache/httpcomponents/httpmime/4.1/httpmime-4.1.jar
Download https://jcenter.bintray.com/org/jetbrains/annotations/13.0/annotations-13.0.jar
Download https://jcenter.bintray.com/org/apache/httpcomponents/httpclient/4.2.6/httpclient-4.2.6.jar
Download https://jcenter.bintray.com/com/sun/activation/javax.activation/1.2.0/javax.activation-1.2.0.jar
Download https://jcenter.bintray.com/org/apache/httpcomponents/httpcore/4.2.5/httpcore-4.2.5.jar
Download https://jcenter.bintray.com/net/sf/kxml/kxml2/2.3.0/kxml2-2.3.0.jar
Download https://jcenter.bintray.com/commons-logging/commons-logging/1.1.1/commons-logging-1.1.1.jar
Download https://jcenter.bintray.com/org/glassfish/jaxb/jaxb-core/2.2.11/jaxb-core-2.2.11.jar
Download https://jcenter.bintray.com/org/glassfish/jaxb/jaxb-runtime/2.2.11/jaxb-runtime-2.2.11.jar
Download https://jcenter.bintray.com/org/jvnet/staxex/stax-ex/1.7.7/stax-ex-1.7.7.jar
Download https://jcenter.bintray.com/com/sun/xml/fastinfoset/FastInfoset/1.2.13/FastInfoset-1.2.13.jar
Download https://jcenter.bintray.com/javax/xml/bind/jaxb-api/2.2.12-b140109.1041/jaxb-api-2.2.12-b140109.1041.jar
Download https://jcenter.bintray.com/commons-codec/commons-codec/1.6/commons-codec-1.6.jar
Download https://jcenter.bintray.com/org/glassfish/jaxb/txw2/2.2.11/txw2-2.2.11.jar
Download https://jcenter.bintray.com/com/sun/istack/istack-commons-runtime/2.21/istack-commons-runtime-2.21.jar
Download https://dl.google.com/dl/android/maven2/com/android/tools/sdk-common/26.1.0/sdk-common-26.1.0.jar
BUILD SUCCESSFUL in 4m 19s
1 actionable task: 1 executed
cd qt/android && ./gradlew build
Downloading https://services.gradle.org/distributions/gradle-6.6.1-bin.zip
...apks will be output to:
src/qt/android/build/outputs/apk/release/android-release-unsigned.apk
src/qt/android/build/outputs/apk/debug/android-debug.apkCheck build for sample apk files under build/

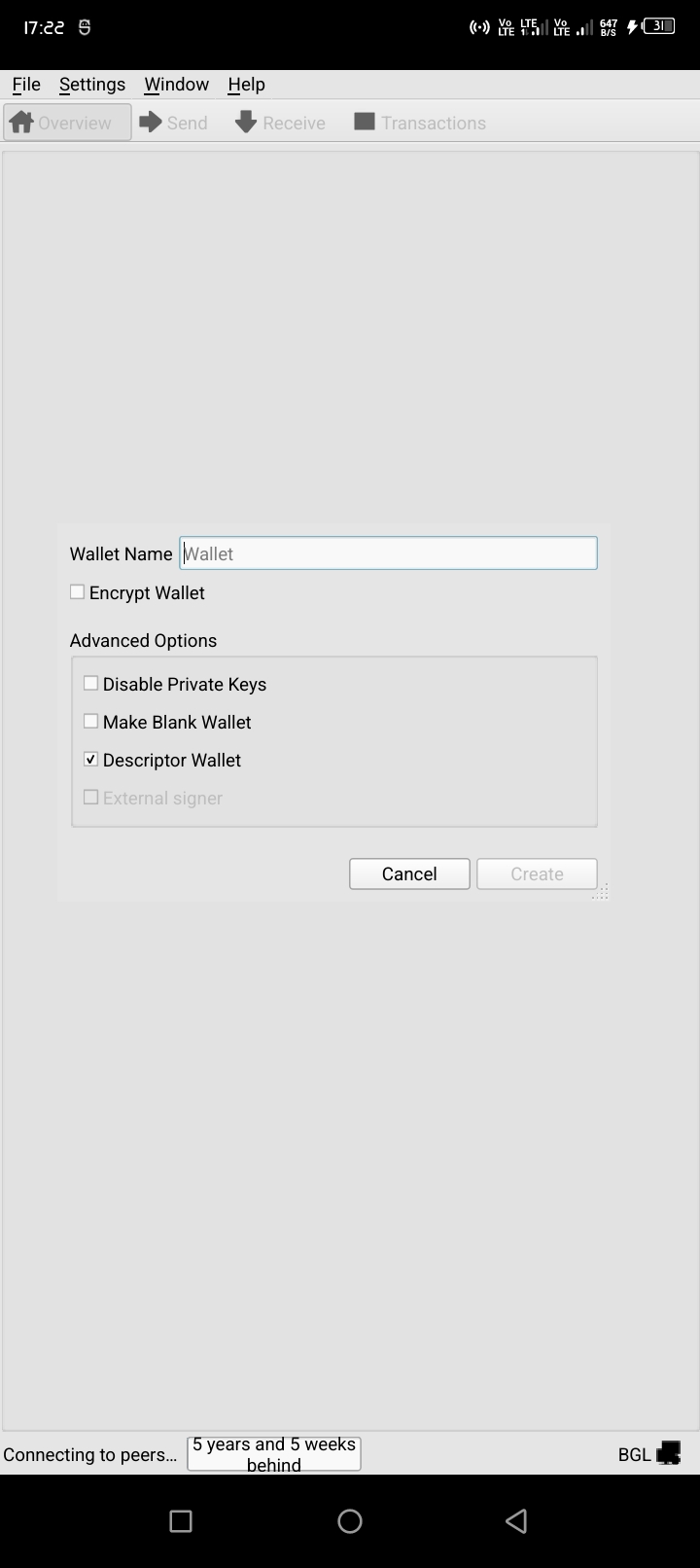

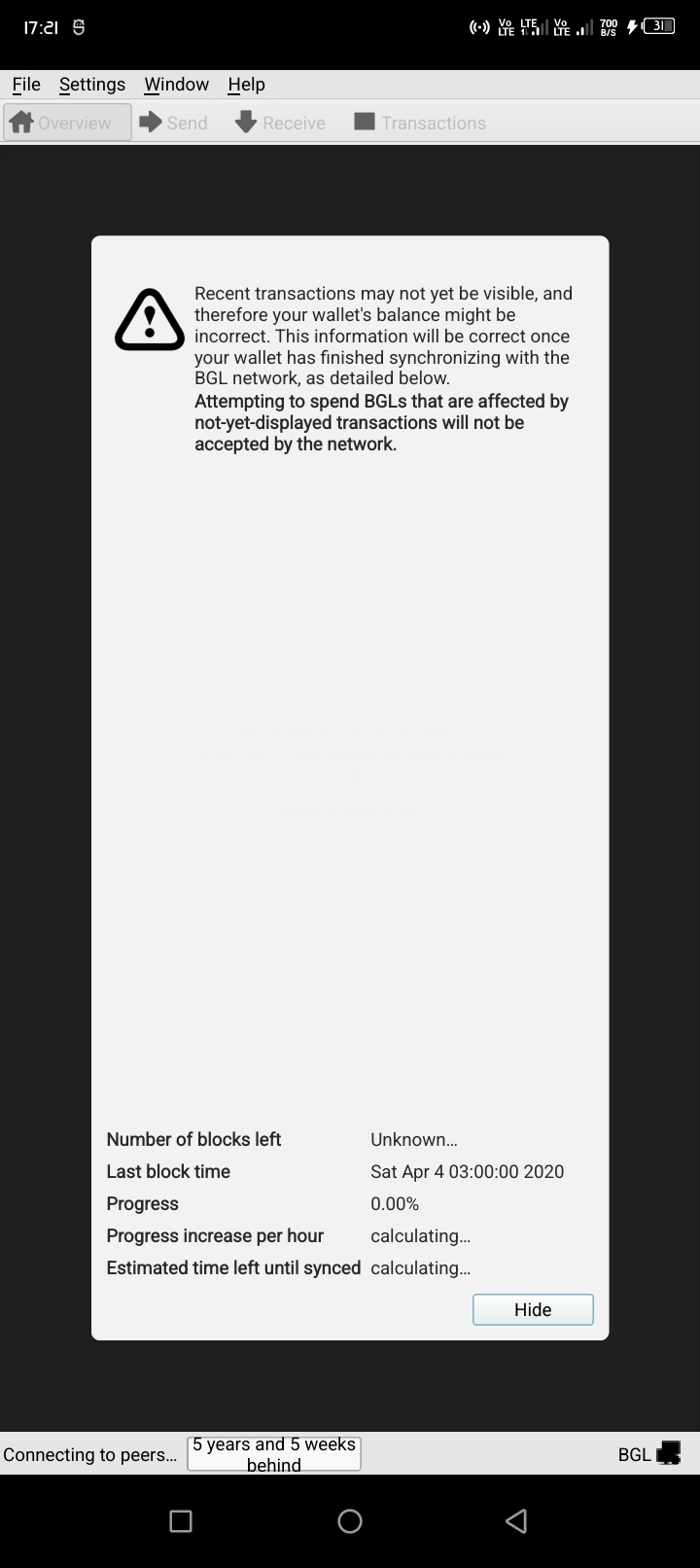

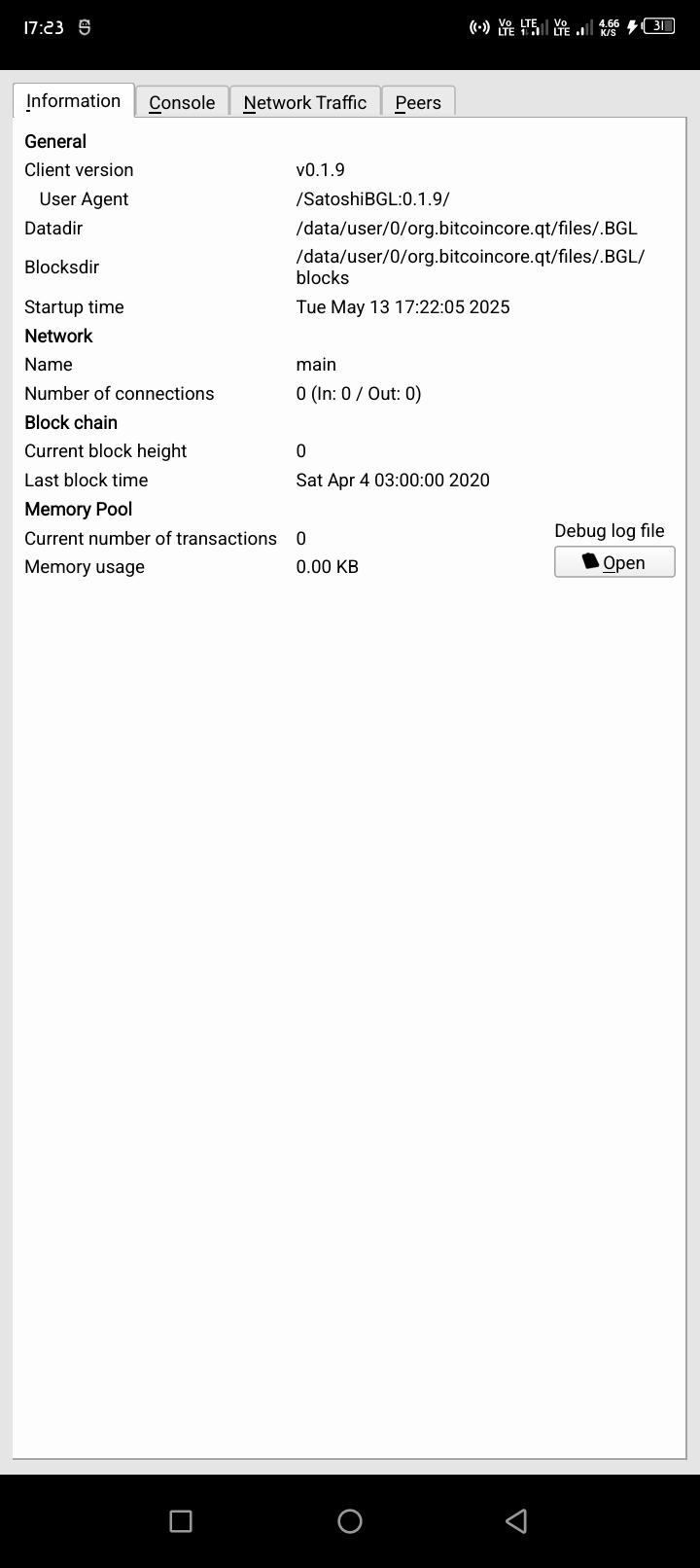

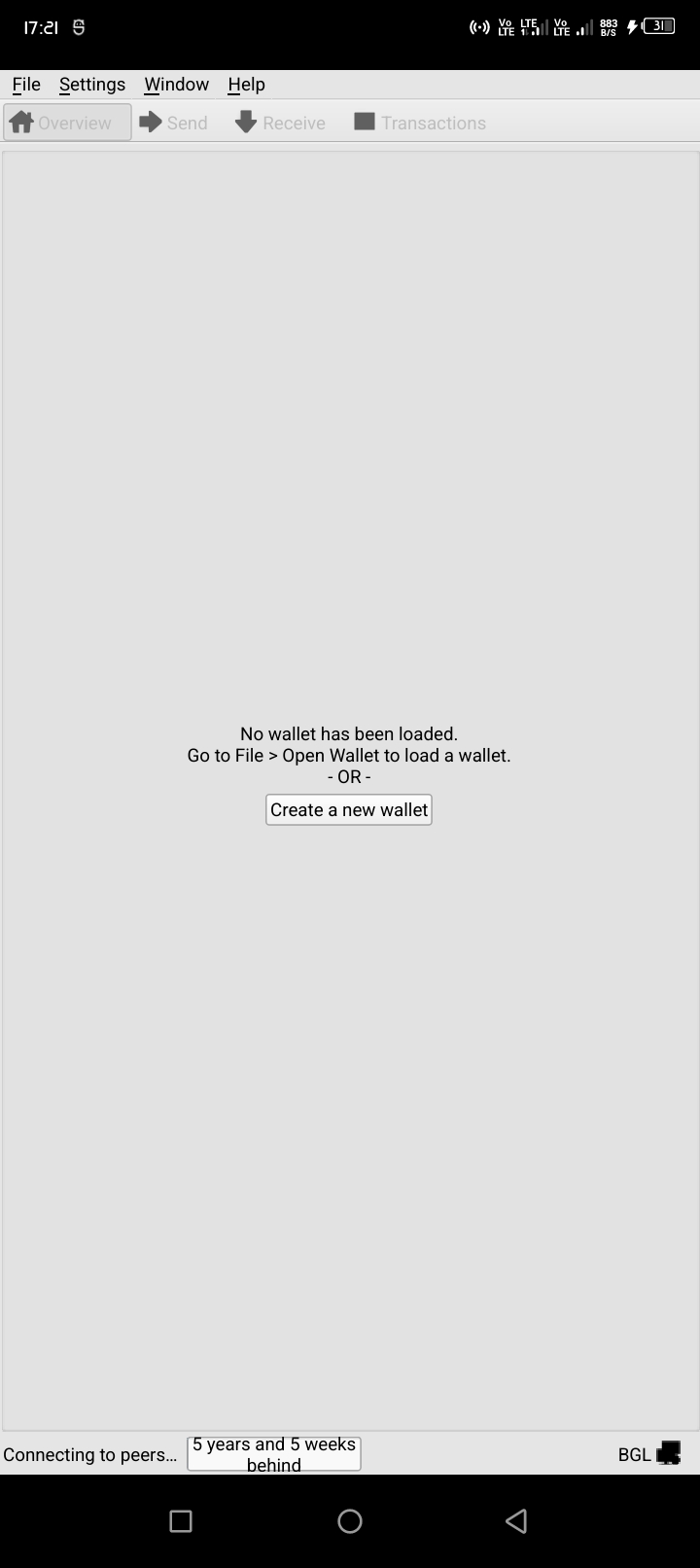

And here it is!
This is experimental, currently the project is in progress as follows:
-
make -C depends/ HOST=aarch64-linux-android -
./autogen.sh -
./configure --host=$HOST --prefix=$PWD/depends/$HOST --with-gui=qt5 --enable-glibc-back-compat --disable-bench --disable-tests -
make -j $(nproc) -
make -C src/qt apk- builds the apk - should bundlelibbitgesell.soand also as part of main JNI lib
Target is to cross-compile with Qt 6x in sync with the current Bitcoin core updates. See issue submitted here: bitcoin/bitcoin#32254
