This repo contains code for our paper: PANNs: Large-Scale Pretrained Audio Neural Networks for Audio Pattern Recognition [1]. A variety of CNNs are trained on the large-scale AudioSet dataset [2] containing 5000 hours audio with 527 sound classes. A mean average precision (mAP) of 0.439 is achieved using our proposed Wavegram-Logmel-CNN system, outperforming the Google baseline of 0.317 [3]. The PANNs have been used for audio tagging and sound event detection. The PANNs have been used to fine-tune several audio pattern recoginition tasks, and have outperformed several state-of-the-art systems.
The codebase is developed with Python 3.7. Install requirements as follows:
pip install -r requirements.txt
Users can inference the tags of an audio recording using pretrained models without training. First, downloaded one pretrained model from https://zenodo.org/record/3576403, for example, the model named "Cnn14_mAP=0.431.pth". Then, execute the following commands to inference this wav:
MODEL_TYPE="Cnn14"
CHECKPOINT_PATH="Cnn14_mAP=0.431.pth"
CUDA_VISIBLE_DEVICES=0 python3 pytorch/inference.py audio_tagging --model_type=$MODEL_TYPE --checkpoint_path=$CHECKPOINT_PATH --audio_path="examples/R9_ZSCveAHg_7s.wav" --cuda
Then the result will be printed on the screen looks like:
Speech: 0.796
Telephone bell ringing: 0.666
Male speech, man speaking: 0.089
Telephone: 0.084
Inside, small room: 0.058
Ringtone: 0.034
Inside, large room or hall: 0.026
Burping, eructation: 0.016
Conversation: 0.011
Narration, monologue: 0.008
Users can inference the tags of an audio recording using pretrained models without training. First, downloaded one pretrained model from https://zenodo.org/record/3576403, for example, the model named "Cnn14_DecisionLevelMax_mAP=0.385.pth". Then, execute the following commands to inference this wav:
MODEL_TYPE="Cnn14_DecisionLevelMax"
CHECKPOINT_PATH="Cnn14_DecisionLevelMax_mAP=0.385.pth"
CUDA_VISIBLE_DEVICES=0 python3 pytorch/inference.py sound_event_detection --model_type=$MODEL_TYPE --checkpoint_path=$CHECKPOINT_PATH --audio_path="examples/R9_ZSCveAHg_7s.wav" --cuda
The visualization of sound event detection result looks like:
Please see https://www.youtube.com/watch?v=QyFNIhRxFrY for a sound event detection video demo, and https://github.com/yinkalario/Sound-Event-Detection-AudioSet for the demo code.
Users can train PANNs from scratch by executing the commands in runme.sh. The runme.sh consists of three parts. 1. Download the full dataset. 2. Pack downloaded wavs to hdf5 file to speed up loading. 3. Train PANNs.
The runme.sh script can be used to download all AudioSet data from YouTube. The total data is around 1.1 TB. Notice there can be missing files on YouTube, so the numebr of files downloaded by users can be different from time to time. Our downloaded version contains 20550 / 22160 of the balaned training subset, 1913637 / 2041789 of the unbalanced training subset, and 18887 / 20371 of the evaluation subset. The downloaded data looks like:
dataset_root
├── audios
│ ├── balanced_train_segments
│ | └── ... (~20550 wavs, the number can be different from time to time)
│ ├── eval_segments
│ | └── ... (~18887 wavs)
│ └── unbalanced_train_segments
│ ├── unbalanced_train_segments_part00
│ | └── ... (~46940 wavs)
│ ...
│ └── unbalanced_train_segments_part40
│ └── ... (~39137 wavs)
└── metadata
├── balanced_train_segments.csv
├── class_labels_indices.csv
├── eval_segments.csv
├── qa_true_counts.csv
└── unbalanced_train_segments.csv
Loading wav format files is slow. Also storing millions of files on disk is inefficient. We pack wavs to big hdf5 files, 1 for balanced training subset, 1 for evaluation subset and 41 for unbalanced traning subset. The packed files looks like:
workspace
└── hdf5s
├── targets (2.3 GB)
| ├── balanced_train.h5
| ├── eval.h5
| └── unbalanced_train
| ├── unbalanced_train_part00.h5
| ...
| └── unbalanced_train_part40.h5
└── waveforms (1.1 TB)
├── balanced_train.h5
├── eval.h5
└── unbalanced_train
├── unbalanced_train_part00.h5
...
└── unbalanced_train_part40.h5
Training is easy!
WORKSPACE="your_workspace"
CUDA_VISIBLE_DEVICES=0 python3 pytorch/main.py train --workspace=$WORKSPACE --data_type='full_train' --window_size=1024 --hop_size=320 --mel_bins=64 --fmin=50 --fmax=14000 --model_type='Cnn13_specaug' --loss_type='clip_bce' --balanced='balanced' --augmentation='mixup' --batch_size=32 --learning_rate=1e-3 --resume_iteration=0 --early_stop=1000000 --cuda
The CNN models are trained on a single card Tesla-V100-PCIE-32GB. (The training also works on a GPU card with 12 GB). The training takes around 3 - 7 days.
Validate bal mAP: 0.005
Validate test mAP: 0.005
Dump statistics to /workspaces/pub_audioset_tagging_cnn_transfer/statistics/main/sample_rate=32000,window_size=1024,hop_size=320,mel_bins=64,fmin=50,fmax=14000/data_type=full_train/Cnn13/loss_type=clip_bce/balanced=balanced/augmentation=mixup/batch_size=32/statistics.pkl
Dump statistics to /workspaces/pub_audioset_tagging_cnn_transfer/statistics/main/sample_rate=32000,window_size=1024,hop_size=320,mel_bins=64,fmin=50,fmax=14000/data_type=full_train/Cnn13/loss_type=clip_bce/balanced=balanced/augmentation=mixup/batch_size=32/statistics_2019-09-21_04-05-05.pickle
iteration: 0, train time: 8.261 s, validate time: 219.705 s
------------------------------------
...
------------------------------------
Validate bal mAP: 0.637
Validate test mAP: 0.431
Dump statistics to /workspaces/pub_audioset_tagging_cnn_transfer/statistics/main/sample_rate=32000,window_size=1024,hop_size=320,mel_bins=64,fmin=50,fmax=14000/data_type=full_train/Cnn13/loss_type=clip_bce/balanced=balanced/augmentation=mixup/batch_size=32/statistics.pkl
Dump statistics to /workspaces/pub_audioset_tagging_cnn_transfer/statistics/main/sample_rate=32000,window_size=1024,hop_size=320,mel_bins=64,fmin=50,fmax=14000/data_type=full_train/Cnn13/loss_type=clip_bce/balanced=balanced/augmentation=mixup/batch_size=32/statistics_2019-09-21_04-05-05.pickle
iteration: 600000, train time: 3253.091 s, validate time: 1110.805 s
------------------------------------
Model saved to /workspaces/pub_audioset_tagging_cnn_transfer/checkpoints/main/sample_rate=32000,window_size=1024,hop_size=320,mel_bins=64,fmin=50,fmax=14000/data_type=full_train/Cnn13/loss_type=clip_bce/balanced=balanced/augmentation=mixup/batch_size=32/600000_iterations.pth
...

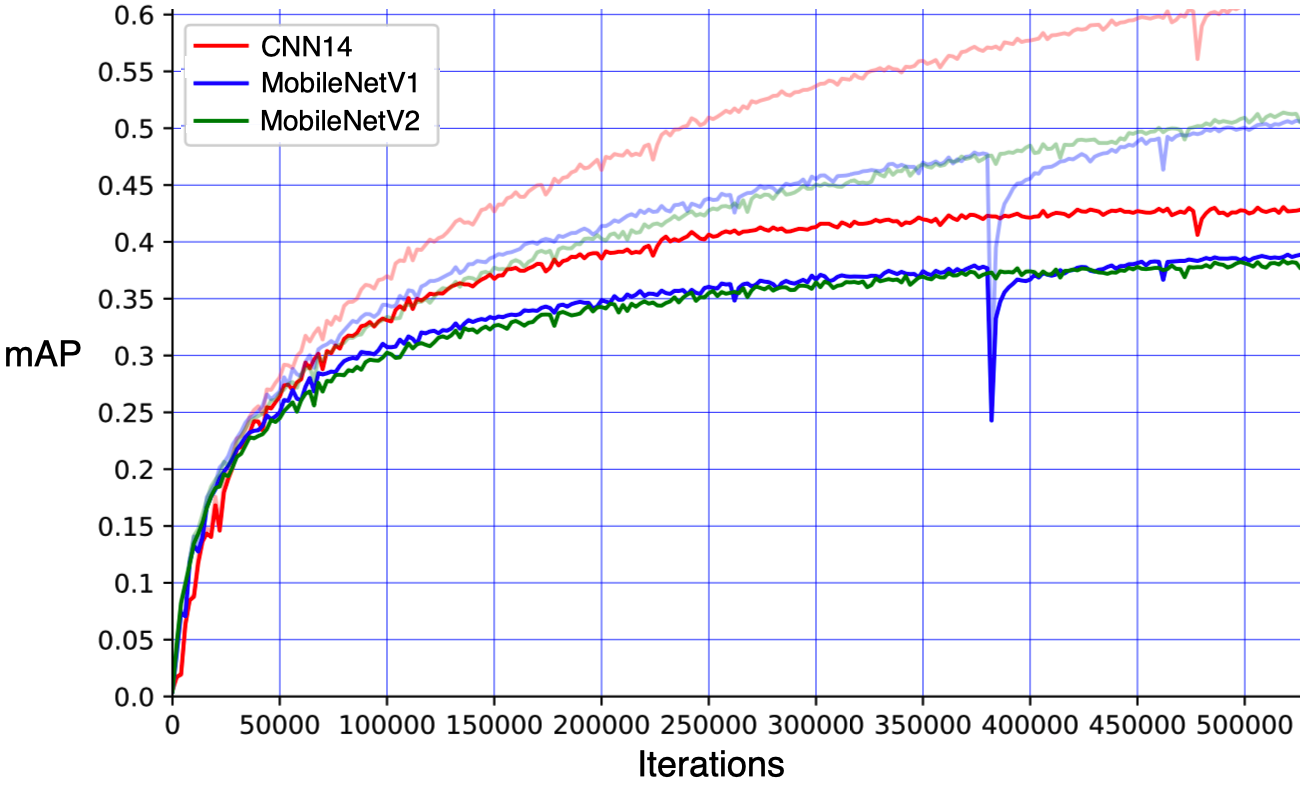

An mean average precision (mAP) of 0.431 is obtained. The training curve looks like:
The transparent curves are training mAP. The dark curves are evaluation mAP. We plot mAP curve CNN14, MobilNetV1 and MobileNetV2 in the above figure.
Top rows show the previously proposed methods using embedding features provided by Google. Previous best system achieved an mAP of 0.369 using large feature-attention neural networks. We propose to train neural networks directly from audio recordings. Our CNN14 achieves an mAP of 0.431, and Wavegram-Logmel-CNN achieves an mAP of 0.439.
After downloading the pretrained models. Build fine-tuned systems for new tasks is simple!
MODEL_TYPE="Transfer_Cnn14"
CHECKPOINT_PATH="Cnn14_mAP=0.431.pth"
CUDA_VISIBLE_DEVICES=1 python3 pytorch/finetune_template.py train --window_size=1024 --hop_size=320 --mel_bins=64 --fmin=50 --fmax=14000 --model_type=$MODEL_TYPE --pretrained_checkpoint_path=$CHECKPOINT_PATH --cuda
We apply the audio tagging system to build a sound event detection (SED) system. The SED prediction is obtained by applying the audio tagging system on consecutive 2-second segments. The video of demo can be viewed at:
https://www.youtube.com/watch?v=7TEtDMzdLeY
The code of the graphical interface demo is available at:
https://github.com/yinkalario/General-Purpose-Sound-Recognition-Demo
[1] Qiuqiang Kong, Yin Cao, Turab Iqbal, Yuxuan Wang, Wenwu Wang, Mark D. Plumbley. "PANNs: Large-Scale Pretrained Audio Neural Networks for Audio Pattern Recognition." arXiv preprint arXiv:1912.10211 (2019).
[2] Gemmeke, J.F., Ellis, D.P., Freedman, D., Jansen, A., Lawrence, W., Moore, R.C., Plakal, M. and Ritter, M., 2017, March. Audio set: An ontology and human-labeled dataset for audio events. In IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), pp. 776-780, 2017
[3] Hershey, S., Chaudhuri, S., Ellis, D.P., Gemmeke, J.F., Jansen, A., Moore, R.C., Plakal, M., Platt, D., Saurous, R.A., Seybold, B. and Slaney, M., 2017, March. CNN architectures for large-scale audio classification. In 2017 IEEE International Conference on Acoustics, Speech and Signal Processing (ICASSP), pp. 131-135, 2017
Other work on music transfer learning includes:
https://github.com/jordipons/sklearn-audio-transfer-learning
https://github.com/keunwoochoi/transfer_learning_music
