The code in this repository demonstrates an issue that we have found when running our pipelines with the latest Beam 2.15.0 on Spark 2.4.4.
Beam 2.15.0
Spark 2.4.4
The test in src/test/java contains a JUnit test that will create a list of PCollections and flatten them.
In between flatten operations, a reshuffle is used to create new stages in Spark. This makes it easier
to demonstrate the core issue, but without reshuffle the same issue exists.

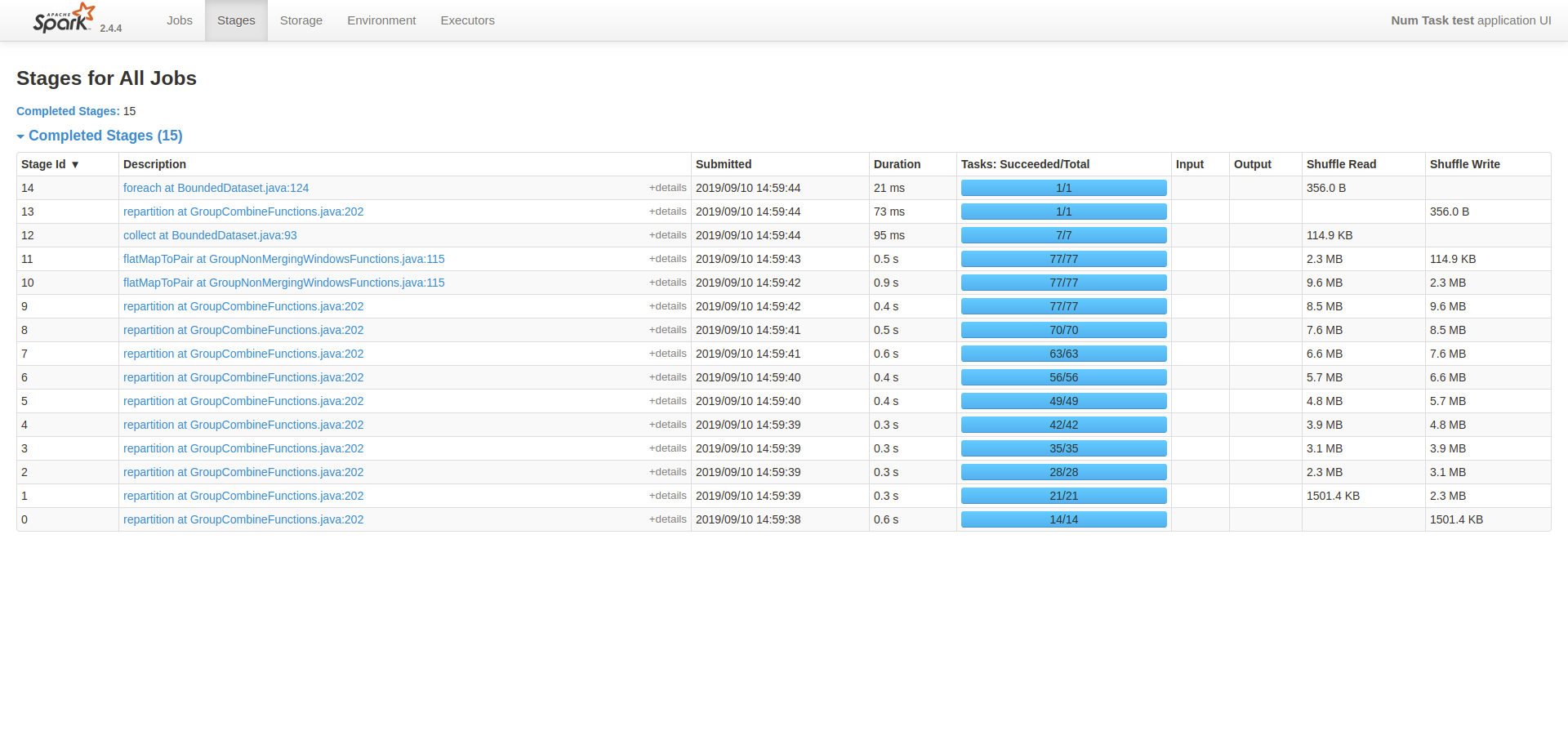

When running the test, each stage that contains a flatten will have more tasks than the one before.
This is in line with the flatten implementation in TransformTranslator. The code will perform a Spark union operation, which will result in a UnionRDD that is the combination of the original RDDs and also contains the union of the partitions.
Note: There is a special case in the union operation when all RDDs share the same partitioner. If that happens
the union will get a PartitionerAwareUnionRDD that will probably not have this issue. For some reason, the
UnionRDD is used, although both RDDs contain 7 partitions and both probably use the
HashPartitioner.
Because the number of partitions in the union is the sum of the partitions in the originating RDDs, the number of partitions continues to grow.
In this example this is not really an issue, but we have a pipeline that runs on 150 machines where the number of partitions can really get out of hand due to this (500k+ partitions). This many partitions/tasks overloads the driver and crashes the pipeline.
A fairly easy solution is to add an extra coalesce operation after the union to reduce the number of
partitions back to the default. In our experiments this seems to work very well.
unionRDD =
context
.getSparkContext()
.union(rdds)
.coalesce(context.getSparkContext().defaultParallelism(), false);
