Reproducibility package for the verification of laminar 3D pipe flow w/ OpenFOAM

Primary LanguageJupyter NotebookBSD 3-Clause "New" or "Revised" LicenseBSD-3-Clause

A reproducibility package for simulation verification of pipe flow with OpenFOAM.

Usage

Creating a Singularity/Apptainer image

We use a Singularity (or what is now named Apptainer) image to provide all required tools (e.g., OpenFOAM, Gmsh, Python, etc.). Using a Singularity image guarantees that we don't need to install anything else on working machines or HPC clusters.

If the current user has root privilege, then simply do (assuming currently under the repo folder):

# singularity build openfoam9.sif ./Singularity

If the current user does not have root privilege, try

$ singularity build --fakeroot openfoam9.sif ./Singularity

The above command requires the system admins to correctly configure the user namespace. To see if the user namespace is configured correctly, check the files /etc/subuid and /etc/subgid and find the line with your username and your group:

$ cat /etc/subuid
-------------------
...
<your username>:<a number much greater than 65535>:<a number greater than 98765>
...
$ cat /etc/subgid
-------------------
...
<the group you belong to>:<a number much greater than 65535>:<a number greater than 98765>
...

If these two options do not work for you, try the cloud builders: https://cloud.sylabs.io/builder

Finally, if using Apptainer (the newer community version of Singularity), just substitute singularity with apptainer.

Creating case folders

To create case folders:

$ singularity exec openfoam9.sif python ./main.py

As this is a reproducibility package, what cases to create are hard coded.

To create a custom case, use the following command to see how to use main.py to do so:

$ singularity exec openfoam9.sif python ./main.py --help

Note!! The script main.py will create mesh files on the fly. Generating meshes requires a non-trivial amount of memory, especially for the case airflow-pipe-256 (and airflow-pip-512, if it exists). It may crash on small personal desktops and laptops.

Running cases

Each case has a file job.sh that can be used as either a Slurm job script or a regular shell script.

If using it as a Slurm script, note that the resource configuration in job.sh is based on the Pegasus cluster at the George Washington University. You may need to manually change the configuration based on your cluster.

To submit a case using Slurm:

$ cd <a case folder>
$ sbatch job.sh

job.sh uses the OpenFOAM installation in the Singularity/Apptainer image. So the cluster must have Singularity/Apptainer. The script assumes the cluster uses Lmod and loads Singularity through module load singularity. The cluster also needs OpenMPI 4.0+ and loads OpenMPI through module load openmpi/gcc/64/4.1.0. Modify them based on the actual clusters being used.

To run a case using a regular Linux machine:

$ sh ./job.sh <number of MPI processes to use>

Results

  • Absolute error (against analytical soln.) at cross section z=0.135m abserr0135
  • Relative error (against analytical soln.) at cross section z=0.135m relerr0135
  • Error convergence of the maximum velocity in the entire domain errmax
  • Error convergence of the maximum velocity at cross section z=0.135m errmax0135

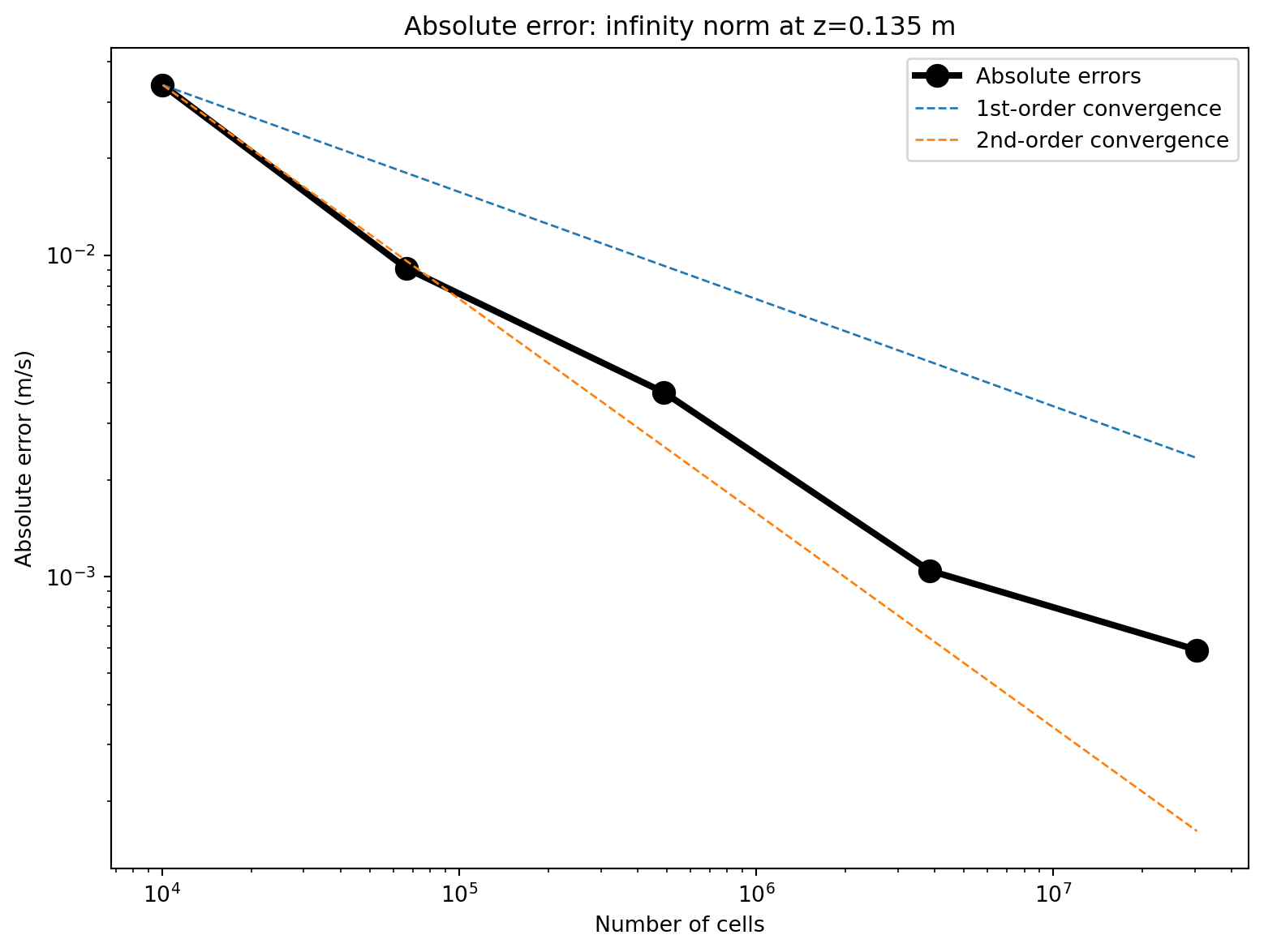

  • Error convergence of the $L_\infty$ at cross section z=0.135m l2135
  • Error convergence of the $L_2$ at cross section z=0.135m l2135
