About The Project

What you will need

  • Docker
  • Docker Compose

What the project uses

  • Java 11
  • Spring Boot
  • PostgreSQL
  • RabbitMQ

How It Works

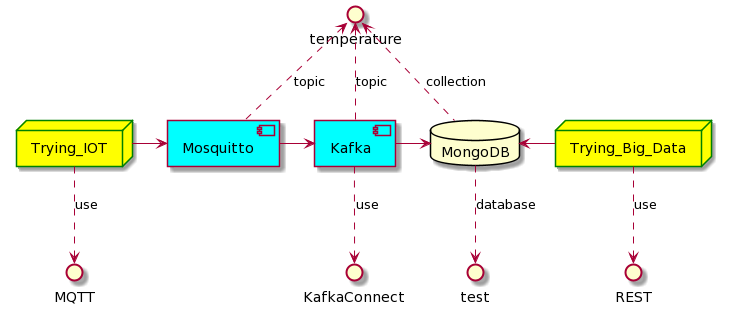

Architecture

  • The Trying_IOT application generates the following data from time to time:
{
  "value": {{random numbers}},
  "type": {{THERMOSTAT|HEART_RATE|CAR_FUEL}},
  "userId": {{generated uuid for that instance}},
  "createdAt": {{now}}
}
  • Then, sends to Trying_Big_Data project through REST API. After that, the API sends to a RabbitMQ. For now, there's no transformation of data.
  • Since there's no transformation, the application reads the message and saves on a PostgreSQL.
  • The Trying_Big_Data application then reads the data from PostgreSQL and apply the operations (e.g. median, max, min)
PlantUML Code
@startuml
database MongoDB
node Trying_IOT
node Trying_Big_Data

Trying_IOT -> Trying_Big_Data
Trying_Big_Data -> [RabbitMQ]
[RabbitMQ] -> Trying_Big_Data
Trying_Big_Data -> [PostgreSQL]
Trying_Big_Data ..> REST : use

skinparam node {
    borderColor Green
    backgroundColor Yellow
    backgroundColor<<shared node>> Magenta
}

skinparam component {
    backgroundColor Aqua
}
@enduml

How To Start

  • Run this command

docker-compose up

  • If you want to scale the application (more different users), just run:

docker-compose up -d --scale iot=3

  • When the application starts, you can go to http://localhost:8080/ and try some requests using the Swagger.

  • Date format example: '2021-07-09T21:53:56'
