/arcgis-runtime-samples-ios

Swift samples demonstrating various capabilities of ArcGIS Runtime SDK for iOS

Primary LanguageSwiftApache License 2.0Apache-2.0

ArcGIS Runtime SDK for iOS Samples

This repository contains Swift sample code demonstrating the capabilities of ArcGIS Runtime SDK for iOS and how to use them in your own app. The project that can be opened in Xcode and run on a simulator or a device. Or you can download the app from the App Store on your iOS device.

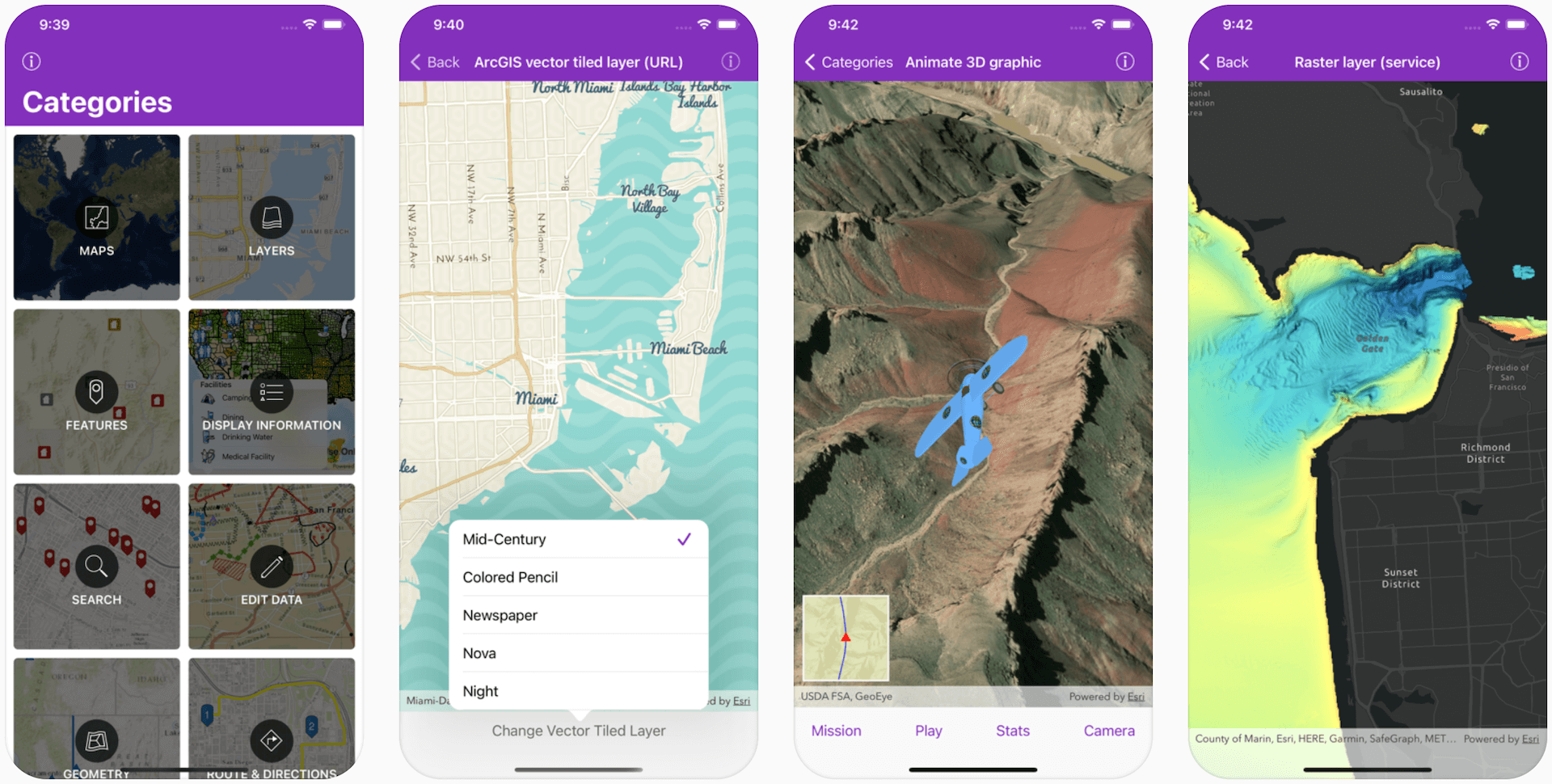

Samples app

The master branch of this repository contains samples configured for the latest available version of ArcGIS Runtime SDK for iOS. For samples configured for older versions of the SDK, look under the Releases tab for a specific version.

Features

  • Maps - Open, create, interact with and save maps
  • Layers - Display vector and raster data in maps and scenes
  • Features - Work with feature layers and geodatabases
  • Display Information - Show graphics, popups, callouts, and sketches
  • Search - Find addresses, places, and points of interest
  • Edit Data - Add, delete, and edit features and attachments
  • Geometry - Create geometries and perform geometric operations
  • Route & Directions - Calculate routes between locations and around barriers
  • Analysis - Perform spatial analysis via geoprocessing tasks and services
  • Cloud & Portal - Search for webmaps and list portal group users
  • Scenes - Visualize 3D environments and symbols
  • Utility Network - Work with utility networks, performing traces and exploring network elements
  • Augmented Reality - View data overlaid on the real world through your device's camera

Requirements

The ArcGIS Runtime SDK Samples app has a Target SDK version of 12.0, meaning that it can run on devices with iOS 12.0 or newer.

Building samples using installed SDK

  1. Fork and then clone the repository

    Make sure to use the "recursive" option to ensure you get the ArcGIS Runtime Toolkit submodule

    git clone --recursive [URL to Git repo]

    If you've already cloned the repo without the submodule, you can load the submodule using

    git submodule update --init

  2. Install the ArcGIS Runtime SDK for iOS to a central location on your Mac as described here
  3. Open the arcgis-ios-sdk-samples.xcodeproj project file
  4. Run the arcgis-ios-sdk-samples app target

    If you get the error message saying "This Copy Files build phase contains a reference to a missing file 'ArcGISToolkit.framework'", you probably didn't clone the repo to include it's submodule. See Step 1 above.

Building samples with CocoaPods

  1. Fork and then clone the repository
  2. Install the ArcGIS Runtime SDK for iOS by running the pod install command in the folder where you cloned this repository
  3. Open the arcgis-ios-sdk-samples.xcworkspace workspace file
  4. Select the arcgis-ios-sdk-samples project node, go to the Build Phases tab, and delete the phases for Embed Frameworks and Strip Frameworks (these phases conflict with CocoaPods and are only required when using the installed SDK as described in the previous section)
  5. Select the ArcGISToolkit.xcodeproj project node and delete it. (this project dependency conflicts with CocoaPods and is only required when using the installed SDK as described in the previous section)
  6. Run the arcgis-ios-sdk-samples app target

Sample Data

Some sample data is too large to store in the repository, so it is automatically downloaded at build time. The first time the app is built, a build script downloads the necessary data to Portal Data. The script only downloads data files that do not already exist, so subsequent builds will take significantly less time.

Additional Resources

  • Want to start a new project? Setup your dev environment
  • New to the API? Explore the documentation : Guide | API Reference
  • Got a question? Ask the community on our forum

Issues

Find a bug or want to request a new feature? Please let us know by submitting an issue.

Contributing

Esri welcomes contributions from anyone and everyone. Please see our guidelines for contributing.

Licensing

Copyright 2020 Esri

Licensed under the Apache License, Version 2.0 (the "License"); you may not use this file except in compliance with the License. You may obtain a copy of the License at

http://www.apache.org/licenses/LICENSE-2.0

Unless required by applicable law or agreed to in writing, software distributed under the License is distributed on an "AS IS" BASIS, WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied. See the License for the specific language governing permissions and limitations under the License.

A copy of the license is available in the repository's LICENSE file.
