saihgupr/HomeAssistantTimeMachine

Home Assistant Time Machine is a web-based tool that acts as a "Time Machine" for your Home Assistant configuration.

Home Assistant Time Machine

Home Assistant Time Machine is a web-based tool that acts as a "Time Machine" for your Home Assistant configuration. Browse YAML backups across automations, scripts, Lovelace dashboards, ESPHome files, and packages, then restore individual items back to your live setup with confidence.

What's New!

• Ingress Support: Full support for Home Assistant ingress, allowing seamless access through the Home Assistant UI without port forwarding.
• Lovelace Backup Support: Comprehensive backup and restore functionality for your Lovelace UI configurations, ensuring your dashboards are always safe.
• ESPHome & Packages Backup Support: Enable backups for ESPHome and Packages via a toggle in the add-on configuration.
• Backup Now Button: Trigger an immediate backup of your Home Assistant configuration directly from the UI with a single click. This utilizes a new API for programmatic backups, shared with the scheduled backup feature.
• Max Backups: Set a limit on how many backups are kept.
• Authentication: Secure access with Home Assistant authentication integration, automatically proxying through the Supervisor when available.
• Docker Container Installation: Simplified installation process with a dedicated Docker container option, providing more flexibility for users without the Home Assistant add-on store.
• Optimized Size & Performance: The add-on is now 4X smaller and uses 6X less memory, making it faster to download and run.
• Dark/Light Mode: Choose between dark and light themes in the configuration.
• Flexible Backup Locations: Backups can now be stored in /share /backup /config or /media. Folders are created automatically, and remote share backups are supported.
• REST API: Comprehensive API for managing backups, restores, and configurations.

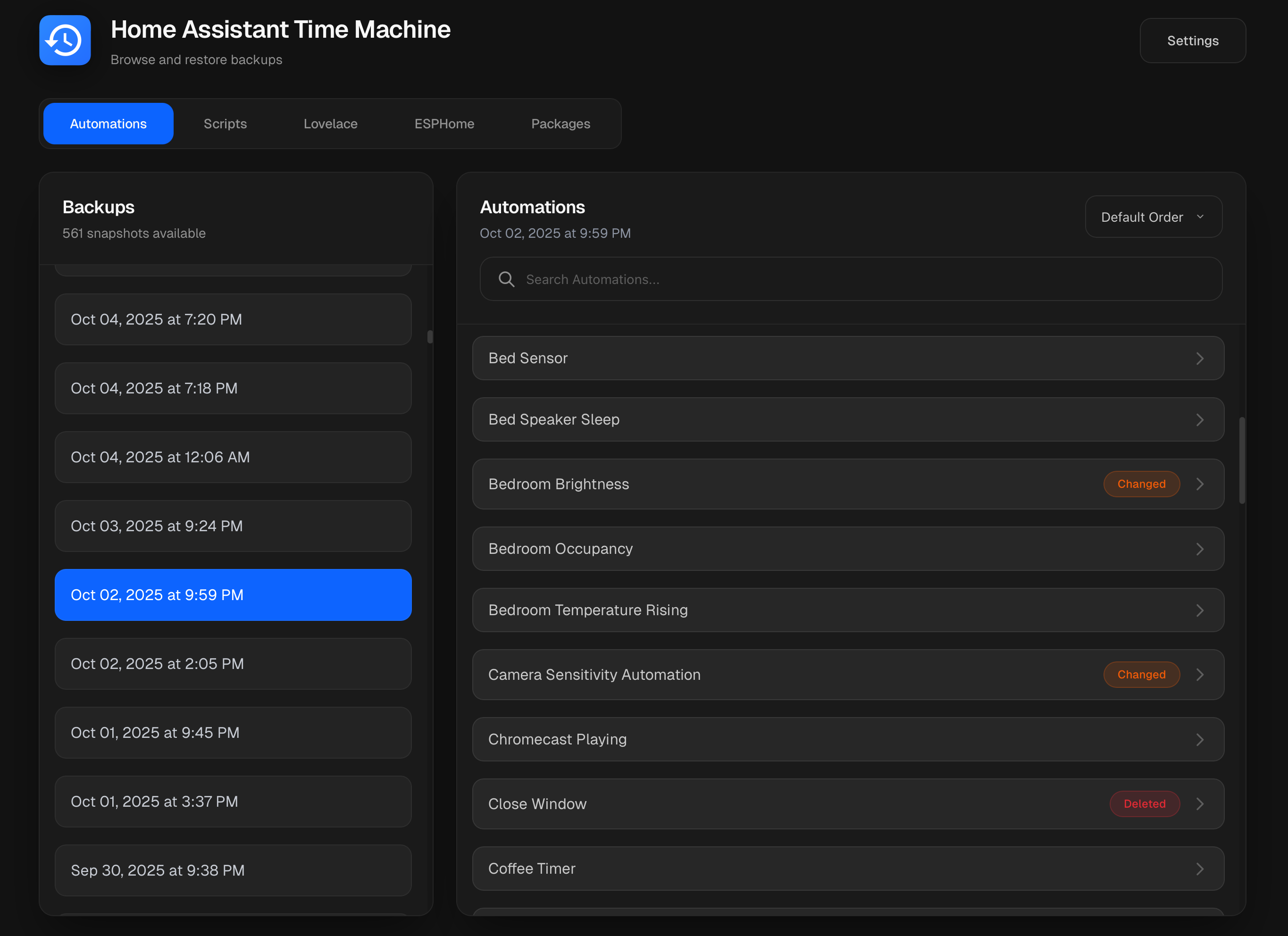

Screenshots

Features

• Browse Backups: Easily browse through your Home Assistant backup YAML files.
• View Changes: See a side-by-side diff of the changes between a backed-up item and the live version.
• Restore Individual Items: Restore individual automations or scripts without having to restore an entire backup.
• Safety first: It automatically creates a backup of your YAML files in your backups folder before restoring anything.
• Reload Home Assistant: Reload automations or scripts in Home Assistant directly from the UI after a restore.
• Scheduled Backups: Configure automatic backups of your Home Assistant configuration directly from the UI.

Installation

There are two ways to install Home Assistant Time Machine: as a Home Assistant add-on or as a standalone Docker container.

1. Home Assistant add-on (Recommended for most users)

1. Navigate to the Add-on Store in your Home Assistant instance.
2. Click on the three dots in the top right corner and select "Repositories".
3. Paste the URL of this repository and click "Add":

   https://github.com/saihgupr/HomeAssistantTimeMachine


4. The "Home Assistant Time Machine" add-on will now appear in the store. Click on it and then click "Install".

2. Standalone Docker Installation

Build and run the container locally when you aren’t using the Home Assistant add-on.

Clone, build, and start (recommended):

git clone https://github.com/saihgupr/HomeAssistantTimeMachine.git
cd HomeAssistantTimeMachine/homeassistant-time-machine
docker build -t ha-time-machine .

docker run -d \
  -p 54000:54000 \
  -e HOME_ASSISTANT_URL="http://your-ha-instance:8123" \
  -e LONG_LIVED_ACCESS_TOKEN="your-long-lived-access-token" \
  -v /path/to/your/ha/config:/config \
  -v /path/to/your/backups:/media \
  -v ha-time-machine-data:/data \
  --name ha-time-machine \
  ha-time-machine

Supplying the URL and token keeps credentials out of the UI. These environment variables are optional—if you set them, the settings fields are read-only; if you omit them, you can enter credentials in the web UI instead. They are stored in /data/docker-ha-credentials.json.

Changing Options in Docker

After the container is running, you can toggle ESPHome support, adjust text style, and switch light/dark modes by POSTing to the app settings API. This persists the value in /data/homeassistant-time-machine/docker-app-settings.json so the UI reflects it on reload:

curl -X POST http://localhost:54000/api/app-settings \
  -H 'Content-Type: application/json' \
  -d '{
        "liveConfigPath": "/config",
        "backupFolderPath": "/media/timemachine",
        "textStyle": "default",
        "theme": "dark",
        "esphomeEnabled": true,
        "packagesEnabled": true
      }'

Adjust the payload if you need different paths, theme, text style, or want to enable/disable features ("esphomeEnabled": true|false, "packagesEnabled": true|false, "theme": light|dark, "textStyle": default|pirate|hacker|noir_detective|personal_trainer|scooby_doo).

Accessing the Web Interface

After starting the container, access the web interface at http://localhost:54000 (or your server's IP/port).

Note: The HA URL and token fields in settings will be read-only if configured via environment variables, or editable if configured through the web UI.

Usage

Home Assistant add-on

1. Configure the add-on: In the add-on's configuration tab, set the Home Assistant URL and Long-Lived Access Token.
2. Start the add-on.
3. Open the Web UI:
   • Use Open Web UI from the add-on panel to launch ingress (default recommended when the external port is disabled).
   • Or, if you've enabled port 54000/tcp in the add-on configuration, browse to http://homeassistant.local:54000 (or your configured host/port).
4. In-app setup:
   • In the web UI, go to the settings menu.
   • Live Home Assistant Folder Path: Set the path to your Home Assistant configuration directory (e.g., /config).
   • Backup Folder Path: Set the path to the directory where your backups are stored (e.g., /media/timemachine).

Docker Container

1. Start the container with the required volume mounts (see Docker installation above).
2. Open the Web UI at http://localhost:54000 (or your server's IP/port).
3. In-app setup:
   • In the web UI, go to the settings menu.
   • Live Home Assistant Folder Path: Set to /config (this is the mounted volume).
   • Backup Folder Path: Set to /media/timemachine (this is the mounted volume).

Backup to Remote Share

To configure backups to a remote share, first set up network storage within Home Assistant (Settings > System > Storage > 'Add network storage'). Name the share 'backups' and set its usage to 'Media'. Once configured, you can then specify the backup path in Home Assistant Time Machine settings as '/media/backups', which will direct backups to your remote share.

Creating Backups

This add-on relies on having file-based backups of your Home Assistant configuration. You can now set up a scheduled backup directly within the UI. If you prefer to manage backups externally, here is an example of a simple shell script that you can use to create timestamped backups of your YAML files:

Important: The paths in this script (for example, /homeassistant) are placeholders. Adjust them to match your actual Home Assistant configuration directory (such as /config on HAOS).

#!/bin/bash

DATE=$(date +%Y-%m-%d-%H%M%S)

YEAR=$(date +%Y)

MONTH=$(date +%m)

### HOME ASSISTANT ###
mkdir -p  /media/timemachine/$YEAR/$MONTH/"$DATE"
cp /homeassistant/*.yaml /media/timemachine/$YEAR/$MONTH/"$DATE"

### Lovelace ###
mkdir -p  /media/timemachine/$YEAR/$MONTH/"$DATE"/.storage
cp /homeassistant/.storage/lovelace /media/timemachine/$YEAR/$MONTH/"$DATE"/.storage
cp /homeassistant/.storage/lovelace_dashboards /media/timemachine/$YEAR/$MONTH/"$DATE"/.storage
cp /homeassistant/.storage/lovelace_resources /media/timemachine/$YEAR/$MONTH/"$DATE"/.storage
cp /homeassistant/.storage/lovelace.* /media/timemachine/$YEAR/$MONTH/"$DATE"/.storage

### ESPHOME ###
mkdir -p  /media/timemachine/$YEAR/$MONTH/"$DATE"/esphome
cp /homeassistant/esphome/*.yaml /media/timemachine/$YEAR/$MONTH/"$DATE"/esphome

### PACKAGES ###
mkdir -p  /media/timemachine/$YEAR/$MONTH/"$DATE"/packages
cp /homeassistant/packages/*.yaml /media/timemachine/$YEAR/$MONTH/"$DATE"/packages

Important:

• Run this script at a regular interval (e.g., every 24 hours) to keep backups current. You can use a cron job on your host machine or a Home Assistant automation with a shell_command integration to automate it.

API Endpoints

• POST /api/backup-now: Trigger an immediate backup (requires liveFolderPath and backupFolderPath).
• POST /api/restore-automation / POST /api/restore-script: Restore a single automation or script after creating a safety backup.
• POST /api/restore-lovelace-file / POST /api/restore-esphome-file / POST /api/restore-packages-file: Restore Lovelace, ESPHome, or package files with automatic pre-restore backups.
• *POST /api/get-backup- ** & */api/get-live- ** families: Fetch specific items from backups or the live config (automations, scripts, Lovelace, ESPHome, packages).
• GET /api/schedule-backup / POST /api/schedule-backup: Inspect or update scheduled backup jobs.
• POST /api/scan-backups: Scan the backup directory tree and list discovered backups.
• POST /api/validate-path / POST /api/validate-backup-path: Verify that provided directories exist and contain Home Assistant data/backups.
• POST /api/test-home-assistant-connection: Confirm stored Home Assistant credentials work before saving.
• POST /api/reload-home-assistant: Invoke a Home Assistant reload service (e.g., automation.reload).
• GET /api/health: Simple status endpoint exposing version, ingress state, and timestamp.

Example usage:

# Trigger backup
curl -X POST http://localhost:54000/api/backup-now \
  -H "Content-Type: application/json" \
  -d '{"liveFolderPath": "/config", "backupFolderPath": "/media/timemachine"}'

# Get scheduled jobs
curl http://localhost:54000/api/schedule-backup

# Scan backups
curl -X POST http://localhost:54000/api/scan-backups \
  -H "Content-Type: application/json" \
  -d '{"backupRootPath": "/media/timemachine"}'

Support, Feedback & Contributing

• File issues or feature requests at GitHub Issues.
• Pull requests are welcome—check existing issues or propose enhancements.
• Share feedback on usability so we can keep refining backup workflows.
