/CSV-BOM

Creates a bill of material from the browser components tree in Autodesk Fusion360.

Primary LanguagePython

CSV-BOM

Creates a bill of material and cut lists from the browser components tree in Autodesk Fusion360.

General Usage Instructions

After installation, go to the toolbar "Create" submenu and choose "Create BOM". A dialog appears which shows provided options to control the CSV output. Click OK and a save file dialog comes up. Name your file and click OK. After creating the file a message box popups with the information that the file has successfully created. Open a suitable app which can handle CSV formatted files. Import the CSV file and voila the BOM of your design is showing.
There is also an option to generate cut lists for woodworking projects. They can be used in conjunction with a software by Gary Darby to optimize panel use.

Supportet options

  • Selected only

Means that only selected components will be exported to CSV.

  • Include dimension

Exports the accumulated bounding box dimension of all solid bodies on first level whithin a component.

  • Separate dimensions

Places the dimension values in separate CVS output columns.

  • Sort Dimensions

If you are cutting your parts out of any kind of panelized material (i.e. plywood), you want the height of the part usually be the thickness of your material. If you select this option, the dimensions are sorted to accommodate this, no matter how your part is oriented in your model. The smallest value becomes the height (thickness), the next larger the width and the largest the length.

  • Exclude "_"

Often users sign components with an underscore to make them visually for internal use. This option ignores such signed components. If you deselect this option another option comes up which is descripted next.

  • Strip "_"

You want underscore signed components too? No problem, but you dont want the underscore in the outputted component name? Then this option is right for you. It strippes the underscore away.

  • Exclude if no bodies

Components without a body makes no sense. Activate this option to ignore them.

  • Exclude linked

If linked components have there own BOM, you can exclude them to keep your BOM lean and clean.

  • Ignore visible state

The component is not visible but it should taken to the BOM? Ok, activate this option to do that.

Supported physical options

  • Include volume

Includes the accumulated volume for all bodies at first level whithin a component.

  • Include area

Includes the accumulated area for all bodies at first level whithin a component.

  • Include mass

Includes the accumulated mass for all bodies at first level whithin a component.

  • Include density

Add's the density of the first body at first level found whithin a component.

  • Include material

Includes the material names as an comma seperated list for all bodies at first level whithin a component.

Cut List

  • Generate Cut List

Generates a file that can be used in the cut list optimization software by Gary Darby. This is especially helpful in woodworking projects and allows to optimize panel use. The file is saved under the same name as the BOM but with a "_cutList.txt" ending.

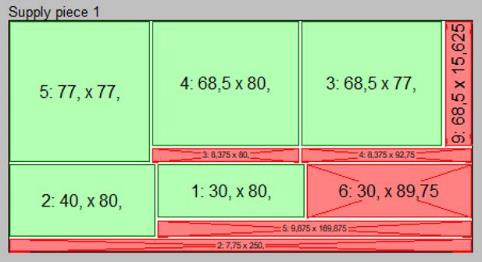

Example Cut List/Panel Optimization
Example Cut List/Panel Optimization

Note: If the cut list software is not able to read your dimensions properly, try changing the option "Use comma delimiter" in CSV-BOM (see below).

Misc

  • Include description

Includes the component description. To edit, right click on a component and select Properties in the submenu.

  • Use comma delimiter

If checked CSV-BOM will replace the dot decimal delimiter with a comma. This is useful for all countries that uses a comma for float decimal delimiters. As a benefit of that option, Applications like Apple Numbers, MS-Excel or OpenOffice can handle these CSV-entries as native numbers instead of simple text.

  • ...

Installation

  1. Checkout the repository from Github or get the ZIP-package here

  2. If you have checked out the repo, you can skip point 3

  3. Extract the content of the downloaded ZIP to a preferred location

  4. Open Fusion360 and load the Add-Ins dialog

    Toolbar top right

  5. To add the CSV-BOM Add-In, click on the Add-Ins tab and then on the small plus icon.

    Add-Ins dialog

  6. Locate the unzipped CSV-BOM-master folder, open it and choose CSV-BOM.py and click OK

  7. The Add-In is now listed but not running. Select the CSV-BOM entry, activate Run on Startup and click Run

    Add-In in the list

After Run was clicked the Add-Ins dialog closes automatically. Check the Create toolbar panel! CSV-BOM is ready to use ;-)
