ImGuiFileDialog

An example of the File Dialog integrated within the ImGui Demo App

Separate system for call and display
Can use custom pane via function binding
- this pane can block the validation of the dialog
- can also display different things according to current filter and User Datas
Support of Filter Custom Coloring / Icons / text
Multi Selection (ctrl/shift + click) :
- 0 => infinite
- 1 => one file (default)
- n => n files
Compatible with MacOs, Linux, Win
- On Win version you can list Drives
Support of Modal/Standard dialog type
Support both Mode : File Chooser or Directory Chooser
Support filter collection / Custom filter name
Support files Exploring with keys : Up / Down / Enter (open dir) / Backspace (come back)
Support files Exploring by input char (case insensitive)
Support bookmark creation/edition/call for directory (can have custom name corresponding to a path)

Use the Namespace igfd (for avoid conflict with variables, struct and class names)

Simple Dialog :

void drawGui()
{
  // open Dialog Simple
  if (ImGui::Button("Open File Dialog"))
    igfd::ImGuiFileDialog::Instance()->OpenDialog("ChooseFileDlgKey", "Choose File", ".cpp,.h,.hpp", ".");

  // display
  if (igfd::ImGuiFileDialog::Instance()->FileDialog("ChooseFileDlgKey"))
  {
    // action if OK
    if (igfd::ImGuiFileDialog::Instance()->IsOk == true)
    {
      std::string filePathName = igfd::ImGuiFileDialog::Instance()->GetFilepathName();
      std::string filePath = igfd::ImGuiFileDialog::Instance()->GetCurrentPath();
      // action
    }
    // close
    igfd::ImGuiFileDialog::Instance()->CloseDialog("ChooseFileDlgKey");
  }
}

Directory Chooser :

For have only a directory chooser, you just need to specify a filter null :

igfd::ImGuiFileDialog::Instance()->OpenDialog("ChooseDirDlgKey", "Choose a Directory", 0, ".");

In this mode you can select any directory with one click, and open directory with double click

Dialog with Custom Pane :

static bool canValidateDialog = false;
inline void InfosPane(std::string vFilter, igfd::UserDatas vUserDatas, bool *vCantContinue) // if vCantContinue is false, the user cant validate the dialog
{
	ImGui::TextColored(ImVec4(0, 1, 1, 1), "Infos Pane");
	ImGui::Text("Selected Filter : %s", vFilter.c_str());
	if (vUserDatas)
		ImGui::Text("UserDatas : %s", vUserDatas);
	ImGui::Checkbox("if not checked you cant validate the dialog", &canValidateDialog);
	if (vCantContinue)
	    *vCantContinue = canValidateDialog;
}

void drawGui()
{
  // open Dialog with Pane
  if (ImGui::Button("Open File Dialog with a custom pane"))
    igfd::ImGuiFileDialog::Instance()->OpenDialog("ChooseFileDlgKey", "Choose File", ".cpp,.h,.hpp",
            ".", "", std::bind(&InfosPane, std::placeholders::_1, std::placeholders::_2, std::placeholders::_3), 350, 1, igfd::UserDatas("InfosPane"));

  // display and action if ok
  if (igfd::ImGuiFileDialog::Instance()->FileDialog("ChooseFileDlgKey"))
  {
    if (igfd::ImGuiFileDialog::Instance()->IsOk == true)
    {
		std::string filePathName = igfd::ImGuiFileDialog::Instance()->GetFilepathName();
		std::string filePath = igfd::ImGuiFileDialog::Instance()->GetCurrentPath();
		std::string filter = igfd::ImGuiFileDialog::Instance()->GetCurrentFilter();
		// here convert from string because a string was passed as a userDatas, but it can be what you want
		std::string userDatas;
		if (igfd::ImGuiFileDialog::Instance()->GetUserDatas())
			userDatas = std::string((const char*)igfd::ImGuiFileDialog::Instance()->GetUserDatas());
		auto selection = igfd::ImGuiFileDialog::Instance()->GetSelection(); // multiselection

		// action
    }
    // close
    igfd::ImGuiFileDialog::Instance()->CloseDialog("ChooseFileDlgKey");
  }
}

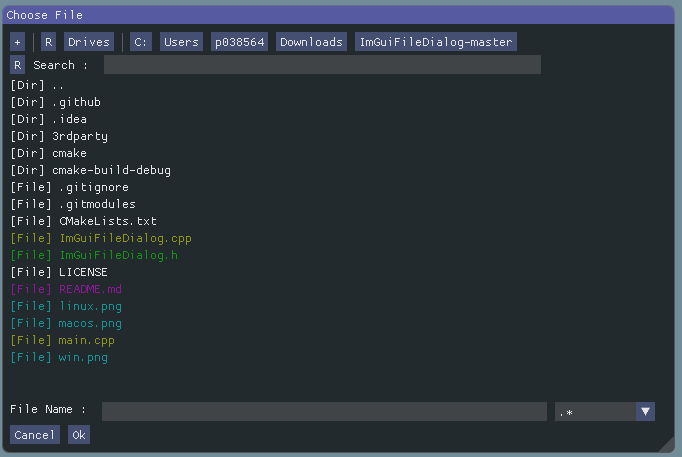

Filter Infos

You can define color for a filter type

igfd::ImGuiFileDialog::Instance()->SetFilterInfos(".cpp", ImVec4(1,1,0, 0.9));
igfd::ImGuiFileDialog::Instance()->SetFilterInfos(".h", ImVec4(0,1,0, 0.9));
igfd::ImGuiFileDialog::Instance()->SetFilterInfos(".hpp", ImVec4(0,0,1, 0.9));
igfd::ImGuiFileDialog::Instance()->SetFilterInfos(".md", ImVec4(1,0,1, 0.9));

and also specific icons (with icon font files) or file type names :

// add an icon for png files
igfd::ImGuiFileDialog::Instance()->SetFilterInfos(".png", ImVec4(0,1,1,0.9), ICON_IMFDLG_FILE_TYPE_PIC);
// add a text for gif files (the default value is [File]
igfd::ImGuiFileDialog::Instance()->SetFilterInfos(".gif", ImVec4(0, 1, 0.5, 0.9), "[GIF]");

Filter Collections

you can define a custom filter name who correspond to a group of filter

you must use this syntax : custom_name1{filter1,filter2,filter3},custom_name2{filter1,filter2},filter1 when you will select custom_name1, the gorup of filter 1 to 3 will be applied the reserved char are {}, you cant use them for define filter name.

this code :

const char *filters = "Source files (*.cpp *.h *.hpp){.cpp,.h,.hpp},Image files (*.png *.gif *.jpg *.jpeg){.png,.gif,.jpg,.jpeg},.md";
igfd::ImGuiFileDialog::Instance()->OpenDialog("ChooseFileDlgKey", ICON_IMFDLG_FOLDER_OPEN " Choose a File", filters, ".");

will produce :

Multi Selection

You can define in OpenDialog/OpenModal call the count file you wan to select :

0 => infinite
1 => one file only (default)
n => n files only

See the define at the end of these funcs after path.

igfd::ImGuiFileDialog::Instance()->OpenDialog("ChooseFileDlgKey", "Choose File", ".*,.cpp,.h,.hpp", ".");
igfd::ImGuiFileDialog::Instance()->OpenDialog("ChooseFileDlgKey", "Choose 1 File", ".*,.cpp,.h,.hpp", ".", 1);
igfd::ImGuiFileDialog::Instance()->OpenDialog("ChooseFileDlgKey", "Choose 5 File", ".*,.cpp,.h,.hpp", ".", 5);
igfd::ImGuiFileDialog::Instance()->OpenDialog("ChooseFileDlgKey", "Choose many File", ".*,.cpp,.h,.hpp", ".", 0);
igfd::ImGuiFileDialog::Instance()->OpenDialog("ChooseFileDlgKey", "Choose File", ".png,.jpg",
   ".", "", std::bind(&InfosPane, std::placeholders::_1, std::placeholders::_2, std::placeholders::_3), 350, 1, "SaveFile"); // 1 file

File Dialog Constraints

you can define min/max size of the dialog when you display It

by ex :

MaxSize is the full display size
MinSize in the half display size.

ImVec2 maxSize = ImVec2((float)display_w, (float)display_h);
ImVec2 minSize = maxSize * 0.5f;
igfd::ImGuiFileDialog::Instance()->FileDialog("ChooseFileDlgKey", ImGuiWindowFlags_NoCollapse, minSize, maxSize);

Detail View Mode

You can have tables display like that.

you need to use imgui tables branch (not merged in master at this moment)
uncomment "#define USE_IMGUI_TABLES" in you custom config file (CustomImGuiFileDialogConfig.h in this example)

Exploring by keys

you can activate this feature by uncomment : "#define USE_EXPLORATION_BY_KEYS" in you custom config file (CustomImGuiFileDialogConfig.h in this example)

you can also uncomment the next lines for define your keys :

IGFD_KEY_UP => Up key for explore to the top
IGFD_KEY_DOWN => Down key for explore to the bottom
IGFD_KEY_ENTER => Enter key for open directory
IGFD_KEY_BACKSPACE => BackSpace for comming back to the last directory

you can also explore a file list by use the current key char.

as you see the current item is flashed (by default for 1 sec) you can define the flashing life time by yourself with the function

igfd::ImGuiFileDialog::Instance()->SetFlashingAttenuationInSeconds(1.0f);

Bookmarks

you can create/edit/call path bookmarks and load/save them in file

you can activate it by uncomment : "#define USE_BOOKMARK"

in you custom config file (CustomImGuiFileDialogConfig.h in this example)

you can also uncomment the next lines for customize it :

#define bookmarkPaneWith 150.0f => width of the bookmark pane
#define IMGUI_TOGGLE_BUTTON ToggleButton => customize the Toggled button (button stamp must be : (const char* label, bool *toggle)
#define bookmarksButtonString "Bookmark" => the text in the toggle button
#define bookmarksButtonHelpString "Bookmark" => the helper text when mouse over the button
#define addBookmarkButtonString "+" => the button for add a bookmark
#define removeBookmarkButtonString "-" => the button for remove the selected bookmark

you can select each bookmark for edit the displayed name corresponding to a path
you must double click on the label for apply the bookmark

you can also serialize/deserialize bookmarks by ex for load/save from/to file : (check the app sample by ex)

Load => igfd::ImGuiFileDialog::Instance()->DeserializeBookmarks(bookmarString);
Save => std::string bookmarkString = igfd::ImGuiFileDialog::Instance()->SerializeBookmarks();

How to Integrate ImGuiFileDialog in your porject
