demo_DataPipeline

This repository is for internal Mesosphere staff only

The goal of this demo is to show audiences in which DC/OS facilitates ease of lifecycle mgmt for data services, leverage kubeflow independently or on Kubernetes on DC/OS, and other components to build out your data pipeline, whether it's open source, public cloud, or hybrid of both.

Featured components include DC/OS, Kubernetes, TensorFlow, Jupyter, Spark, Portworx, HDFS. Future updates to include Kubeflow, Kafka, more.

You will need the appropriate permissions in AWS to provision a Mesosphere DC/OS Enterprise cluster using Terraform. The DC/OS cluster should have at minimum 3 Masters, 1 Public Agent, and 12 Private Agents.

This repository is a Work In Progress, until indicated otherwise in this README. Enjoy!

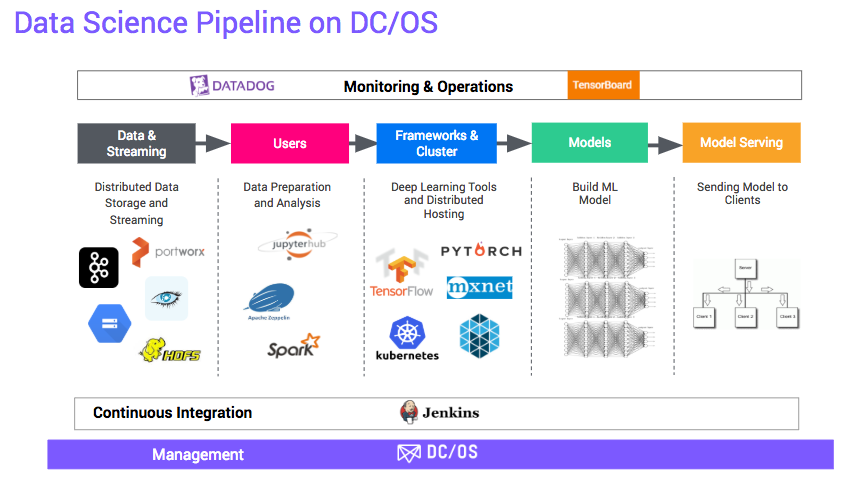

Demo: Data Science Pipeline on DC/OS

.

DC/OS

  • Authenticate CLI using MAWS
maws login [AWS user account]
  • Update desired_cluster_profile.tfvars with correct values for aws_profile, and dcos_license_key_contents
  • Use Terraform and the above tfvars file to deploy a DC/OS cluster of 3 masters, 12 private agents, and 1 public agent.
mkdir dcos-installer
cd dcos-installer
terraform apply -var-file desired_cluster_profile.tfvars
  • On completion, take note of all IPs in the summary.

Portworx preparation

  • Identify your EC2 instances in the AWS Management Console.
  • Create EBS volumes in the same AWS Region as your EC2 instances (e.g. 100 Gb, 12 EBS volumes).
    • Identify your AWS EC2 instances using a unique Tag.
  • Attach the 12 AWS EBS volumes to all 12 private agents.

DC/OS CLI

  • Configure your CLI to access the DC/OS cluster, and install Marathon-LB.
dcos cluster setup <MasterIP>
dcos package install marathon-lb --yes

Kubernetes 1.1.1-1.10.4

  • Install kubectl-proxy.json
dcos marathon app add kubectl-proxy.json
  • Install Kubernetes on DC/OS with HA enabled and 3 worker nodes, via the DC/OS GUI
  • Alternately, use the k8s-options.json to deploy by CLI
dcos package install kubernetes --package-version=1.1.1-1.10.4 --options=k8s-options.json
  • Watch deployment progress
brew install watch
watch -n1 dcos kubernetes plan status deploy
  • Configure kubectl with the Public Agent IP without TLS verification
dcos kubernetes kubeconfig --apiserver-url https://**PubAgentIP**:6443 --insecure-skip-tls-verify

Portworx 1.3.1-4.2.1

  • Install Portworx
    • Set node count to the quantity of nodes in your DC/OS cluster.
    • Enable etcd.
    • Enable Lighthouse.
  • Alternately, use the px-options.json to deploy by CLI
dcos package install portworx --package-version=1.3.1-4.2.1 --options=px-options.json
  • Install the Portworx CLI
dcos package install portworx --package-version=1.3.1-4.2.1 --cli --yes
  • Watch deployment progress
watch -n1 dcos portworx plan status deploy
  • Deploy Repoxy
dcos marathon app add repoxy.json

Portworx Lighthouse

  • Browse to http://Public Agent IP:9999
    • admin / Password1
  • If required, add the Portworx cluster by providing the IP address of any one of the nodes in the cluster.

Kubeflow (optional)

  • Install Kubeflow components on Kubernetes either independently, or on Kubernetes on DC/OS.

Install ksonnet (optional)

brew install ksonnet/tap/ks

HDFS / Hadoop

  • Deploy Portworx-hadoop on DC/OS for use with JupyterLab
dcos package install portworx-hadoop

JupyterLab 1.2.0-0.33.7

Access Jupyter

http://**Public Agent IP**:10104/jupyterlab-notebook/login
  • Password: jupyter

SparkPi Job

  • Once logged in to Jupyter, launch Terminal.
  • In another browser window, open http://Master IP/mesos/ and show Spark task that are about to be run.
  • Run the following Spark job:
eval spark-submit ${SPARK_OPTS} --verbose --class org.apache.spark.examples.SparkPi /opt/spark/examples/jars/spark-examples_2.11-2.2.1.jar 100
  • Highlight where the value of Pi is calculated, and the Spark teardown log messages.

SparkPi with Apache Toree

  • Launch the Apache Toree Scala kernel in a new notebook
  • Run the SparkPi example to compute Pi:
val NUM_SAMPLES = 10000000
val count2 = spark.sparkContext.parallelize(1 to NUM_SAMPLES).map{i =>
val x = Math.random()
val y = Math.random()
if (x*x + y*y < 1) 1 else 0
}.reduce(_ + _)

println("Pi is roughly " + 4.0 * count2 / NUM_SAMPLES)
  • click the Play button, observe the results.

TensorBoard

  • Access TensorBoard to show visualization via the UI: https://Public Agent ELB Address/jupyterlab-notebook/tensorboard/

MNIST TensorFlowOnSpark

  • In the JupyterLab Terminal, clone the following repository:
git clone https://github.com/yahoo/TensorFlowOnSpark
  • Retrieve and extract the raw MNIST dataset:
cd $MESOS_SANDBOX
curl -fsSL -O https://s3.amazonaws.com/vishnu-mohan/tensorflow/mnist/mnist.zip
unzip mnist.zip
  • Check HDFS to show the directory is empty:
hdfs dfs -ls  mnist/
  • Prepare the MNIST dataset:
eval spark-submit ${SPARK_OPTS} --verbose $(pwd)/TensorFlowOnSpark/examples/mnist/mnist_data_setup.py --output mnist/csv --format csv
  • Check the results of trained model on HDFS:
hdfs dfs -ls -R  mnist/
  • Train the MNIST model with CPUs from the Terminal:
eval spark-submit ${SPARK_OPTS} --verbose --conf spark.mesos.executor.docker.image=dcoslabs/dcos-jupyterlab:1.2.0-0.33.7 --py-files $(pwd)/TensorFlowOnSpark/examples/mnist/spark/mnist_dist.py $(pwd)/TensorFlowOnSpark/examples/mnist/spark/mnist_spark.py --cluster_size 5 --images mnist/csv/train/images --labels mnist/csv/train/labels --format csv --mode train --model mnist/mnist_csv_model
  • Check for the trained model on HDFS:
hdfs dfs -ls -R mnist/mnist_csv_model

Clean Up

  • Destroy the DC/OS cluster using Terraform:
terraform destroy -var-file desired_cluster_profile.tfvars
  • Remove all AWS EBS volumes via the AWS Management Console.
