Introduction

In a Kubernetes cluster we host several applications and we need an easy way to expose them. This can be done easily with Services. However when our applications start to increase or when we need more capabilities like configurable traffic routing, reverse proxy etc, then we can use an Ingress Controller.

There are several ingress controllers that can be used in a Kubernetes cluster (i.e. nginx, Traefik ), but in the case of AKS we have the option to use Azure Application Gateway V2 as an ingress controller (aka AGIC). There are several benefits of using AGIC, with most profound:

better performance (because eliminates the need of another Load Balancer and decreases the hops in the communication path)
Autoscalling capabilities without consuming resources from the AKS cluster
Web Application Firewall capabilities when WAF_v2 is enabled

AGIC integration in practice has some drawbacks though.

Downtime during deployments can happen (502 error codes) which can be minimized if you follow this How To Guide.
Tighter integration with PaaS services may increase the effort to deploy your workloads to other Kubernetes based clusters (other than AKS)

Native AKS ingress Controller behind Azure appGW

An alternative to the all or nothing approach (AGIC or just ingress controller) that can combine the advantages of both aforementioned approaches is to have your AKS workloads exposed internally through services or ingress controller (with internal load balancers, internal IPs). In front of them, we can place an appGW_v2 to expose the services we want to the public and on top of that we can of course enable WAF_v2 capabilities.

Both AKS Baseline Architecture and AKS Regulated cluster for PCI-DSS 3.2.1 reference architectures follow this pattern (and not AGIC). In the first case they use Traefik Ingress Controller while in the second architecture they use nginx. Both of them are internal behind an appGW_v2/WAF_v2.

Lab

To showcase the architecture we will spin up 4 different applications

aspnetapp (mcr.microsoft.com/dotnet/core/samples:aspnetapp)
echoserver (k8s.gcr.io/echoserver:1.4)
hello-world-one (mcr.microsoft.com/azuredocs/aks-helloworld:v1)
hello-world-two (mcr.microsoft.com/azuredocs/aks-helloworld:v1 with different content)

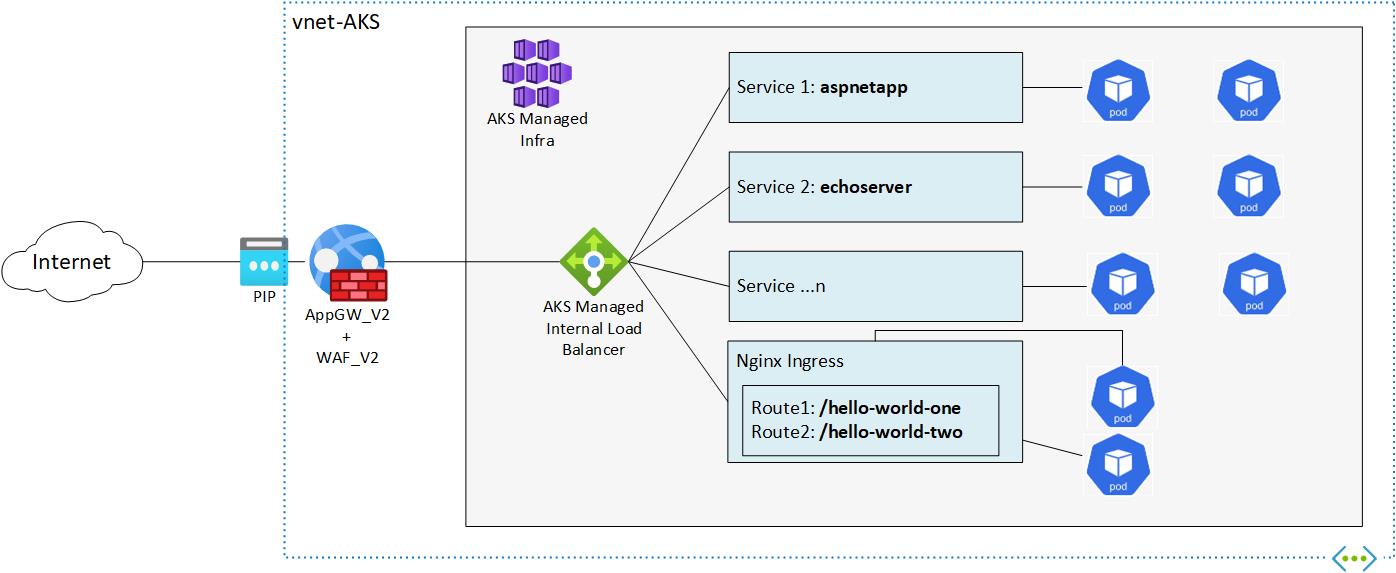

The aim is to have only one public IP (pip), the appGW's pip, with all four apps being exposed only internally, and published in three different FQDNs through the appGW

aspnetapp.theolabs.gr (aspnetapp)
echoserver.theolabs.gr (echoserve)
nginx.theolabs.gr (all routes of nginx controller, like /hello-world-one and /hello-world-two)

Prerequisites

AKS Cluster deployed into an existing Virtual Network / subnet (Kubenet or [CNI(https://docs.microsoft.com/en-us/azure/aks/configure-azure-cni#plan-ip-addressing-for-your-cluster)])
An extra subnet, or enough space on your Vnet to create a new subnet that will be used from AKS Services
An appGW_v2

Network configuration

For the lab's pupropses we have a virtual network called vnet-AKS with (huge) address space 10.4.0.0/16. We have at least two subnets

snet-appGW (10.4.0.0/24) for the Application Gateway
snet-aksNodes (10.4.1.0/24) for the AKS

Spin up aspnetapp

To expose a service external to AKS we need a yaml file like the following:

apiVersion: v1
kind: Service
metadata:
  name: aspnetapp
spec:
  type: LoadBalancer
  selector:
    app: aspnetapp
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80

if we deploy such a service, AKS will create a Public IP to expose the Service (using the external Azure Load Balancer).

Create Internal IP

In order to prevent that we can use the following annotation

service.beta.kubernetes.io/azure-load-balancer-internal: "true"

This annotation will instruct AKS to use (and create if not any yet available) an internal Load Balancer. The service will get an avaialbe Internal IP from the snet-aksNodes subnet.

We could use this internal IP as a backend pool in the AppGW to expose it to the public internet.

Pin internal IP of the Service

But what happens if you need to stop the Service and then redeploy it? This would cause an operation overhead. Most possibly the newly created service would get another internal IP, so we should change the Backend Pool IP of the AppGW. In order to achieve that we can use the following property loadBalancerIP: 10.4.1.101. So the new aspnetapp.yaml would be :

apiVersion: v1
kind: Pod
metadata:
  name: aspnetapp
  labels:
    app: aspnetapp
spec:
  containers:
  - image: "mcr.microsoft.com/dotnet/samples:aspnetapp"
    name: aspnetapp-image
    ports:
    - containerPort: 80
      protocol: TCP
---
apiVersion: v1
kind: Service
metadata:
  name: aspnetapp
  annotations:
    service.beta.kubernetes.io/azure-load-balancer-internal: "true"
spec:
  type: LoadBalancer
  loadBalancerIP: 10.4.1.101
  selector:
    app: aspnetapp
  ports:
  - protocol: TCP
    port: 80
    targetPort: 80

Spin up echoserver

The solution given for aspnetapp.yaml is ok, but can further be improved. The problem is that there could be cases that if we stop the aspnetapp service, and in the meanwhile other activities happen in the cluster (i.e. add a new node in the node pool) the pinned internal IP could potentially be reserved (i.e. foor the new node). To Solve that problem we can use a seperate network subnet. The subnet specified must be in the same virtual network as your AKS cluster. So we can define a third subnet snet-aksAppServices (10.4.10.0/24) and use the following annotation, as used in the echoserver.yaml:

service.beta.kubernetes.io/azure-load-balancer-internal-subnet: "snet-aksAppServices"

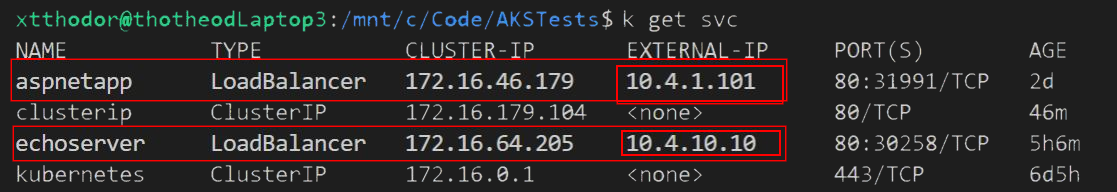

If we now deploy that yaml file ( kubectl apply -f ./workloads/echoserver.yaml ) we can see that the Service takes an Internal IP from the Address Space of the subnet snet-aksAppServices. We can pin that IP without the risk of getting conflicts with other services or nodes that dynamically get an IP from the snet-aksNodes subnet.

Create nginx controller

To create an ingress controller in AKS you can follow this documentation. The simplest way by running the following CLI commands

NAMESPACE=ingress-basic

helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx
helm repo update

helm install ingress-nginx ingress-nginx/ingress-nginx \
  --create-namespace \
  --namespace $NAMESPACE \
  --set controller.service.annotations."service\.beta\.kubernetes\.io/azure-load-balancer-health-probe-request-path"=/healthz

The above commands will create an nginx controller in namespace ingress-basic with a Public IP. Our aim in this PoC is to have all services internal.

Make nginx controller internal

To do that for ingress controller we need to create a yaml file with the following content (i.e. internal-ingress.yaml):

controller:
  service:
    loadBalancerIP: 10.4.10.100
    annotations:
      service.beta.kubernetes.io/azure-load-balancer-internal: "true"
      service.beta.kubernetes.io/azure-load-balancer-internal-subnet: "snet-aksAppServices"

Then update the ingress controller with the command:

helm upgrade ingress-nginx ingress-nginx/ingress-nginx \
  --create-namespace \
  --namespace $NAMESPACE \
  --set controller.service.annotations."service\.beta\.kubernetes\.io/azure-load-balancer-health-probe-request-path"=/healthz \
  -f ./workloads/internal-ingress.yaml

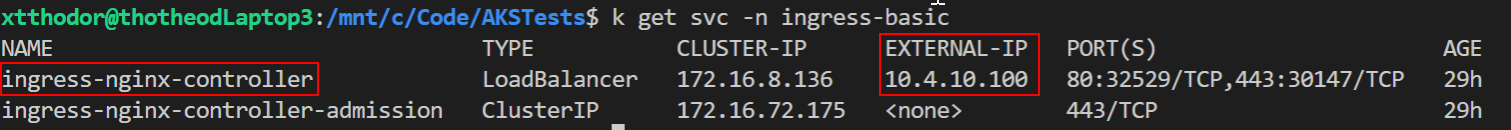

This will now create an internal IP (10.4.10.100) in the seperate "services" subnet, as shown below

Deploy HelloWorld samples with Ingress Routes (on specific namespace)

Reminder: For Ingress to be fully functional we need two seperate things. The first is the Ingress Controller which usually is deployed in a seperate namespace (i.e. ingress-basic). The second resource we need is the Ingress Rules (kind: Ingress) which should be deployed in the namespace of the apps they support.

Any application that we plan to deploy behind an ingress controller needs a service of type ClusterIP This means that the IP the Service will get is not taken from the AKS virtual network but from the internal serviceCidr (Bicep temaplate or sample AKS with kubenet Repo)

We deploy the two apps (helloWorldIngress1.yaml, helloWorldIngress2.yaml) and the ingress routes (ingressRoutes.yaml) with the following commands in the helloapp namespace.

kubectl apply -f ./workloads/helloWorldIngress1.yaml -n helloapp
kubectl apply -f ./workloads/helloWorldIngress2.yaml -n helloapp
kubectl apply -f ./workloads/ingressRoutes.yaml -n helloapp

Test that ingress is working correctly

Since nginx is exposed in an internal IP, to test if the routes work as expected, we need to check either from a VM that has access to that internal network, or we can start a test pod as decribed below:

kubectl run -it --rm aks-ssh --image=debian
apt-get update -y && apt-get install dnsutils -y && apt-get install curl -y
# After the packages are installed, test the connectivity to the ingress service:
curl -Iv http://10.4.10.100//hello-world-one
curl -Iv http://10.4.10.100//hello-world-two

Expose through AppGW

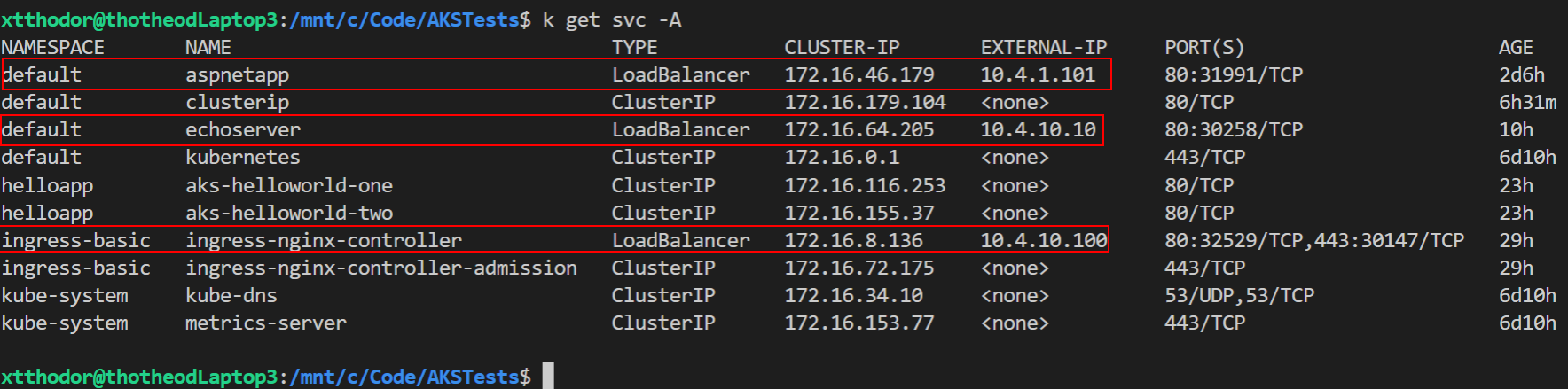

We have 4 apps, exposed through two LoadBalancer Services and one nginx service. These three services (as depicted below) are going to be our AppGW BackendPools.

Configure Backend pools

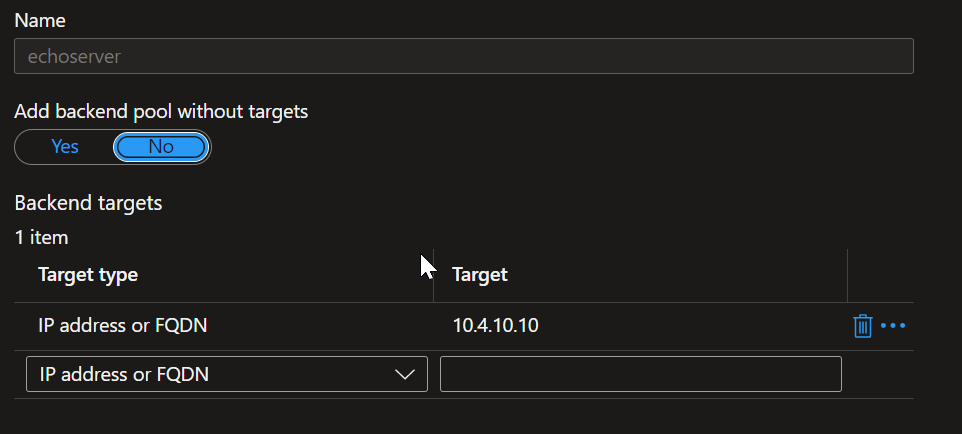

We need to create three backend pools (i.e. named echoserver, aspnetApp, nginx) each one pointing to the respective internal IP, below is an example of the backend echoserver

Configure Listeners

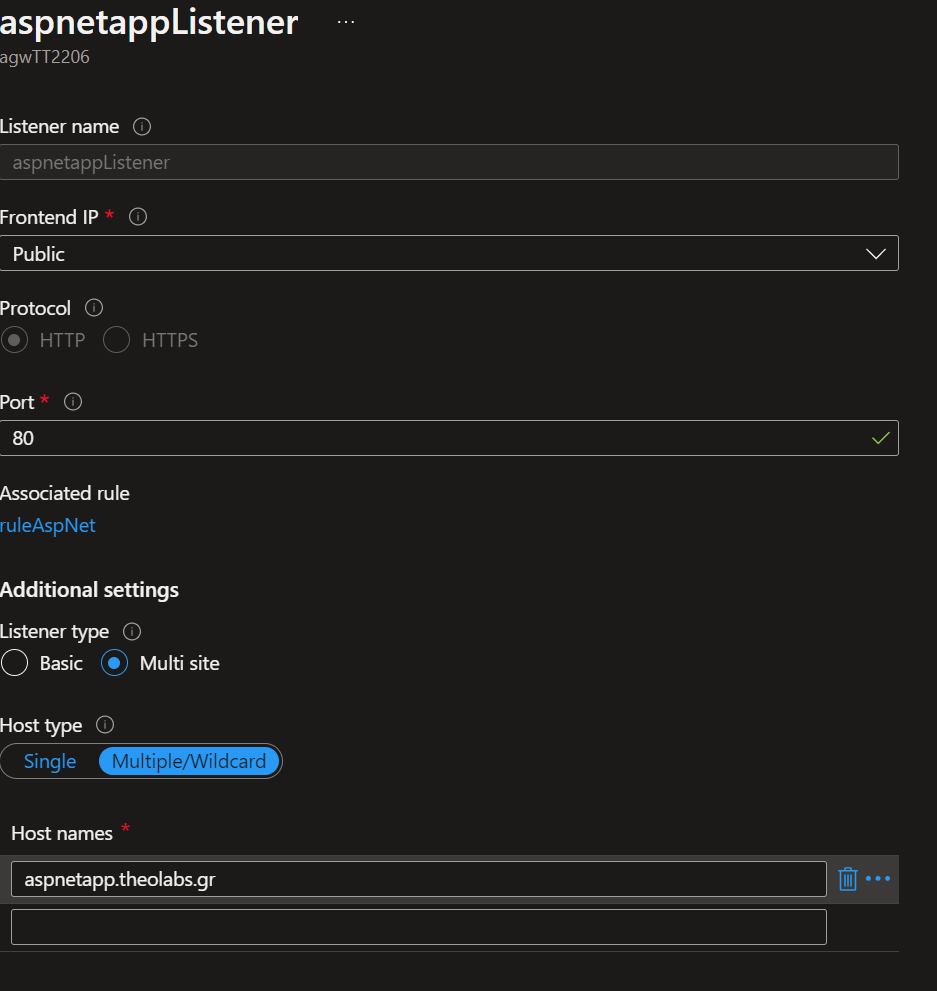

We need to create three different multi-site listeners. We cannot have multiple listeners in the same port, unless they are of type Multi Site where we need to define the host name of the site they are serving (ie aspnetapp.theolabs.gr, echoserver.theolabs.gr, nginx.theolabs.gr) Below is depicted an example of aspnetappListener

Bind them all together - Configure Rules

Then we just need to create three rules (one for every app) that will bind each Listener with the respective Backend pool.

If we used valid FQDNs (or test locally with entries into hosts file) then all the four apps can be accessed through the one Public IP of the AppGW:
