virtualmo/panw-nutanix-doctor

panw-nutanix-doctor

panw-nutanix-doctor.py is a tool that allows Palo Alto Network Panorama to Dynamically Quarantine Infected Guests On Nutanix environment.

The workflow that panw-nutanix-doctor will take to Dynamically Quarantine Infected Guests is:

1. Source machine initiates malicious traffic.
2. Palo Alto Networks NGFW detects malicious activity.
3. Palo Alto Networks NGFW share logs with Panorama.
4. Panorama initiates API calls via HTTP profile to the panw-nutanix-doctor middleware. The API call from Panorama will include the IP address of the infected workload.
5. Using the IP address, The panw-nutanix-doctor resolves all the relevant information from Nutanix PRISM (I.e., workload UUID and spec) and attach quarantine category and value (For example, quarantine:Strict)
6. The infected workload will be isolated and will not be able to initiate or receive any packet.

Workflow Diagram:

Prerequisites

1. Python3
2. The following python modules (see requirements.txt)
   • requests
   • flask
   • flask_restful

Installation

$ git clone https://github.com/mohanadelamin/panw-nutanix-doctor.git
$ cd panw-nutanix-doctor
$ pip3 install -r requirements.txt

Configuration

panw-nutanix-doctor machine configuration

1. In home directry create new folder on the home directory

   $ mkdir ~/panw-nutanix-doctor


2. Create new file named .doctor.config

   $ vim .doctor.conf


3. Add the following to the .doctor.config file

   [doctor_config]
   USER=
   PASS=
   PRISM=
   CERT_PATH=
   KEY_PATH=
   PORT=
   DEBUG=


4. Fill the config file above with the required information:

• Mandatory fields
  • USER: PRISM username
  • PASS: PRISM password
  • PRISM= PRISM IP address
• Optional fields
  • CERT_PATH: add the certificate file path if the connection from panorama need to be over SSL.
  • KEY_PATH: add the key file path if the connection from panorama need to be over SSL.
  • PORT: add the port in which panw-nutanix-doctor will listen. (Default is 80 or 443 if SSL is required)
  • LENGTH: number of vms to be pulled by the API. Default is 100
  • DEBUG: allowed values are "yes" or "no".

Palo Alto Networks Panorama configuration

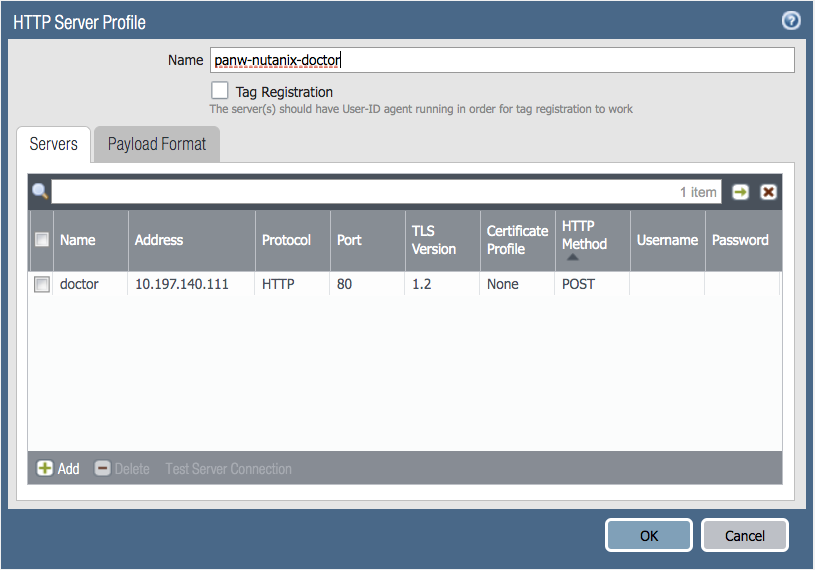

Step 1: Configure HTTP profile on panorama to send API Calls to panw-nutanix-doctor

1. Select Panorama > Server Profiles > HTTP and Add a new HTTP Server Profile.
2. Enter a descriptive Name
3. Select Add to provide the details of panw-nutanix-doctor Manager.
4. Enter a Name for panw-nutanix-doctor.
5. Enter the IP Address of the panw-nutanix-doctor.
6. Select the Protocol (HTTP or HTTPS). The default Port is 80 or 443 respectively.
7. Select POST under the HTTP Method column.

Example:fusion

8. Select Payload Format and select the log type Threat.
9. Add a descriptive Name
10. In the URI section add "/api/nutanix
11. In the Payload section enter ** {"ip": "$src", "category": "Quarantine", "value": "Default"} **
12. Click Ok

Example:

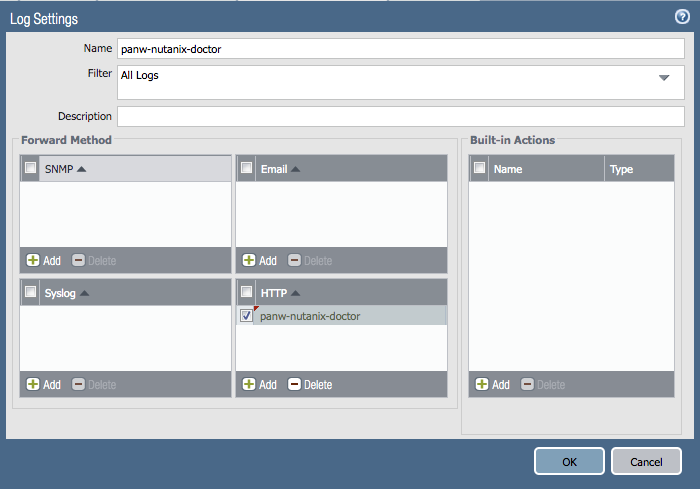

Step 2: Define the match criteria for when Panorama will trigger the API call to panw-nutanix-doctor, and attach the HTTP profile.

1. Select Panorama > Collector Groups > Collector Log Forwarding for Threat or Traffic logs.
2. On the Threat section click Add
3. Add a descriptive Name
4. Click Add on the HTTP section
5. Select the HTTP profile.
6. Click Ok

Example:

Running

1. Login to the panw-nutanix-doctor machine
2. Run the script

$ python3 panw-nutanix-doctor.py

Disclaimer

panw-nutanix-doctor is for illustrative purposes only. This software is supplied "AS IS" without any warranties and support.
