Go Clean Architecture with gRPC

Install Visual Studio Code extensions

code --install-extension esbenp.prettier-vscode
code --install-extension foxundermoon.shell-format
code --install-extension golang.go
code --install-extension matt-meyers.vscode-dbml
code --install-extension mtxr.sqltools
code --install-extension zxh404.vscode-proto3

Schema Generation by `dbdocs` and `dbml2sql`

Create the db.dbml in to decouple the design from a specific database. Then run dbdocs and dbml2sql to generate the docs and schema.sql boilerplate, we'll choose Postgres.

# Install nvs.
export NVS_HOME="$HOME/.local/share/nvs"
git clone https://github.com/jasongin/nvs "$NVS_HOME"
. "$NVS_HOME/nvs.sh" install

# Install node lts.
nvs add lts
nvs use lts

npm install -g dbdocs
dbdocs login
dbdocs build docs/db.dbml
dbdocs password —set secret —project go_clean_arch

npm install -g @dbml/cli
dbml2sql --postgres -o docs/schemal.sql docs/db.dbml

Install Docker and PostgresSQL image.

# Install Docker.
brew install docker

# Run Docker app so that we can access the `docker` command.

# Pull the PostgresSQL image.
docker pull postgres:15.2-alpine

# Check the downloaded image.
docker images

Run a Docker container using the official PostgresSQL image.

Creates and runs a Docker container with the name postgres, using the official postgres:15-alpine Docker image. The container is started as a background process (-d flag) and is mapped to port 5432 of the host machine (-p 127.0.0.1:5432:5432/tcp flag), which is the default port for PostgreSQL.

The container is also configured with the environment variables POSTGRES_USER and POSTGRES_PASSWORD, which set the default username and password for the PostgreSQL database. In this case, the username is set to root and the password is set to password.

docker run --name postgres \
  -p 127.0.0.1:5432:5432/tcp \
  -e POSTGRES_USER=root \
  -e POSTGRES_PASSWORD=password \
  -d postgres:15.2-alpine

# Enter the Postgres shell.
docker exec -it postgres psql -U root

# Try the following query in the shell.
SELECT now();

Install TablePlus

# Install TablePlus.
brew install tableplus

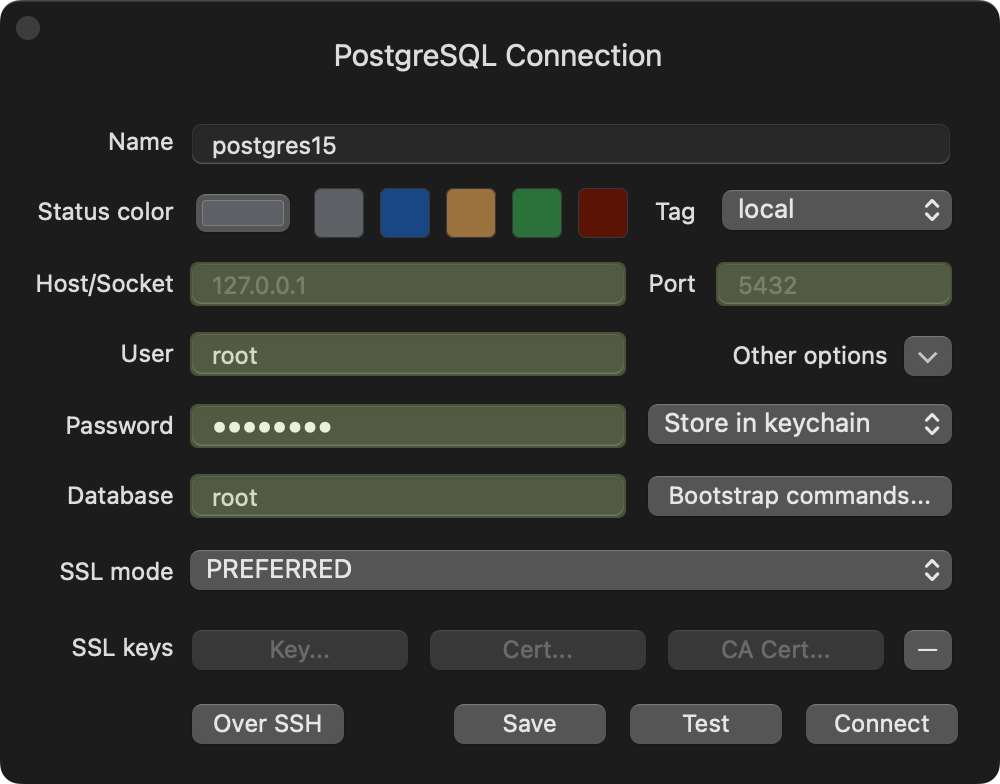

Connect to Postgres with the setting

Database Migration

# Install `migrate` command.
brew install golang-migrate

# Check the installed `migrate` command.
migrate --version

# Create the db migration directory.
mkdir -p db/migration

# Create the first migration script.
migrate create -ext sql -dir internal/db/migration -seq init_schema

Now, create a Makefile to save time and run the following:

# Run a PostgreSQL container.
make postgres

# Create a DB called "microservice" in this clean architecture.
make createdb

# Migrate up to create tables in the DB.
make migrateup

Codegen via sqlc

# Install sqlc.
brew install sqlc

# Check the installed sqlc.
sqlc version

Initialize sqlc.yaml and copy the initial config from Getting started with PostgreSQL with some modifications.

sqlc init

Add the queries in user.sql, then make sqlc to codegen.

# Codegen.
make sqlc

# Eliminate red lines inside `./internal/repository/user.sql.go`.
go mod init github.com/walkccc/go-clean-arch

Install gRPC for Go

# Install protobuf
brew install protobuf

go install google.golang.org/protobuf/cmd/protoc-gen-go@v1.28
go install google.golang.org/grpc/cmd/protoc-gen-go-grpc@v1.2

Add "protoc": { "options": ["--proto_path=proto"] }, to ~/Library/Application Support/Code/User/settings.json to eliminate red lines.

# Generate gRPC code.
make proto

# Download required packages.
go mod tidy

Install Evans to test gRPC

# Install evans.
brew tap ktr0731/evans
brew install evans

# Start evans REPL.
make evans

Install GoMock.

# Install mockgen.
go install github.com/golang/mock/mockgen@v1.6.0

# Export the Go path.
# Add "export PATH=$PATH:~/go/bin" in your .zshrc or .bashrc

# Check the installed mockgen.
which mockgen

Serve HTTP request with gRPC-Gateway

Add required protos from googleapis/google/api
Add required tools
Update annotation in microservice.proto

make proto

Create Docker image

# Creates a Docker image with the name "microservice" and the tag "latest" using
# the Dockerfile in the current directory.
docker build -t microservice:latest .

Create Docker Compose

docker-compose.yaml defines two services: postgres and api.

The postgres service sets up a PostgreSQL database container with some environment variables and a healthcheck.
The api service builds a container from the Dockerfile, sets an environment variable with the database connection string (which will be used in start.sh), and depends on the postgres service to be healthy before starting up.

When you run docker compose up, Docker Compose starts up the containers for both services, with the api service waiting for the postgres service to be ready before starting.

# Make the start.sh file executable so that it can be run in Docker container.
chmod +x start.sh

# Start up all the services defined in a Docker Compose file.
docker compose up

Deployment

To deploy to AWS, please read AWS deployment

walkccc/go-clean-arch
